Models for Binary Outcomes

Logistic regression and variations

Published

Last modified: 2026-11-12: 8:46:54 (UTC)

Configuring R

Functions from these packages will be used throughout this document:

Show R code

library(conflicted) # check for conflicting function definitions
# printr is not loaded here: it inserts help-file output into markdown output
library(rmarkdown) # Convert R Markdown documents into a variety of formats.
library(pander) # format tables for markdown
library(ggplot2) # graphics
library(ggfortify) # help with graphics
library(dplyr) # manipulate data
library(tibble) # `tibble`s extend `data.frame`s
library(magrittr) # `%>%` and other additional piping tools
library(haven) # import Stata files
library(knitr) # format R output for markdown
library(tidyr) # Tools to help to create tidy data
library(plotly) # interactive graphics
library(dobson) # datasets from Dobson and Barnett 2018
library(parameters) # format model output tables for markdown
library(haven) # import Stata files
library(latex2exp) # use LaTeX in R code (for figures and tables)
library(fs) # filesystem path manipulations
library(survival) # survival analysis
library(survminer) # survival analysis graphics
library(KMsurv) # datasets from Klein and Moeschberger
library(parameters) # format model output tables for
library(webshot2) # convert interactive content to static for pdf
library(forcats) # functions for categorical variables ("factors")
library(stringr) # functions for dealing with strings
library(lubridate) # functions for dealing with dates and times
# Summarizes key information about statistical objects in tidy tibbles
library(broom)
# Provides suite of functions to work with regression model
# `broom::tidy()` tibbles
library(broom.helpers)

Here are some R settings I use in this document:

Show R code

rm(list = ls()) # delete any data that's already loaded into R

conflicts_prefer(dplyr::filter)
ggplot2::theme_set(
  ggplot2::theme_bw() +
    # ggplot2::labs(col = "") +
    ggplot2::theme(
      legend.position = "bottom",
      text = ggplot2::element_text(size = 12, family = "serif")
    )
)

knitr::opts_chunk$set(message = FALSE)
options(digits = 6)

panderOptions("big.mark", ",")
pander::panderOptions("table.emphasize.rownames", FALSE)
pander::panderOptions("table.split.table", Inf)
# use the `filter()` function from dplyr() by default
conflicts_prefer(dplyr::filter)
legend_text_size <- 9
run_graphs <- TRUE

Show R code

options(digits = 6)

Acknowledgements

This content is adapted from:

Dobson and Barnett [1], Chapter 7
Vittinghoff et al. [2], Chapter 5
David Rocke’s materials from the 2021 edition of Epi 204
Nahhas [3] Chapter 6

1 Introduction

Exercise 1

Exercise 1 What is logistic regression?

Solution 1

Solution 1. See Definition 1.

Definition 1 (Logistic regression model)

Definition 1 (Logistic regression model) Logistic regression is a framework for modeling binary outcomes, conditional on one or more predictors (also called covariates).

Exercise 2 (Examples of binary outcomes)

Exercise 2 (Examples of binary outcomes) What are some examples of binary outcomes in the health sciences?

Solution 2

Solution 2. Examples of binary outcomes include:

exposure (exposed vs unexposed)
disease (diseased vs healthy)
recovery (recovered vs unrecovered)
relapse (relapse vs remission)
return to hospital (returned vs not)
vital status (dead vs alive)

Logistic regression uses the Bernoulli distribution to model the outcome variable, conditional on one or more covariates.

Exercise 3

Exercise 3 Write down a mathematical definition of the Bernoulli distribution.

Solution 3

Solution 3. The Bernoulli distribution family for a random variable $X$ is defined as:

\[ \begin{aligned} \Pr(X=x) &\stackrel{\text{def}}{=}\text{1}_{x\in {\mathopen{}\left\{0,1\right\}\mathclose{}}}\pi^x(1-\pi)^{1-x}\\ &= \begin{cases} \pi, & x=1\\ 1-\pi, & x=0 \end{cases} \end{aligned} \]

1.0.1 Logistic regression versus linear regression

Logistic regression differs from linear regression, which uses the Gaussian (“normal”) distribution to model the outcome variable, conditional on the covariates.

Exercise 4

Exercise 4 Recall: what kinds of outcomes is linear regression used for?

Solution 4

Solution 4. Linear regression is typically used for numerical outcomes that aren’t event counts or waiting times for an event.

Examples of outcomes that are often analyzed using linear regression include:

weight
height
income
prices

This chapter assumes familiarity with the measures of association for binary outcomes — risks, risk differences and ratios, odds, odds ratios, and the logit and expit functions — which are reviewed in Measures of Association for Binary Outcomes.

2 Introduction to logistic regression

Video lecture

David Rocke’s Epi 204 lecture Introduction to Logistic Regression (slides) continues from risks and odds ratios to generalized linear models, the logit link, and fitting and interpreting logistic regression models in R [4].

Video tutorial

Josh Starmer’s StatQuest video StatQuest: Logistic Regression gives a visual overview of logistic regression: modeling the probability of a binary outcome, and fitting the model by maximum likelihood rather than least squares [5].

Video lecture

Richard McElreath’s Modeling Events (Statistical Rethinking 2026, Lecture A09) accompanies Chapters 10 and 11 of McElreath [6], which cover generalized linear models for binary and count outcomes. The lecture fits these models using Bayesian inference rather than the maximum likelihood estimation used in this chapter [7].

In the OC-MI example, we estimated the risk and the odds of MI for two groups, defined by oral contraceptive use.
If the predictor is quantitative (dose) or there is more than one predictor, the task becomes more difficult.
In this case, we will use logistic regression, which is a generalization of the linear regression models you have been using that can account for a binary response instead of a continuous one.

2.0.1 Independent binary outcomes - general

Exercise 5

Exercise 5 Let $\mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{y}}\vphantom{y}}$ represent a data set of mutually independent binary outcomes, each with a potentially different event probability $\pi_i$:

\[ \begin{aligned} \mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{y}}\vphantom{y}}&= (y_1, ..., y_n) \\ y_i &\ \sim_{\perp\!\!\!\perp}\ \operatorname{Ber}(\pi_i) \end{aligned} \]

Derive the likelihood of $\mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{y}}\vphantom{y}}$.

Solution 5

Solution 5. \[ \begin{aligned} {\color{red}{\pi_i}} &\stackrel{\text{def}}{=}\mathbb{P}(Y_i=1) \\ \mathbb{P}(Y_i=0) &= 1-{\color{red}{\pi_i}} \\ \mathbb{P}(Y_i=y_i) &= \mathbb{P}(Y_i=1)^{y_i} \mathbb{P}(Y_i=0)^{1-y_i} \\ &= (\pi_i)^{y_i} (1-\pi_i)^{1-y_i} \\ {\color{red}{\mathcal{L}_i(\pi_i)}} &\stackrel{\text{def}}{=}\mathbb{P}(Y_i=y_i) \\ \mathcal{L}(\mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{\pi}}\vphantom{\pi}}) &\stackrel{\text{def}}{=}\mathbb{P}(Y_1=y_1, \ldots, Y_n = y_n) \\ &= \prod_{i=1}^n\mathbb{P}(Y_i=y_i) \\ &= \prod_{i=1}^n{\color{red}{\mathcal{L}_i(\pi_i)}} \\ &= \prod_{i=1}^n(\pi_i)^{y_i} (1-\pi_i)^{1-y_i} \end{aligned} \]

Theorem 1 (Likelihood of independent binary outcomes)

Theorem 1 (Likelihood of independent binary outcomes) Let $\mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{y}}\vphantom{y}}= (y_1, ..., y_n)$ be a data set of mutually independent binary outcomes, $y_i \ \sim_{\perp\!\!\!\perp}\ \operatorname{Ber}(\pi_i)$, each with a potentially different event probability $\pi_i$. Then the likelihood of $\mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{y}}\vphantom{y}}$ is:

\[\mathcal{L}(\mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{\pi}}\vphantom{\pi}}) = \prod_{i=1}^n(\pi_i)^{y_i} (1-\pi_i)^{1-y_i}\]

Proof

Proof. This proof is the solution to Exercise 5, worked in Solution 5.

Example 1 (Likelihood of three binary outcomes)

Example 1 (Likelihood of three binary outcomes) Suppose $\mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{y}}\vphantom{y}}= (1, 0, 1)$ with event probabilities $\mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{\pi}}\vphantom{\pi}}= (0.8, 0.3, 0.6)$. The code below computes the likelihood from the formula of Theorem 1, and as the product of the three Bernoulli probabilities from dbinom():

Show R code

ex_y <- c(1, 0, 1)
ex_pi <- c(0.8, 0.3, 0.6)
ex_lik_formula <- prod(ex_pi^ex_y * (1 - ex_pi)^(1 - ex_y))
ex_lik_dbinom <- prod(dbinom(ex_y, size = 1, prob = ex_pi))

The formula gives 0.336 and dbinom() gives 0.336, so the two agree.

Exercise 6

Exercise 6 Derive the log-likelihood of $\mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{y}}\vphantom{y}}$.

Solution 6

Solution 6. \[ \begin{aligned} \ell(\mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{\pi}}\vphantom{\pi}}) &\stackrel{\text{def}}{=}{\operatorname{log}\mathopen{}\left\{\mathcal{L}(\mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{\pi}}\vphantom{\pi}})\right\}\mathclose{}} \\ &= {\operatorname{log}\mathopen{}\left\{\prod_{i=1}^n\mathcal{L}_i(\pi_i)\right\}\mathclose{}} \\ &= \sum_{i=1}^n{\operatorname{log}\mathopen{}\left\{\mathcal{L}_i(\pi_i)\right\}\mathclose{}} \\ &= \sum_{i=1}^n\ell_i(\pi_i) \\ \ell_i(\pi_i) &\stackrel{\text{def}}{=}{\operatorname{log}\mathopen{}\left\{\mathcal{L}_i(\pi_i)\right\}\mathclose{}} \\ &= y_i {\operatorname{log}\mathopen{}\left\{\pi_i\right\}\mathclose{}} + (1-y_i) {\operatorname{log}\mathopen{}\left\{1-\pi_i\right\}\mathclose{}} \end{aligned} \]

Theorem 2 (Log-likelihood of independent binary outcomes)

Theorem 2 (Log-likelihood of independent binary outcomes) Under the assumptions of Theorem 1, the log-likelihood of $\mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{y}}\vphantom{y}}$ is:

\[ \ell(\mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{\pi}}\vphantom{\pi}}) = \sum_{i=1}^n\ell_i(\pi_i) = \sum_{i=1}^n\mathopen{}\left(y_i {\operatorname{log}\mathopen{}\left\{\pi_i\right\}\mathclose{}} + (1-y_i) {\operatorname{log}\mathopen{}\left\{1-\pi_i\right\}\mathclose{}}\right)\mathclose{} \]

Proof

Proof. This proof is the solution to Exercise 6, worked in Solution 6.

Example 2 (Log-likelihood of three binary outcomes)

Example 2 (Log-likelihood of three binary outcomes) Take $\mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{y}}\vphantom{y}}$ and $\mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{\pi}}\vphantom{\pi}}$ from Example 1. The code below computes the log-likelihood from the formula of Theorem 2, and as the logarithm of the likelihood:

Show R code

ex_y <- c(1, 0, 1)
ex_pi <- c(0.8, 0.3, 0.6)
ex_llik_formula <- sum(ex_y * log(ex_pi) + (1 - ex_y) * log(1 - ex_pi))
ex_llik_log <- log(prod(ex_pi^ex_y * (1 - ex_pi)^(1 - ex_y)))

The formula gives -1.0906 and the logarithm of the likelihood is -1.0906, so the two agree.

2.0.2 Modeling $\pi_i$ as a function of $X_i$

If there are only a few distinct $X_i$ values, we can model $\pi_i$ separately for each value of $X_i$.

Otherwise, we need regression.

\[ \begin{aligned} \pi(x) &\equiv \text{E}(Y=1|X=x)\\ &= f({x}^{\top}\beta) \end{aligned} \]

Typically, we use the $\operatorname{expit}$ inverse-link:

\[\pi(\mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{x}}\vphantom{x}}) = \operatorname{expit}(\mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{x}}\vphantom{x}}'\beta) \tag{1}\]

2.0.3 Meet the beetles

Show R code


library(glmx)
library(dplyr)
data(BeetleMortality, package = "glmx")
beetles <- BeetleMortality |>
  mutate(
    pct = died / n,
    survived = n - died,
    dose_c = dose - mean(dose)
  )
beetles

Table 1: Mortality rates of adult flour beetles after five hours’ exposure to gaseous carbon disulphide [8]. The dose column holds the base-10 logarithm of the dose in mg/L, and the models use it as is; the figures show the dose itself, in mg/L, on a log-spaced axis.

Show R code

library(ggplot2)
plot1 <-
  beetles |>
  ggplot(aes(x = 10^dose, y = pct)) +
  geom_point(aes(size = n)) +
  scale_x_log10(breaks = c(40, 50, 60, 70, 80, 100)) +
  xlab("Dose of CS2 (mg/L)") +
  ylab("Mortality rate (%)") +
  scale_y_continuous(labels = scales::percent) +
  scale_size(range = c(1, 2)) +
  theme_bw(base_size = 18)

print(plot1)

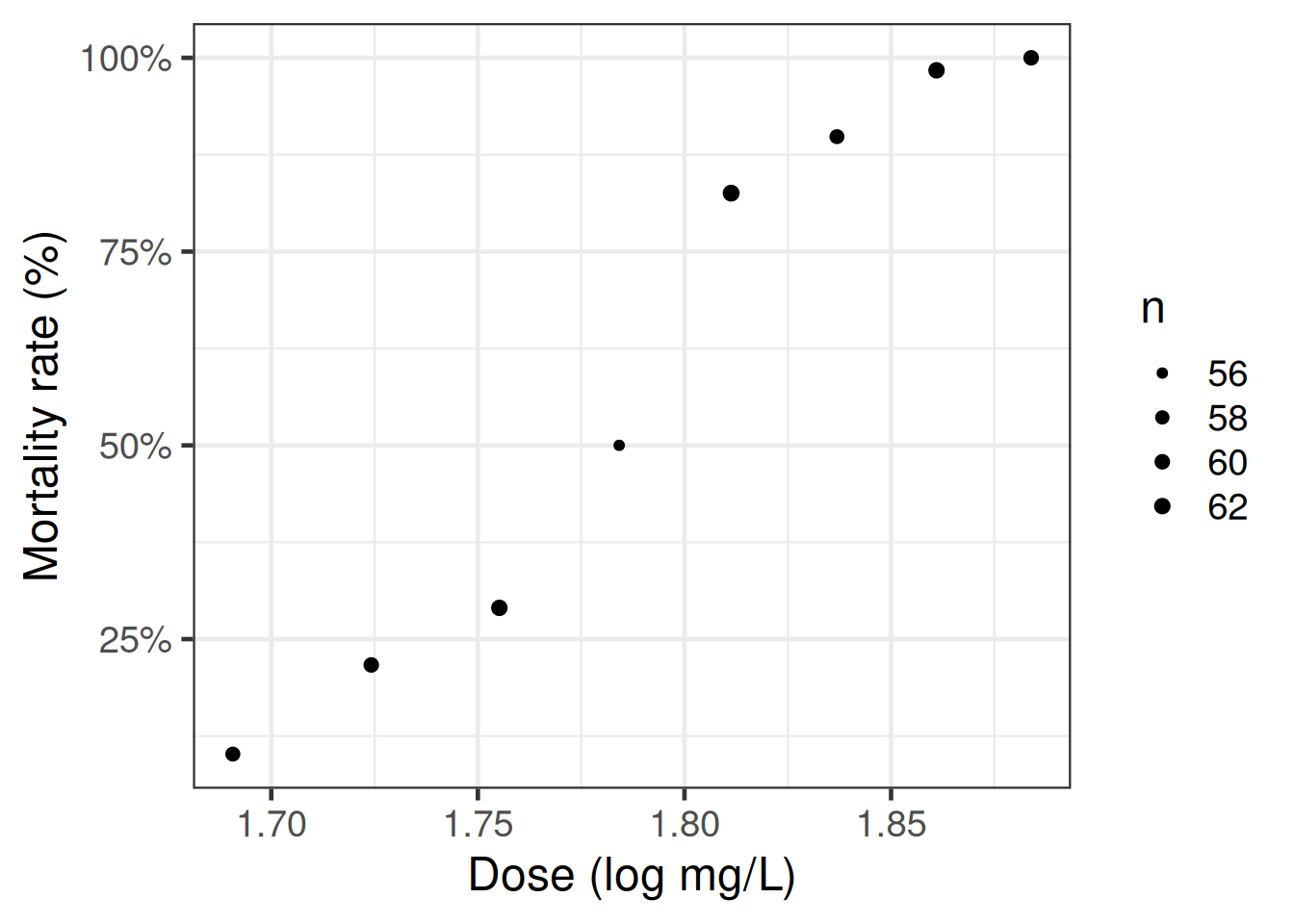

Figure 1: Mortality rates of adult flour beetles after five hours’ exposure to gaseous carbon disulphide [8]

2.0.4 Why don’t we use linear regression?

Show R code

beetles_long <- beetles |>
  reframe(
    .by = everything(),
    outcome = c(
      rep(1, times = died),
      rep(0, times = survived)
    )
  ) |>
  as_tibble()

# `dose` is log10 of the dose in mg/L, and the models use it as is;
# the plot functions take mg/L and convert:
lm1 <- beetles_long |> lm(formula = outcome ~ dose)
f_linear <- function(x) predict(lm1, newdata = data.frame(dose = log10(x)))

plot2 <-
  plot1 +
  geom_function(
    fun = f_linear,
    aes(col = "Straight line")
  ) +
  labs(colour = "Model", size = "")

plot2 |> print()

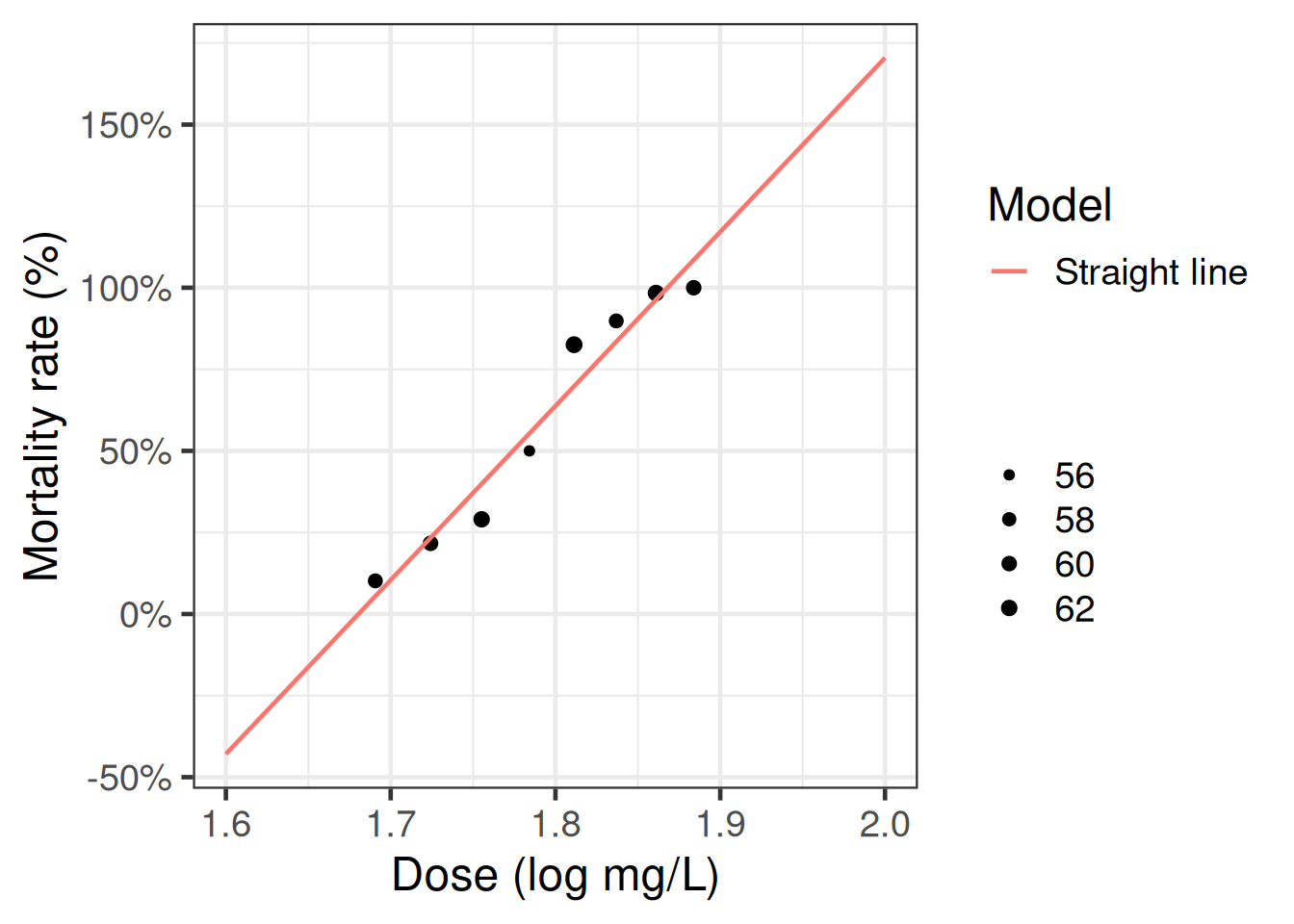

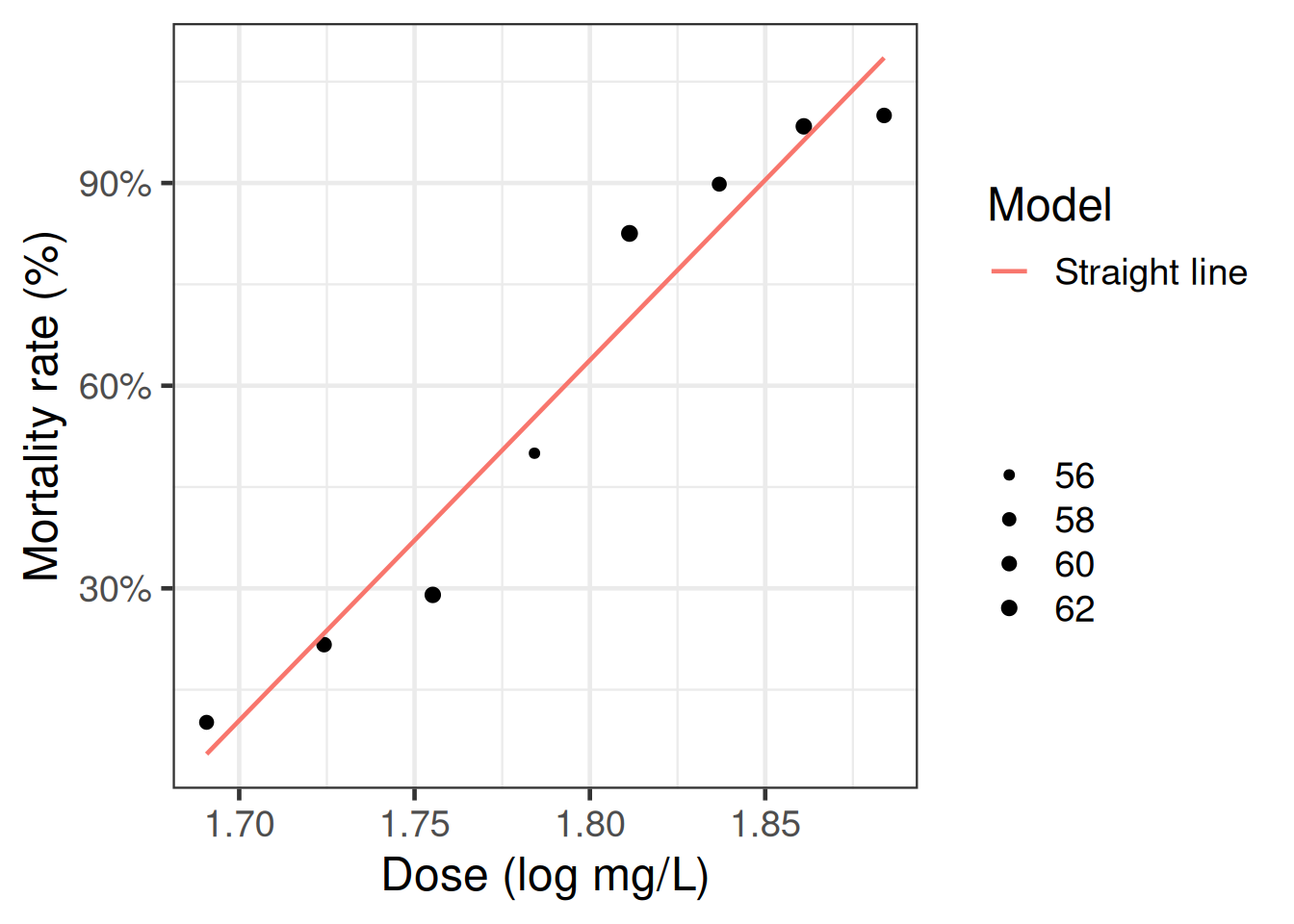

Figure 2: Mortality rates of adult flour beetles after five hours’ exposure to gaseous carbon disulphide [8]

2.0.5 Zoom out

Show R code

(plot2 + expand_limits(x = c(40, 100))) |> print()

Figure 3: Mortality rates of adult flour beetles after five hours’ exposure to gaseous carbon disulphide [8]

2.0.6 log transformation of dose?

Show R code

lm2 <- beetles_long |> lm(formula = outcome ~ log(dose))
f_linearlog <- function(x) predict(lm2, newdata = data.frame(dose = log10(x)))

plot3 <- plot2 +
  expand_limits(x = c(40, 100)) +
  geom_function(fun = f_linearlog, aes(col = "Log-transform dose"))
(plot3 + expand_limits(x = c(40, 100))) |> print()

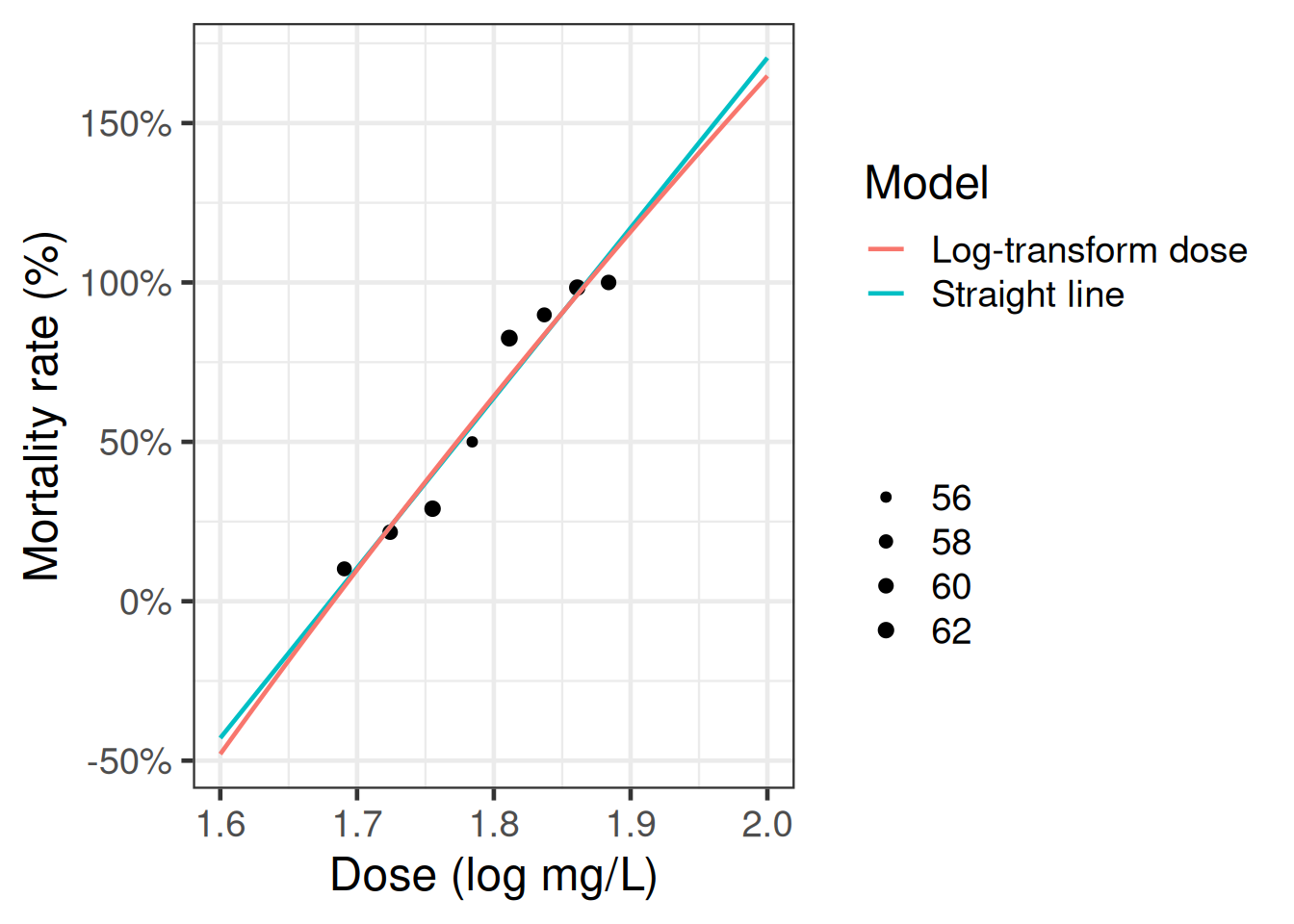

Figure 4: Mortality rates of adult flour beetles after five hours’ exposure to gaseous carbon disulphide [8]

2.0.7 Logistic regression

Show R code

beetles_glm_grouped <- beetles |>
  glm(formula = cbind(died, survived) ~ dose, family = "binomial")
f <- function(x) {
  beetles_glm_grouped |>
    predict(newdata = data.frame(dose = log10(x)), type = "response")
}

plot4 <- plot3 + geom_function(fun = f, aes(col = "Logistic regression"))
plot4 |> print()

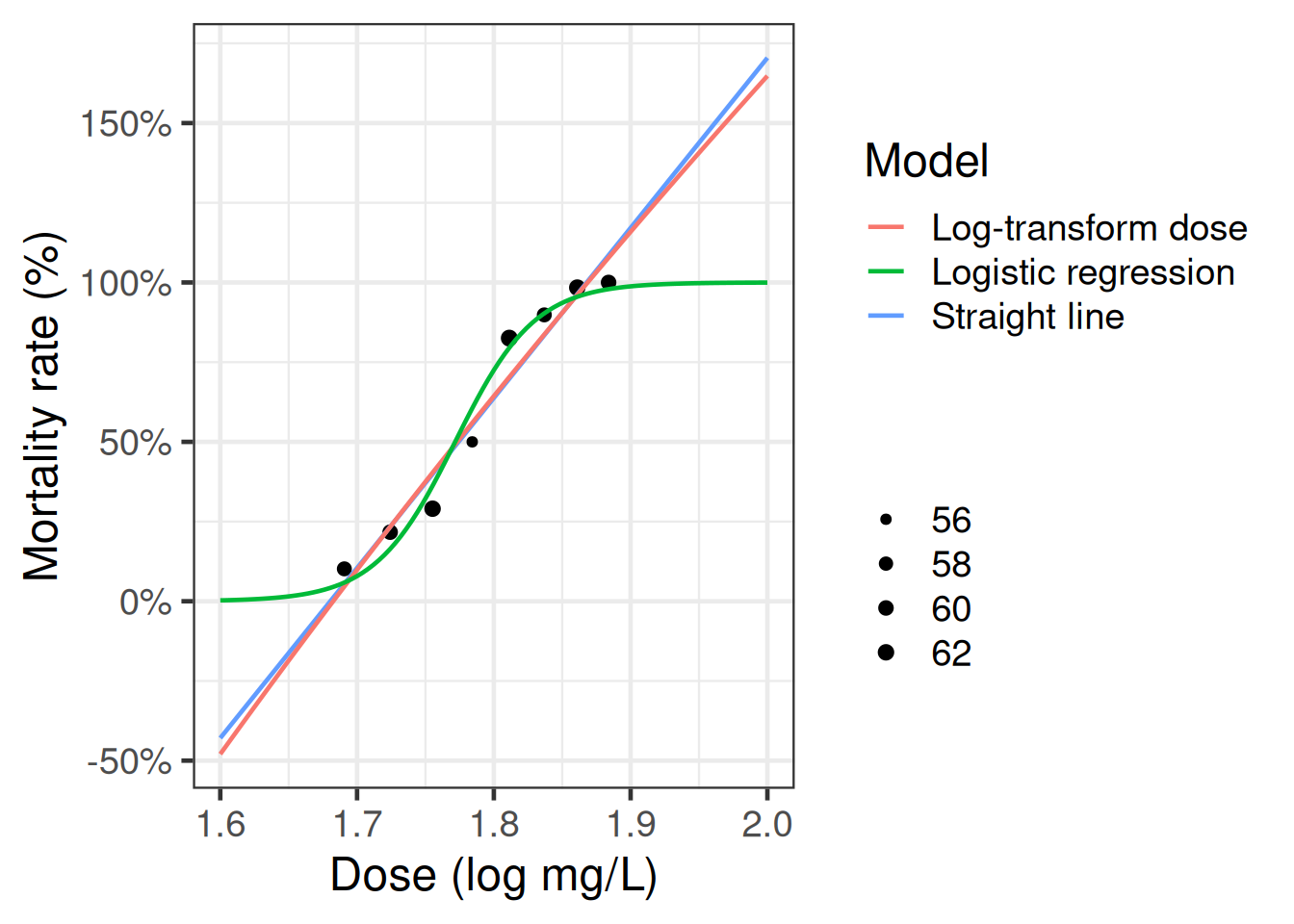

Figure 5: Mortality rates of adult flour beetles after five hours’ exposure to gaseous carbon disulphide [8].

2.0.8 Three parts to regression models

What distribution does the outcome have for a specific subpopulation defined by covariates? (outcome model)
How does the combination of covariates relate to the mean? (link function)
How do the covariates combine? (linear predictor, interactions)

2.0.9 Fitting and manipulating logistic regression models in R

Show R code

library(glmx)
library(dplyr)
data(BeetleMortality)
beetles <- BeetleMortality |>
  mutate(
    pct = died / n,
    survived = n - died
  )

beetles_glm_grouped <-
  beetles |>
  glm(
    formula = cbind(died, survived) ~ dose,
    family = "binomial"
  )

library(parameters)
beetles_glm_grouped |>
  parameters() |>
  print_md()

Table 2: logistic regression model for beetles data with grouped (binomial) data

Parameter	Log-Odds	SE	95% CI	z	p
(Intercept)	-60.72	5.18	(-71.44, -51.08)	-11.72	< .001
dose	34.27	2.91	(28.85, 40.30)	11.77	< .001

Fitted values

Fitted values are provided on the probability scale (Table 3)

Table 3

Show R code

fitted(beetles_glm_grouped)
#>        1        2        3        4        5        6        7        8
#> 0.058601 0.164028 0.362119 0.605315 0.795172 0.903236 0.955196 0.979049
predict(beetles_glm_grouped, type = "response")
#>        1        2        3        4        5        6        7        8
#> 0.058601 0.164028 0.362119 0.605315 0.795172 0.903236 0.955196 0.979049

Count scale

For grouped data, we can convert to the count scale by multiplying by the group size:

Show R code

beetles$n * fitted(beetles_glm_grouped)
#>        1        2        3        4        5        6        7        8
#>  3.45746  9.84167 22.45138 33.89763 50.09582 53.29091 59.22216 58.74296

Logit scale

Show R code

predict(beetles_glm_grouped, type = "link")
#>         1         2         3         4         5         6         7         8
#> -2.776615 -1.628559 -0.566179  0.427661  1.356386  2.233707  3.059622  3.844412

Converting between logit and probability scales works as expected:

Show R code

predict(beetles_glm_grouped, type = "link") |> arm::invlogit()
#>        1        2        3        4        5        6        7        8
#> 0.058601 0.164028 0.362119 0.605315 0.795172 0.903236 0.955196 0.979049
predict(beetles_glm_grouped, type = "response")
#>        1        2        3        4        5        6        7        8
#> 0.058601 0.164028 0.362119 0.605315 0.795172 0.903236 0.955196 0.979049

predict(beetles_glm_grouped, type = "response") |> arm::logit()
#>         1         2         3         4         5         6         7         8
#> -2.776615 -1.628559 -0.566179  0.427661  1.356386  2.233707  3.059622  3.844412
predict(beetles_glm_grouped, type = "link")
#>         1         2         3         4         5         6         7         8
#> -2.776615 -1.628559 -0.566179  0.427661  1.356386  2.233707  3.059622  3.844412

type = "terms" is confusing, because the variables get centered:

Show R code

predict(beetles_glm_grouped, type = "terms")
#>        dose
#> 1 -3.520419
#> 2 -2.372363
#> 3 -1.309983
#> 4 -0.316144
#> 5  0.612582
#> 6  1.489902
#> 7  2.315817
#> 8  3.100608
#> attr(,"constant")
#> [1] 0.743804
coef(beetles_glm_grouped)["dose"] * beetles$dose
#> [1] 57.9408 59.0889 60.1513 61.1451 62.0738 62.9512 63.7771 64.5619

We can construct the link-scale predictions from the terms:

Show R code

terms_pred <- predict(beetles_glm_grouped, type = "terms")
terms_pred + attr(terms_pred, "constant")
#>        dose
#> 1 -2.776615
#> 2 -1.628559
#> 3 -0.566179
#> 4  0.427661
#> 5  1.356386
#> 6  2.233707
#> 7  3.059622
#> 8  3.844412
#> attr(,"constant")
#> [1] 0.743804
predict(beetles_glm_grouped, type = "link")
#>         1         2         3         4         5         6         7         8
#> -2.776615 -1.628559 -0.566179  0.427661  1.356386  2.233707  3.059622  3.844412

Individual observations

Show R code

beetles_long

Table 4: beetles data in long format

Show R code

beetles_glm_ungrouped <-
  beetles_long |>
  glm(
    formula = outcome ~ dose,
    family = "binomial"
  )

beetles_glm_ungrouped |>
  parameters() |>
  print_md()

Table 5: logistic regression model for beetles data with individual Bernoulli data

Parameter	Log-Odds	SE	95% CI	z	p
(Intercept)	-60.72	5.18	(-71.44, -51.08)	-11.72	< .001
dose	34.27	2.91	(28.85, 40.30)	11.77	< .001

Exercise 7

Exercise 7 Compare this model with the grouped-observations model (Table 2).

Solution 7

Solution 7.

They seem the same! But not quite:

Show R code

logLik(beetles_glm_grouped)
#> 'log Lik.' -18.7151 (df=2)
logLik(beetles_glm_ungrouped)
#> 'log Lik.' -186.235 (df=2)

The difference is due to the binomial coefficient $\binom{n}{x}$ which isn’t included in the individual-observations (Bernoulli) version of the model.

3 Derivatives of logistic regression functions

In order to interpret logistic regression models and find their MLEs, we will need to compute various derivatives. This section compiles some useful results.

3.0.1 Derivatives of odds function

Theorem 3 (Derivative of odds function)

Theorem 3 (Derivative of odds function) \[{{\operatorname{odds}}'\mathopen{}\left\{\pi\right\}\mathclose{}} = \frac{\partial \omega}{\partial \pi} = \frac{1}{{\mathopen{}\left(1-\pi\right)\mathclose{}}^{2}}\]

Proof

Proof. We can use odds as a function of probability and the quotient rule:

\[ \begin{aligned} \frac{\partial \omega}{\partial \pi} &= \frac{\partial}{\partial \pi}\mathopen{}\left(\frac{\pi}{1-\pi}\right)\mathclose{} \\ &= \frac {\frac{\partial}{\partial \pi}\pi} {1-\pi} - \mathopen{}\left(\frac{\pi}{{\mathopen{}\left(1-\pi\right)\mathclose{}}^{2}} \cdot\frac{\partial}{\partial \pi}\mathopen{}\left(1-\pi\right)\mathclose{}\right)\mathclose{} \\ &= \frac{1}{1-\pi} - \frac{\pi}{{\mathopen{}\left(1-\pi\right)\mathclose{}}^{2}} \cdot(-1) \\ &= \frac{1}{1-\pi} + \frac{\pi}{{\mathopen{}\left(1-\pi\right)\mathclose{}}^{2}} \\ &= \frac{1-\pi}{{\mathopen{}\left(1-\pi\right)\mathclose{}}^{2}} + \frac{\pi}{{\mathopen{}\left(1-\pi\right)\mathclose{}}^{2}} \\ &= \frac{1-\pi + \pi}{{\mathopen{}\left(1-\pi\right)\mathclose{}}^{2}} \\ &= \frac{1}{{\mathopen{}\left(1-\pi\right)\mathclose{}}^{2}} \end{aligned} \]

Corollary 1 (Derivative of odds function in terms of odds)

Corollary 1 (Derivative of odds function in terms of odds) \[\frac{\partial \omega}{\partial \pi} = {\mathopen{}\left(1+\omega\right)\mathclose{}}^{2}\]

Proof

Proof. Using Theorem 3 and one plus odds in terms of non-event probability:

\[ \begin{aligned} \frac{\partial \omega}{\partial \pi} &= \frac{1}{{\mathopen{}\left(1-\pi\right)\mathclose{}}^{2}} && \text{(derivative of odds function)} \\ &= {\mathopen{}\left(\frac{1}{1-\pi}\right)\mathclose{}}^{2} && \text{(the reciprocal of a square is the square of the reciprocal)} \\ &= {\mathopen{}\left(1+\omega\right)\mathclose{}}^{2} && \text{(substitute } \frac{1}{1-\pi} = 1+\omega\text{)} \end{aligned} \]

3.0.2 Derivatives of inverse-odds function

Theorem 4 (Derivative of inverse odds function)

Theorem 4 (Derivative of inverse odds function) \[{{\operatorname{invodds}}'\mathopen{}\left\{\omega\right\}\mathclose{}} = \frac{\partial \pi}{\partial \omega} = (1-\pi)^2 = \frac{1}{{\mathopen{}\left(1+\omega\right)\mathclose{}}^{2}} \tag{2}\]

Proof

Proof. Using the inverse function rule, Theorem 3, and one minus inverse-odds:

\[ \begin{aligned} \frac{\partial \pi}{\partial \omega} &= {\mathopen{}\left(\frac{\partial \omega}{\partial \pi}\right)\mathclose{}}^{-1} && \text{(inverse function rule)} \\ &= {\mathopen{}\left(\frac{1}{{\mathopen{}\left(1-\pi\right)\mathclose{}}^{2}}\right)\mathclose{}}^{-1} && \text{(derivative of odds function)} \\ &= {\mathopen{}\left(1-\pi\right)\mathclose{}}^{2} && \text{(the reciprocal of a reciprocal is the original quantity)} \\ &= {\mathopen{}\left(\frac{1}{1+\omega}\right)\mathclose{}}^{2} && \text{(substitute } 1-\pi= \frac{1}{1+\omega}\text{)} \\ &= \frac{1}{{\mathopen{}\left(1+\omega\right)\mathclose{}}^{2}} && \text{(the square of a reciprocal is the reciprocal of the square)} \end{aligned} \]

Or for a direct approach, use the quotient rule again:

\[ \begin{aligned} \frac{\partial \pi}{\partial \omega} &= \frac{\partial}{\partial \omega} \frac{\omega}{1+\omega} \\ &= \frac{\frac{\partial}{\partial \omega}\omega}{1+\omega} - \frac{\omega}{{\mathopen{}\left(1+\omega\right)\mathclose{}}^{2}} \cdot\frac{\partial}{\partial \omega}(1+\omega) \\ &= \frac{1}{1+\omega} - \frac{\omega}{{\mathopen{}\left(1+\omega\right)\mathclose{}}^{2}} \cdot 1 \\ &= \frac{1}{1+\omega} - \frac{\omega}{{\mathopen{}\left(1+\omega\right)\mathclose{}}^{2}} \\ &= \frac{1+\omega}{{\mathopen{}\left(1+\omega\right)\mathclose{}}^{2}} - \frac{\omega}{{\mathopen{}\left(1+\omega\right)\mathclose{}}^{2}} \\ &= \frac{1+\omega- \omega}{{\mathopen{}\left(1+\omega\right)\mathclose{}}^{2}} \\ &= \frac{1}{{\mathopen{}\left(1+\omega\right)\mathclose{}}^{2}} \end{aligned} \]

3.0.3 Derivatives of logit function

Lemma 1 (Derivative of log-odds by odds)

Lemma 1 (Derivative of log-odds by odds) \[\frac{\partial \eta}{\partial \omega} = \omega^{-1}\]

Proof

Proof. Using the definition of log-odds:

\[ \begin{aligned} \frac{\partial \eta}{\partial \omega} &= \frac{\partial}{\partial \omega}\log{\omega} \\ &= \omega^{-1} \end{aligned} \]

Theorem 5 (Derivative of log-odds by odds)

Theorem 5 (Derivative of log-odds by odds) \[\frac{\partial \eta}{\partial \omega} = \frac{1-\pi}{\pi}\]

Proof

Proof. Using odds as a function of probability and Lemma 1:

\[ \begin{aligned} \frac{\partial \eta}{\partial \omega} &= \omega^{-1} \\ &= \frac{1-\pi}{\pi} \end{aligned} \]

Theorem 6 (Derivative of log-odds by probability)

Theorem 6 (Derivative of log-odds by probability) \[\frac{\partial \eta}{\partial \pi} = \frac{1}{(\pi)(1-\pi)}\]

Proof

Proof. Using Theorem 5, Theorem 3, and the chain rule:

\[ \begin{aligned} \frac{\partial \eta}{\partial \pi} &= \frac{\partial \eta}{\partial \omega} \frac{\partial \omega}{\partial \pi} \\ &= \frac{1-\pi}{\pi} \frac{1}{{\mathopen{}\left(1-\pi\right)\mathclose{}}^{2}} \\ &= \frac{1}{(\pi)(1-\pi)} \end{aligned} \]

Corollary 2 (Derivative of logit function)

Corollary 2 (Derivative of logit function) \[\operatorname{logit}'(\pi) = \frac{1}{(\pi)(1-\pi)}\]

Proof

Proof. Using log-odds via the logit function and Theorem 6:

\[ \begin{aligned} \operatorname{logit}'(\pi) &= \frac{\partial}{\partial \pi} {\operatorname{logit}\mathopen{}\left\{\pi\right\}\mathclose{}} && \text{(Lagrange notation rewritten in Leibniz notation)} \\ &= \frac{\partial}{\partial \pi} \eta && \text{(log-odds via the logit function: } {\operatorname{logit}\mathopen{}\left\{\pi\right\}\mathclose{}} = \eta\text{)} \\ &= \frac{\partial \eta}{\partial \pi} && \text{(Leibniz notation)} \\ &= \frac{1}{(\pi)(1-\pi)} && \text{(derivative of log-odds by probability)} \end{aligned} \]

3.0.4 Derivatives of expit function

Lemma 2 (Derivative of odds w.r.t. log-odds)

Lemma 2 (Derivative of odds w.r.t. log-odds) \[\frac{\partial \omega}{\partial \eta} = \omega\]

Proof

Proof. Using the odds-from-log-odds lemma and the derivative of the exponential function:

\[ \begin{aligned} \frac{\partial \omega}{\partial \eta} &= \frac{\partial}{\partial \eta} {\operatorname{exp}\mathopen{}\left\{\eta\right\}\mathclose{}} \\ &= {\operatorname{exp}\mathopen{}\left\{\eta\right\}\mathclose{}} \\ &= \omega \end{aligned} \]

Theorem 7 (Derivative of odds in terms of probability)

Theorem 7 (Derivative of odds in terms of probability) \[\frac{\partial \omega}{\partial \eta} = \frac{\pi}{1-\pi} \tag{3}\]

Proof

Proof. Using Lemma 2 and odds as a function of probability:

\[ \begin{aligned} \frac{\partial \omega}{\partial \eta} &= \omega && \text{(derivative of odds w.r.t. log-odds)} \\ &= \frac{\pi}{1-\pi} && \text{(odds as a function of probability)} \end{aligned} \]

Theorem 8 (Derivative of probability w.r.t. log-odds)

Theorem 8 (Derivative of probability w.r.t. log-odds) \[\frac{\partial \pi}{\partial \eta} = \pi (1-\pi)\]

Proof

Proof. By the chain rule, Theorem 7, and Theorem 4:

\[ \begin{aligned} \frac{\partial \pi}{\partial \eta} &= {\color{green}{\frac{\partial \omega}{\partial \eta}}}{\color{teal}{\frac{\partial \pi}{\partial \omega}}} \\ &= {\color{green}{\frac{\pi}{1-\pi}}} {\color{teal}{(1-\pi)^2}} \\ &= \pi (1-\pi) \end{aligned} \]

Alternatively, by Theorem 6:

\[ \begin{aligned} \frac{\partial \pi}{\partial \eta} &= {\mathopen{}\left(\frac{\partial \eta}{\partial \pi}\right)\mathclose{}}^{-1} \\ &= {\mathopen{}\left(\frac{1}{(\pi)(1-\pi)}\right)\mathclose{}}^{-1} \\ &= \pi (1-\pi) \end{aligned} \]

Corollary 3 (Derivative of probability w.r.t. linear predictor as a variance)

Corollary 3 (Derivative of probability w.r.t. linear predictor as a variance) If $\pi = \Pr(Y=1| \mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{X}}\vphantom{X}}=\mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{x}}\vphantom{x}})$, then:

\[\frac{\partial \pi}{\partial \eta} = {\operatorname{Var}\mathopen{}\left(Y|X=x\right)\mathclose{}}\]

Proof

Proof. Since $Y$ is a binary (0/1) outcome with $\Pr(Y=1|\mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{X}}\vphantom{X}}=\mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{x}}\vphantom{x}}) = \pi$, the conditional distribution of $Y$ given $\mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{X}}\vphantom{X}}=\mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{x}}\vphantom{x}}$ is Bernoulli with parameter $\pi$.

First, we compute ${\operatorname{Var}\mathopen{}\left(Y|X=x\right)\mathclose{}}$, using the simplified expression for variance, the expected value of the square of a Bernoulli variable, and the expectation of the Bernoulli distribution, all applied to the conditional distribution of $Y$ given $X=x$:

\[ \begin{aligned} {\operatorname{Var}\mathopen{}\left(Y|X=x\right)\mathclose{}} &= {\mathbb{E}\mathopen{}\left[Y^2|X=x\right]\mathclose{}} - {\mathopen{}\left({\mathbb{E}\mathopen{}\left[Y|X=x\right]\mathclose{}}\right)\mathclose{}}^{2} && \text{(simplified expression for variance)} \\ &= \pi - {\mathopen{}\left({\mathbb{E}\mathopen{}\left[Y|X=x\right]\mathclose{}}\right)\mathclose{}}^{2} && \text{(expected square of a Bernoulli variable: } {\mathbb{E}\mathopen{}\left[Y^2|X=x\right]\mathclose{}} = \pi\text{)} \\ &= \pi - {\mathopen{}\left(\pi\right)\mathclose{}}^{2} && \text{(Bernoulli mean: } {\mathbb{E}\mathopen{}\left[Y|X=x\right]\mathclose{}} = \pi\text{)} \\ &= \pi(1 - \pi) && \text{(factor out } \pi\text{)} \end{aligned} \tag{4}\]

Then, using Theorem 8 and Equation 4:

\[ \begin{aligned} \frac{\partial \pi}{\partial \eta} &= \pi(1-\pi) && \text{(derivative of probability w.r.t. log-odds)} \\ &= {\operatorname{Var}\mathopen{}\left(Y|X=x\right)\mathclose{}} && \text{(Bernoulli conditional variance, read right-to-left)} \end{aligned} \]

Corollary 4 (Derivative of expit)

Corollary 4 (Derivative of expit) \[{\operatorname{expit}'\mathopen{}\left\{\eta\right\}\mathclose{}} = {\operatorname{expit}\mathopen{}\left\{\eta\right\}\mathclose{}}(1 - {\operatorname{expit}\mathopen{}\left\{\eta\right\}\mathclose{}})\]

Proof

Proof. Using probability via the expit function and Theorem 8:

\[ \begin{aligned} {\operatorname{expit}'\mathopen{}\left\{\eta\right\}\mathclose{}} &= \frac{\partial \pi}{\partial \eta} && \text{(probability via the expit function: } \pi= {\operatorname{expit}\mathopen{}\left\{\eta\right\}\mathclose{}}\text{)} \\ &= \pi(1-\pi) && \text{(derivative of probability w.r.t. log-odds)} \\ &= {\operatorname{expit}\mathopen{}\left\{\eta\right\}\mathclose{}}(1 - {\operatorname{expit}\mathopen{}\left\{\eta\right\}\mathclose{}}) && \text{(substitute } \pi= {\operatorname{expit}\mathopen{}\left\{\eta\right\}\mathclose{}}\text{)} \end{aligned} \]

Example 3 (Slope of expit for the beetles model)

Example 3 (Slope of expit for the beetles model)

Show R code

beetles_mid_row <- ceiling(nrow(beetles) / 2)
beetles_dose_mid <- beetles$dose[beetles_mid_row]
beetles_eta_mid <-
  predict(beetles_glm_grouped, type = "link")[beetles_mid_row] |>
  unname()
beetles_pi_mid <-
  predict(beetles_glm_grouped, type = "response")[beetles_mid_row] |>
  unname()
beetles_slope_mid <- beetles_pi_mid * (1 - beetles_pi_mid)

Consider the grouped-data logistic regression model for the beetles data (Table 2). At the middle (4th of 8) dose in the dataset, $x = 1.7842$, the fitted log-odds of death is $\hat{\eta} = 0.4277$, and the fitted probability of death is $\hat{\pi} = {\operatorname{expit}\mathopen{}\left\{0.4277\right\}\mathclose{}} = 0.6053$. By Corollary 4, the slope of the expit function at this fitted log-odds value is:

\[ {\operatorname{expit}'\mathopen{}\left\{0.4277\right\}\mathclose{}} = 0.6053 \times (1 - 0.6053) = 0.2389 \]

Specifically, near dose $x = 1.7842$, a small increase of $\Delta\eta$ in the fitted log-odds corresponds to an increase of approximately $0.2389 \times \Delta\eta$ in the fitted probability of death.

3.0.5 Summary matrix of derivatives

Each entry gives the derivative of the column quantity with respect to the row quantity; that is, the entry in row $i$ and column $j$ is $\frac{\partial (\text{col } j)}{\partial (\text{row } i)}$.

Dimensions of each entry depend on the types of the row and column quantities:

Scalar/scalar (upper-left $3 \times 3$ block): row and column are both scalars ($\pi$, $\omega$, or $\eta$); derivative is a scalar.
Gradient (lower-left $2 \times 3$ block): row is a $p$-vector ($\mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{x}}\vphantom{x}}$ or $\mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{\beta}}\vphantom{\beta}}$), column is a scalar; derivative is a $p$-vector (gradient).
Jacobian (lower-right $2 \times 2$ block): both row and column are $p$-vectors; derivative is a $p \times p$ matrix.
Undefined (upper-right $3 \times 2$ block): row is a scalar ($\pi$, $\omega$, or $\eta$), column is $\mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{x}}\vphantom{x}}$ or $\mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{\beta}}\vphantom{\beta}}$. Each of these entries would be the derivative of a $p$-vector with respect to a scalar, which would require expressing $\mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{x}}\vphantom{x}}$ (or $\mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{\beta}}\vphantom{\beta}}$) as a function of that scalar. No such function exists, because the map from the vector to the scalar is not invertible: for $p > 1$, many distinct vectors produce the same value of $\eta= \mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{x}}\vphantom{x}} \cdot \mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{\beta}}\vphantom{\beta}}$ (and hence the same $\omega$ and $\pi$), so the scalar does not determine the vector, and these derivatives are undefined.

Table 6: Matrix of logistic regression derivatives ($p$ = number of predictors, $\eta\stackrel{\text{def}}{=}\mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{x}}\vphantom{x}} \cdot \mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{\beta}}\vphantom{\beta}}$, $\omega\stackrel{\text{def}}{=}{\operatorname{exp}\mathopen{}\left\{\eta\right\}\mathclose{}}$, $\pi\stackrel{\text{def}}{=}\omega/ (1 + \omega)$). Each entry is the derivative of the column quantity with respect to the row quantity. Entries marked “undef” are not defined because the vector-to-scalar map is not invertible: the scalar row quantity does not determine the vector column quantity.

\[ \begin{array}{r|ccccc} & \pi& \omega& \eta& \mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{x}}\vphantom{x}}& \mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{\beta}}\vphantom{\beta}}\\ \hline \pi & 1 & {\mathopen{}\left(1+\omega\right)\mathclose{}}^{2} & \dfrac{{\mathopen{}\left(1+\omega\right)\mathclose{}}^{2}}{\omega} & \text{undef} & \text{undef} \\[10pt] \omega & {\mathopen{}\left(1-\pi\right)\mathclose{}}^{2} & 1 & \dfrac{1}{\omega} & \text{undef} & \text{undef} \\[10pt] \eta & \pi(1-\pi) & \omega & 1 & \text{undef} & \text{undef} \\[10pt] \mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{x}}\vphantom{x}} & \underbrace{\mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{\beta}}\vphantom{\beta}}\pi(1-\pi)}_{p \times 1} & \underbrace{\mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{\beta}}\vphantom{\beta}}\omega}_{p \times 1} & \underbrace{\mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{\beta}}\vphantom{\beta}}}_{p \times 1} & \underbrace{\mathbb{I}}_{p \times p} & \mathbf{0}_{p \times p} \\[10pt] \mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{\beta}}\vphantom{\beta}} & \underbrace{\mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{x}}\vphantom{x}}\pi(1-\pi)}_{p \times 1} & \underbrace{\mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{x}}\vphantom{x}}\omega}_{p \times 1} & \underbrace{\mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{x}}\vphantom{x}}}_{p \times 1} & \mathbf{0}_{p \times p} & \underbrace{\mathbb{I}}_{p \times p} \\ \end{array} \]

4 Understanding logistic regression models

Video tutorial

Josh Starmer’s StatQuest video Logistic Regression Details Pt1: Coefficients explains how logistic regression coefficients are interpreted on the log-odds scale, for both continuous and categorical predictors [5].

Lemma 3 (Derivative of log-odds w.r.t. predictor)

Lemma 3 (Derivative of log-odds w.r.t. predictor) \[ \underbrace{\frac{\partial \eta}{\partial \mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{x}}\vphantom{x}}}}_{(p+1) \times 1} = \underbrace{\mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{\beta}}\vphantom{\beta}}}_{(p+1) \times 1} \tag{5}\]

Proof

Proof. Differentiating the linear predictor $\eta(\mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{x}}\vphantom{x}}) = \mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{x}}\vphantom{x}}\cdot \mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{\beta}}\vphantom{\beta}}$ with respect to the covariate vector $\mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{x}}\vphantom{x}}$, using the derivative of a linear combination:

\[ \begin{aligned} \frac{\partial \eta}{\partial \mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{x}}\vphantom{x}}} &= \frac{\partial}{\partial \mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{x}}\vphantom{x}}} (\mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{x}}\vphantom{x}}\cdot \mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{\beta}}\vphantom{\beta}}) && \text{(logistic regression's linear-predictor assumption)} \\ &= \mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{\beta}}\vphantom{\beta}} && \text{(derivative of a linear combination w.r.t. covariate vector)} \end{aligned} \tag{6}\]

Example 4 (Evaluating the gradient of the log-odds)

Example 4 (Evaluating the gradient of the log-odds) Consider a logistic regression model with an intercept and one predictor, so $\mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{x}}\vphantom{x}}= (1, x)'$, and coefficients $\mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{\beta}}\vphantom{\beta}}= (-2, 0.5)'$. By Lemma 3:

\[ \begin{aligned} \frac{\partial \eta}{\partial \mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{x}}\vphantom{x}}} &= \mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{\beta}}\vphantom{\beta}} && \text{(gradient of the log-odds w.r.t. the covariates)} \\ &= \underbrace{\begin{pmatrix}-2 \\ 0.5\end{pmatrix}}_{2 \times 1} && \text{(substitute } \mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{\beta}}\vphantom{\beta}}= (-2, 0.5)' \text{)} \end{aligned} \tag{7}\]

The second entry says that increasing the predictor $x$ by one unit changes the log-odds by $0.5$, whatever the values of $x$ and the intercept term.

Exercise 8

Exercise 8 Consider a logistic regression model with a single predictor, $X$:

\[ \begin{aligned} Y_i|X_i &\ \sim_{\perp\!\!\!\perp}\ \operatorname{Ber}(\pi(X_i)) \\ \pi(x) &= {\operatorname{expit}\mathopen{}\left\{\eta(x)\right\}\mathclose{}} = \pi(\omega(\eta(x))) \\ \eta(x) &= \alpha + \beta x \end{aligned} \tag{8}\]

Find the derivative of $\pi(x) = {\mathbb{E}\mathopen{}\left[Y|X=x\right]\mathclose{}}$ with respect to $x$:

\[\frac{\partial \pi}{\partial x} = ?\]

Solution 8

Solution 8. By Theorem 8, Lemma 3, and the chain rule:

\[ \begin{aligned} \frac{\partial \pi}{\partial x} &={\color{red}{\frac{\partial \pi}{\partial \eta}}} {\color{teal}{\frac{\partial \eta}{\partial x}}} \\ &= {\color{red}{\pi (1-\pi)}} {\color{teal}{\beta}} \\ &= {\color{red}{{\operatorname{Var}\mathopen{}\left(Y|X=x\right)\mathclose{}}}} \cdot {\color{teal}{\beta}} \end{aligned} \]

The slope is steepest at $\pi = 0.5$, i.e., at $\eta = 0$, which for a unipredictor model occurs at $x = -\alpha/\beta$. The slope goes to 0 as $x$ goes to $-\infty$ or $+\infty$ (compare with the graph of the expit function).

Corollary 5 (Derivative of the probability with respect to the predictor)

Corollary 5 (Derivative of the probability with respect to the predictor) In the single-predictor logistic regression model of Equation 8:

\[ \frac{\partial \pi}{\partial x} = \pi (1-\pi) \beta = {\operatorname{Var}\mathopen{}\left(Y|X=x\right)\mathclose{}} \cdot \beta \]

Proof

Proof. This proof is the solution to Exercise 8, worked in Solution 8.

Example 5 (The slope of a logistic probability curve)

Example 5 (The slope of a logistic probability curve) Suppose $\alpha = -2$ and $\beta = 0.5$ in the single-predictor logistic regression model of Equation 8. The code below approximates $\frac{\partial \pi}{\partial x}$ at $x = 1$ with a central difference, and compares it with the formula of Corollary 5:

Show R code

ex_alpha <- -2
ex_beta <- 0.5
ex_pi <- function(x) plogis(ex_alpha + ex_beta * x)
ex_h <- 1e-6
ex_numeric <- (ex_pi(1 + ex_h) - ex_pi(1 - ex_h)) / (2 * ex_h)
ex_formula <- ex_pi(1) * (1 - ex_pi(1)) * ex_beta

At $x = 1$, $\pi =$ 0.1824. The central difference gives 0.07457 and the formula $\pi(1-\pi)\beta$ gives 0.07457, so the two agree.

Note

See the general procedure for interpreting a regression coefficient for full details, including how to handle interaction terms and how to set remaining covariates to their reference values.

In order to interpret $\beta_j$: differentiate or difference ${\color{red}{\eta(\mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{x}}\vphantom{x}})}}$ with respect to ${\color{red}{x_j}}$ (depending on whether $x_j$ is continuous or discrete, respectively):

\[\frac{\partial}{\partial {\color{red}{x_j}}} {\color{red}{\eta(\mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{x}}\vphantom{x}})}}\]

In order to find the MLE $\hat{\mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{\beta}}\vphantom{\beta}}}$: differentiate the log-likelihood function ${\color{teal}{\ell(\mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{\beta}}\vphantom{\beta}})}}$ with respect to ${\color{teal}{\mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{\beta}}\vphantom{\beta}}}}$:

\[\frac{\partial}{\partial {\color{teal}{\mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{\beta}}\vphantom{\beta}}}}} {\color{teal}{\ell(\mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{\beta}}\vphantom{\beta}})}}\]

Exercise 9 (General formula for odds ratios in logistic regression)

Exercise 9 (General formula for odds ratios in logistic regression) Consider the generic logistic regression model:

$Y_i|\mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{X}}\vphantom{X}}_i \ \sim_{\perp\!\!\!\perp}\ \operatorname{Ber}(\pi(\mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{X}}\vphantom{X}}_i))$
${\operatorname{logit}\mathopen{}\left\{\pi(\mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{x}}\vphantom{x}})\right\}\mathclose{}} = \eta(\mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{x}}\vphantom{x}})$
$\eta(\mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{x}}\vphantom{x}}) = \mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{x}}\vphantom{x}}'\mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{\beta}}\vphantom{\beta}}$

Find a concise formula to compute the odds ratio comparing covariate patterns $\mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{x}}\vphantom{x}}$ and $\mathord{{\mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{x}}\vphantom{x}}^*}}$:

\[\text{ϙ}_{\omega}(\mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{x}}\vphantom{x}},\mathord{{\mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{x}}\vphantom{x}}^*}}) \stackrel{\text{def}}{=}\frac{\omega(\mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{x}}\vphantom{x}})}{\omega(\mathord{{\mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{x}}\vphantom{x}}^*}})} \tag{9}\]

Solution 9 (General formula for odds ratios in logistic regression)

Solution 9 (General formula for odds ratios in logistic regression). \[ \begin{aligned} \text{ϙ}_{\omega}(\mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{x}}\vphantom{x}},\mathord{{\mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{x}}\vphantom{x}}^*}}) &\stackrel{\text{def}}{=}\frac{\omega(\mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{x}}\vphantom{x}})}{\omega(\mathord{{\mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{x}}\vphantom{x}}^*}})} \\ &= \frac{{\operatorname{exp}\mathopen{}\left\{\eta(\mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{x}}\vphantom{x}})\right\}\mathclose{}}}{{\operatorname{exp}\mathopen{}\left\{\eta(\mathord{{\mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{x}}\vphantom{x}}^*}})\right\}\mathclose{}}} \\ &= {\operatorname{exp}\mathopen{}\left\{{\color{red}{\eta(\mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{x}}\vphantom{x}}) - \eta(\mathord{{\mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{x}}\vphantom{x}}^*}})}}\right\}\mathclose{}} \end{aligned} \]

Solution 9 is more concrete than Equation 9, but it doesn’t yet completely explain how to compute $\text{ϙ}_{\omega}(\mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{x}}\vphantom{x}},\mathord{{\mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{x}}\vphantom{x}}^*}})$, so let’s mark it as a lemma:

Lemma 4 (General formula for odds ratios in logistic regression)

Lemma 4 (General formula for odds ratios in logistic regression) \[\text{ϙ}_{\omega}(\mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{x}}\vphantom{x}},\mathord{{\mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{x}}\vphantom{x}}^*}}) = {\operatorname{exp}\mathopen{}\left\{{\color{red}{\eta(\mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{x}}\vphantom{x}}) - \eta(\mathord{{\mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{x}}\vphantom{x}}^*}})}}\right\}\mathclose{}} \tag{10}\]

Proof

Proof. By Solution 9.

Definition 2 (Difference in log-odds)

Definition 2 (Difference in log-odds)

Then we can define the difference in log-odds between $\mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{x}}\vphantom{x}}$ and $\mathord{{\mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{x}}\vphantom{x}}^*}}$, denoted $\Delta\eta(\mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{x}}\vphantom{x}}, \mathord{{\mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{x}}\vphantom{x}}^*}})$ or $\Delta\eta$ for short, as:

\[{\color{red}{\Delta\eta}} \stackrel{\text{def}}{=}{\color{red}{\eta(\mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{x}}\vphantom{x}}) - \eta(\mathord{{\mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{x}}\vphantom{x}}^*}})}}\]

Corollary 6 (Shorthand general formula for odds ratios in logistic regression)

Corollary 6 (Shorthand general formula for odds ratios in logistic regression) \[\text{ϙ}_{\omega}(\mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{x}}\vphantom{x}},\mathord{{\mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{x}}\vphantom{x}}^*}}) = {\operatorname{exp}\mathopen{}\left\{{\color{red}{\Delta\eta}}\right\}\mathclose{}} \tag{11}\]

Proof

Proof. By Lemma 4 and Definition 2.

Exercise 10 (Difference in log-odds)

Exercise 10 (Difference in log-odds) Find a concise expression for the difference in log-odds: \[\Delta\eta\stackrel{\text{def}}{=}{\color{red}{\eta(\mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{x}}\vphantom{x}}) - \eta(\mathord{{\mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{x}}\vphantom{x}}^*}})}}\]

Solution 10 (Difference in log-odds)

Solution 10 (Difference in log-odds). \[ \begin{aligned} {\color{red}{\Delta\eta}} &\stackrel{\text{def}}{=}{\color{red}{\eta(\mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{x}}\vphantom{x}}) - \eta(\mathord{{\mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{x}}\vphantom{x}}^*}})}} \\ &= (\mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{x}}\vphantom{x}}\cdot\mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{\beta}}\vphantom{\beta}}) - (\mathord{{\mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{x}}\vphantom{x}}^*}}\cdot\mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{\beta}}\vphantom{\beta}}) \\ &= (\mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{x}}\vphantom{x}}^{\top}\mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{\beta}}\vphantom{\beta}}) - ({\mathopen{}\left(\mathord{{\mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{x}}\vphantom{x}}^*}}\right)\mathclose{}}^{\top}\mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{\beta}}\vphantom{\beta}}) \\ &= (\mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{x}}\vphantom{x}}^{\top} - {\mathopen{}\left(\mathord{{\mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{x}}\vphantom{x}}^*}}\right)\mathclose{}}^{\top})\mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{\beta}}\vphantom{\beta}} \\ &= (\mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{x}}\vphantom{x}}- \mathord{{\mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{x}}\vphantom{x}}^*}})^{\top}\mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{\beta}}\vphantom{\beta}} \\ &= ({\color{teal}{\mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{x}}\vphantom{x}}- \mathord{{\mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{x}}\vphantom{x}}^*}}}})\cdot\mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{\beta}}\vphantom{\beta}} \end{aligned} \]

Lemma 5 (Difference in log-odds)

Lemma 5 (Difference in log-odds) \[{\color{red}{\Delta\eta}}= ({\color{teal}{\mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{x}}\vphantom{x}}- \mathord{{\mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{x}}\vphantom{x}}^*}}}})\cdot\mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{\beta}}\vphantom{\beta}}\]

Proof

Proof. By Solution 10.

Definition 3 (Difference in covariate patterns)

Definition 3 (Difference in covariate patterns)

Let $\mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{x}}\vphantom{x}}$ and $\mathord{{\mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{x}}\vphantom{x}}^*}}$ be two covariate patterns, representing two individuals or two subpopulations. The difference in covariate patterns, denoted $\Delta\mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{x}}\vphantom{x}}$, is defined as:

\[{\color{teal}{\Delta\mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{x}}\vphantom{x}}}} \stackrel{\text{def}}{=}{\color{teal}{\mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{x}}\vphantom{x}}- \mathord{{\mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{x}}\vphantom{x}}^*}}}}\]

Corollary 7 (Difference in log-odds)

Corollary 7 (Difference in log-odds) \[{\color{red}{\Delta\eta}}= ({\color{teal}{\Delta\mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{x}}\vphantom{x}}}}) \cdot \mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{\beta}}\vphantom{\beta}}\]

Proof

Proof. By Lemma 5 and Definition 3.

Exercise 11

Exercise 11 Find an expression for the odds ratio $\text{ϙ}_{\omega}(\mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{x}}\vphantom{x}},\mathord{{\mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{x}}\vphantom{x}}^*}})$ in terms of $\Delta\mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{x}}\vphantom{x}}$ and $\mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{\beta}}\vphantom{\beta}}$.

Solution 11

Solution 11. Combine Corollary 6 and Corollary 7:

\[ \begin{aligned} \text{ϙ}_{\omega}(\mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{x}}\vphantom{x}},\mathord{{\mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{x}}\vphantom{x}}^*}}) &= {\operatorname{exp}\mathopen{}\left\{\Delta\eta\right\}\mathclose{}} \\ &= {\operatorname{exp}\mathopen{}\left\{\Delta\mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{x}}\vphantom{x}}\cdot \mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{\beta}}\vphantom{\beta}}\right\}\mathclose{}} \end{aligned} \]

Theorem 9 (Odds ratio from difference in covariate patterns)

Theorem 9 (Odds ratio from difference in covariate patterns) The odds ratio comparing covariate patterns $\mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{x}}\vphantom{x}}$ and $\mathord{{\mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{x}}\vphantom{x}}^*}}$ is:

\[\text{ϙ}_{\omega}(\mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{x}}\vphantom{x}},\mathord{{\mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{x}}\vphantom{x}}^*}}) = {\operatorname{exp}\mathopen{}\left\{(\Delta\mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{x}}\vphantom{x}}) \cdot \mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{\beta}}\vphantom{\beta}}\right\}\mathclose{}} \tag{12}\]

Proof

Proof. By Solution 11.

Example 6 (Odds ratio between adjacent beetle dose levels)

Example 6 (Odds ratio between adjacent beetle dose levels)

We can apply Theorem 9 to the beetles logistic regression model (Table 2).

The estimated dose coefficient for that model is $\hat{\beta}_1 = 34.270326$.

Consider the two covariate patterns given by the two lowest dose levels in the beetles data: $\mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{x}}\vphantom{x}}= (1, 1.7242)^{\top}$ and $\mathord{{\mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{x}}\vphantom{x}}^*}}= (1, 1.6907)^{\top}$ (intercept and dose). Their difference is $\Delta\mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{x}}\vphantom{x}}= \mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{x}}\vphantom{x}}- \mathord{{\mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{x}}\vphantom{x}}^*}}= (0, 0.0335)^{\top}$.

By Theorem 9, the estimated odds ratio comparing these two dose levels is:

\[ \begin{aligned} \hat{\text{ϙ}}_{\omega}(\mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{x}}\vphantom{x}},\mathord{{\mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{x}}\vphantom{x}}^*}}) &= {\operatorname{exp}\mathopen{}\left\{(\Delta\mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{x}}\vphantom{x}})\cdot \hat{\beta}\right\}\mathclose{}} && \text{(odds ratio from difference in covariate patterns)} \\ &= {\operatorname{exp}\mathopen{}\left\{0\cdot\hat{\beta}_0 + (0.0335)\cdot \hat{\beta}_1\right\}\mathclose{}} && \text{(expand the dot product)} \\ &= {\operatorname{exp}\mathopen{}\left\{(0.0335)\cdot (34.270326)\right\}\mathclose{}} && \text{(substitute } \hat{\beta}_1\text{)} \\ &= 3.152059 && \text{(evaluate the exponential)} \end{aligned} \]

So an increase of $0.0335$ units in dose (the gap between the two lowest dose levels) multiplies the estimated odds of death by about $3.15$.

Corollary 8 (Log odds ratio equals the difference in log-odds)

Corollary 8 (Log odds ratio equals the difference in log-odds) \[{\operatorname{log}\mathopen{}\left\{\text{ϙ}_{\omega}(\mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{x}}\vphantom{x}},\mathord{{\mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{x}}\vphantom{x}}^*}})\right\}\mathclose{}} = \Delta\eta\]

Proof

Proof. Taking the natural logarithm of both sides of Corollary 6:

\[ \begin{aligned} {\operatorname{log}\mathopen{}\left\{\text{ϙ}_{\omega}(\mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{x}}\vphantom{x}},\mathord{{\mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{x}}\vphantom{x}}^*}})\right\}\mathclose{}} &= {\operatorname{log}\mathopen{}\left\{{\operatorname{exp}\mathopen{}\left\{\Delta\eta\right\}\mathclose{}}\right\}\mathclose{}} && \text{(take the logarithm of both sides of the odds-ratio corollary)} \\ &= \Delta\eta && \text{(natural logarithm and exponential are inverse functions)} \end{aligned} \tag{13}\]

Example 7 (Log odds ratio example)

Example 7 (Log odds ratio example) If the difference in log-odds between two subjects is $\Delta\eta= 0.693$, then by Corollary 6, the odds ratio is $\text{ϙ}_{\omega}= {\operatorname{exp}\mathopen{}\left\{0.693\right\}\mathclose{}} \approx 2.0$.

Taking the logarithm yields ${\operatorname{log}\mathopen{}\left\{\text{ϙ}_{\omega}\right\}\mathclose{}} = {\operatorname{log}\mathopen{}\left\{{\operatorname{exp}\mathopen{}\left\{0.693\right\}\mathclose{}}\right\}\mathclose{}} = 0.693 = \Delta\eta$, illustrating Corollary 8; the rounded odds ratio gives ${\operatorname{log}\mathopen{}\left\{2.0\right\}\mathclose{}} \approx 0.693$.

5 Estimating logistic regression models

Video lecture

David Rocke’s Epi 204 lecture Logistic Regression and Likelihood (slides) covers maximum likelihood estimation for logistic regression, deviance, and comparing models with AIC and deviance tests [4].

Video tutorial

Josh Starmer’s StatQuest video Maximum Likelihood, clearly explained!!! introduces the idea of maximum likelihood estimation [5].

Video tutorial

Josh Starmer’s StatQuest video Logistic Regression Details Pt 2: Maximum Likelihood shows how maximum likelihood estimation fits a logistic regression curve [5].

5.1 Model

We estimate the coefficients $\mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{\beta}}\vphantom{\beta}}$ of the logistic regression model, which has three parts:

$Y_i|\mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{X}}\vphantom{X}}_i \ \sim_{\perp\!\!\!\perp}\ \operatorname{Ber}(\pi(\mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{X}}\vphantom{X}}_i))$
$\pi(\mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{x}}\vphantom{x}}) = {\operatorname{expit}\mathopen{}\left\{\eta(\mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{x}}\vphantom{x}})\right\}\mathclose{}}$
$\eta(\mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{x}}\vphantom{x}}) = \mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{x}}\vphantom{x}}\cdot \mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{\beta}}\vphantom{\beta}}$

5.2 Likelihood function

Exercise 12

Exercise 12 Compute and graph the likelihood for the beetles data model:

Show R code

library(glmx)
library(dplyr)
data(BeetleMortality)
beetles <- BeetleMortality |>
  mutate(
    pct = died / n,
    survived = n - died,
    dose_c = dose - mean(dose)
  )
beetles_long <-
  beetles |>
  reframe(
    .by = everything(),
    outcome = c(
      rep(1, times = died),
      rep(0, times = survived)
    )
  )
beetles

Table 7: Mortality rates of adult flour beetles after five hours’ exposure to gaseous carbon disulphide [8]

Show R code

beetles_glm <-
  beetles |>
  glm(
    formula = cbind(died, survived) ~ dose,
    family = "binomial"
  )
equatiomatic::extract_eq(beetles_glm)

\[ \log\left[ \frac { P( \operatorname{died} = \operatorname{60} ) }{ 1 - P( \operatorname{died} = \operatorname{60} ) } \right] = \alpha + \beta_{1}(\operatorname{dose}) \]

Show R code

beetles_glm |>
  parameters::parameters() |>
  parameters::print_md()

Table 8: Fitted logistic regression model for beetles data

Parameter	Log-Odds	SE	95% CI	z	p
(Intercept)	-60.72	5.18	(-71.44, -51.08)	-11.72	< .001
dose	34.27	2.91	(28.85, 40.30)	11.77	< .001

Solution 12

Solution 12.

Show R code

odds_inv <- function(omega) (1 + omega^-1)^-1
lik_beetles0 <- function(beta_0, beta_1) {
  beetles |>
    mutate(
      eta = beta_0 + beta_1 * dose,
      omega = exp(eta),
      pi = odds_inv(omega),
      Lik = pi^died * (1 - pi)^survived,
      # llik = died*eta + n*log(1 - pi)
    ) |>
    pull(Lik) |>
    prod()
}

lik_beetles <- Vectorize(lik_beetles0)

Show R code

ranges <- beetles_glm |> confint.default(level = 0.05)

n_points <- 25
beta_0s <- seq(
  ranges["(Intercept)", 1],
  ranges["(Intercept)", 2],
  length.out = n_points
)
beta_1s <- seq(
  ranges["dose", 1],
  ranges["dose", 2],
  length.out = n_points
)
names(beta_0s) <- round(beta_0s, 2)
names(beta_1s) <- round(beta_1s, 2)

if (run_graphs) {
  lik_mat_beetles <- outer(beta_0s, beta_1s, lik_beetles)
  plotly::plot_ly(
    type = "surface",
    x = ~beta_0s,
    y = ~beta_1s,
    z = ~ t(lik_mat_beetles)
  )
  # see https://stackoverflow.com/questions/69472185/correct-use-of-coordinates-to-plot-surface-data-with-plotly
  # for explanation of why transpose `t()` is needed

}

Figure 6: Likelihood of beetles data. Bumps on ridge are artifacts of render; increase n_points to improve render quality.

5.3 Log-likelihood function

Exercise 13

Exercise 13 Find the log-likelihood function for the general logistic regression model.

Solution 13

Solution 13. \[ \begin{aligned} \ell(\mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{\beta}}\vphantom{\beta}}, \mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{y}}\vphantom{y}}) &\stackrel{\text{def}}{=}{\operatorname{log}\mathopen{}\left\{\mathcal{L}(\mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{\beta}}\vphantom{\beta}}, \mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{y}}\vphantom{y}}) \right\}\mathclose{}} && \text{(definition of log-likelihood)} \\ &= {\operatorname{log}\mathopen{}\left\{\prod_{i=1}^n\mathcal{L}_i(\mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{\beta}}\vphantom{\beta}}, y_i)\right\}\mathclose{}} && \text{(likelihood factors, by independence)} \\ &= \sum_{i=1}^n{\operatorname{log}\mathopen{}\left\{\mathcal{L}_i(\mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{\beta}}\vphantom{\beta}}, y_i)\right\}\mathclose{}} && \text{(log of a product is the sum of the logs)} \\ &= \sum_{i=1}^n{\color{red}{\ell_i}}(\pi(\mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{x}}\vphantom{x}}_i)) && \text{(definition: } {\color{red}{\ell_i}} \stackrel{\text{def}}{=}{\operatorname{log}\mathopen{}\left\{\mathcal{L}_i\right\}\mathclose{}} \text{)} \end{aligned} \tag{14}\]

Using log-odds as a function of probability and one plus odds in terms of non-event probability:

\[ \begin{aligned} {\color{red}{\ell_i}}(\pi_i) &= y_i {\operatorname{log}\mathopen{}\left\{\pi_i\right\}\mathclose{}} + (1 - y_i) {\operatorname{log}\mathopen{}\left\{1-\pi_i\right\}\mathclose{}} && \text{(log of the Bernoulli likelihood } \pi_i^{y_i}(1-\pi_i)^{1-y_i} \text{)} \\ &= y_i {\operatorname{log}\mathopen{}\left\{\pi_i\right\}\mathclose{}} + 1 \cdot{\operatorname{log}\mathopen{}\left\{1-\pi_i\right\}\mathclose{}} - y_i \cdot{\operatorname{log}\mathopen{}\left\{1-\pi_i\right\}\mathclose{}} && \text{(distribute } (1-y_i) \text{)} \\ &= y_i {\operatorname{log}\mathopen{}\left\{\pi_i\right\}\mathclose{}} + {\operatorname{log}\mathopen{}\left\{1-\pi_i\right\}\mathclose{}} - y_i {\operatorname{log}\mathopen{}\left\{1-\pi_i\right\}\mathclose{}} && \text{(multiplicative identity: } 1 \cdot{\operatorname{log}\mathopen{}\left\{1-\pi_i\right\}\mathclose{}} = {\operatorname{log}\mathopen{}\left\{1-\pi_i\right\}\mathclose{}} \text{)} \\ &= y_i {\operatorname{log}\mathopen{}\left\{\pi_i\right\}\mathclose{}} - y_i {\operatorname{log}\mathopen{}\left\{{\color{teal}{1-\pi_i}}\right\}\mathclose{}} + {\operatorname{log}\mathopen{}\left\{1-\pi_i\right\}\mathclose{}} && \text{(commute the addition)} \\ &= y_i \mathopen{}\left({\operatorname{log}\mathopen{}\left\{{\color{red}{\pi_i}}\right\}\mathclose{}} - {\operatorname{log}\mathopen{}\left\{{\color{teal}{1-\pi_i}}\right\}\mathclose{}}\right)\mathclose{} + {\operatorname{log}\mathopen{}\left\{1-\pi_i\right\}\mathclose{}} && \text{(factor out } y_i \text{)} \\ &= y_i {\operatorname{log}\mathopen{}\left\{\frac{{\color{red}{\pi_i}}}{{\color{teal}{1-\pi_i}}}\right\}\mathclose{}} + {\operatorname{log}\mathopen{}\left\{1-\pi_i\right\}\mathclose{}} && \text{(difference of logs is the log of the quotient)} \\ &= y_i \operatorname{logit}(\pi_i) + {\operatorname{log}\mathopen{}\left\{1-\pi_i\right\}\mathclose{}} && \text{(log-odds identity: } \operatorname{logit}(\pi) = {\operatorname{log}\mathopen{}\left\{\pi/(1-\pi)\right\}\mathclose{}} \text{)} \\ &= y_i \eta_i + {\operatorname{log}\mathopen{}\left\{1-\pi_i\right\}\mathclose{}} && \text{(definition: } \eta_i \stackrel{\text{def}}{=}\operatorname{logit}(\pi_i) \text{)} \\ &= y_i \eta_i + {\operatorname{log}\mathopen{}\left\{{\mathopen{}\left(1+\omega_i\right)\mathclose{}}^{-1}\right\}\mathclose{}} && \text{(non-event probability: } 1-\pi_i = {\mathopen{}\left(1+\omega_i\right)\mathclose{}}^{-1} \text{)} \\ &= y_i \eta_i - {\operatorname{log}\mathopen{}\left\{1+\omega_i\right\}\mathclose{}} && \text{(log of a reciprocal)} \end{aligned} \]

Lemma 6 (Per-observation log-likelihood component)

Lemma 6 (Per-observation log-likelihood component) \[\ell_i(\pi_i) = y_i \eta_i - {\operatorname{log}\mathopen{}\left\{1+\omega_i\right\}\mathclose{}}\]

Exercise 14

Exercise 14 Compute and graph the log-likelihood for the beetles data.

Solution 14

Solution 14.

Show R code

odds_inv <- function(omega) (1 + omega^-1)^-1
llik_beetles0 <- function(beta_0, beta_1) {
  beetles |>
    mutate(
      eta = beta_0 + beta_1 * dose,
      omega = exp(eta),
      pi = odds_inv(omega), # need for next line:
      llik = died*eta + n*log(1 - pi)
    ) |>
    pull(llik) |>
    sum()
}

llik_beetles <- Vectorize(llik_beetles0)

# to check that we implemented it correctly:
# ests = coef(beetles_glm_ungrouped)
# logLik(beetles_glm_ungrouped)
# llik_beetles(ests[1], ests[2])

Show R code

if (run_graphs) {
  llik_mat_beetles <- outer(beta_0s, beta_1s, llik_beetles)
  plotly::plot_ly(
    type = "surface",
    x = ~beta_0s,
    y = ~beta_1s,
    z = ~ t(llik_mat_beetles)
  )
}

Figure 7: log-likelihood of beetles data

Subtracting the average dose from dose makes the intercept the log-odds of death at the average dose. It also moves the likelihood surface closer to the origin, which makes the surface easier to plot.

Show R code

beetles_glm_grouped_centered <- beetles |>
  glm(
    formula = cbind(died, survived) ~ dose_c,
    family = "binomial"
  )

beetles_glm_ungrouped_centered <- beetles_long |>
  mutate(died = outcome) |>
  glm(
    formula = died ~ dose_c,
    family = "binomial"
  )

equatiomatic::extract_eq(beetles_glm_ungrouped_centered)

\[ \log\left[ \frac { P( \operatorname{died} = \operatorname{1} ) }{ 1 - P( \operatorname{died} = \operatorname{1} ) } \right] = \alpha + \beta_{1}(\operatorname{dose\_c}) \]

Show R code

beetles_glm_grouped_centered |>
  parameters::parameters() |>
  parameters::print_md()

Table 9: Fitted logistic regression model for beetles data, with dose centered

Parameter	Log-Odds	SE	95% CI	z	p
(Intercept)	0.74	0.14	(0.48, 1.02)	5.40	< .001
dose c	34.27	2.91	(28.85, 40.30)	11.77	< .001

Show R code

odds_inv <- function(omega) (1 + omega^-1)^-1
lik_beetles0 <- function(beta_0, beta_1) {
  beetles |>
    mutate(
      eta = beta_0 + beta_1 * dose_c,
      omega = exp(eta),
      pi = odds_inv(omega),
      Lik = (pi^died) * (1 - pi)^(survived)
    ) |>
    pull(Lik) |>
    prod()
}

lik_beetles <- Vectorize(lik_beetles0)

Show R code


ranges <- beetles_glm_grouped_centered |> confint.default(level = .95)

n_points <- 25
beta_0s <- seq(
  ranges["(Intercept)", 1],
  ranges["(Intercept)", 2],
  length.out = n_points
)
beta_1s <- seq(
  ranges["dose_c", 1],
  ranges["dose_c", 2],
  length.out = n_points
)
names(beta_0s) <- round(beta_0s, 2)
names(beta_1s) <- round(beta_1s, 2)
if (run_graphs) {
  lik_mat_beetles <- outer(beta_0s, beta_1s, lik_beetles)
  plotly::plot_ly(
    type = "surface",
    x = ~beta_0s,
    y = ~beta_1s,
    z = ~ t(lik_mat_beetles)
  )
}

Figure 8: Likelihood of beetles data (centered model)

Show R code

odds_inv <- function(omega) (1 + omega^-1)^-1
llik_beetles0 <- function(beta_0, beta_1) {
  beetles |>
    mutate(
      eta = beta_0 + beta_1 * dose_c,
      omega = exp(eta),
      pi = odds_inv(omega),
      llik = died * eta + n*log(1 - pi)
    ) |>
    pull(llik) |>
    sum()
}

llik_beetles <- Vectorize(llik_beetles0)

Show R code

if (run_graphs) {
  llik_mat_beetles <- outer(beta_0s, beta_1s, llik_beetles)
  plotly::plot_ly(
    type = "surface",
    x = ~beta_0s,
    y = ~beta_1s,
    z = ~ t(llik_mat_beetles)
  )
}

Figure 9: log-likelihood of beetles data (centered model)

5.4 Score function

As usual, by independence, we have:

Lemma 7 (Score function decomposes over observations)

Lemma 7 (Score function decomposes over observations) \[ \begin{aligned} {\color{brown}{\mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{\ell'}}\vphantom{\ell'}}(\mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{\beta}}\vphantom{\beta}})}} &\stackrel{\text{def}}{=}\frac{\partial}{\partial \mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{\beta}}\vphantom{\beta}}} \ell(\mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{\beta}}\vphantom{\beta}}) && \text{(definition of the score function)} \\ &= \frac{\partial}{\partial \mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{\beta}}\vphantom{\beta}}} \sum_{i=1}^n\ell_i(\mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{\beta}}\vphantom{\beta}}) && \text{(the log-likelihood decomposes over observations, by independence)} \\ &= \sum_{i=1}^n\frac{\partial}{\partial \mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{\beta}}\vphantom{\beta}}} \ell_i(\mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{\beta}}\vphantom{\beta}}) && \text{(linearity of differentiation)} \\ &= \sum_{i=1}^n{\color{magenta}{\mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{\ell'_i}}\vphantom{\ell'_i}}(\mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{\beta}}\vphantom{\beta}})}} && \text{(definition: } {\color{magenta}{\mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{\ell'_i}}\vphantom{\ell'_i}}}} \stackrel{\text{def}}{=}\frac{\partial}{\partial \mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{\beta}}\vphantom{\beta}}} \ell_i \text{)} \end{aligned} \]

Starting from Lemma 6, we can apply the vector chain rule:

Lemma 8 (Chain rule applied to the score component)

Lemma 8 (Chain rule applied to the score component) \[ \begin{aligned} {\color{magenta}{\mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{\ell_i'}}\vphantom{\ell_i'}}(\mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{\beta}}\vphantom{\beta}})}} &\stackrel{\text{def}}{=}\frac{\partial}{\partial \mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{\beta}}\vphantom{\beta}}} \ell_i(\mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{\beta}}\vphantom{\beta}}) && \text{(definition of the score component)} \\ &= \frac{\partial}{\partial \mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{\beta}}\vphantom{\beta}}}\mathopen{}\left(y_i \eta_i - {\operatorname{log}\mathopen{}\left\{1+\omega_i\right\}\mathclose{}}\right)\mathclose{} && \text{(per-observation log-likelihood)} \\ &= \frac{\partial}{\partial \mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{\beta}}\vphantom{\beta}}}\mathopen{}\left(y_i\eta_i\right)\mathclose{} - \frac{\partial}{\partial \mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{\beta}}\vphantom{\beta}}}{\operatorname{log}\mathopen{}\left\{1+\omega_i\right\}\mathclose{}} && \text{(linearity of differentiation)} \\ &= {\color{red}{\frac{\partial \eta_i}{\partial \mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{\beta}}\vphantom{\beta}}}}}y_i - \frac{\partial}{\partial \mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{\beta}}\vphantom{\beta}}}{\operatorname{log}\mathopen{}\left\{1+\omega_i\right\}\mathclose{}} && \text{(constant-factor rule: } y_i \text{ does not depend on } \mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{\beta}}\vphantom{\beta}}\text{)} \\ &= {\color{red}{\frac{\partial \eta_i}{\partial \mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{\beta}}\vphantom{\beta}}}}}y_i - \frac{\partial u_i}{\partial \mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{\beta}}\vphantom{\beta}}} \mathopen{}\left(\frac{\partial}{\partial u_i}{\operatorname{log}\mathopen{}\left\{u_i\right\}\mathclose{}}\right)\mathclose{} && \text{(vector chain rule, with } u_i \stackrel{\text{def}}{=}1+\omega_i \text{)} \\ &= {\color{red}{\frac{\partial \eta_i}{\partial \mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{\beta}}\vphantom{\beta}}}}}y_i - \frac{\partial u_i}{\partial \mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{\beta}}\vphantom{\beta}}} \frac{1}{u_i} && \text{(derivative of the natural log: } \frac{\partial}{\partial u}{\operatorname{log}\mathopen{}\left\{u\right\}\mathclose{}} = 1/u \text{)} \\ &= {\color{red}{\frac{\partial \eta_i}{\partial \mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{\beta}}\vphantom{\beta}}}}}y_i - {\color{purple}{\frac{\partial \omega_i}{\partial \mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{\beta}}\vphantom{\beta}}}}} \frac{1}{u_i} && \text{(} \frac{\partial u_i}{\partial \mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{\beta}}\vphantom{\beta}}} = \frac{\partial \omega_i}{\partial \mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{\beta}}\vphantom{\beta}}} \text{: the constant 1 has derivative } \mathbf{0}_{(p+1) \times 1} \text{)} \\ &= {\color{red}{\frac{\partial \eta_i}{\partial \mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{\beta}}\vphantom{\beta}}}}}y_i - {\color{purple}{\frac{\partial \omega_i}{\partial \mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{\beta}}\vphantom{\beta}}}}}\frac{1}{1+\omega_i} && \text{(substitute back } u_i = 1+\omega_i \text{)} \end{aligned} \]

Lemma 9 (Derivative of log-odds with respect to coefficients)

Lemma 9 (Derivative of log-odds with respect to coefficients) By the derivative of a linear combination:

\[ \begin{aligned} {\color{red}{\frac{\partial \eta}{\partial \mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{\beta}}\vphantom{\beta}}}}} &= \frac{\partial}{\partial \mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{\beta}}\vphantom{\beta}}}(\mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{x}}\vphantom{x}}\cdot \mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{\beta}}\vphantom{\beta}}) \\ &= {\color{red}{\mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{x}}\vphantom{x}}}} \end{aligned} \tag{15}\]

Lemma 9 is very similar to Lemma 3, but not quite the same; Lemma 3 differentiates by $\mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{x}}\vphantom{x}}$, whereas Lemma 9 differentiates by $\mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{\beta}}\vphantom{\beta}}$.

Theorem 10 (Gradient of odds w.r.t. coefficients)

Theorem 10 (Gradient of odds w.r.t. coefficients) \[ \underbrace{\frac{\partial \omega}{\partial \mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{\beta}}\vphantom{\beta}}}}_{(p+1) \times 1} = \underbrace{\mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{x}}\vphantom{x}}}_{(p+1) \times 1} \cdot \omega \tag{16}\]

Proof

Proof. Applying the vector chain rule along with Lemma 2 and Lemma 9:

\[ \begin{aligned} \frac{\partial \omega}{\partial \mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{\beta}}\vphantom{\beta}}} &= {\color{red}{\frac{\partial \eta}{\partial \mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{\beta}}\vphantom{\beta}}}}} {\color{teal}{\frac{\partial \omega}{\partial \eta}}} && \text{(vector chain rule, through } \eta= \eta \text{)} \\ &= {\color{red}{\mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{x}}\vphantom{x}}}} {\color{teal}{\frac{\partial \omega}{\partial \eta}}} && \text{(gradient of log-odds w.r.t. coefficients: } \frac{\partial \eta}{\partial \mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{\beta}}\vphantom{\beta}}} = \mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{x}}\vphantom{x}}\text{)} \\ &= {\color{red}{\mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{x}}\vphantom{x}}}} {\color{teal}{\omega}} && \text{(derivative of odds w.r.t. log-odds: } \frac{\partial \omega}{\partial \eta} = \omega\text{)} \end{aligned} \tag{17}\]

Example 8 (Evaluating gradient of odds w.r.t. coefficients)

Example 8 (Evaluating gradient of odds w.r.t. coefficients) Consider a subject with covariate vector $\mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{x}}\vphantom{x}}= (1, 2)'$ and linear predictor $\eta = \mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{x}}\vphantom{x}}'\mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{\beta}}\vphantom{\beta}}= 0$, so $\omega= {\operatorname{exp}\mathopen{}\left\{0\right\}\mathclose{}} = 1$.

By Theorem 10:

\[ \begin{aligned} \frac{\partial \omega}{\partial \mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{\beta}}\vphantom{\beta}}} &= \mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{x}}\vphantom{x}}\cdot \omega && \text{(gradient of odds w.r.t. coefficients)} \\ &= \underbrace{\begin{pmatrix}1 \\ 2\end{pmatrix}}_{2 \times 1} \cdot 1 && \text{(substitute } \mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{x}}\vphantom{x}}= (1,2)' \text{ and } \omega= 1 \text{)} \\ &= \underbrace{\begin{pmatrix}1 \\ 2\end{pmatrix}}_{2 \times 1} && \text{(scalar multiplication)} \end{aligned} \tag{18}\]

The gradient vector indicates that increasing $\beta_0$ or $\beta_1$ increases the odds at rates 1 and 2, respectively.

Corollary 9 (Gradient of odds w.r.t. coefficients in terms of probability)

Corollary 9 (Gradient of odds w.r.t. coefficients in terms of probability) \[ \underbrace{\frac{\partial \omega}{\partial \mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{\beta}}\vphantom{\beta}}}}_{(p+1) \times 1} = \underbrace{\mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{x}}\vphantom{x}}}_{(p+1) \times 1} \cdot \frac{\pi}{1-\pi} \tag{19}\]

Proof

Proof. By Theorem 10 and the definition of odds in terms of probability $\pi$:

\[ \begin{aligned} \frac{\partial \omega}{\partial \mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{\beta}}\vphantom{\beta}}} &= {\color{red}{\mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{x}}\vphantom{x}}}} {\color{teal}{\omega}} && \text{(gradient of odds w.r.t. coefficients)} \\ &= {\color{red}{\mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{x}}\vphantom{x}}}} \frac{\pi}{1-\pi} && \text{(odds in terms of probability: } \omega= \frac{\pi}{1-\pi} \text{)} \end{aligned} \tag{20}\]

Example 9 (Gradient of odds in terms of probability)

Example 9 (Gradient of odds in terms of probability) For a model where a subject has event probability $\pi = 0.5$ and covariate vector $\mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{x}}\vphantom{x}}= (1, 3)'$, Corollary 9 gives:

\[ \begin{aligned} \frac{\partial \omega}{\partial \mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{\beta}}\vphantom{\beta}}} &= \mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{x}}\vphantom{x}}\cdot \frac{\pi}{1-\pi} && \text{(gradient of odds in terms of probability)} \\ &= \underbrace{\begin{pmatrix}1 \\ 3\end{pmatrix}}_{2 \times 1} \cdot \frac{0.5}{1-0.5} && \text{(substitute } \mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{x}}\vphantom{x}}= (1,3)' \text{ and } \pi = 0.5 \text{)} \\ &= \underbrace{\begin{pmatrix}1 \\ 3\end{pmatrix}}_{2 \times 1} \cdot 1 && \text{(simplify the fraction)} \\ &= \underbrace{\begin{pmatrix}1 \\ 3\end{pmatrix}}_{2 \times 1} && \text{(scalar multiplication)} \end{aligned} \tag{21}\]

Now we can combine Lemma 8, Lemma 9, and Theorem 10:

\[ \begin{aligned} {\color{magenta}{\ell_i'(\mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{\beta}}\vphantom{\beta}})}} &= {\color{red}{\frac{\partial \eta_i}{\partial \mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{\beta}}\vphantom{\beta}}}}}y_i - {\color{purple}{\frac{\partial \omega_i}{\partial \mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{\beta}}\vphantom{\beta}}}}}\frac{1}{1+\omega_i} && \text{(score component lemma)} \\ &= {\color{red}{\mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{x}}\vphantom{x}}_i}}y_i - {\color{purple}{\frac{\partial \omega_i}{\partial \mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{\beta}}\vphantom{\beta}}}}}\frac{1}{1+\omega_i} && \text{(gradient of log-odds w.r.t. coefficients: } \frac{\partial \eta_i}{\partial \mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{\beta}}\vphantom{\beta}}} = \mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{x}}\vphantom{x}}_i \text{)} \\ &= {\color{red}{\mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{x}}\vphantom{x}}_i}}y_i - {\color{red}{\mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{x}}\vphantom{x}}_i}} {\color{teal}{\omega_i}}\frac{1}{1+\omega_i} && \text{(gradient of odds w.r.t. coefficients: } \frac{\partial \omega_i}{\partial \mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{\beta}}\vphantom{\beta}}} = \mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{x}}\vphantom{x}}_i \omega_i \text{)} \\ &= {\color{red}{\mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{x}}\vphantom{x}}_i}}y_i - {\color{red}{\mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{x}}\vphantom{x}}_i}} \frac{{\color{teal}{\omega_i}}}{1+\omega_i} && \text{(combine the scalar factors into one fraction)} \\ &= \mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{x}}\vphantom{x}}_i y_i - \mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{x}}\vphantom{x}}_i \pi_i && \text{(inverse-odds identity: } \frac{\omega_i}{1+\omega_i} = \pi_i \text{)} \\ &= \mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{x}}\vphantom{x}}_i (y_i - \pi_i) && \text{(factor out } \mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{x}}\vphantom{x}}_i \text{)} \\ &= \mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{x}}\vphantom{x}}_i (y_i - \mu_i) && \text{(Bernoulli conditional mean: } \pi_i = \mu_i \text{)} \\ &= \mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{x}}\vphantom{x}}_i (y_i - \mathbb{E}[Y_i|\mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{X}}\vphantom{X}}_i=\mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{x}}\vphantom{x}}_i]) && \text{(definition: } \mu_i \stackrel{\text{def}}{=}\mathbb{E}[Y_i|\mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{X}}\vphantom{X}}_i=\mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{x}}\vphantom{x}}_i] \text{)} \\ &= \mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{x}}\vphantom{x}}_i \ \varepsilon(y_i|\mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{X}}\vphantom{X}}_i=\mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{x}}\vphantom{x}}_i) && \text{(definition of the error: } \varepsilon(y|\mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{X}}\vphantom{X}}=\mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{x}}\vphantom{x}}) \stackrel{\text{def}}{=}y - \mathbb{E}[Y|\mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{X}}\vphantom{X}}=\mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{x}}\vphantom{x}}] \text{)} \\ &= {\color{magenta}{\mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{x}}\vphantom{x}}_i \varepsilon_i}} && \text{(abbreviation: } \varepsilon_i \stackrel{\text{def}}{=}\varepsilon(y_i|\mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{X}}\vphantom{X}}_i=\mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{x}}\vphantom{x}}_i) \text{)} \end{aligned} \]

Theorem 11 (Score component for one observation)

Theorem 11 (Score component for one observation) \[{\color{magenta}{\ell_i'(\mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{\beta}}\vphantom{\beta}})}} = {\color{magenta}{\mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{x}}\vphantom{x}}_i \varepsilon_i}} \tag{22}\]

This last expression is essentially the same as we found in linear regression.

Finally, combining Lemma 7 and Theorem 11, we have:

Theorem 12 (Logistic-model score function)

Theorem 12 (Logistic-model score function) \[ \begin{aligned} {\color{brown}{\mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{\ell'}}\vphantom{\ell'}}(\mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{\beta}}\vphantom{\beta}})}} &= \sum_{i=1}^n{\color{magenta}{\ell_i'(\mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{\beta}}\vphantom{\beta}})}} && \text{(the score decomposes over observations)} \\ &= \sum_{i=1}^n\underbrace{\mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{x}}\vphantom{x}}_i}_{(p+1) \times 1} \underbrace{\varepsilon_i}_{1 \times 1} && \text{(score component for one observation)} \\ &= {\color{brown}{\underbrace{\mathbf{X}^{\top}}_{(p+1) \times n} \underbrace{\mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{\varepsilon}}\vphantom{\varepsilon}}}_{n \times 1}}} && \text{(matrix form: } \sum_{i=1}^n\mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{x}}\vphantom{x}}_i \varepsilon_i = \mathbf{X}^{\top}\mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{\varepsilon}}\vphantom{\varepsilon}}\text{)} \end{aligned} \tag{23}\]

The score function is vector-valued; its components are:

\[ \frac{\partial \ell}{\partial \mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{\beta}}\vphantom{\beta}}} = \begin{pmatrix} \frac{\partial \ell}{\partial \beta_0} \\ \frac{\partial \ell}{\partial \beta_1} \\ \vdots \\ \frac{\partial \ell}{\partial \beta_p} \end{pmatrix} = \begin{pmatrix} \sum_{i=1}^n1 \varepsilon_i \\ \sum_{i=1}^nx_{i,1}\varepsilon_i \\ \vdots \\ \sum_{i=1}^nx_{i,p} \varepsilon_i \end{pmatrix} = \begin{pmatrix} \mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{1}}\vphantom{1}} \cdot \mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{\varepsilon}}\vphantom{\varepsilon}} \\ \mathbf{X}_{\cdot 1} \cdot \mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{\varepsilon}}\vphantom{\varepsilon}} \\ \vdots \\ \mathbf{X}_{\cdot p} \cdot \mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{\varepsilon}}\vphantom{\varepsilon}}\end{pmatrix} \]

Here, $\mathbf{X}_{\cdot j} \stackrel{\text{def}}{=}(x_{1j}, \ldots, x_{nj})$ denotes the $j^{th}$ column of the design matrix $\mathbf{X}$ (the $n$-vector of covariate $j$’s values across all observations), in contrast with $\mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{x}}\vphantom{x}}_i$, which denotes observation $i$’s covariate row vector (a $p$-vector).

Thus, the score equation $\mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{\ell'}}\vphantom{\ell'}} = \mathbf{0}_{(p+1) \times 1}$ means that for the MLE $\hat{\mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{\beta}}\vphantom{\beta}}}$:

the sum of the errors (aka deviations) equals 0:

\[\sum_{i=1}^n\varepsilon_i = 0\]

the sums of the errors times each covariate also equal 0:

\[\mathbf{X}_{\cdot j} \cdot \mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{\varepsilon}}\vphantom{\varepsilon}}= \sum_{i=1}^nx_{ij} \varepsilon_i = 0, \forall j \in {\mathopen{}\left\{1:p\right\}\mathclose{}}\]

Example 10

Example 10 In our model for the beetles data, we only have an intercept plus one covariate, gas concentration ($c$): \[\mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{x}}\vphantom{x}}= (1, c)\]

If $c_i$ is the gas concentration for the beetle in observation $i$, and $\mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{c}}\vphantom{c}} = (c_1, c_2, ...c_n)$, then the score equation $\mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{\ell'}}\vphantom{\ell'}} = \mathbf{0}_{2 \times 1}$ means that for the MLE $\hat{\mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{\beta}}\vphantom{\beta}}}$:

the sum of the errors (aka deviations) equals 0:

\[\sum_{i=1}^n\varepsilon_i = 0\]

the weighted sum of the error times the gas concentrations equals 0:

\[\sum_{i=1}^nc_i \varepsilon_i = 0 \]

Exercise 15

Exercise 15 Implement and graph the score function for the beetles data

Solution 15

Solution 15.

Show R code

odds_inv <- function(omega) (1 + omega^-1)^-1

score_fn_beetles_beta0_0 <- function(beta_0, beta_1) {
  beetles |>
    mutate(
      eta = beta_0 + beta_1 * dose_c,
      omega = exp(eta),
      pi = odds_inv(omega),
      mu = pi * n,
      epsilon = died - mu,
      score = epsilon
    ) |>
    pull(score) |>
    sum()
}
score_fn_beetles_beta_0 <- Vectorize(score_fn_beetles_beta0_0)

score_fn_beetles_beta1_0 <- function(beta_0, beta_1) {
  beetles |>
    mutate(
      eta = beta_0 + beta_1 * dose_c,
      omega = exp(eta),
      pi = odds_inv(omega),
      mu = pi * n,
      epsilon = died - mu,
      score = dose_c * epsilon
    ) |>
    pull(score) |>
    sum()
}
score_fn_beetles_beta_1 <- Vectorize(score_fn_beetles_beta1_0)

Show R code

if (run_graphs) {
  scores_beetles_beta_0 <- outer(beta_0s, beta_1s, score_fn_beetles_beta_0)
  scores_beetles_beta_1 <- outer(beta_0s, beta_1s, score_fn_beetles_beta_1)

  plotly::plot_ly(
    x = ~beta_0s,
    y = ~beta_1s
  ) |>
    plotly::add_markers(
      type = "scatter",
      x = coef(beetles_glm_grouped_centered)["(Intercept)"],
      y = coef(beetles_glm_grouped_centered)["dose_c"],
      z = 0,
      marker = list(color = "black"),
      name = "MLE"
    ) |>
    plotly::add_surface(
      z = ~ t(scores_beetles_beta_1),
      name = "score_beta_1",
      colorscale = list(c(0, 1), c("red", "green")),
      showscale = FALSE,
      contours = list(
        z = list(
          show = TRUE,
          start = -1,
          end = 1,
          size = .1
        )
      ),
      opacity = 0.75
    ) |>
    plotly::add_surface(
      z = ~ t(scores_beetles_beta_0),
      colorscale = list(c(0, 1), c("yellow", "blue")),
      showscale = FALSE,
      contours = list(
        z = list(
          show = TRUE,
          start = -14,
          end = 14,
          size = 2
        )
      ),
      opacity = 0.75,
      name = "score_beta_0"
    ) |>
    plotly::layout(legend = list(orientation = "h"))
}

Figure 10: score functions of beetles data (centered model), by parameter ($\beta_0$ and $\beta_1$), with MLE marked in black.

5.5 Hessian function

\[ \underbrace{\ell''(\mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{\beta}}\vphantom{\beta}})}_{(p+1) \times (p+1)} = \sum_{i=1}^n\underbrace{{\color{olive}{\ell''_i(\mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{\beta}}\vphantom{\beta}})}}}_{(p+1) \times (p+1)} \tag{24}\]

\[ \begin{aligned} {\color{olive}{\ell''_i(\mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{\beta}}\vphantom{\beta}})}} &\stackrel{\text{def}}{=}\frac{\partial}{\partial \mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{\beta}}\vphantom{\beta}}^{\top}}\mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{\ell_i'}}\vphantom{\ell_i'}} && \text{(definition of the Hessian component)} \\ &= \frac{\partial}{\partial \mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{\beta}}\vphantom{\beta}}^{\top}}\mathopen{}\left(\mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{x}}\vphantom{x}}_i\varepsilon_i\right)\mathclose{} && \text{(score component for one observation)} \\ &= \mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{x}}\vphantom{x}}_i \frac{\partial}{\partial \mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{\beta}}\vphantom{\beta}}^{\top}}\varepsilon_i && \text{(constant-factor rule: } \mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{x}}\vphantom{x}}_i \text{ does not depend on } \mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{\beta}}\vphantom{\beta}}\text{)} \\ &= \mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{x}}\vphantom{x}}_i {\color{violet}{\varepsilon_i'}} && \text{(definition: } {\color{violet}{\varepsilon_i'}} \stackrel{\text{def}}{=}\frac{\partial}{\partial \mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{\beta}}\vphantom{\beta}}^{\top}}\varepsilon_i \text{)} \end{aligned} \tag{25}\]

Theorem 13 (Gradient of fitted probability w.r.t. coefficients)

Theorem 13 (Gradient of fitted probability w.r.t. coefficients) Using Lemma 9 and Theorem 8:

\[ \begin{aligned} \frac{\partial \pi}{\partial \mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{\beta}}\vphantom{\beta}}} &= {\color{red}{\frac{\partial \eta}{\partial \mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{\beta}}\vphantom{\beta}}}}} {\color{teal}{\frac{\partial \pi}{\partial \eta}}} && \text{(vector chain rule, through } \eta\text{)} \\ &= {\color{red}{\mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{x}}\vphantom{x}}}} {\color{teal}{\frac{\partial \pi}{\partial \eta}}} && \text{(gradient of log-odds w.r.t. coefficients: } \frac{\partial \eta}{\partial \mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{\beta}}\vphantom{\beta}}} = \mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{x}}\vphantom{x}}\text{)} \\ &= {\color{red}{\mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{x}}\vphantom{x}}}} {\color{teal}{\pi(1-\pi)}} && \text{(derivative of probability w.r.t. log-odds: } \frac{\partial \pi}{\partial \eta} = \pi(1-\pi) \text{)} \end{aligned} \]

Using Theorem 13:

\[ \begin{aligned} {\color{violet}{\varepsilon'_i}} &\stackrel{\text{def}}{=}\frac{\partial \varepsilon_i}{\partial \mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{\beta}}\vphantom{\beta}}^{\top}} && \text{(definition of } {\color{violet}{\varepsilon'_i}} \text{)} \\ &= \frac{\partial}{\partial \mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{\beta}}\vphantom{\beta}}^{\top}}(y_i - \mu_i) && \text{(definition of the error: } \varepsilon_i \stackrel{\text{def}}{=}y_i - \mu_i \text{)} \\ &= \frac{\partial}{\partial \mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{\beta}}\vphantom{\beta}}^{\top}}y_i - \frac{\partial}{\partial \mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{\beta}}\vphantom{\beta}}^{\top}}\mu_i && \text{(linearity of differentiation)} \\ &= \mathbf{0}_{1 \times (p+1)} - \frac{\partial}{\partial \mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{\beta}}\vphantom{\beta}}^{\top}}\mu_i && \text{(} y_i \text{ does not depend on } \mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{\beta}}\vphantom{\beta}}\text{)} \\ &= -\frac{\partial \mu_i}{\partial \mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{\beta}}\vphantom{\beta}}^{\top}} && \text{(additive identity)} \\ &= -{\color{purple}{\frac{\partial \pi_i}{\partial \mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{\beta}}\vphantom{\beta}}^{\top}}}} && \text{(Bernoulli conditional mean: } \mu_i = \pi_i \text{)} \\ &= - \pi_i (1-\pi_i) \mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{x}}\vphantom{x}}_i^{\top} && \text{(transpose of the gradient of } \pi \text{ w.r.t. coefficients)} \\ &= - {\operatorname{Var}\mathopen{}\left(Y_i|\mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{X}}\vphantom{X}}_i=\mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{x}}\vphantom{x}}_i\right)\mathclose{}} \mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{x}}\vphantom{x}}_i^{\top} && \text{(Bernoulli conditional variance: } {\operatorname{Var}\mathopen{}\left(Y_i|\mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{X}}\vphantom{X}}_i=\mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{x}}\vphantom{x}}_i\right)\mathclose{}} = \pi_i(1-\pi_i) \text{)} \end{aligned} \]

Returning to Equation 25:

\[ \begin{aligned} {\color{olive}{\ell''_i(\mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{\beta}}\vphantom{\beta}})}} &= \mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{x}}\vphantom{x}}_i {\color{violet}{\varepsilon_i'}} && \text{(Hessian component identity)} \\ &= \mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{x}}\vphantom{x}}_i \mathopen{}\left(- {\operatorname{Var}\mathopen{}\left(Y_i|\mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{X}}\vphantom{X}}_i=\mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{x}}\vphantom{x}}_i\right)\mathclose{}} \mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{x}}\vphantom{x}}_i^{\top}\right)\mathclose{} && \text{(substitute } {\color{violet}{\varepsilon_i'}} \text{)} \\ &= {\color{olive}{-\underbrace{\mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{x}}\vphantom{x}}_i}_{(p+1) \times 1} \underbrace{{\operatorname{Var}\mathopen{}\left(Y_i|\mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{X}}\vphantom{X}}_i=\mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{x}}\vphantom{x}}_i\right)\mathclose{}}}_{1 \times 1} \underbrace{\mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{x}}\vphantom{x}}_i^{\top}}_{1 \times (p+1)}}} && \text{(move the scalar factor } -{\operatorname{Var}\mathopen{}\left(Y_i|\mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{X}}\vphantom{X}}_i=\mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{x}}\vphantom{x}}_i\right)\mathclose{}} \text{ between the vectors)} \end{aligned} \tag{26}\]

Returning to Equation 24:

\[ \begin{aligned} {\ell''(\mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{\beta}}\vphantom{\beta}})} &= \sum_{i=1}^n{\color{olive}{\ell''_i(\mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{\beta}}\vphantom{\beta}})}} && \text{(the Hessian decomposes over observations)} \\ &= {-\sum_{i=1}^n\underbrace{\mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{x}}\vphantom{x}}_i}_{(p+1) \times 1} \underbrace{{\operatorname{Var}\mathopen{}\left(Y_i|\mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{X}}\vphantom{X}}_i=\mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{x}}\vphantom{x}}_i\right)\mathclose{}}}_{1 \times 1} \underbrace{\mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{x}}\vphantom{x}}_i^{\top}}_{1 \times (p+1)}} && \text{(Hessian component for one observation)} \\ &= {- \underbrace{\mathbf{X}^{\top}}_{(p+1) \times n} \underbrace{\mathbf{D}}_{n \times n} \underbrace{\mathbf{X}}_{n \times (p+1)}} && \text{(matrix form: } \mathbf{D} \stackrel{\text{def}}{=}\text{diag}({\operatorname{Var}\mathopen{}\left(Y_i|\mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{X}}\vphantom{X}}_i=\mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{x}}\vphantom{x}}_i\right)\mathclose{}}) \text{)} \end{aligned} \tag{27}\]

where $\mathbf{D} \stackrel{\text{def}}{=}\text{diag}({\operatorname{Var}\mathopen{}\left(Y_i|\mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{X}}\vphantom{X}}_i=\mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{x}}\vphantom{x}}_i\right)\mathclose{}})$ is the diagonal matrix whose $i^{th}$ diagonal element is ${\operatorname{Var}\mathopen{}\left(Y_i|\mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{X}}\vphantom{X}}_i=\mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{x}}\vphantom{x}}_i\right)\mathclose{}}$.

Remark 1 (The logistic log-likelihood is concave)

Remark 1 (The logistic log-likelihood is concave). The Hessian $\ell''(\mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{\beta}}\vphantom{\beta}}) = -\mathbf{X}^{\top}\mathbf{D}\mathbf{X}$ (Equation 27) is negative semi-definite for every $\mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{\beta}}\vphantom{\beta}}$, because the diagonal entries of $\mathbf{D}$ are ${\operatorname{Var}\mathopen{}\left(Y_i|\mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{X}}\vphantom{X}}_i=\mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{x}}\vphantom{x}}_i\right)\mathclose{}} = \pi_i(1-\pi_i) \geq 0$. Since the diagonal entries are non-negative, $\mathbf{D}^{1/2} \stackrel{\text{def}}{=}\text{diag}\mathopen{}\left(\sqrt{\pi_i(1-\pi_i)}\right)\mathclose{}$ is well-defined, and for any vector $\mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{v}}\vphantom{v}} \in \mathbb{R}^{p+1}$:

\[ \begin{aligned} \underbrace{{\mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{v}}\vphantom{v}}}^{\top}}_{1 \times (p+1)} \mathopen{}\left(-\underbrace{\mathbf{X}^{\top}}_{(p+1) \times n}\underbrace{\mathbf{D}}_{n \times n}\underbrace{\mathbf{X}}_{n \times (p+1)}\right)\mathclose{} \underbrace{\mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{v}}\vphantom{v}}}_{(p+1) \times 1} &= -{\mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{v}}\vphantom{v}}}^{\top}\mathbf{X}^{\top}\mathbf{D}\mathbf{X}\mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{v}}\vphantom{v}} && \text{(the scalar } -1 \text{ factors out)} \\ &= -{\mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{v}}\vphantom{v}}}^{\top}\mathbf{X}^{\top}\mathbf{D}^{1/2}\mathbf{D}^{1/2}\mathbf{X}\mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{v}}\vphantom{v}} && \text{(} \mathbf{D} = \mathbf{D}^{1/2}\mathbf{D}^{1/2} \text{)} \\ &= -{\mathopen{}\left(\mathbf{D}^{1/2}\mathbf{X}\mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{v}}\vphantom{v}}\right)\mathclose{}}^{\top}\mathopen{}\left(\mathbf{D}^{1/2}\mathbf{X}\mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{v}}\vphantom{v}}\right)\mathclose{} && \text{(transpose of a product; } \mathbf{D}^{1/2} \text{ is diagonal, hence symmetric)} \\ &= -{\mathopen{}\left\lVert\mathbf{D}^{1/2}\mathbf{X}\mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{v}}\vphantom{v}}\right\rVert\mathclose{}}^2 && \text{(definition of the squared Euclidean norm)} \\ &\leq 0 && \text{(squared norms are non-negative)} \end{aligned} \]

A twice-differentiable function whose Hessian is negative semi-definite everywhere is concave [9, Sec. 3.1.4], so the log-likelihood $\ell(\mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{\beta}}\vphantom{\beta}})$ is concave, and every stationary point (every solution of the score equation $\mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{\ell'}}\vphantom{\ell'}}(\mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{\beta}}\vphantom{\beta}}) = \mathbf{0}_{(p+1) \times 1}$) is a global maximum [9, Sec. 4.2.2]. In fact, since $\pi_i = {\operatorname{expit}\mathopen{}\left\{\mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{x}}\vphantom{x}}_i \cdot \mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{\beta}}\vphantom{\beta}}\right\}\mathclose{}} \in (0,1)$ strictly, every diagonal entry $\pi_i(1-\pi_i)$ is strictly positive; so when $\mathbf{X}$ has full column rank, $\mathbf{D}^{1/2}\mathbf{X}\mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{v}}\vphantom{v}} = \mathbf{0}_{n \times 1}$ only for $\mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{v}}\vphantom{v}} = \mathbf{0}_{(p+1) \times 1}$, the Hessian is negative definite, the log-likelihood is strictly concave, and the maximum is unique. Consequently, when the Newton-Raphson algorithm converges, it converges to the unique global maximum likelihood estimate, not merely to a local optimum.

Compare with the linear regression Hessian:

\[ \begin{aligned} \ell''(\mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{\beta}}\vphantom{\beta}}) &= -\frac{1}{\sigma^2}\sum_{i=1}^n\underbrace{\mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{x}}\vphantom{x}}_i}_{(p+1) \times 1} \underbrace{\mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{x}}\vphantom{x}}_i'}_{1 \times (p+1)} && \text{(linear-model Hessian)} \\ &= -\underbrace{\mathbf{X}^{\top}}_{(p+1) \times n} \underbrace{\mathbf{D}^{-1}}_{n \times n} \underbrace{\mathbf{X}}_{n \times (p+1)} && \text{(matrix form: here } \mathbf{D} = \sigma^2\mathbb{I}_{n \times n} \text{, so } \mathbf{D}^{-1} = \frac{1}{\sigma^2}\mathbb{I}_{n \times n} \text{)} \end{aligned} \tag{28}\]

Exercise 16

Exercise 16 Determine the elements of the Hessian matrix for logistic regression.

Solution 16

Solution 16. The components of the Hessian are:

\[ \begin{aligned} \underbrace{\ell''(\beta)}_{(p+1) \times (p+1)} &= \frac{\partial^2}{\partial \beta^{\top} \partial \beta}{\ell} && \text{(definition of the Hessian)} \\ &= \frac{\partial}{\partial \beta^{\top}}\underbrace{\ell'}_{(p+1) \times 1} && \text{(the Hessian is the derivative of the score)} \\ &= \begin{bmatrix} \underbrace{\frac{\partial \ell'}{\partial \beta_0}}_{(p+1) \times 1} & \underbrace{\frac{\partial \ell'}{\partial \beta_1}}_{(p+1) \times 1} & \cdots & \underbrace{\frac{\partial \ell'}{\partial \beta_p}}_{(p+1) \times 1} \end{bmatrix} && \text{(differentiate column-by-column w.r.t. } \beta^{\top} \text{)} \\ &= \underbrace{\begin{bmatrix} \frac{\partial^2 \ell}{\partial \beta_0^2} & \frac{\partial^2 \ell}{\partial \beta_0 \partial \beta_1} & \cdots & \frac{\partial^2 \ell}{\partial \beta_0 \partial \beta_p} \\ \frac{\partial^2 \ell}{\partial \beta_1 \partial \beta_0} & \frac{\partial^2 \ell}{\partial \beta_1^2} & \cdots & \frac{\partial^2 \ell}{\partial \beta_1 \partial \beta_p} \\ \vdots & \ddots & \ddots & \vdots \\ \frac{\partial^2 \ell}{\partial \beta_p \partial \beta_0} & \frac{\partial^2 \ell}{\partial \beta_p \partial \beta_1} & \cdots & \frac{\partial^2 \ell}{\partial \beta_p^2} \end{bmatrix}}_{(p+1) \times (p+1)} && \text{(each score entry is itself a partial derivative of } \ell\text{)} \end{aligned} \]

Exercise 17

Exercise 17 Determine the Hessian for the beetles model.

Solution 17

Solution 17. In the beetles model, the Hessian is:

\[ \begin{aligned} \underbrace{\ell''(\beta)}_{2 \times 2} &= \begin{bmatrix} \underbrace{\frac{\partial \ell'}{\partial \beta_0}}_{2 \times 1} & \underbrace{\frac{\partial \ell'}{\partial \beta_1}}_{2 \times 1} \end{bmatrix} && \text{(differentiate column-by-column; here } p+1 = 2 \text{)} \\ &= \begin{bmatrix} \frac{\partial^2 \ell}{\partial \beta_0^2} & \frac{\partial^2 \ell}{\partial \beta_0 \partial \beta_1} \\ \frac{\partial^2 \ell}{\partial \beta_1 \partial \beta_0} & \frac{\partial^2 \ell}{\partial \beta_1^2} \end{bmatrix} && \text{(each score entry is a partial derivative of } \ell\text{)} \\ &= -\sum_{i=1}^n \underbrace{\begin{pmatrix}1 \\ c_i\end{pmatrix}}_{2 \times 1} \underbrace{\pi_i(1-\pi_i)}_{1 \times 1} \underbrace{\begin{pmatrix}1 & c_i\end{pmatrix}}_{1 \times 2} && \text{(logistic Hessian with } \mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{x}}\vphantom{x}}_i = (1, c_i)^{\top} \text{)} \\ &= \begin{bmatrix} -\sum_{i=1}^n\pi_i(1-\pi_i) & -\sum_{i=1}^nc_i \pi_i(1-\pi_i) \\ -\sum_{i=1}^nc_i \pi_i(1-\pi_i) & -\sum_{i=1}^nc_i^2 \pi_i(1-\pi_i) \end{bmatrix} && \text{(multiply out the outer products, entry by entry)} \end{aligned} \]

Setting the score function to zero gives the score equation:

\[\sum_{i=1}^n\mathopen{}\left\{\underbrace{\mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{x}}\vphantom{x}}_i}_{(p+1) \times 1} \underbrace{\mathopen{}\left(y_i - {\operatorname{expit}\mathopen{}\left\{{\mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{x}}\vphantom{x}}_i}^{\top}\mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{\beta}}\vphantom{\beta}}\right\}\mathclose{}}\right)\mathclose{}}_{1 \times 1} \right\}\mathclose{} = \mathbf{0}_{(p+1) \times 1} \tag{29}\]

Remark 2 (Why the logistic score equation has no closed-form solution)

Remark 2 (Why the logistic score equation has no closed-form solution). In linear regression, the score equation is linear in $\mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{\beta}}\vphantom{\beta}}$. Rearranging a linear system isolates $\mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{\beta}}\vphantom{\beta}}$, which gives the normal equations.

In logistic regression, $\mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{\beta}}\vphantom{\beta}}$ appears inside ${\operatorname{expit}\mathopen{}\left\{{\mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{x}}\vphantom{x}}_i}^{\top}\mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{\beta}}\vphantom{\beta}}\right\}\mathclose{}}$ in every term of Equation 29. The equations are therefore non-linear in $\mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{\beta}}\vphantom{\beta}}$. No rearrangement isolates $\mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{\beta}}\vphantom{\beta}}$ on one side. A system of $p+1$ non-linear equations in $p+1$ unknowns has no general solution formula.

The log-likelihood is concave, so every solution of the score equation is a global maximum. Concavity does not give a formula for such a solution.

Some models do have closed-form solutions. In the intercept-only model, the MLE of the log-odds is the log-odds of the sample proportion of the $y_i$ that equal 1.

In general, the score equation has no closed-form solution (Remark 2). Instead, we can use the Newton-Raphson method:

\[ {\widehat{\theta}}^* \leftarrow {\widehat{\theta}}^* - {\mathopen{}\left({\ell''\mathopen{}\left(\mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{y}}\vphantom{y}};{\widehat{\theta}}^*\right)\mathclose{}}\right)\mathclose{}}^{-1} {\ell'\mathopen{}\left(\mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{y}}\vphantom{y}};{\widehat{\theta}}^*\right)\mathclose{}} \]

The method makes a series of guesses. Each guess improves on the previous one by raising the log-likelihood. Setting glm.control(trace = TRUE) prints the deviance after each iteration:

beetles_glm_ungrouped <-
  beetles_long |>
  glm(
    control = glm.control(trace = TRUE),
    formula = outcome ~ dose,
    family = "binomial"
  )
#> Deviance = 383.249 Iterations - 1
#> Deviance = 372.921 Iterations - 2
#> Deviance = 372.472 Iterations - 3
#> Deviance = 372.471 Iterations - 4
#> Deviance = 372.471 Iterations - 5

The printed deviance is $2(\ell_{\text{full}} - \ell(\hat\beta))$. The algorithm stops once the deviance changes very little between iterations.

Table 10 and Table 11 show the fitted model and the covariance matrix of the estimates, respectively.

Show R code

beetles_glm_ungrouped |> summary()
#>
#> Call:
#> glm(formula = outcome ~ dose, family = "binomial", data = beetles_long,
#>     control = glm.control(trace = TRUE))
#>
#> Coefficients:
#>             Estimate Std. Error z value Pr(>|z|)
#> (Intercept)   -60.72       5.18   -11.7   <2e-16 ***
#> dose           34.27       2.91    11.8   <2e-16 ***
#> ---
#> Signif. codes:  0 '***' 0.001 '**' 0.01 '*' 0.05 '.' 0.1 ' ' 1
#>
#> (Dispersion parameter for binomial family taken to be 1)
#>
#>     Null deviance: 645.44  on 480  degrees of freedom
#> Residual deviance: 372.47  on 479  degrees of freedom
#> AIC: 376.5
#>
#> Number of Fisher Scoring iterations: 5

Table 10: Fitted model for beetles data

Show R code

beetles_glm_ungrouped |> vcov()
#>             (Intercept)      dose
#> (Intercept)     26.8393 -15.08189
#> dose           -15.0819   8.48041

Table 11: Parameter estimate covariance matrix for beetles data

6 Inference for logistic regression models

Video lecture

David Rocke’s Epi 204 lecture Inference for Logistic Regression (slides) covers likelihood ratio tests for nested models, Wald tests and confidence intervals, and interaction terms, using the Evans County heart disease data [4].

6.1 Inference for individual predictor coefficients

6.1.1 Wald tests and confidence intervals

By the central limit theorem for MLEs, the maximum likelihood estimates $\hat{\beta}_k$ are approximately Gaussian for large sample sizes; see also the table of Gaussian vs. MLE-based tests.

Wald test statistic

To test $H_0: \beta_k = \beta_{k,0}$ (typically $\beta_{k,0} = 0$):

\[z_k = \frac{\hat{\beta}_k - \beta_{k,0}}{{\mathop{\widehat{\operatorname{SE}}}\nolimits\mathopen{}\left(\hat{\beta}_k\right)\mathclose{}}}\]

Under $H_0$, $z_k \overset{\cdot}{\sim} N(0,1)$ for large $n$.

Confidence intervals for regression coefficients

A 95% confidence interval for $\beta_k$ is:

\[\hat{\beta}_k \pm 1.96 \cdot {\mathop{\widehat{\operatorname{SE}}}\nolimits\mathopen{}\left(\hat{\beta}_k\right)\mathclose{}}\]

Confidence intervals for exponentiated coefficients

By the invariance property of MLEs, the MLE of $e^{\beta_k}$ is $e^{\hat{\beta}_k}$.

A 95% confidence interval for $e^{\beta_k}$ is obtained by exponentiating the endpoints of the CI for $\beta_k$:

\[ e^{\beta_k} \in \mathopen{}\left( e^{\hat{\beta}_k - 1.96 \cdot {\mathop{\widehat{\operatorname{SE}}}\nolimits\mathopen{}\left(\hat{\beta}_k\right)\mathclose{}}},\; e^{\hat{\beta}_k + 1.96 \cdot {\mathop{\widehat{\operatorname{SE}}}\nolimits\mathopen{}\left(\hat{\beta}_k\right)\mathclose{}}} \right)\mathclose{} \]

For covariate coefficients ($k \neq 0$), $e^{\beta_k}$ is an odds ratio (the multiplicative change in odds per 1-unit increase in $x_k$, holding all other covariates fixed). For the intercept ($k = 0$), $e^{\beta_0}$ is the baseline odds (the odds when all covariates equal zero), not an odds ratio.

In R

In R, parameters() from the parameters package automatically computes Wald tests and confidence intervals for logistic regression model coefficients:

Show R code

beetles_glm_ungrouped |>
  parameters() |>
  print_md()
#> Deviance = 372.714 Iterations - 1
#> Deviance = 372.714 Iterations - 2
#> Deviance = 373.417 Iterations - 1
#> Deviance = 373.417 Iterations - 2
#> Deviance = 374.544 Iterations - 1
#> Deviance = 374.544 Iterations - 2
#> Deviance = 376.063 Iterations - 1
#> Deviance = 376.063 Iterations - 2
#> Deviance = 377.943 Iterations - 1
#> Deviance = 377.943 Iterations - 2
#> Deviance = 380.156 Iterations - 1
#> Deviance = 380.156 Iterations - 2
#> Deviance = 372.727 Iterations - 1
#> Deviance = 372.727 Iterations - 2
#> Deviance = 373.526 Iterations - 1
#> Deviance = 373.526 Iterations - 2
#> Deviance = 374.912 Iterations - 1
#> Deviance = 374.912 Iterations - 2
#> Deviance = 376.937 Iterations - 1
#> Deviance = 376.937 Iterations - 2
#> Deviance = 376.937 Iterations - 3
#> Deviance = 379.654 Iterations - 1
#> Deviance = 379.654 Iterations - 2
#> Deviance = 379.654 Iterations - 3
#> Deviance = 372.727 Iterations - 1
#> Deviance = 372.727 Iterations - 2
#> Deviance = 373.526 Iterations - 1
#> Deviance = 373.526 Iterations - 2
#> Deviance = 374.913 Iterations - 1
#> Deviance = 374.913 Iterations - 2
#> Deviance = 376.94 Iterations - 1
#> Deviance = 376.94 Iterations - 2
#> Deviance = 379.66 Iterations - 1
#> Deviance = 379.66 Iterations - 2
#> Deviance = 379.66 Iterations - 3
#> Deviance = 372.714 Iterations - 1
#> Deviance = 372.714 Iterations - 2
#> Deviance = 373.417 Iterations - 1
#> Deviance = 373.417 Iterations - 2
#> Deviance = 374.543 Iterations - 1
#> Deviance = 374.543 Iterations - 2
#> Deviance = 376.061 Iterations - 1
#> Deviance = 376.061 Iterations - 2
#> Deviance = 377.939 Iterations - 1
#> Deviance = 377.939 Iterations - 2
#> Deviance = 380.151 Iterations - 1
#> Deviance = 380.151 Iterations - 2

Table 12: Wald tests and 95% CIs for beetles logistic regression

Parameter	Log-Odds	SE	95% CI	z	p
(Intercept)	-60.72	5.18	(-71.44, -51.08)	-11.72	< .001
dose	34.27	2.91	(28.85, 40.30)	11.77	< .001

Pass exponentiate = TRUE to parameters() to report exponentiated coefficients. The intercept is then interpreted as baseline odds, while the non-intercept coefficients are odds ratios:

Show R code

beetles_glm_ungrouped |>
  parameters(exponentiate = TRUE) |>
  print_md()
#> Deviance = 372.714 Iterations - 1
#> Deviance = 372.714 Iterations - 2
#> Deviance = 373.417 Iterations - 1
#> Deviance = 373.417 Iterations - 2
#> Deviance = 374.544 Iterations - 1
#> Deviance = 374.544 Iterations - 2
#> Deviance = 376.063 Iterations - 1
#> Deviance = 376.063 Iterations - 2
#> Deviance = 377.943 Iterations - 1
#> Deviance = 377.943 Iterations - 2
#> Deviance = 380.156 Iterations - 1
#> Deviance = 380.156 Iterations - 2
#> Deviance = 372.727 Iterations - 1
#> Deviance = 372.727 Iterations - 2
#> Deviance = 373.526 Iterations - 1
#> Deviance = 373.526 Iterations - 2
#> Deviance = 374.912 Iterations - 1
#> Deviance = 374.912 Iterations - 2
#> Deviance = 376.937 Iterations - 1
#> Deviance = 376.937 Iterations - 2
#> Deviance = 376.937 Iterations - 3
#> Deviance = 379.654 Iterations - 1
#> Deviance = 379.654 Iterations - 2
#> Deviance = 379.654 Iterations - 3
#> Deviance = 372.727 Iterations - 1
#> Deviance = 372.727 Iterations - 2
#> Deviance = 373.526 Iterations - 1
#> Deviance = 373.526 Iterations - 2
#> Deviance = 374.913 Iterations - 1
#> Deviance = 374.913 Iterations - 2
#> Deviance = 376.94 Iterations - 1
#> Deviance = 376.94 Iterations - 2
#> Deviance = 379.66 Iterations - 1
#> Deviance = 379.66 Iterations - 2
#> Deviance = 379.66 Iterations - 3
#> Deviance = 372.714 Iterations - 1
#> Deviance = 372.714 Iterations - 2
#> Deviance = 373.417 Iterations - 1
#> Deviance = 373.417 Iterations - 2
#> Deviance = 374.543 Iterations - 1
#> Deviance = 374.543 Iterations - 2
#> Deviance = 376.061 Iterations - 1
#> Deviance = 376.061 Iterations - 2
#> Deviance = 377.939 Iterations - 1
#> Deviance = 377.939 Iterations - 2
#> Deviance = 380.151 Iterations - 1
#> Deviance = 380.151 Iterations - 2

Table 13: Exponentiated coefficients and 95% CIs for beetles

Parameter	Odds Ratio	SE	95% CI	z	p
(Intercept)	4.27e-27	2.21e-26	(9.39e-32, 6.56e-23)	-11.72	< .001
dose	7.65e+14	2.23e+15	(3.40e+12, 3.18e+17)	11.77	< .001

6.2 Inference for predicted probabilities

Exercise 18

Exercise 18 Given a maximum likelihood estimate $\hat{\beta}$ and a corresponding estimated covariance matrix $\hat{\Sigma}\stackrel{\text{def}}{=}\widehat{\operatorname{Cov}}(\hat{\beta})$, calculate a 95% confidence interval for the predicted probability $\pi(\mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{x}}\vphantom{x}}) = \Pr(Y = 1 | \mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{X}}\vphantom{X}}= \mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{x}}\vphantom{x}})$.

Solution 18

Solution 18.

By the central limit theorem for MLEs, a 95% confidence interval for $\pi(\mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{x}}\vphantom{x}})$ can be constructed as:

\[\hat\pi(\mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{x}}\vphantom{x}}) \pm 1.96 * {\mathop{\widehat{\operatorname{SE}}}\nolimits\mathopen{}\left(\hat\pi(\mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{x}}\vphantom{x}})\right)\mathclose{}}\]

However, ${\mathop{\widehat{\operatorname{SE}}}\nolimits\mathopen{}\left(\hat\pi(\mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{x}}\vphantom{x}})\right)\mathclose{}}$ seems difficult to compute; doing so would require using the delta method.

Instead, using the invariance property of MLEs, we can first calculate a confidence interval for the log-odds,

\[\eta(\mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{x}}\vphantom{x}}) = \mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{x}}\vphantom{x}}'\mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{\beta}}\vphantom{\beta}}\in (L, R)\]

and then apply $\operatorname{expit}$ to the endpoints of that log-odds-scale confidence interval:

\[\pi(\mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{x}}\vphantom{x}}) \in (\operatorname{expit}(L), \operatorname{expit}(R)) \tag{30}\]

Theorem 14 (Confidence interval for a predicted probability)

Theorem 14 (Confidence interval for a predicted probability) In a logistic regression model, let $(L, R)$ be a 95% confidence interval for the log-odds $\eta(\mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{x}}\vphantom{x}}) = \mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{x}}\vphantom{x}} \cdot \mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{\beta}}\vphantom{\beta}}$. Then:

\[\pi(\mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{x}}\vphantom{x}}) \in \mathopen{}\left(\operatorname{expit}(L), \operatorname{expit}(R)\right)\mathclose{}\]

is a 95% confidence interval for the predicted probability $\pi(\mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{x}}\vphantom{x}}) = \Pr(Y = 1 | \mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{X}}\vphantom{X}}= \mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{x}}\vphantom{x}})$.

Proof

Proof. This proof is the solution to Exercise 18, worked in Solution 18.

Example 11 (Confidence interval for a beetle mortality probability)

Example 11 (Confidence interval for a beetle mortality probability) For the beetles logistic regression model (beetles_glm_ungrouped), the code below first computes a 95% confidence interval for the log-odds at dose 1.8, then applies $\operatorname{expit}$ to its endpoints as in Theorem 14:

Show R code

ex_pred <- predict(
  beetles_glm_ungrouped,
  newdata = data.frame(dose = 1.8),
  type = "link",
  se.fit = TRUE
)
ex_ci_logodds <- ex_pred$fit + c(-1, 1) * 1.96 * ex_pred$se.fit
ex_ci_prob <- plogis(ex_ci_logodds)

The 95% confidence interval for the log-odds is (0.685, 1.253), so the 95% confidence interval for the probability of death is (0.665, 0.778), which stays inside $(0, 1)$ and contains the estimate 0.725.

Exercise 19

Exercise 19 Find a 95% confidence interval for the log-odds $\eta(\mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{x}}\vphantom{x}}) = \mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{x}}\vphantom{x}}'\mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{\beta}}\vphantom{\beta}}$.

Solution 19

Solution 19. By the central limit theorem for MLEs, a 95% confidence interval for $\eta(\mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{x}}\vphantom{x}})$ can be constructed as:

\[\hat\eta(\mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{x}}\vphantom{x}}) \pm 1.96 * {\color{teal}{{\mathop{\widehat{\operatorname{SE}}}\nolimits\mathopen{}\left(\hat\eta(\mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{x}}\vphantom{x}})\right)\mathclose{}}}}\]

where $\hat\eta(\mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{x}}\vphantom{x}}) = \mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{x}}\vphantom{x}}'\hat{\beta}$.

Theorem 15 (Confidence interval for the log-odds)

Theorem 15 (Confidence interval for the log-odds) In a logistic regression model, let $\hat{\beta}$ be the maximum likelihood estimate of $\mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{\beta}}\vphantom{\beta}}$, and let $\hat\eta(\mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{x}}\vphantom{x}}) = \mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{x}}\vphantom{x}} \cdot \hat{\beta}$. For large samples, an approximate 95% confidence interval for the log-odds $\eta(\mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{x}}\vphantom{x}})$ is:

\[\eta(\mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{x}}\vphantom{x}}) \in \mathopen{}\left(\hat\eta(\mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{x}}\vphantom{x}}) \pm 1.96 \cdot {\mathop{\widehat{\operatorname{SE}}}\nolimits\mathopen{}\left(\hat\eta(\mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{x}}\vphantom{x}})\right)\mathclose{}}\right)\mathclose{}\]

Proof

Proof. This proof is the solution to Exercise 19, worked in Solution 19.

Example 12 (Confidence interval for a beetle log-odds)

Example 12 (Confidence interval for a beetle log-odds) For the beetles logistic regression model (beetles_glm_ungrouped), the code below applies Theorem 15 at dose 1.8, using the standard error from predict() and, as a check, the standard error from the estimated covariance matrix:

Show R code

ex_pred <- predict(
  beetles_glm_ungrouped,
  newdata = data.frame(dose = 1.8),
  type = "link",
  se.fit = TRUE
)
ex_ci_predict <- ex_pred$fit + c(-1, 1) * 1.96 * ex_pred$se.fit
ex_x <- c(1, 1.8)
ex_se_vcov <- sqrt(drop(t(ex_x) %*% vcov(beetles_glm_ungrouped) %*% ex_x))
ex_ci_vcov <- sum(ex_x * coef(beetles_glm_ungrouped)) + c(-1, 1) * 1.96 * ex_se_vcov

The estimated log-odds is 0.969, with 95% confidence interval (0.685, 1.253). The covariance-matrix calculation gives (0.685, 1.253), which agrees.

Exercise 20

Exercise 20

How can we estimate the standard error of $\hat\eta(\mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{x}}\vphantom{x}})$?

Solution 20

Solution 20. \[ {\color{green}{{\operatorname{SE}\mathopen{}\left(\hat\eta(\mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{x}}\vphantom{x}})\right)\mathclose{}}}} = \sqrt{{\color{red}{{\operatorname{Var}\mathopen{}\left(\hat\eta(\mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{x}}\vphantom{x}})\right)\mathclose{}}}}} \tag{31}\]

By the definition $\hat\eta(\mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{x}}\vphantom{x}}) = \mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{x}}\vphantom{x}}'\hat{\beta}$ and the variance of a linear combination:

\[ \begin{aligned} {\color{red}{{\operatorname{Var}\mathopen{}\left(\hat\eta(\mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{x}}\vphantom{x}})\right)\mathclose{}}}} &= {\operatorname{Var}\mathopen{}\left({\mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{x}}\vphantom{x}}}^{\top}\hat{\beta}\right)\mathclose{}} \\ &= {\mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{x}}\vphantom{x}}}^{\top}{\operatorname{Cov}\mathopen{}\left(\hat{\beta}\right)\mathclose{}}\mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{x}}\vphantom{x}} \\ &= {\color{red}{{\mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{x}}\vphantom{x}}}^{\top}\Sigma\mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{x}}\vphantom{x}}}} \end{aligned} \tag{32}\]

where $\Sigma \stackrel{\text{def}}{=}\operatorname{Cov}(\hat{\beta})$.

Expanding Equation 32 out of matrix-vector notation, we have:

\[ \begin{aligned} {\color{red}{{\mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{x}}\vphantom{x}}}^{\top}\Sigma\mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{x}}\vphantom{x}}}} &= \sum_{i=1}^p\sum_{j=1}^px_i \Sigma_{ij} x_j \\ &= {\color{red}{\sum_{i=1}^p\sum_{j=1}^px_i \operatorname{Cov}(\hat{\beta}_i,\hat{\beta}_j) x_j}} \end{aligned} \]

Theorem 16 (Variance of the estimated log-odds)

Theorem 16 (Variance of the estimated log-odds) In a logistic regression model, let $\hat{\beta}$ be the maximum likelihood estimate of $\mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{\beta}}\vphantom{\beta}}$, let $\Sigma \stackrel{\text{def}}{=}\operatorname{Cov}(\hat{\beta})$ be its covariance matrix, and let $\hat\eta(\mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{x}}\vphantom{x}}) = \mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{x}}\vphantom{x}} \cdot \hat{\beta}$ be the estimated log-odds at covariate pattern $\mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{x}}\vphantom{x}}$. Then:

\[{\operatorname{Var}\mathopen{}\left(\hat\eta(\mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{x}}\vphantom{x}})\right)\mathclose{}} = {\mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{x}}\vphantom{x}}}^{\top}\Sigma\mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{x}}\vphantom{x}}\]

Proof

Proof. This proof is the solution to Exercise 20, worked in Solution 20.

Example 13 (Variance of an estimated beetle log-odds)

Example 13 (Variance of an estimated beetle log-odds) For the beetles logistic regression model (beetles_glm_ungrouped), the code below applies Theorem 16 at $\mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{x}}\vphantom{x}}= (1, 1.8)^{\top}$, using the estimated covariance matrix of the coefficients in place of $\Sigma$, and compares the result with the squared standard error from predict():

Show R code

ex_x <- c(1, 1.8)
ex_var_quadratic <- drop(t(ex_x) %*% vcov(beetles_glm_ungrouped) %*% ex_x)
ex_se_predict <- predict(
  beetles_glm_ungrouped,
  newdata = data.frame(dose = 1.8),
  type = "link",
  se.fit = TRUE
)$se.fit

The quadratic form gives 0.02104, and the squared standard error from predict() is 0.02104, so the two agree.

Combining Equation 32 with the invariance property of MLEs gives an estimator for the variance and standard error:

Theorem 17 (Estimated variance and standard error of log-odds)

Theorem 17 (Estimated variance and standard error of log-odds) \[ {\color{orange}{{\mathop{\widehat{\operatorname{Var}}}\nolimits\mathopen{}\left(\hat\eta(\mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{x}}\vphantom{x}})\right)\mathclose{}}}} = {\color{orange}{{\mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{x}}\vphantom{x}}}^{\top}\hat{\Sigma}\mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{x}}\vphantom{x}}}} \tag{33}\]

\[ {\color{teal}{{\mathop{\widehat{\operatorname{SE}}}\nolimits\mathopen{}\left(\hat\eta(\mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{x}}\vphantom{x}})\right)\mathclose{}}}} = {\color{teal}{\sqrt{{\mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{x}}\vphantom{x}}}^{\top}\hat{\Sigma}\mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{x}}\vphantom{x}}}}} \tag{34}\]

Proof

Proof. By Theorem 16, ${\operatorname{Var}\mathopen{}\left(\hat\eta(\mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{x}}\vphantom{x}})\right)\mathclose{}} = {\mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{x}}\vphantom{x}}}^{\top}\Sigma\mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{x}}\vphantom{x}}$ (Equation 32). By the invariance property of MLEs, we estimate $\Sigma$ with $\hat{\Sigma}\stackrel{\text{def}}{=}\widehat{\operatorname{Cov}}(\hat{\beta})$, which yields Equation 33; taking the square root gives Equation 34.

Example 14 (Standard error and CI for a beetle log-odds)

Example 14 (Standard error and CI for a beetle log-odds)

We instantiate Theorem 17 for the beetles logistic regression model (Table 5).

Consider the covariate pattern $\mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{x}}\vphantom{x}}= (1, 1.8)^{\top}$, representing the intercept and a dose of 1.8.

Show R code

x_vec <- c(1, 1.8)
sigma_hat <- vcov(beetles_glm_ungrouped)
logodds_hat <- as.numeric(x_vec %*% coef(beetles_glm_ungrouped))
se_logodds <- sqrt(as.numeric(t(x_vec) %*% sigma_hat %*% x_vec))
ci_logodds <- logodds_hat + c(-1, 1) * 1.96 * se_logodds

By Equation 34, the estimated standard error of the log-odds is ${\mathop{\widehat{\operatorname{SE}}}\nolimits\mathopen{}\left(\hat\eta(\mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{x}}\vphantom{x}})\right)\mathclose{}} = \sqrt{{\mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{x}}\vphantom{x}}}^{\top}\hat{\Sigma}\mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{x}}\vphantom{x}}} = 0.145056$, while the estimated log-odds itself is $\hat\eta(\mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{x}}\vphantom{x}}) = \mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{x}}\vphantom{x}}'\hat{\beta}= 0.969132$.

The resulting 95% confidence interval for the log-odds is $(0.684823, 1.253441)$, and applying $\operatorname{expit}$ to its endpoints (Equation 30) gives a 95% confidence interval for $\pi(\mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{x}}\vphantom{x}})$ of $(0.664814, 0.777895)$.

These values match the dose = 1.8 row of Table 14, which uses predict() with type = "link" and se.fit = TRUE to compute the estimated log-odds $\hat\eta(\mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{x}}\vphantom{x}}) = \mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{x}}\vphantom{x}}'\hat{\beta}$ and its estimated standard error for each covariate pattern:

Show R code

library(dplyr)
new_doses <- tibble(dose = c(1.7, 1.8, 1.9))

pred_logodds <-
  beetles_glm_ungrouped |>
  predict(
    newdata = new_doses,
    type = "link",
    se.fit = TRUE
  )

new_doses |>
  mutate(
    logodds_hat = pred_logodds$fit,
    se = pred_logodds$se.fit,
    ci_lower_logodds = logodds_hat - 1.96 * se,
    ci_upper_logodds = logodds_hat + 1.96 * se,
    pi_hat = plogis(logodds_hat),
    ci_lower_prob = plogis(ci_lower_logodds),
    ci_upper_prob = plogis(ci_upper_logodds)
  ) |>
  knitr::kable(digits = 3)

Table 14: Predicted log-odds and 95% CI for beetles logistic regression

dose	logodds_hat	se	ci_lower_logodds	ci_upper_logodds	pi_hat	ci_lower_prob	ci_upper_prob
1.7	-2.458	0.263	-2.974	-1.942	0.079	0.049	0.125
1.8	0.969	0.145	0.685	1.253	0.725	0.665	0.778
1.9	4.396	0.377	3.656	5.136	0.988	0.975	0.994

6.3 Inference for odds ratios

Exercise 21

Exercise 21 Given a maximum likelihood estimate $\hat{\beta}$ and a corresponding estimated covariance matrix $\hat{\Sigma}\stackrel{\text{def}}{=}\widehat{\operatorname{Cov}}(\hat{\beta})$, calculate a 95% confidence interval for the odds ratio comparing covariate patterns $\mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{x}}\vphantom{x}}$ and $\mathord{{\mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{x}}\vphantom{x}}^*}}$, $\text{ϙ}_{\omega}(\mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{x}}\vphantom{x}},\mathord{{\mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{x}}\vphantom{x}}^*}})$.

Solution 21

Solution 21.

By the central limit theorem for MLEs, a 95% confidence interval for $\text{ϙ}_{\omega}(\mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{x}}\vphantom{x}},\mathord{{\mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{x}}\vphantom{x}}^*}})$ can be constructed as:

\[\hat{\text{ϙ}}_{\omega}\pm 1.96 * {\mathop{\widehat{\operatorname{SE}}}\nolimits\mathopen{}\left(\hat{\text{ϙ}}_{\omega}\right)\mathclose{}} \tag{35}\] However, ${\mathop{\widehat{\operatorname{SE}}}\nolimits\mathopen{}\left(\hat{\text{ϙ}}_{\omega}\right)\mathclose{}}$ seems difficult to compute; doing so would require using the delta method.

Instead, using the invariance property of MLEs, we can first calculate a confidence interval for the logarithm of the odds ratio,

\[{\operatorname{log}\mathopen{}\left\{\text{ϙ}_{\omega}(\mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{x}}\vphantom{x}},\mathord{{\mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{x}}\vphantom{x}}^*}})\right\}\mathclose{}} \in (L,R) \tag{36}\]

and then exponentiate the endpoints of that log-odds-scale confidence interval:

Theorem 18 (Confidence interval for an odds ratio)

Theorem 18 (Confidence interval for an odds ratio) In a logistic regression model, let $\mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{x}}\vphantom{x}}$ and $\mathord{{\mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{x}}\vphantom{x}}^*}}$ be two covariate patterns, and let $(L, R)$ be a 95% confidence interval for the logarithm of the odds ratio, ${\operatorname{log}\mathopen{}\left\{\text{ϙ}_{\omega}(\mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{x}}\vphantom{x}},\mathord{{\mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{x}}\vphantom{x}}^*}})\right\}\mathclose{}}$. Then:

is a 95% confidence interval for $\text{ϙ}_{\omega}(\mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{x}}\vphantom{x}},\mathord{{\mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{x}}\vphantom{x}}^*}})$.

Proof

Proof. This proof is the solution to Exercise 21, worked in Solution 21.

Example 15 (Confidence interval for a beetle odds ratio)

Example 15 (Confidence interval for a beetle odds ratio) For the beetles logistic regression model (beetles_glm_ungrouped), let $\mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{x}}\vphantom{x}}= (1, 1.8)^{\top}$ and $\mathord{{\mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{x}}\vphantom{x}}^*}}= (1, 1.7)^{\top}$. The code below computes a 95% confidence interval for ${\operatorname{log}\mathopen{}\left\{\text{ϙ}_{\omega}(\mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{x}}\vphantom{x}},\mathord{{\mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{x}}\vphantom{x}}^*}})\right\}\mathclose{}}$ and exponentiates its endpoints as in Theorem 18:

Show R code

ex_dx <- c(0, 1.8 - 1.7)
ex_logor <- sum(ex_dx * coef(beetles_glm_ungrouped))
ex_se <- sqrt(drop(t(ex_dx) %*% vcov(beetles_glm_ungrouped) %*% ex_dx))
ex_ci_logor <- ex_logor + c(-1, 1) * 1.96 * ex_se
ex_ci_or <- exp(ex_ci_logor)

The estimated odds ratio is 30.785, with 95% confidence interval (17.396, 54.479). This interval is above 1, which reflects the higher odds of death at the higher dose.

Exercise 22

Exercise 22 Find a 95% confidence interval for the natural logarithm of the odds ratio, ${\operatorname{log}\mathopen{}\left\{\text{ϙ}_{\omega}(\mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{x}}\vphantom{x}},\mathord{{\mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{x}}\vphantom{x}}^*}})\right\}\mathclose{}}$

Solution 22

Solution 22. From Corollary 8, we know:

By the central limit theorem for MLEs, a 95% confidence interval for $\Delta\eta$ can be constructed as:

\[\widehat{\Delta\eta}\pm 1.96 * {\color{teal}{{\mathop{\widehat{\operatorname{SE}}}\nolimits\mathopen{}\left(\widehat{\Delta\eta}\right)\mathclose{}}}}\]

Theorem 19 (Confidence interval for a log odds ratio)

Theorem 19 (Confidence interval for a log odds ratio) In a logistic regression model, let $\mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{x}}\vphantom{x}}$ and $\mathord{{\mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{x}}\vphantom{x}}^*}}$ be two covariate patterns, let $\hat{\beta}$ be the maximum likelihood estimate of $\mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{\beta}}\vphantom{\beta}}$, and let $\widehat{\Delta\eta}$ be the estimated difference in log-odds. For large samples, an approximate 95% confidence interval for the logarithm of the odds ratio, ${\operatorname{log}\mathopen{}\left\{\text{ϙ}_{\omega}(\mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{x}}\vphantom{x}},\mathord{{\mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{x}}\vphantom{x}}^*}})\right\}\mathclose{}} = \Delta\eta$, is:

\[\Delta\eta\in \mathopen{}\left(\widehat{\Delta\eta}\pm 1.96 \cdot {\mathop{\widehat{\operatorname{SE}}}\nolimits\mathopen{}\left(\widehat{\Delta\eta}\right)\mathclose{}}\right)\mathclose{}\]

Proof

Proof. This proof is the solution to Exercise 22, worked in Solution 22.

Example 16 (Confidence interval for a beetle log odds ratio)

Example 16 (Confidence interval for a beetle log odds ratio) For the beetles logistic regression model (beetles_glm_ungrouped), let $\mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{x}}\vphantom{x}}= (1, 1.8)^{\top}$ and $\mathord{{\mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{x}}\vphantom{x}}^*}}= (1, 1.7)^{\top}$. The code below applies Theorem 19, and compares the interval with the one obtained by scaling the confidence interval for the dose coefficient by $0.1$, which is valid here because $\Delta\mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{x}}\vphantom{x}}= (0, 0.1)^{\top}$:

Show R code

ex_dx <- c(0, 1.8 - 1.7)
ex_est <- sum(ex_dx * coef(beetles_glm_ungrouped))
ex_se <- sqrt(drop(t(ex_dx) %*% vcov(beetles_glm_ungrouped) %*% ex_dx))
ex_ci <- ex_est + c(-1, 1) * 1.96 * ex_se
ex_ci_scaled <- 0.1 * confint.default(beetles_glm_ungrouped)["dose", ]

The estimated log odds ratio is 3.427, with 95% confidence interval (2.856, 3.998). The scaled interval for the dose coefficient is (2.856, 3.998), which agrees.

Exercise 23

Exercise 23

How can we estimate the standard error of $\widehat{\Delta\eta}$?

\[{\color{teal}{{\mathop{\widehat{\operatorname{SE}}}\nolimits\mathopen{}\left(\widehat{\Delta\eta}\right)\mathclose{}}}} = {\color{teal}{?}}\]

Solution 23

Solution 23. \[ {\color{green}{{\operatorname{SE}\mathopen{}\left(\widehat{\Delta\eta}\right)\mathclose{}}}} = \sqrt{{\color{red}{{\operatorname{Var}\mathopen{}\left(\widehat{\Delta\eta}\right)\mathclose{}}}}} \tag{38}\]

By Lemma 5 and the variance of a linear combination:

\[ \begin{aligned} {\color{red}{{\operatorname{Var}\mathopen{}\left(\widehat{\Delta\eta}\right)\mathclose{}}}} &= {\operatorname{Var}\mathopen{}\left((\Delta\mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{x}}\vphantom{x}}) \cdot \hat{\beta}\right)\mathclose{}} \\ &= {\mathopen{}\left(\Delta\mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{x}}\vphantom{x}}\right)\mathclose{}}^{\top}{\operatorname{Cov}\mathopen{}\left(\hat{\beta}\right)\mathclose{}}(\Delta\mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{x}}\vphantom{x}}) \\ &= {\color{red}{{\mathopen{}\left(\Delta\mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{x}}\vphantom{x}}\right)\mathclose{}}^{\top}\Sigma(\Delta\mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{x}}\vphantom{x}})}} \end{aligned} \tag{39}\]

where $\Sigma \stackrel{\text{def}}{=}\operatorname{Cov}(\hat{\beta})$.

Expanding Equation 39 out of matrix-vector notation, we have:

\[ \begin{aligned} {\color{red}{{\mathopen{}\left(\Delta\mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{x}}\vphantom{x}}\right)\mathclose{}}^{\top}\Sigma(\Delta\mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{x}}\vphantom{x}})}} &= \sum_{i=1}^p\sum_{j=1}^p(\Delta\mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{x}}\vphantom{x}})_i \Sigma_{ij} (\Delta\mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{x}}\vphantom{x}})_j \\ &= \sum_{i=1}^p\sum_{j=1}^p(\Delta x_i) \Sigma_{ij} (\Delta x_j) \\ &= {\color{red}{\sum_{i=1}^p\sum_{j=1}^p(x_i - x^*_i) \operatorname{Cov}(\hat{\beta}_i,\hat{\beta}_j) (x_j - x^*_j)}} \end{aligned} \]

Theorem 20 (Variance of the estimated difference in log-odds)

Theorem 20 (Variance of the estimated difference in log-odds) In a logistic regression model, let $\hat{\beta}$ be the maximum likelihood estimate of $\mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{\beta}}\vphantom{\beta}}$, let $\Sigma \stackrel{\text{def}}{=}\operatorname{Cov}(\hat{\beta})$ be its covariance matrix, and let $\Delta\mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{x}}\vphantom{x}}\stackrel{\text{def}}{=}\mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{x}}\vphantom{x}}- \mathord{{\mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{x}}\vphantom{x}}^*}}$ be the difference between two covariate patterns. Then the variance of the estimated difference in log-odds $\widehat{\Delta\eta}= \Delta\mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{x}}\vphantom{x}} \cdot \hat{\beta}$ is:

\[{\operatorname{Var}\mathopen{}\left(\widehat{\Delta\eta}\right)\mathclose{}} = {\Delta\mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{x}}\vphantom{x}}}^{\top}\Sigma(\Delta\mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{x}}\vphantom{x}})\]

Proof

Proof. This proof is the solution to Exercise 23, worked in Solution 23.

Example 17 (Variance of an estimated difference in beetle log-odds)

Example 17 (Variance of an estimated difference in beetle log-odds) For the beetles logistic regression model (beetles_glm_ungrouped), let $\mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{x}}\vphantom{x}}= (1, 1.8)^{\top}$ and $\mathord{{\mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{x}}\vphantom{x}}^*}}= (1, 1.7)^{\top}$, so that $\Delta\mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{x}}\vphantom{x}}= (0, 0.1)^{\top}$. The code below applies Theorem 20, using the estimated covariance matrix of the coefficients in place of $\Sigma$:

Show R code

ex_dx <- c(0, 1.8 - 1.7)
ex_sigma <- vcov(beetles_glm_ungrouped)
ex_var_quadratic <- drop(t(ex_dx) %*% ex_sigma %*% ex_dx)
ex_var_slope <- 0.1^2 * ex_sigma["dose", "dose"]

The quadratic form gives 0.084804. Because $\Delta\mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{x}}\vphantom{x}}$ has a zero in the intercept position, the variance should equal $0.1^2$ times the estimated variance of the dose coefficient, which is 0.084804.

Combining Equation 39 with the invariance property of MLEs gives an estimator for the variance and standard error:

Theorem 21 (Estimated variance and standard error of difference in log-odds)

Theorem 21 (Estimated variance and standard error of difference in log-odds) \[ {\color{orange}{{\mathop{\widehat{\operatorname{Var}}}\nolimits\mathopen{}\left(\Delta{\hat\eta}\right)\mathclose{}}}} = {\color{orange}{{\Delta\mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{x}}\vphantom{x}}}^{\top}\hat{\Sigma}(\Delta\mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{x}}\vphantom{x}})}} \tag{40}\]

\[ {\color{teal}{{\mathop{\widehat{\operatorname{SE}}}\nolimits\mathopen{}\left(\Delta{\hat\eta}\right)\mathclose{}}}} = {\color{teal}{\sqrt{{\Delta\mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{x}}\vphantom{x}}}^{\top}\hat{\Sigma}(\Delta\mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{x}}\vphantom{x}})}}} \tag{41}\]

Proof

Proof. By Theorem 20, ${\operatorname{Var}\mathopen{}\left(\widehat{\Delta\eta}\right)\mathclose{}} = {\Delta\mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{x}}\vphantom{x}}}^{\top}\Sigma(\Delta\mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{x}}\vphantom{x}})$ (Equation 39). By the invariance property of MLEs, we estimate $\Sigma$ with $\hat{\Sigma}\stackrel{\text{def}}{=}\widehat{\operatorname{Cov}}(\hat{\beta})$, which yields Equation 40; taking the square root gives Equation 41.

Compare Theorem 21 with confidence intervals.

Example 18 (Standard error and CI for a beetle odds ratio)

Example 18 (Standard error and CI for a beetle odds ratio)

We instantiate Theorem 21 for the beetles logistic regression model (Table 5).

Compare two covariate patterns, a dose of 1.8 versus a dose of 1.7: $\mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{x}}\vphantom{x}}= (1, 1.8)^{\top}$ and $\mathord{{\mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{x}}\vphantom{x}}^*}}= (1, 1.7)^{\top}$, so that $\Delta\mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{x}}\vphantom{x}}= \mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{x}}\vphantom{x}}- \mathord{{\mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{x}}\vphantom{x}}^*}}= (0, 0.1)^{\top}$.

Show R code

delta_x <- c(0, 0.1)
sigma_hat <- vcov(beetles_glm_ungrouped)
diff_logodds_hat <- as.numeric(delta_x %*% coef(beetles_glm_ungrouped))
se_diff <- sqrt(as.numeric(t(delta_x) %*% sigma_hat %*% delta_x))
ci_diff <- diff_logodds_hat + c(-1, 1) * 1.96 * se_diff

By Equation 41, the estimated standard error of the difference in log-odds is ${\mathop{\widehat{\operatorname{SE}}}\nolimits\mathopen{}\left(\Delta\hat\eta\right)\mathclose{}} = \sqrt{{\Delta\mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{x}}\vphantom{x}}}^{\top}\hat{\Sigma}(\Delta\mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{x}}\vphantom{x}})} = 0.291211$, and the estimated difference in log-odds is $\Delta\hat\eta= (\Delta\mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{x}}\vphantom{x}})\cdot\hat{\beta}= 3.427033$.

The resulting 95% confidence interval for $\Delta\eta$ is $(2.856258, 3.997807)$, so by Equation 37 the estimated odds ratio and its 95% confidence interval are $\hat{\text{ϙ}}_{\omega}(\mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{x}}\vphantom{x}},\mathord{{\mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{x}}\vphantom{x}}^*}}) = e^{3.427033} = 30.785154$, with CI $(17.396309, 54.478551)$.

7 Multiple logistic regression

7.0.1 Coronary heart disease (WCGS) study data

Let’s use the data from the Western Collaborative Group Study (WCGS) (Rosenman et al. [10]) to explore multiple logistic regression:

From Vittinghoff et al. [2]:

“The Western Collaborative Group Study (WCGS) was a large epidemiological study designed to investigate the association between the”type A” behavior pattern and coronary heart disease (CHD)“.

Exercise 24

Exercise 24 What is “type A” behavior?

Solution 24

Solution 24. From Wikipedia, “Type A and Type B personality theory”:

“The hypothesis describes Type A individuals as outgoing, ambitious, rigidly organized, highly status-conscious, impatient, anxious, proactive, and concerned with time management….

The hypothesis describes Type B individuals as a contrast to those of Type A. Type B personalities, by definition, are noted to live at lower stress levels. They typically work steadily and may enjoy achievement, although they have a greater tendency to disregard physical or mental stress when they do not achieve.”

Study design

from ?faraway::wcgs:

3154 healthy young men aged 39-59 from the San Francisco area were assessed for their personality type. All were free from coronary heart disease at the start of the research. Eight and a half years later change in CHD status was recorded.

Details (from faraway::wcgs)

The WCGS began in 1960 with 3,524 male volunteers who were employed by 11 California companies. Subjects were 39 to 59 years old and free of heart disease as determined by electrocardiogram. After the initial screening, the study population dropped to 3,154 and the number of companies to 10 because of various exclusions. The cohort comprised both blue- and white-collar employees.

7.0.2 Baseline data collection

socio-demographic characteristics:

age
education
marital status
income
occupation
physical and physiological including:
height
weight
blood pressure
electrocardiogram
corneal arcus

biochemical measurements:

cholesterol and lipoprotein fractions;
medical and family history and use of medications;

behavioral data:

Type A interview,
smoking,
exercise
alcohol use.

Later surveys added data on:

anthropometry
triglycerides
Jenkins Activity Survey
caffeine use

The sample mean follow-up time was 8.5 years, with repeat examinations.

7.0.3 Load the data

Here, I load the data:

Show R code

### load the data directly from a UCSF website:
library(haven)
url <- paste0(
  # I'm breaking up the url into two chunks for readability
  "https://regression.ucsf.edu/sites/g/files/",
  "tkssra6706/f/wysiwyg/home/data/wcgs.dta"
)
wcgs <- haven::read_dta(url)

A copy is also available on Kaggle.

Show R code

wcgs

Table 15: wcgs data

7.0.4 Data cleaning

Now let’s do some data cleaning

Show R code

library(arsenal) # provides `set_labels()`
library(forcats) # provides `as_factor()`
library(haven)
library(plotly)
wcgs <- wcgs |>
  mutate(
    age = age |>
      arsenal::set_labels("Age (years)"),
    arcus = arcus |>
      as.logical() |>
      arsenal::set_labels("Arcus Senilis"),
    time169 = time169 |>
      as.numeric() |>
      arsenal::set_labels("Observation (follow up) time (days)"),
    dibpat = dibpat |>
      as_factor() |>
      relevel(ref = "Type B") |>
      arsenal::set_labels("Behavioral Pattern"),
    typchd69 = typchd69 |>
      labelled(
        label = "Type of CHD Event",
        labels =
          c(
            "None" = 0,
            "infdeath" = 1,
            "silent" = 2,
            "angina" = 3
          )
      ),

    # turn stata-style labelled variables in to R-style factors:
    across(
      where(is.labelled),
      haven::as_factor
    )
  )

7.0.5 What’s in the data

Table 16 summarizes the data.

Show R code

library(gtsummary)
wcgs |>
  dplyr::select(
    -dplyr::all_of(c("id", "uni", "t1"))
  ) |>
  gtsummary::tbl_summary(
    by = "chd69",
    missing_text = "Missing"
  ) |>
  gtsummary::add_p() |>
  gtsummary::add_overall() |>
  gtsummary::bold_labels() |>
  gtsummary::separate_p_footnotes()

Table 16: Baseline characteristics by CHD status at end of follow-up

Characteristic	Overall N = 3,154¹	No N = 2,897¹	Yes N = 257¹	p-value
Age (years)	45.0 (42.0, 50.0)	45.0 (41.0, 50.0)	49.0 (44.0, 53.0)	<0.001²
Arcus Senilis	941 (30%)	839 (29%)	102 (40%)	<0.001³
Missing	2	0	2
Behavioral Pattern				<0.001³
A1	264 (8.4%)	234 (8.1%)	30 (12%)
A2	1,325 (42%)	1,177 (41%)	148 (58%)
B3	1,216 (39%)	1,155 (40%)	61 (24%)
B4	349 (11%)	331 (11%)	18 (7.0%)
Body Mass Index (kg/m2)	24.39 (22.96, 25.84)	24.39 (22.89, 25.84)	24.82 (23.63, 26.50)	<0.001²
Total Cholesterol	223 (197, 253)	221 (195, 250)	245 (222, 276)	<0.001²
Missing	12	12	0
Diastolic Blood Pressure	80 (76, 86)	80 (76, 86)	84 (80, 90)	<0.001²
Behavioral Pattern				<0.001³
Type B	1,565 (50%)	1,486 (51%)	79 (31%)
Type A	1,589 (50%)	1,411 (49%)	178 (69%)
Height (inches)	70.00 (68.00, 72.00)	70.00 (68.00, 72.00)	70.00 (68.00, 71.00)	0.4²
Ln of Systolic Blood Pressure	4.84 (4.79, 4.91)	4.84 (4.77, 4.91)	4.87 (4.82, 4.97)	<0.001²
Ln of Weight	5.14 (5.04, 5.20)	5.13 (5.04, 5.20)	5.16 (5.09, 5.22)	<0.001²
Cigarettes per day	0 (0, 20)	0 (0, 20)	20 (0, 30)	<0.001²
Systolic Blood Pressure	126 (120, 136)	126 (118, 136)	130 (124, 144)	<0.001²
Current smoking	1,502 (48%)	1,343 (46%)	159 (62%)	<0.001³
Observation (follow up) time (days)	2,942 (2,842, 3,037)	2,952 (2,864, 3,048)	1,666 (934, 2,400)	<0.001²
Type of CHD Event				<0.001⁴
None	0 (0%)	0 (0%)	0 (0%)
infdeath	2,897 (92%)	2,897 (100%)	0 (0%)
silent	135 (4.3%)	0 (0%)	135 (53%)
angina	71 (2.3%)	0 (0%)	71 (28%)
4	51 (1.6%)	0 (0%)	51 (20%)
Weight (lbs)	170 (155, 182)	169 (155, 182)	175 (162, 185)	<0.001²
Weight Category				<0.001³
< 140	232 (7.4%)	217 (7.5%)	15 (5.8%)
140-170	1,538 (49%)	1,440 (50%)	98 (38%)
170-200	1,171 (37%)	1,049 (36%)	122 (47%)
> 200	213 (6.8%)	191 (6.6%)	22 (8.6%)
RECODE of age (Age)				<0.001³
35-40	543 (17%)	512 (18%)	31 (12%)
41-45	1,091 (35%)	1,036 (36%)	55 (21%)
46-50	750 (24%)	680 (23%)	70 (27%)
51-55	528 (17%)	463 (16%)	65 (25%)
56-60	242 (7.7%)	206 (7.1%)	36 (14%)
¹ Median (Q1, Q3); n (%)
² Wilcoxon rank sum test
³ Pearson’s Chi-squared test
⁴ Fisher’s exact test

7.0.6 Data by age and personality type

For now, we will look at the interaction between age and personality type (dibpat). To make it easier to visualize the data, we summarize the event rates for each combination of age:

Show R code

library(dplyr)
odds <- function(pi) pi / (1 - pi)
chd_grouped_data <-
  wcgs |>
  summarize(
    .by = c(age, dibpat),
    n = sum(chd69 %in% c("Yes", "No")),
    x = sum(chd69 == "Yes")
  ) |>
  mutate(
    `n - x` = n - x,
    `p(chd)` = (x / n) |>
      labelled(label = "CHD Event by 1969"),
    `odds(chd)` = `p(chd)` / (1 - `p(chd)`),
    `logit(chd)` = log(`odds(chd)`)
  )

chd_grouped_data

7.0.7 Graphical exploration

Show R code

library(ggplot2)
library(scales)
chd_plot_probs <-
  chd_grouped_data |>
  ggplot() +
  aes(
    x = age,
    y = `p(chd)`,
    col = dibpat
  ) +
  geom_point(aes(size = n), alpha = .7) +
  scale_size(range = c(1, 4)) +
  geom_line() +
  theme_bw() +
  ylab("P(CHD Event by 1969)") +
  scale_y_continuous(
    labels = scales::label_percent(),
    sec.axis = sec_axis(
      ~ odds(.),
      name = "odds(CHD Event by 1969)"
    )
  ) +
  theme(legend.position = "bottom")

print(chd_plot_probs)

Figure 11: CHD rates by age group, probability scale

7.1 Odds scale

Show R code

odds_inv <- function(omega) omega / (1 + omega)
trans_odds <- trans_new(
  name = "odds",
  transform = odds,
  inverse = odds_inv
)

chd_plot_odds <- chd_plot_probs +
  scale_y_continuous(
    trans = trans_odds, # this line changes the vertical spacing
    name = chd_plot_probs$labels$y,
    sec.axis = sec_axis(
      ~ odds(.),
      name = "odds(CHD Event by 1969)"
    )
  )

print(chd_plot_odds)

Figure 12: CHD rates by age group, odds spacing

7.2 Log-odds (logit) scale

Show R code

logit <- function(pi) log(odds(pi))
expit <- function(eta) odds_inv(exp(eta))
trans_logit <- trans_new(
  name = "logit",
  transform = logit,
  inverse = expit
)

chd_plot_logit <-
  chd_plot_probs +
  scale_y_continuous(
    trans = trans_logit, # this line changes the vertical spacing
    name = chd_plot_probs$labels$y,
    breaks = c(seq(.01, .1, by = .01), .15, .2),
    minor_breaks = NULL,
    sec.axis = sec_axis(
      ~ logit(.),
      name = "log(odds(CHD Event by 1969))"
    )
  )

print(chd_plot_logit)

7.2.1 Logistic regression models for CHD data

For the wcgs dataset, let’s consider a logistic regression model for the outcome of Coronary Heart Disease ($Y$; chd in computer output):

$Y = 1$ if an individual developed CHD by the end of the study;
$Y = 0$ if they have not developed CHD by the end of the study.

Let’s include an intercept, two covariates, plus their interaction:

$A$: age at study enrollment (age, recorded in years)
$P$: personality type (dibpat):
- $P = 1$ represents “Type A personality”,
- $P = 0$ represents “Type B personality”.
$PA$: the interaction of personality type and age (dibpat:age)
$\mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{X}}\vphantom{X}}= (1, A, P, PA)$

Show R code

chd_glm_contrasts <-
  wcgs |>
  glm(
    "data" = _,
    "formula" = chd69 == "Yes" ~ dibpat * age,
    "family" = binomial(link = "logit")
  )

library(equatiomatic)
equatiomatic::extract_eq(chd_glm_contrasts)

\[ \log\left[ \frac { P( \operatorname{chd69} = \operatorname{Yes} ) }{ 1 - P( \operatorname{chd69} = \operatorname{Yes} ) } \right] = \alpha + \beta_{1}(\operatorname{dibpat}_{\operatorname{Type\ A}}) + \beta_{2}(\operatorname{age}) + \beta_{3}(\operatorname{dibpat}_{\operatorname{Type\ A}} \times \operatorname{age}) \]

Or in more formal notation:

\[ \begin{aligned} Y_i | \mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{X}}\vphantom{X}}_i &\ \sim_{\perp\!\!\!\perp}\ \operatorname{Ber}(\pi(\mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{X}}\vphantom{X}}_i)) \\ \pi(\mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{x}}\vphantom{x}}) &= \operatorname{expit}(\eta(\mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{x}}\vphantom{x}})) \\ \eta(\mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{x}}\vphantom{x}}) &= \beta_0 + \beta_P p + \beta_A a + \beta_{PA} pa \end{aligned} \tag{42}\]

7.2.2 Models superimposed on data

We can graph our fitted models on each scale (probability, odds, log-odds).

probability scale

Show R code

curve_type_A <- function(x) { # nolint: object_name_linter
  chd_glm_contrasts |> predict(
    type = "response",
    newdata = tibble(age = x, dibpat = "Type A")
  )
}

curve_type_B <- function(x) { # nolint: object_name_linter
  chd_glm_contrasts |> predict(
    type = "response",
    newdata = tibble(age = x, dibpat = "Type B")
  )
}

chd_plot_probs_2 <-
  chd_plot_probs +
  geom_function(
    fun = curve_type_A,
    aes(col = "Type A")
  ) +
  geom_function(
    fun = curve_type_B,
    aes(col = "Type B")
  )
print(chd_plot_probs_2)

Figure 14: Fitted CHD risk by age and behavior pattern (probability scale)

odds scale

Show R code


chd_plot_odds_2 <-
  chd_plot_odds +
  geom_function(
    fun = curve_type_A,
    aes(col = "Type A")
  ) +
  geom_function(
    fun = curve_type_B,
    aes(col = "Type B")
  )
print(chd_plot_odds_2)

Figure 15: Fitted CHD odds by age and behavior pattern (odds scale)

log-odds (logit) scale

Show R code


chd_plot_logit_2 <-
  chd_plot_logit +
  geom_function(
    fun = curve_type_A,
    aes(col = "Type A")
  ) +
  geom_function(
    fun = curve_type_B,
    aes(col = "Type B")
  )

print(chd_plot_logit_2)

Figure 16: Fitted CHD log-odds by age and behavior pattern (log-odds scale)

7.2.3 Interpreting the model parameters

Exercise 25

Exercise 25 For Equation 42, derive interpretations of $\beta_0$, $\beta_P$, $\beta_A$, and $\beta_{PA}$ on the odds and log-odds scales, State the interpretations concisely in math and in words.

(Hint: apply the general procedure for interpreting a regression coefficient to the log-odds linear predictor $\eta(\mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{x}}\vphantom{x}}) = \operatorname{logit}(\pi(\mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{x}}\vphantom{x}}))$.)

Solution 25

Solution 25.

Show R code

# include: false
age_offset = 0L

\[ \begin{aligned} \eta(P=0,A=0) &= \beta_0 + \beta_P \cdot 0 + \beta_A \cdot 0 + \beta_{PA} (0 \cdot 0) && \text{(model equation, with } p = 0, a = 0 \text{)} \\ &= \beta_0 + 0 + 0 + 0 && \text{(multiplication by zero)} \\ &= \beta_0 && \text{(additive identity)} \end{aligned} \]

Therefore:

\[\beta_{0} = \eta(P=0,A=0) \tag{43}\]

$\beta_{0}$ is the natural logarithm of the odds (“log-odds”) of experiencing CHD for a 0 year-old person with a type B personality; that is,

The WCGS cohort ranges in age from 39 to 59 years, so a 0-year-old is far outside the observed data. This intercept is therefore an extrapolation with no in-sample referent. Centering age at a representative value (replacing $A$ with $A - \bar{A}$) is the standard remedy: it makes the intercept the log-odds at the mean age, which does have in-sample support.

$\text{e}^{\beta_{0}}$ is the odds of experiencing CHD for a 0 year-old with a type B personality. Here we write

\[\omega(p, a) \stackrel{\text{def}}{=}\operatorname{odds}(Y=1|P=p, A=a)\]

for the odds of CHD at covariate values $(p, a)$. Then:

\[ \begin{aligned} {\operatorname{exp}\mathopen{}\left\{\beta_{0}\right\}\mathclose{}} &= {\operatorname{exp}\mathopen{}\left\{\eta(P=0,A=0)\right\}\mathclose{}} && \text{(} \beta_0 \text{ as a log-odds)} \\ &= \omega(P=0,A=0) && \text{(exponential of log-odds is odds: } \omega= {\operatorname{exp}\mathopen{}\left\{\eta\right\}\mathclose{}} \text{)} \\ &= \frac{\Pr(Y= 1| P = 0, A = 0)}{1-\Pr(Y= 1| P = 0, A = 0)} && \text{(definition of odds)} \\ &= \frac {\Pr(Y= 1| P = 0, A = 0)} {\Pr(Y= 0| P = 0, A = 0)} && \text{(complement rule: } 1 - \Pr(Y=1|\cdot) = \Pr(Y=0|\cdot) \text{)} \end{aligned} \]

As with the log-odds interpretation, this odds is evaluated at age 0, which lies outside the cohort’s 39-to-59-year age range, so $\text{e}^{\beta_0}$ has no in-sample referent. Centering age before fitting gives an intercept whose odds is evaluated at the mean age instead.

\[ \begin{aligned} \frac{\partial}{\partial a}\eta(P=0, A = a) &= \frac{\partial}{\partial a} \mathopen{}\left(\beta_0 + \beta_P \cdot 0 + \beta_A a + \beta_{PA}(0\cdot a)\right)\mathclose{} && \text{(model equation, with } p = 0 \text{)} \\ &= \frac{\partial}{\partial a} \mathopen{}\left(\beta_0 + 0 + \beta_A a + 0\right)\mathclose{} && \text{(multiplication by zero)} \\ &= \frac{\partial}{\partial a} \mathopen{}\left(\beta_0 + \beta_A a\right)\mathclose{} && \text{(additive identity)} \\ &= \frac{\partial}{\partial a}\beta_0 + \frac{\partial}{\partial a}\mathopen{}\left(\beta_A a\right)\mathclose{} && \text{(linearity of differentiation)} \\ &= 0 + \beta_A && \text{(constants have derivative 0; derivative of a linear term)} \\ &= \beta_A && \text{(additive identity)} \end{aligned} \]

Therefore:

\[\beta_A = \frac{\partial}{\partial a}\eta(P=0, A = a) \tag{44}\]

$\beta_A$ is the slope of the log-odds of CHD with respect to age, for individuals with personality type B.

Alternatively:

\[ \begin{aligned} \eta(P = 0, A = a + 1)- \eta(P = 0, A = a) &= \mathopen{}\left(\beta_0 + \beta_P \cdot 0 + \beta_A (a+1) + \beta_{PA} (0 \cdot (a+1))\right)\mathclose{} - \mathopen{}\left(\beta_0 + \beta_P \cdot 0 + \beta_A a + \beta_{PA} (0 \cdot a)\right)\mathclose{} && \text{(model equation, with } p = 0 \text{)} \\ &= \mathopen{}\left(\beta_0 + 0 + \beta_A (a+1) + 0\right)\mathclose{} - \mathopen{}\left(\beta_0 + 0 + \beta_A a + 0\right)\mathclose{} && \text{(multiplication by zero)} \\ &= \mathopen{}\left(\beta_0 + \beta_A (a+1)\right)\mathclose{} - \mathopen{}\left(\beta_0 + \beta_A a\right)\mathclose{} && \text{(additive identity)} \\ &= \beta_0 + \beta_A a + \beta_A - \beta_0 - \beta_A a && \text{(distribute)} \\ &= \beta_{A} && \text{(cancel } \beta_0 \text{ and } \beta_A a \text{)} \end{aligned} \]

In terms of finite differences, $\beta_{A}$ is the difference in log-odds of experiencing CHD per one-year difference in age between two individuals with type B personalities.

\[ \begin{aligned} {\operatorname{exp}\mathopen{}\left\{\beta_{A}\right\}\mathclose{}} &= {\operatorname{exp}\mathopen{}\left\{\eta(P = 0, A = a + 1)- \eta(P = 0, A = a)\right\}\mathclose{}} && \text{(} \beta_A \text{ as a difference in log-odds)} \\ &= \frac{{\operatorname{exp}\mathopen{}\left\{\eta(P = 0, A = a + 1)\right\}\mathclose{}}}{{\operatorname{exp}\mathopen{}\left\{\eta(P = 0, A = a)\right\}\mathclose{}}} && \text{(exponential of a difference is a ratio)} \\ &= \frac{\omega(P = 0, A = a + 1)}{\omega(P = 0, A = a)} && \text{(exponential of log-odds is odds: } \omega= {\operatorname{exp}\mathopen{}\left\{\eta\right\}\mathclose{}} \text{)} \\ &= \frac {\operatorname{odds}(Y= 1|P=0, A = a + 1)} {\operatorname{odds}(Y= 1|P=0, A = a)} && \text{(the } \omega(p, a) \text{ notation defined at } \beta_0 \text{'s interpretation)} \\ &= \text{ϙ}_{\omega}(\Delta a = 1 | P = 0) && \text{(definition of the odds ratio)} \end{aligned} \]

The odds ratio of experiencing CHD (aka “the odds ratio”) differs by a factor of $\text{e}^{\beta_{A}}$ per one-year difference in age between individuals with type B personality.

$\beta_{P}$ is the difference in log-odds of experiencing CHD for a 0 year-old person with type A personality compared to a 0 year-old person with type B personality; specifically,

\[\beta_P = \eta(P = 1, A = 0) - \eta(P=0, A = 0) \tag{45}\]

$\text{e}^{\beta_{P}}$ is the ratio of the odds (aka “the odds ratio”) of experiencing CHD, for a 0-year old individual with type A personality vs a 0-year old individual with type B personality; specifically,

\[ {\operatorname{exp}\mathopen{}\left\{\beta_{P}\right\}\mathclose{}} = \frac {\operatorname{odds}(Y= 1|P=1, A = 0)} {\operatorname{odds}(Y= 1|P=0, A = 0)} \]

\[ \begin{aligned} \frac{\partial}{\partial a}\eta(P={\color{red}{1}}, A = a) &= \frac{\partial}{\partial a} \mathopen{}\left(\beta_0 + \beta_P \cdot 1 + \beta_A a + \beta_{PA}(1 \cdot a)\right)\mathclose{} && \text{(model equation, with } p = 1 \text{)} \\ &= \frac{\partial}{\partial a} \mathopen{}\left(\beta_0 + \beta_P + \beta_A a + \beta_{PA} a\right)\mathclose{} && \text{(multiplicative identity)} \\ &= \frac{\partial}{\partial a}\beta_0 + \frac{\partial}{\partial a}\beta_P + \frac{\partial}{\partial a}\mathopen{}\left(\beta_A a\right)\mathclose{} + \frac{\partial}{\partial a}\mathopen{}\left(\beta_{PA} a\right)\mathclose{} && \text{(linearity of differentiation)} \\ &= 0 + 0 + \beta_A + \beta_{PA} && \text{(constants have derivative 0; derivatives of linear terms)} \\ &= {\color{red}{\beta_A + \beta_{PA}}} && \text{(additive identity)} \\ \frac{\partial}{\partial a}\eta(P={\color{teal}{0}}, A = a) &= {\color{teal}{\beta_A}} && \text{(the type B slope, from the } \beta_A \text{ derivation)} \end{aligned} \]

Therefore:

\[ \begin{aligned} \frac{\partial}{\partial a}\eta(P={\color{red}{1}}, A = a) - \frac{\partial}{\partial a}\eta(P={\color{teal}{0}}, A = a) &= \mathopen{}\left({\color{red}{\beta_A + \beta_{PA}}}\right)\mathclose{} - {\color{teal}{\beta_A}} && \text{(substitute the two slopes)} \\ &= \beta_A - \beta_A + \beta_{PA} && \text{(commute the addition)} \\ &= \beta_{PA} && \text{(cancel } \beta_A \text{)} \end{aligned} \]

That slope difference implies that

\[ \begin{aligned} \beta_{PA} &= \frac{\partial}{\partial a}\eta(P={\color{red}{1}}, A = a) - \frac{\partial}{\partial a}\eta(P={\color{teal}{0}}, A = a) && \text{(rearrange the difference of slopes)} \\ &= \frac{\partial}{\partial a}\eta(P={\color{red}{1}}, A = a) - {\color{teal}{\beta_A}} && \text{(substitute the type B slope, } \frac{\partial}{\partial a}\eta(P=0, A=a) = \beta_A \text{)} \end{aligned} \]

$\beta_{PA}$ is the difference in the slopes of log-odds over age between participants with Type A personalities and participants with Type B personalities.

Accordingly, the odds ratio of experiencing CHD per one-year difference in age differs by a factor of $\text{e}^{\beta_{PA}}$ for participants with type A personality compared to participants with type B personality; specifically,

\[ \begin{aligned} \text{ϙ}_{\omega}(\Delta a = 1 | P = 1) = {\operatorname{exp}\mathopen{}\left\{\beta_{PA}\right\}\mathclose{}} \times \text{ϙ}_{\omega}(\Delta a = 1 | P = 0) \end{aligned} \]

or equivalently:

\[ {\operatorname{exp}\mathopen{}\left\{\beta_{PA}\right\}\mathclose{}} = \frac {\text{ϙ}_{\omega}(\Delta a = 1 | P = 1)} {\text{ϙ}_{\omega}(\Delta a = 1 | P = 0)} \]

Theorem 22 (Interpretation of the intercept in the WCGS interaction model)

Theorem 22 (Interpretation of the intercept in the WCGS interaction model) In the model of Equation 42, write $\omega(p, a) \stackrel{\text{def}}{=}\operatorname{odds}(Y=1|P=p, A=a)$ for the odds of CHD at covariate values $(p, a)$. Then the intercept $\beta_0$ is the log-odds of CHD for a person with type B personality ($P = 0$) and age $0$:

\[\beta_{0} = \eta(P=0,A=0)\]

and ${\operatorname{exp}\mathopen{}\left\{\beta_0\right\}\mathclose{}}$ is the corresponding odds:

\[{\operatorname{exp}\mathopen{}\left\{\beta_{0}\right\}\mathclose{}} = \omega(P=0,A=0)\]

Proof

Proof. This proof is the solution to Exercise 25, worked in Solution 25.

Example 19 (The fitted WCGS intercept as a log-odds)

Example 19 (The fitted WCGS intercept as a log-odds) The code below compares the intercept of the fitted model (chd_glm_contrasts) with the predicted log-odds for a type B participant at age 0, and compares ${\operatorname{exp}\mathopen{}\left\{\hat\beta_0\right\}\mathclose{}}$ with the corresponding predicted odds:

Show R code

ex_new <- data.frame(
  dibpat = factor("Type B", levels = levels(wcgs$dibpat)),
  age = 0
)
ex_eta <- predict(chd_glm_contrasts, newdata = ex_new, type = "link")
ex_prob <- predict(chd_glm_contrasts, newdata = ex_new, type = "response")
ex_odds <- ex_prob / (1 - ex_prob)
ex_b0 <- unname(coef(chd_glm_contrasts)["(Intercept)"])

The intercept is -5.8033 and the predicted log-odds is -5.8033. Also, ${\operatorname{exp}\mathopen{}\left\{\hat\beta_0\right\}\mathclose{}}$ is 0.00302 and the predicted odds is 0.00302. These values are tiny because age 0 lies far outside the observed ages, so the intercept is an extrapolation.

Theorem 23 (Interpretation of the age coefficient in the WCGS interaction model)

Theorem 23 (Interpretation of the age coefficient in the WCGS interaction model) In the model of Equation 42, write $\omega(p, a) \stackrel{\text{def}}{=}\operatorname{odds}(Y=1|P=p, A=a)$ and $\text{ϙ}_{\omega}(\Delta a = 1 | P = p) \stackrel{\text{def}}{=}\omega(p, a + 1) / \omega(p, a)$. Then for every age $a$, the age coefficient $\beta_A$ is the slope of the log-odds of CHD with respect to age among participants with type B personality ($P = 0$):

\[ \beta_A = \frac{\partial}{\partial a}\eta(P=0, A = a) = \eta(P = 0, A = a + 1)- \eta(P = 0, A = a) \]

and ${\operatorname{exp}\mathopen{}\left\{\beta_A\right\}\mathclose{}}$ is the odds ratio per one-year difference in age among participants with type B personality:

\[{\operatorname{exp}\mathopen{}\left\{\beta_{A}\right\}\mathclose{}} = \text{ϙ}_{\omega}(\Delta a = 1 | P = 0)\]

Proof

Proof. This proof is the solution to Exercise 25, worked in Solution 25.

Example 20 (The fitted WCGS age coefficient for type B participants)

Example 20 (The fitted WCGS age coefficient for type B participants) The code below compares the age coefficient of the fitted model (chd_glm_contrasts) with the change in predicted log-odds between ages 50 and 51 for type B participants, and compares ${\operatorname{exp}\mathopen{}\left\{\hat\beta_A\right\}\mathclose{}}$ with the corresponding ratio of predicted odds:

Show R code

ex_new <- data.frame(
  dibpat = factor("Type B", levels = levels(wcgs$dibpat)),
  age = c(50, 51)
)
ex_eta <- predict(chd_glm_contrasts, newdata = ex_new, type = "link")
ex_prob <- predict(chd_glm_contrasts, newdata = ex_new, type = "response")
ex_odds <- ex_prob / (1 - ex_prob)
ex_bA <- unname(coef(chd_glm_contrasts)["age"])

The age coefficient is 0.0616 and the difference in predicted log-odds is 0.0616. Also, ${\operatorname{exp}\mathopen{}\left\{\hat\beta_A\right\}\mathclose{}}$ is 1.0635 and the ratio of predicted odds is 1.0635.

Theorem 24 (Interpretation of the personality coefficient in the WCGS interaction model)

Theorem 24 (Interpretation of the personality coefficient in the WCGS interaction model) In the model of Equation 42, write $\omega(p, a) \stackrel{\text{def}}{=}\operatorname{odds}(Y=1|P=p, A=a)$. Then the personality coefficient $\beta_P$ is the difference in log-odds of CHD between type A ($P = 1$) and type B ($P = 0$) participants at age $0$:

\[\beta_P = \eta(P = 1, A = 0) - \eta(P=0, A = 0)\]

and ${\operatorname{exp}\mathopen{}\left\{\beta_P\right\}\mathclose{}}$ is the corresponding odds ratio:

\[ {\operatorname{exp}\mathopen{}\left\{\beta_{P}\right\}\mathclose{}} = \frac{\omega(P=1, A = 0)}{\omega(P=0, A = 0)} \]

Proof

Proof. This proof is the solution to Exercise 25, worked in Solution 25.

Example 21 (The fitted WCGS personality coefficient)

Example 21 (The fitted WCGS personality coefficient) The code below compares the personality coefficient of the fitted model (chd_glm_contrasts) with the difference in predicted log-odds between type A and type B participants at age 0, and compares ${\operatorname{exp}\mathopen{}\left\{\hat\beta_P\right\}\mathclose{}}$ with the corresponding ratio of predicted odds:

Show R code

ex_new <- data.frame(
  dibpat = factor(c("Type B", "Type A"), levels = levels(wcgs$dibpat)),
  age = 0
)
ex_eta <- predict(chd_glm_contrasts, newdata = ex_new, type = "link")
ex_prob <- predict(chd_glm_contrasts, newdata = ex_new, type = "response")
ex_odds <- ex_prob / (1 - ex_prob)
ex_bP <- unname(coef(chd_glm_contrasts)["dibpatType A"])

The personality coefficient is 0.3044 and the difference in predicted log-odds is 0.3044. Also, ${\operatorname{exp}\mathopen{}\left\{\hat\beta_P\right\}\mathclose{}}$ is 1.3558 and the ratio of predicted odds is 1.3558.

Theorem 25 (Interpretation of the interaction coefficient in the WCGS interaction model)

Theorem 25 (Interpretation of the interaction coefficient in the WCGS interaction model) In the model of Equation 42, write $\omega(p, a) \stackrel{\text{def}}{=}\operatorname{odds}(Y=1|P=p, A=a)$ and $\text{ϙ}_{\omega}(\Delta a = 1 | P = p) \stackrel{\text{def}}{=}\omega(p, a + 1) / \omega(p, a)$. Then for every age $a$, the interaction coefficient $\beta_{PA}$ is the difference between the slopes of the log-odds of CHD over age for type A ($P = 1$) and type B ($P = 0$) participants:

\[\beta_{PA} = \frac{\partial}{\partial a}\eta(P=1, A = a) - \frac{\partial}{\partial a}\eta(P=0, A = a)\]

and ${\operatorname{exp}\mathopen{}\left\{\beta_{PA}\right\}\mathclose{}}$ is the ratio of the odds ratios per one-year difference in age:

\[ {\operatorname{exp}\mathopen{}\left\{\beta_{PA}\right\}\mathclose{}} = \frac {\text{ϙ}_{\omega}(\Delta a = 1 | P = 1)} {\text{ϙ}_{\omega}(\Delta a = 1 | P = 0)} \]

Proof

Proof. This proof is the solution to Exercise 25, worked in Solution 25.

Example 22 (The fitted WCGS interaction coefficient)

Example 22 (The fitted WCGS interaction coefficient) The code below compares the interaction coefficient of the fitted model (chd_glm_contrasts) with the difference between the type A and type B changes in predicted log-odds from age 50 to age 51, and compares ${\operatorname{exp}\mathopen{}\left\{\hat\beta_{PA}\right\}\mathclose{}}$ with the ratio of the two odds ratios:

Show R code

ex_levels <- levels(wcgs$dibpat)
ex_new <- data.frame(
  dibpat = factor(c("Type B", "Type B", "Type A", "Type A"), levels = ex_levels),
  age = c(50, 51, 50, 51)
)
ex_eta <- predict(chd_glm_contrasts, newdata = ex_new, type = "link")
ex_prob <- predict(chd_glm_contrasts, newdata = ex_new, type = "response")
ex_odds <- ex_prob / (1 - ex_prob)
ex_or_B <- ex_odds[2] / ex_odds[1]
ex_or_A <- ex_odds[4] / ex_odds[3]
ex_slope_diff <- (ex_eta[4] - ex_eta[3]) - (ex_eta[2] - ex_eta[1])
ex_bPA <- unname(coef(chd_glm_contrasts)["dibpatType A:age"])

The interaction coefficient is 0.0103 and the difference in the changes in predicted log-odds is 0.0103. Also, ${\operatorname{exp}\mathopen{}\left\{\hat\beta_{PA}\right\}\mathclose{}}$ is 1.0104 and the ratio of the odds ratio for type A (1.0746) to the odds ratio for type B (1.0635) is 1.0104.

See Section 5.1.1 of Vittinghoff et al. [2] for another perspective, also using the wcgs data as an example.

7.2.4 Interpreting the model parameter estimates

Table 17 shows the fitted model.

Show R code

library(parameters)
chd_glm_contrasts |>
  parameters() |>
  print_md()

Table 17: CHD model (corner-point parametrization)

Parameter	Log-Odds	SE	95% CI	z	p
(Intercept)	-5.80	0.98	(-7.73, -3.90)	-5.95	< .001
dibpat (Type A)	0.30	1.18	(-2.02, 2.63)	0.26	0.797
age	0.06	0.02	(0.02, 0.10)	3.01	0.003
dibpat (Type A) × age	0.01	0.02	(-0.04, 0.06)	0.42	0.674

We can get the corresponding odds ratio estimates ($e^{\hat{\beta}}$s) by passing exponentiate = TRUE to parameters():

Show R code

chd_glm_contrasts |>
  parameters(exponentiate = TRUE) |>
  print_md()

Table 18: Odds ratio estimates for CHD model

Parameter	Odds Ratio	SE	95% CI	z	p
(Intercept)	3.02e-03	2.94e-03	(4.40e-04, 0.02)	-5.95	< .001
dibpat (Type A)	1.36	1.61	(0.13, 13.88)	0.26	0.797
age	1.06	0.02	(1.02, 1.11)	3.01	0.003
dibpat (Type A) × age	1.01	0.02	(0.96, 1.06)	0.42	0.674

7.2.5 Stratified parametrization

We could instead use a stratified parametrization:

Show R code

chd_glm_strat <- glm(
  "formula" = chd69 == "Yes" ~ dibpat + dibpat:age - 1,
  "data" = wcgs,
  "family" = binomial(link = "logit")
)
equatiomatic::extract_eq(chd_glm_strat)

\[ \log\left[ \frac { P( \operatorname{chd69} = \operatorname{Yes} ) }{ 1 - P( \operatorname{chd69} = \operatorname{Yes} ) } \right] = \beta_{1}(\operatorname{dibpat}_{\operatorname{Type\ B}}) + \beta_{2}(\operatorname{dibpat}_{\operatorname{Type\ A}}) + \beta_{3}(\operatorname{dibpat}_{\operatorname{Type\ B}} \times \operatorname{dibpat}_{\operatorname{age}}) + \beta_{4}(\operatorname{dibpat}_{\operatorname{Type\ A}} \times \operatorname{dibpat}_{\operatorname{age}}) \]

Show R code

chd_glm_strat |>
  parameters() |>
  print_md()

Table 19: CHD model, stratified parametrization

Parameter	Log-Odds	SE	95% CI	z	p
dibpat (Type B)	-5.80	0.98	(-7.73, -3.90)	-5.95	< .001
dibpat (Type A)	-5.50	0.67	(-6.83, -4.19)	-8.18	< .001
dibpat (Type B) × age	0.06	0.02	(0.02, 0.10)	3.01	0.003
dibpat (Type A) × age	0.07	0.01	(0.05, 0.10)	5.24	< .001

Again, we can get the corresponding odds ratios ($e^{\beta}$s) by passing exponentiate = TRUE to parameters():

Show R code

chd_glm_strat |>
  parameters(exponentiate = TRUE) |>
  print_md()

Table 20: Odds ratio estimates for CHD model

Parameter	Odds Ratio	SE	95% CI	z	p
dibpat (Type B)	3.02e-03	2.94e-03	(4.40e-04, 0.02)	-5.95	< .001
dibpat (Type A)	4.09e-03	2.75e-03	(1.08e-03, 0.02)	-8.18	< .001
dibpat (Type B) × age	1.06	0.02	(1.02, 1.11)	3.01	0.003
dibpat (Type A) × age	1.07	0.01	(1.05, 1.10)	5.24	< .001

Compare with Table 17.

Exercise 26

Exercise 26 If I give you model 1, how would you get the coefficients of model 2?

Solution 26

Solution 26. Model 1 is the corner-point (reference/contrast) parametrization fitted in chd_glm_contrasts, with linear predictor (Equation 42):

\[\eta(p, a) = \beta_0 + \beta_P p + \beta_A a + \beta_{PA} pa\]

Model 2 is the stratified parametrization fitted in chd_glm_strat, which gives each personality type its own intercept and its own age slope. Writing $\gamma_B, \gamma_A$ for the stratum-specific intercepts and $\delta_B, \delta_A$ for the stratum-specific age slopes:

\[ \eta(p, a) \stackrel{\text{def}}{=} \gamma_B (1 - p) + \gamma_A p + \delta_B (1 - p) a + \delta_A p a \tag{46}\]

The two parametrizations span the same set of linear-predictor functions, so both models have the same fitted linear predictor $\eta(p, a)$. We can therefore recover the model 2 coefficients by equating the two expressions for $\eta(p, a)$ within each personality-type stratum.

Type B stratum ($p = 0$):

In model 1 (Equation 42):

\[ \begin{aligned} \eta(0, a) &= \beta_0 + \beta_P \cdot 0 + \beta_A a + \beta_{PA} \cdot 0 \cdot a && \text{(substitute } p = 0\text{)} \\ &= \beta_0 + 0 + \beta_A a + 0 && \text{(multiply by 0)} \\ &= \beta_0 + \beta_A a && \text{(drop the zero terms)} \end{aligned} \]

In model 2 (Equation 46):

\[ \begin{aligned} \eta(0, a) &= \gamma_B (1 - 0) + \gamma_A \cdot 0 + \delta_B (1 - 0) a + \delta_A \cdot 0 \cdot a && \text{(substitute } p = 0\text{)} \\ &= \gamma_B \cdot 1 + \gamma_A \cdot 0 + \delta_B \cdot 1 \cdot a + \delta_A \cdot 0 \cdot a && \text{(} 1 - 0 = 1 \text{)} \\ &= \gamma_B + 0 + \delta_B a + 0 && \text{(multiply by 1 and by 0)} \\ &= \gamma_B + \delta_B a && \text{(drop the zero terms)} \end{aligned} \]

Equating the two expressions for $\eta(0, a)$, for all ages $a$:

\[ \gamma_B + \delta_B a = \beta_0 + \beta_A a \tag{47}\]

Setting $a = 0$ in Equation 47:

\[ \begin{aligned} \gamma_B + \delta_B \cdot 0 &= \beta_0 + \beta_A \cdot 0 && \text{(substitute } a = 0\text{)} \\ \gamma_B + 0 &= \beta_0 + 0 && \text{(multiply by 0)} \\ \gamma_B &= \beta_0 && \text{(drop the zero terms)} \end{aligned} \]

Subtracting $\gamma_B = \beta_0$ from both sides of Equation 47 and then setting $a = 1$:

\[ \begin{aligned} \delta_B a &= \beta_A a && \text{(subtract } \gamma_B = \beta_0 \text{ from both sides)} \\ \delta_B \cdot 1 &= \beta_A \cdot 1 && \text{(substitute } a = 1\text{)} \\ \delta_B &= \beta_A && \text{(multiply by 1)} \end{aligned} \]

Type A stratum ($p = 1$):

In model 1 (Equation 42):

\[ \begin{aligned} \eta(1, a) &= \beta_0 + \beta_P \cdot 1 + \beta_A a + \beta_{PA} \cdot 1 \cdot a && \text{(substitute } p = 1\text{)} \\ &= \beta_0 + \beta_P + \beta_A a + \beta_{PA} a && \text{(multiply by 1)} \\ &= (\beta_0 + \beta_P) + (\beta_A + \beta_{PA}) a && \text{(group the constant terms; factor out } a \text{)} \end{aligned} \]

In model 2 (Equation 46):

\[ \begin{aligned} \eta(1, a) &= \gamma_B (1 - 1) + \gamma_A \cdot 1 + \delta_B (1 - 1) a + \delta_A \cdot 1 \cdot a && \text{(substitute } p = 1\text{)} \\ &= \gamma_B \cdot 0 + \gamma_A \cdot 1 + \delta_B \cdot 0 \cdot a + \delta_A \cdot 1 \cdot a && \text{(} 1 - 1 = 0 \text{)} \\ &= 0 + \gamma_A + 0 + \delta_A a && \text{(multiply by 0 and by 1)} \\ &= \gamma_A + \delta_A a && \text{(drop the zero terms)} \end{aligned} \]

Equating the two expressions for $\eta(1, a)$ and applying the same two steps as in the Type B stratum (set $a = 0$; then subtract the intercepts and set $a = 1$):

\[ \begin{aligned} \gamma_A &= \beta_0 + \beta_P \\ \delta_A &= \beta_A + \beta_{PA} \end{aligned} \]

Summary of the conversion:

\[ \begin{aligned} \gamma_B &= \beta_0 \\ \gamma_A &= \beta_0 + \beta_P \\ \delta_B &= \beta_A \\ \delta_A &= \beta_A + \beta_{PA} \end{aligned} \tag{48}\]

Solving Equation 48 for the model 1 coefficients inverts the conversion, so either parametrization determines the other:

\[ \begin{aligned} \beta_0 &= \gamma_B && \text{(first equation of the summary)} \\ \beta_P &= \gamma_A - \gamma_B && \text{(subtract the first equation from the second)} \\ \beta_A &= \delta_B && \text{(third equation)} \\ \beta_{PA} &= \delta_A - \delta_B && \text{(subtract the third equation from the fourth)} \end{aligned} \]

Numerical check: applying Equation 48 to the fitted model 1 coefficients (Table 17) reproduces the fitted model 2 coefficients (Table 19):

Show R code

b <- coef(chd_glm_contrasts)

gamma_delta <- c(
  "dibpatType B" = unname(b["(Intercept)"]),
  "dibpatType A" = unname(b["(Intercept)"] + b["dibpatType A"]),
  "dibpatType B:age" = unname(b["age"]),
  "dibpatType A:age" = unname(b["age"] + b["dibpatType A:age"])
)

cbind(
  "converted from model 1" = gamma_delta,
  "model 2 (fitted directly)" = coef(chd_glm_strat)[names(gamma_delta)]
)
#>                  converted from model 1 model 2 (fitted directly)
#> dibpatType B                 -5.8032532                -5.8032532
#> dibpatType A                 -5.4988618                -5.4988618
#> dibpatType B:age              0.0615634                 0.0615634
#> dibpatType A:age              0.0719071                 0.0719071

Theorem 26 (Converting between the corner-point and stratified parametrizations)

Theorem 26 (Converting between the corner-point and stratified parametrizations) Let $\beta_0$, $\beta_P$, $\beta_A$ and $\beta_{PA}$ be the coefficients of the corner-point parametrization (Equation 42). Let $\gamma_B$ and $\gamma_A$ be the stratum-specific intercepts, and $\delta_B$ and $\delta_A$ the stratum-specific age slopes, of the stratified parametrization of the same linear predictor (Equation 46). Then:

\[ \begin{aligned} \gamma_B &= \beta_0 \\ \gamma_A &= \beta_0 + \beta_P \\ \delta_B &= \beta_A \\ \delta_A &= \beta_A + \beta_{PA} \end{aligned} \]

Equivalently:

\[ \begin{aligned} \beta_0 &= \gamma_B \\ \beta_P &= \gamma_A - \gamma_B \\ \beta_A &= \delta_B \\ \beta_{PA} &= \delta_A - \delta_B \end{aligned} \]

Proof

Proof. This proof is the solution to Exercise 26, worked in Solution 26.

Example 23 (Converting the fitted WCGS coefficients)

Example 23 (Converting the fitted WCGS coefficients) The code below applies Theorem 26 to the coefficients of the fitted corner-point model (chd_glm_contrasts), and compares the result with the coefficients of the model fitted directly with the stratified parametrization (chd_glm_strat):

Show R code

ex_b <- coef(chd_glm_contrasts)
ex_converted <- c(
  "dibpatType B" = unname(ex_b["(Intercept)"]),
  "dibpatType A" = unname(ex_b["(Intercept)"] + ex_b["dibpatType A"]),
  "dibpatType B:age" = unname(ex_b["age"]),
  "dibpatType A:age" = unname(ex_b["age"] + ex_b["dibpatType A:age"])
)
ex_direct <- coef(chd_glm_strat)[names(ex_converted)]
ex_max_gap <- max(abs(ex_converted - ex_direct))

The largest difference between the converted coefficients and the directly fitted ones is 6.2e-15, which is zero up to numerical error.

8 Model comparisons for logistic models

Video lecture

David Rocke’s Epi 204 lecture Diagnostics and Goodness of Fit (slides) covers the deviance goodness-of-fit test and the Hosmer-Lemeshow test [4].

Video tutorial

Josh Starmer’s StatQuest video Saturated Models and Deviance explains saturated models, null deviance, and residual deviance [5].

Video tutorial

Josh Starmer’s StatQuest video Logistic Regression Details Pt 3: R-squared and p-value explains a likelihood-based pseudo-$R^2$ for logistic regression and the likelihood ratio test of the fitted model against the intercept-only model [5].

8.0.1 Deviance test

Definition 4 (Deviance goodness-of-fit test (deviance test))

Definition 4 (Deviance goodness-of-fit test (deviance test)) We can compare the maximized log-likelihood of our model, $\ell(\hat\beta; \mathbf x)$, versus the log-likelihood of the full model (aka saturated model aka maximal model; see the saturated model definition), $\ell_{\text{full}}$, which has one parameter per covariate pattern. The deviance statistic (see the deviance definition) is:

\[D \stackrel{\text{def}}{=}2(\ell_{\text{full}} - \ell(\hat\beta; \mathbf x))\]

With enough data, $D \dot \sim \chi^2(q - p)$, where $q$ is the number of distinct covariate patterns and $p$ is the number of $\beta$ parameters in our model. The deviance goodness-of-fit test (or deviance test) compares $D$ to that $\chi^2(q-p)$ distribution.

Remark 3 (Interpreting the deviance test)

Remark 3 (Interpreting the deviance test). A significant p-value for this deviance statistic indicates that there’s some detectable pattern in the data that our model isn’t flexible enough to catch.

Caution

The deviance statistic needs to have a large amount of data for each covariate pattern for the $\chi^2$ approximation to hold. A guideline from Dobson and Barnett [1, Ch. 5] is that if there are $q$ distinct covariate patterns $x_1...,x_q$, with $n_1,...,n_q$ observations per pattern, then the expected frequencies $n_k \cdot \pi(x_k)$ should be at least 1 for every pattern $k\in 1:q$.

If you have covariates measured on a continuous scale, you may not be able to use the deviance tests to assess goodness of fit.

Example 24 (Deviance test for the WCGS CHD model)

Example 24 (Deviance test for the WCGS CHD model) Our CHD model chd_glm_contrasts was fit to individual-level observations, but its covariate patterns are just the combinations of personality type (dibpat) and whole-year age, so we can refit the same model to the grouped data and perform the deviance test:

Show R code

wcgs_gof_grouped <-
  wcgs |>
  summarize(
    .by = c(dibpat, age),
    n = n(),
    chd = sum(chd69 == "Yes"),
    no_chd = sum(chd69 == "No")
  )

chd_glm_gof_grouped <- glm(
  "formula" = cbind(chd, no_chd) ~ dibpat * age,
  "data" = wcgs_gof_grouped,
  "family" = binomial(link = "logit")
)

deviance_gof <- deviance(chd_glm_gof_grouped)
q_gof <- nrow(wcgs_gof_grouped)
p_gof <- length(coef(chd_glm_gof_grouped))
pval_deviance_gof <- pchisq(
  deviance_gof,
  df = q_gof - p_gof,
  lower.tail = FALSE
)
min_exp_freq <- min(wcgs_gof_grouped$n * fitted(chd_glm_gof_grouped))

The smallest expected event frequency across the covariate patterns is $\min_k {\mathopen{}\left\{ n_k \cdot \hat\pi(x_k) \right\}\mathclose{}} = 1.74$, which is at least 1, so these grouped data meet the minimum-expected-frequency guideline from Dobson and Barnett [1, Ch. 5] for using the $\chi^2$ approximation.

The grouped data have $q = 42$ distinct covariate patterns, and the model has $p = 4$ parameters, so the deviance statistic $D = 45$ has $q - p = 38$ degrees of freedom. The corresponding p-value is $p(\chi^2(38) > 45) = 0.202$, so the deviance test finds no significant evidence of lack of fit for this model.

8.0.2 Hosmer-Lemeshow test

If our covariate patterns produce groups that are too small, a reasonable solution is to make bigger groups by merging some of the covariate-pattern groups together.

Definition 5 (Hosmer-Lemeshow test)

Definition 5 (Hosmer-Lemeshow test) Hosmer and Lemeshow [11] proposed that we group the patterns by their predicted probabilities according to the model of interest. For example, you could group all of the observations with predicted probabilities of 10% or less together, then group the observations with 11%-20% probability together, and so on; $g=10$ categories in all.

Then we can construct a statistic \[X^2 \stackrel{\text{def}}{=}\sum_{c=1}^g \frac{(o_c - e_c)^2}{e_c}\] where $o_c$ is the number of events observed in group $c$, and $e_c$ is the number of events expected in group $c$ (based on the sum of the fitted values $\hat\pi_i$ for observations in group $c$).

If each group has enough observations in it, you can compare $X^2$ to a $\chi^2$ distribution; by simulation, the degrees of freedom has been found to be approximately $g-2$.

Note

The Hosmer-Lemeshow statistic depends on how the observations are grouped. Changing the number of groups $g$, or the cut points used to form them, can change the value of $X^2$ and its p-value for the same fitted model, so the test can reach different conclusions depending on the grouping choice. Hosmer et al. [12] compare the Hosmer-Lemeshow test against several alternative goodness-of-fit tests and document this sensitivity.

Example 25 (Hosmer-Lemeshow test for the WCGS CHD model)

Example 25 (Hosmer-Lemeshow test for the WCGS CHD model) For our CHD model, this procedure would be:

Show R code

wcgs <-
  wcgs |>
  mutate(
    pred_probs_glm1 = chd_glm_contrasts |> fitted(),
    pred_prob_cats1 = pred_probs_glm1 |>
      cut(
        breaks = seq(0, 1, by = .1),
        include.lowest = TRUE
      )
  )

HL_table <- # nolint: object_name_linter
  wcgs |>
  summarize(
    .by = pred_prob_cats1,
    n = n(),
    o = sum(chd69 == "Yes"),
    e = sum(pred_probs_glm1)
  )

library(pander)
HL_table |> pander()

pred_prob_cats1	n	o	e
(0.1,0.2]	785	116	108
(0.2,0.3]	64	12	13.77
[0,0.1]	2,305	129	135.2

Show R code


X2 <- HL_table |> # nolint: object_name_linter
  summarize(
    `X^2` = sum((o - e)^2 / e)
  ) |>
  pull(`X^2`)
print(X2)
#> [1] 1.11029

pval1 <- pchisq(X2, lower = FALSE, df = nrow(HL_table) - 2)

Our statistic is $X^2 = 1.110287$; $p(\chi^2(1) > 1.110287) = 0.29202$, which is our p-value for detecting a lack of goodness of fit.

Unfortunately that grouping plan left us with just three categories with any observations, so instead of grouping by 10% increments of predicted probability, typically analysts use deciles of the predicted probabilities:

Show R code

wcgs <-
  wcgs |>
  mutate(
    pred_probs_glm1 = chd_glm_contrasts |> fitted(),
    pred_prob_cats1 = pred_probs_glm1 |>
      cut(
        breaks = quantile(pred_probs_glm1, seq(0, 1, by = .1)),
        include.lowest = TRUE
      )
  )

HL_table <- # nolint: object_name_linter
  wcgs |>
  summarize(
    .by = pred_prob_cats1,
    n = n(),
    o = sum(chd69 == "Yes"),
    e = sum(pred_probs_glm1)
  )

HL_table |> pander()

pred_prob_cats1	n	o	e
(0.114,0.147]	275	48	36.81
(0.147,0.222]	314	51	57.19
(0.0774,0.0942]	371	27	32.56
(0.0942,0.114]	282	30	29.89
(0.0633,0.069]	237	17	15.97
(0.069,0.0774]	306	20	22.95
(0.0487,0.0633]	413	27	24.1
(0.0409,0.0487]	310	14	14.15
[0.0322,0.0363]	407	16	13.91
(0.0363,0.0409]	239	7	9.48

Show R code


X2 <- HL_table |> # nolint: object_name_linter
  summarize(
    `X^2` = sum((o - e)^2 / e)
  ) |>
  pull(`X^2`)

print(X2)
#> [1] 6.78114

pval1 <- pchisq(X2, lower = FALSE, df = nrow(HL_table) - 2)

Now we have more evenly split categories. The p-value is $0.56042$, still not significant.

Graphically, we have compared:

Show R code

HL_plot <- # nolint: object_name_linter
  HL_table |>
  ggplot(aes(x = pred_prob_cats1)) +
  geom_line(
    aes(y = e, x = pred_prob_cats1, group = "Expected", col = "Expected")
  ) +
  geom_point(aes(y = e, size = n, col = "Expected")) +
  geom_point(aes(y = o, size = n, col = "Observed")) +
  geom_line(aes(y = o, col = "Observed", group = "Observed")) +
  scale_size(range = c(1, 4)) +
  theme_bw() +
  ylab("number of CHD events") +
  theme(axis.text.x = element_text(angle = 45))

Show R code

ggplotly(HL_plot)

8.0.3 Comparing models

The deviance test (Definition 4) and the Hosmer-Lemeshow test (Definition 5) assess the fit of a single model in absolute terms. To choose between two competing models, we can instead compare their fits against each other, using criteria that trade off fit against complexity:

AIC = $-2 * \ell(\hat\theta) + 2 * p$ [lower is better] [13] (see the AIC definition)
BIC = $-2 * \ell(\hat\theta) + p * \text{log}(n)$ [lower is better] [14] (see the BIC definition)

A larger maximized log-likelihood is not, by itself, evidence that one model is better than another: adding parameters to a model can never decrease its maximized log-likelihood, so the more complex of two nested models always fits at least as well. For nested models, the likelihood ratio test accounts for this complexity difference by testing whether the improvement in fit is larger than chance alone would produce:

Definition 6 (Likelihood ratio test statistic)

Definition 6 (Likelihood ratio test statistic) Suppose a reduced model with $p_0$ parameters is nested in a full model with $p_1 > p_0$ parameters; that is, the reduced model is a special case of the full model. The likelihood ratio test statistic is:

\[\Lambda \stackrel{\text{def}}{=}2(\ell_{\text{full}}(\hat\theta_1) - \ell_{\text{red}}(\hat\theta_0))\]

where $\hat\theta_1$ and $\hat\theta_0$ are the maximum likelihood estimates of the full and reduced models, respectively.

Definition 7 (Likelihood ratio test (LRT))

Definition 7 (Likelihood ratio test (LRT)) Under the null hypothesis that the reduced model is adequate, the likelihood ratio test statistic $\Lambda$ (Definition 6) satisfies $\Lambda \dot \sim \chi^2(p_1 - p_0)$ by Wilks’ theorem. The likelihood ratio test (LRT) rejects the reduced model when $\Lambda$ is large relative to that $\chi^2(p_1 - p_0)$ distribution.

Example 26 (Testing the WCGS interaction term with a likelihood ratio test)

Example 26 (Testing the WCGS interaction term with a likelihood ratio test) Our CHD model chd_glm_contrasts includes a dibpat:age interaction term. Does that interaction term improve the fit enough to justify its extra parameter? Let’s fit the nested model without the interaction term and compare the two models with a likelihood ratio test:

Show R code

chd_glm_additive <-
  wcgs |>
  glm(
    "data" = _,
    "formula" = chd69 == "Yes" ~ dibpat + age,
    "family" = binomial(link = "logit")
  )

lrt_chd <- anova(
  chd_glm_additive,
  chd_glm_contrasts,
  test = "LRT"
)
lrt_chd

Show R code


llik_full_chd <- logLik(chd_glm_contrasts) |> as.numeric()
llik_red_chd <- logLik(chd_glm_additive) |> as.numeric()
lambda_chd <- lrt_chd$Deviance[2]
df_chd <- lrt_chd$Df[2]
pval_lrt_chd <- lrt_chd$`Pr(>Chi)`[2]

Here the test statistic is:

\[ \begin{aligned} \Lambda &\stackrel{\text{def}}{=}2(\ell_{\text{full}}(\hat\theta_1) - \ell_{\text{red}}(\hat\theta_0)) && \text{(definition of the LRT statistic)} \\ &= 2 \times (-851.99 - (-852.08)) && \text{(substituting the two maximized log-likelihoods)} \\ &= 2 \times 0.09 && \text{(subtraction)} \\ &= 0.18 && \text{(multiplication)} \end{aligned} \]

The full model has $p_1 = 4$ parameters and the reduced model has $p_0 = 3$, so the null distribution is $\chi^2(p_1 - p_0) = \chi^2(1)$, and the p-value is $p(\chi^2(1) > 0.18) = 0.674$. The LRT finds no significant evidence that the interaction term improves the fit.

The lrtest() function from the {lmtest} package performs the same test:

Show R code

lmtest::lrtest(chd_glm_contrasts, chd_glm_additive)

AIC and BIC can also compare these two models:

Show R code

AIC(chd_glm_additive, chd_glm_contrasts)

Show R code

BIC(chd_glm_additive, chd_glm_contrasts)

Both criteria are lower for the additive model (AIC: $1710.16$ vs $1711.98$; BIC: $1728.33$ vs $1736.21$), agreeing with the LRT that the interaction term is not worth its extra parameter.

9 Residual-based diagnostics

Video lecture

David Rocke’s Epi 204 lecture Diagnostics and Goodness of Fit (slides) covers residuals, leverage, and influence diagnostics for grouped and ungrouped logistic models, and overdispersion [4].

Video tutorial

Josh Starmer’s StatQuest video Deviance Residuals explains how deviance residuals are computed and used [5].

9.0.1 Logistic regression residuals only work for grouped data

The residual and leverage diagnostics in this section follow the logistic-regression diagnostics developed by Pregibon [15]; see also Dobson and Barnett [1, Ch. 7] and Vittinghoff et al. [2, Ch. 5] for textbook treatments.

Show R code

library(haven)
url <- paste0(
  # I'm breaking up the url into two chunks for readability
  "https://regression.ucsf.edu/sites/g/files/",
  "tkssra6706/f/wysiwyg/home/data/wcgs.dta"
)
library(here) # provides the `here()` function
library(fs) # provides the `path()` function
here::here() |>
  fs::path("Data/wcgs.rda") |>
  load()
chd_glm_contrasts <-
  wcgs |>
  glm(
    "data" = _,
    "formula" = chd69 == "Yes" ~ dibpat * age,
    "family" = binomial(link = "logit")
  )
library(ggfortify)
chd_glm_contrasts |> autoplot()

Figure 17: Residual diagnostics for WCGS model with individual-level observations

Residuals only work if there is more than one observation for most covariate patterns.

Here we will create the grouped-data version of our CHD model from the WCGS study:

Show R code

library(dplyr)
wcgs_grouped <-
  wcgs |>
  summarize(
    .by = c(dibpat, age),
    n = n(),
    chd = sum(chd69 == "Yes"),
    no_chd = sum(chd69 == "No")
  ) |>
  mutate(p_chd = chd/n)

chd_glm_contrasts_grouped <- glm(
  "formula" = cbind(chd, no_chd) ~ dibpat*age,
  "data" = wcgs_grouped,
  "family" = binomial(link = "logit")
)
chd_glm_contrasts_grouped |> equatiomatic::extract_eq()

\[ \log\left[ \frac { P( \operatorname{chd} ) }{ 1 - P( \operatorname{chd} ) } \right] = \alpha + \beta_{1}(\operatorname{dibpat}_{\operatorname{Type\ A}}) + \beta_{2}(\operatorname{age}) + \beta_{3}(\operatorname{dibpat}_{\operatorname{Type\ A}} \times \operatorname{age}) \]

Show R code

library(parameters)
chd_glm_contrasts_grouped |>
  parameters() |>
  print_md()

Table 21: CHD model with grouped wcgs data

Parameter	Log-Odds	SE	95% CI	z	p
(Intercept)	-5.80	0.98	(-7.73, -3.90)	-5.95	< .001
dibpat (Type A)	0.30	1.18	(-2.02, 2.63)	0.26	0.797
age	0.06	0.02	(0.02, 0.10)	3.01	0.003
dibpat (Type A) × age	0.01	0.02	(-0.04, 0.06)	0.42	0.674

Show R code

chd_glm_contrasts_grouped |>
  sjPlot::plot_model(type = "pred", terms = c("age", "dibpat")) +
  geom_point(data = wcgs_grouped |> mutate(group_col = dibpat),
             aes(x = age, y = p_chd))

Figure 18: CHD model with grouped `wcgs` data

Show R code

library(ggfortify)
chd_glm_contrasts_grouped |> autoplot()

9.0.2 (Response) residuals

Definition 8

Definition 8

Response residual

The response residual for covariate pattern $k$ is

\[e_k \stackrel{\text{def}}{=}\bar y_k - \hat{\pi}(x_k)\]

where $k$ indexes the covariate patterns, $\bar y_k$ is the observed proportion of events in pattern $k$, and $\hat\pi(x_k)$ is the fitted probability for pattern $k$.

Example 27 (Response residuals for the WCGS CHD model)

Example 27 (Response residuals for the WCGS CHD model) We can graph these residuals $e_k$ (Definition 8) against the fitted values $\hat\pi(x_k)$:

Show R code

odds <- function(pi) pi/(1-pi)
logit <- function(pi) log(odds(pi))
wcgs_grouped <-
  wcgs_grouped |>
  mutate(
    fitted = chd_glm_contrasts_grouped |> fitted(),
    fitted_logit = fitted |> logit(),
    response_resids = chd_glm_contrasts_grouped |> resid(type = "response")
  )

wcgs_response_resid_plot <-
  wcgs_grouped |>
  ggplot(
    mapping = aes(
      x = fitted,
      y = response_resids
    )
  ) +
  geom_point(
    aes(col = dibpat)
  ) +
  geom_hline(yintercept = 0) +
  geom_smooth(
    se = TRUE,
    method.args = list(
      span = 2 / 3,
      degree = 1,
      family = "symmetric",
      iterations = 3
    ),
    method = stats::loess
  )

1: Don’t worry about these options for now; I chose them to match autoplot() as closely as I can. plot.glm and autoplot use stats::lowess instead of stats::loess; stats::lowess is older, hard to use with geom_smooth, and hard to match exactly with stats::loess; see https://support.bioconductor.org/p/2323/.]

Show R code

wcgs_response_resid_plot |> print()

Figure 19: residuals plot for `wcgs` model

We can see a slight fan-shape here: observations on the right have larger variance (as expected since $var(\bar y) = \pi(1-\pi)/n$ is maximized when $\pi = 0.5$).

9.0.3 Pearson residuals

The fan-shape in the response residuals plot isn’t necessarily a concern here, since we haven’t made an assumption of constant residual variance, as we did for linear regression.

However, we might want to divide by the standard error in order to make the graph easier to interpret. Here’s one way to do that:

Definition 9 (Pearson residual)

Definition 9 (Pearson residual) The Pearson (chi-squared) residual for covariate pattern $k$ is: \[ \begin{aligned} X_k &\stackrel{\text{def}}{=}\frac{\bar y_k - \hat\pi_k}{\sqrt{\hat \pi_k (1-\hat\pi_k)/n_k}} \end{aligned} \]

where \[ \begin{aligned} \hat\pi_k &\stackrel{\text{def}}{=}\hat\pi(x_k)\\ &\stackrel{\text{def}}{=}\hat P(Y=1|X=x_k)\\ &\stackrel{\text{def}}{=}\operatorname{expit}(x_i'\hat \beta)\\ &\stackrel{\text{def}}{=}\operatorname{expit}(\hat \beta_0 + \sum_{j=1}^p \hat \beta_j x_{ij}) \end{aligned} \]

Example 28 (Pearson residuals for the WCGS CHD model)

Example 28 (Pearson residuals for the WCGS CHD model) Let’s take a look at the Pearson residuals (Definition 9) for our CHD model from the WCGS data (graphed against the fitted values on the logit scale):

Show R code

library(ggfortify)

Show R code

autoplot(chd_glm_contrasts_grouped, which = 1, ncol = 1) |> print()

The fan-shape is gone, and these residuals don’t show any obvious signs of model fit issues.

Example 29 (Counterexample: Pearson residuals for the beetles model)

Example 29 (Counterexample: Pearson residuals for the beetles model) If we create the same plot for the beetles model, we see some strong evidence of a lack of fit; this plot is a counterexample to a well-fitting model:

Show R code

library(glmx)
library(dplyr)
data(BeetleMortality)
beetles <- BeetleMortality |>
  mutate(
    pct = died / n,
    survived = n - died,
    dose_c = dose - mean(dose)
  )
beetles_glm_grouped <- beetles |>
  glm(
    formula = cbind(died, survived) ~ dose,
    family = "binomial"
  )
autoplot(beetles_glm_grouped, which = 1, ncol = 1) |> print()

The clear pattern in the residuals signals that the straight-line logit model does not fit the beetle-mortality data well.

Pearson residuals with individual (ungrouped) data

What happens if we try to compute residuals without grouping the data by covariate pattern?

Show R code

library(ggfortify)

Show R code

chd_glm_strat <- glm(
  "formula" = chd69 == "Yes" ~ dibpat + dibpat:age - 1,
  "data" = wcgs,
  "family" = binomial(link = "logit")
)

autoplot(chd_glm_strat, which = 1, ncol = 1) |> print()

This residuals-vs-fitted plot is meaningless: with ungrouped (individual-level) data, each covariate pattern contains only one observation ($n_k = 1$), so each residual can take only one of two possible values, both determined by the fitted probability $\hat\pi(x_k)$ (one value when $y_k = 1$ and another when $y_k = 0$). With a single binary observation per covariate pattern, the residuals have no meaningful reference distribution to assess the model fit against; this lack of a reference distribution is why logistic regression residuals only work for grouped data, with multiple observations per covariate pattern.

Residuals plot by hand

If you want to check your understanding of what these residual plots are, try building them yourself:

Show R code

wcgs_grouped <-
  wcgs_grouped |>
  mutate(
    fitted = chd_glm_contrasts_grouped |> fitted(),
    fitted_logit = fitted |> logit(),
    resids = chd_glm_contrasts_grouped |> resid(type = "pearson")
  )

wcgs_resid_plot1 <-
  wcgs_grouped |>
  ggplot(
    mapping = aes(
      x = fitted_logit,
      y = resids
    )
  ) +
  geom_point(
    aes(col = dibpat)
  ) +
  geom_hline(yintercept = 0) +
  geom_smooth(
    se = FALSE,
    method.args = list(
      span = 2 / 3,
      degree = 1,
      family = "symmetric",
      iterations = 3,
      surface = "direct"
    ),
    method = stats::loess
  )
# plot.glm and autoplot use stats::lowess, which is hard to use with
# geom_smooth and hard to match exactly;
# see https://support.bioconductor.org/p/2323/

Show R code

wcgs_resid_plot1 |> print()

Pearson chi-squared goodness of fit test

The Pearson chi-squared goodness of fit statistic is: \[X^2 = \sum_{k=1}^q X_k^2\]

Under the null hypothesis that the model in question is correct (i.e., sufficiently complex), $X^2\ \dot \sim\ \chi^2(q-p)$.

Show R code

x_pearson <- chd_glm_contrasts_grouped |>
  resid(type = "pearson")

chisq_stat <- sum(x_pearson^2)

pval <- pchisq(
  chisq_stat,
  lower = FALSE,
  df = length(x_pearson) - length(coef(chd_glm_contrasts_grouped))
)

For our CHD model, the p-value for this test is 0.265236; no significant evidence of a lack of fit at the 0.05 level.

Definition 10 (Weighted hat matrix for a GLM)

Definition 10 (Weighted hat matrix for a GLM) For a logistic (or other) generalized linear model fit to $q$ covariate patterns with $p$ parameters, the weighted hat matrix is

\[ \underbrace{\mathbf{H}}_{q \times q} \stackrel{\text{def}}{=} \underbrace{\mathbf{W}^{1/2}}_{q \times q} \underbrace{\mathbf{X}}_{q \times p} \mathopen{}\left(\underbrace{{\mathbf{X}}^{\top}\,\mathbf{W}\,\mathbf{X}}_{p \times p}\right)\mathclose{}^{-1} \underbrace{{\mathbf{X}}^{\top}}_{p \times q} \underbrace{\mathbf{W}^{1/2}}_{q \times q} \]

where $\underbrace{\mathbf{W}}_{q \times q} \stackrel{\text{def}}{=}\text{diag}\mathopen{}\left(n_k \, \hat\pi_k \, (1 - \hat\pi_k)\right)\mathclose{}$ is the diagonal matrix of binomial weights.

Definition 11 (Leverage for a GLM)

Definition 11 (Leverage for a GLM) Let $\mathbf{H}$ be the weighted hat matrix (Definition 10). The leverage $h_k$ of covariate pattern $k$ is the $k$-th diagonal element of $\mathbf{H}$.

Remark 4 (The weighted hat matrix as the GLM analog of the linear-model hat matrix)

Remark 4 (The weighted hat matrix as the GLM analog of the linear-model hat matrix). This weighted hat matrix is the GLM analog of the linear-model hat matrix; the weight matrix $\mathbf{W}$ reduces to the identity in the ordinary-least-squares case.

Definition 12 (Standardized Pearson residual)

Definition 12 (Standardized Pearson residual) Especially for small data sets, we might want to adjust our residuals for leverage (since outliers in $X$ add extra variance to the residuals):

\[r_{P_k} \stackrel{\text{def}}{=}\frac{X_k}{\sqrt{1-h_k}}\]

where $X_k$ is the Pearson residual (Definition 9) and $h_k$ is the leverage of covariate pattern $k$ (Definition 11).

Remark 5 (Standardized Pearson residuals in R diagnostic plots)

Remark 5 (Standardized Pearson residuals in R diagnostic plots). The functions autoplot() and plot.lm() use these for some of their graphs.

9.0.4 Deviance residuals

For large sample sizes, the Pearson and deviance residuals will be approximately the same. For small sample sizes, the deviance residuals from covariate patterns with small sample sizes can be unreliable (high variance).

Definition 13 (Deviance residual)

Definition 13 (Deviance residual) Here $\ell_{\text{full}}(x_k)$ is the saturated model’s log-likelihood contribution from covariate pattern $k$, so that summing over the covariate patterns gives the full log-likelihood:

\[\ell_{\text{full}} \stackrel{\text{def}}{=}\sum_{k} \ell_{\text{full}}(x_k)\]

The deviance residual for covariate pattern $k$ is

\[d_k \stackrel{\text{def}}{=}\operatorname{sign}(y_k - n_k \hat \pi_k) {\mathopen{}\left\{\sqrt{2[\ell_{\text{full}}(x_k) - \ell(\hat\beta; x_k)]}\right\}\mathclose{}}\]

Standardized deviance residuals

Analogously to the standardized Pearson residual (Definition 12), we can adjust the deviance residual for leverage:

\[r_{D_k} \stackrel{\text{def}}{=}\frac{d_k}{\sqrt{1-h_k}}\]

where $h_k$ is the leverage of covariate pattern $k$ (Definition 11).

9.0.5 Diagnostic plots

Definition 14

Definition 14

Cook’s distance for a GLM

Some of the autoplot() diagnostic panels display Cook’s distance, which measures how influential each covariate pattern is on the fit. For a generalized linear model, the Cook’s distance for covariate pattern $k$ combines the standardized Pearson residual (Definition 12) and the leverage (Definition 11):

\[D_k \stackrel{\text{def}}{=}\frac{(r_{P_k})^2}{p} \cdot \frac{h_k}{1 - h_k}\]

where $p$ is the number of parameters.

Remark 6 (Relation to Cook’s distance for linear models)

Remark 6 (Relation to Cook’s distance for linear models). This diagnostic is the GLM analog of Cook’s distance for linear models, and shares its closed-form structure.

Example 30 (Diagnostics for the WCGS CHD model)

Example 30 (Diagnostics for the WCGS CHD model) Let’s take a look at the full set of autoplot() diagnostics now for our CHD model:

Show R code

chd_glm_contrasts_grouped |>
  autoplot(which = 1:6) |>
  print()

Things look pretty good here. The QQ plot is still usable: when the number of observations at each covariate pattern is large, the grouped residuals should be approximately Gaussian.

Example 31 (Diagnostics for the beetles model)

Example 31 (Diagnostics for the beetles model) Let’s look at the beetles model diagnostic plots for comparison:

Show R code

beetles_glm_grouped |>
  autoplot(which = 1:6) |>
  print()

Figure 21: Diagnostics for logistic model of `BeetleMortality` data

Hard to tell much from so little data, but there might be some issues here.

10 Alternatives to reporting odds ratios

10.1 Objections to odds ratios

Some scholars have raised objections to the use of odds ratios as an effect measurement [16], [17].

As we saw in the figure comparing risk differences, risk ratios, and odds ratios, the odds ratio is not very closely correlated with the risk difference, and the risk difference is typically the metric that ultimately matters for policy decisions.

Another objection is that odds ratios (and risk ratios, and risk differences) depend on the set of covariates in a logistic regression model, even when those covariates are independent of the exposure of interest and do not interact with that exposure. For example, consider the following model:

\[\mathbb{P}(Y=y|X=x,C=c) = {\color{red}{\pi(x,c)}}^y (1-{\color{red}{\pi(x,c)}})^{1-y}\]

\[{\color{red}{\pi(x,c)}} = {\operatorname{expit}\mathopen{}\left\{\eta_0 + \beta_Xx + \beta_Cc\right\}\mathclose{}} \tag{49}\]

Then:

\[ \begin{aligned} {\mathbb{E}\mathopen{}\left[Y|X=x\right]\mathclose{}} &= {\mathbb{E}\mathopen{}\left[{\mathbb{E}\mathopen{}\left[Y | X, C\right]\mathclose{}} | X=x\right]\mathclose{}} && \text{(law of total expectation)} \\ &= {\mathbb{E}\mathopen{}\left[{\color{red}{\pi(X,C)}} | X=x\right]\mathclose{}} && \text{(Bernoulli conditional mean: } {\mathbb{E}\mathopen{}\left[Y|X,C\right]\mathclose{}} = \pi(X,C) \text{)} \\ &= {\mathbb{E}\mathopen{}\left[{\operatorname{expit}\mathopen{}\left\{\eta_0 + \beta_X X + \beta_C C\right\}\mathclose{}} | X=x\right]\mathclose{}} && \text{(model definition of } \pi \text{)} \\ &= {\mathbb{E}\mathopen{}\left[{\operatorname{expit}\mathopen{}\left\{\eta_0 + \beta_X x + \beta_C C\right\}\mathclose{}} | X=x\right]\mathclose{}} && \text{(conditioning on } X = x \text{ fixes } X \text{ at } x \text{)} \\ &= \int_c{{\operatorname{expit}\mathopen{}\left\{\eta_0 + \beta_X x + \beta_C c\right\}\mathclose{}} ~\operatorname{p}(C=c|X=x)~ \partial c} && \text{(conditional expectation as an integral over } C \text{'s conditional distribution)} \\ &= \int_c{{\color{red}{\pi(x,c)}}~ \operatorname{p}(C=c|X=x)~ \partial c} && \text{(model definition of } \pi \text{, in reverse)} \end{aligned} \]

Since the ${\operatorname{expit}\mathopen{}\left\{\right\}\mathclose{}}$ function is nonlinear, we can’t change the order of the expectation and ${\operatorname{expit}\mathopen{}\left\{\right\}\mathclose{}}$ operators:

\[{\mathbb{E}\mathopen{}\left[{\operatorname{expit}\mathopen{}\left\{\eta_0 + \beta_XX + \beta_CC\right\}\mathclose{}} | X\right]\mathclose{}} \neq {\operatorname{expit}\mathopen{}\left\{{\mathbb{E}\mathopen{}\left[\eta_0 + \beta_XX + \beta_CC\right]\mathclose{}} | X\right\}\mathclose{}}\]

In contrast, consider a model with an identity link function:

\[\mathbb{P}(Y=y|X=x,C=c) = {\color{red}{\pi(x,c)}}^y (1-{\color{red}{\pi(x,c)}})^{1-y}\]

\[{\color{red}{\pi(x,c)}} = \eta_0 + \beta_Xx + \beta_Cc \tag{50}\]

Then:

\[ \begin{aligned} {\mathbb{E}\mathopen{}\left[Y|X=x\right]\mathclose{}} &= {\mathbb{E}\mathopen{}\left[{\mathbb{E}\mathopen{}\left[Y | X, C\right]\mathclose{}} | X=x\right]\mathclose{}} && \text{(law of total expectation)} \\ &= {\mathbb{E}\mathopen{}\left[{\color{red}{\pi(X,C)}} | X=x\right]\mathclose{}} && \text{(Bernoulli conditional mean: } {\mathbb{E}\mathopen{}\left[Y|X,C\right]\mathclose{}} = \pi(X,C) \text{)} \\ &= {\mathbb{E}\mathopen{}\left[\eta_0 + \beta_X X + \beta_C C | X=x\right]\mathclose{}} && \text{(identity-link model definition of } \pi \text{)} \\ &= {\mathbb{E}\mathopen{}\left[\eta_0 | X=x\right]\mathclose{}} + {\mathbb{E}\mathopen{}\left[\beta_X X | X=x\right]\mathclose{}} + {\mathbb{E}\mathopen{}\left[\beta_C C | X=x\right]\mathclose{}} && \text{(linearity of expectation)} \\ &= \eta_0 + {\mathbb{E}\mathopen{}\left[\beta_X X | X=x\right]\mathclose{}} + {\mathbb{E}\mathopen{}\left[\beta_C C | X=x\right]\mathclose{}} && \text{(expectation of a constant)} \\ &= \eta_0 + \beta_X {\mathbb{E}\mathopen{}\left[X | X=x\right]\mathclose{}} + \beta_C {\mathbb{E}\mathopen{}\left[C | X=x\right]\mathclose{}} && \text{(constant factors move outside expectations)} \\ &= \eta_0 + \beta_X x + \beta_C {\mathbb{E}\mathopen{}\left[C | X=x\right]\mathclose{}} && \text{(} {\mathbb{E}\mathopen{}\left[X | X=x\right]\mathclose{}} = x \text{)} \\ &= {\color{red}{(\eta_0 + \beta_C{\mathbb{E}\mathopen{}\left[C | X=x\right]\mathclose{}})}} + {\color{teal}{\beta_Xx}} && \text{(commute and regroup the terms)} \end{aligned} \]

If $C \perp\!\!\!\perp X$, then ${\mathbb{E}\mathopen{}\left[C|X=x\right]\mathclose{}} = {\mathbb{E}\mathopen{}\left[C\right]\mathclose{}}$, and we can simplify further:

\[ \begin{aligned} {\mathbb{E}\mathopen{}\left[Y|X=x\right]\mathclose{}} &= {\color{red}{(\eta_0 + \beta_C {\mathbb{E}\mathopen{}\left[C|X=x\right]\mathclose{}})}} + {\color{teal}{\beta_Xx}} && \text{(marginal mean under the identity link)} \\ &= {\color{red}{(\eta_0 + \beta_C {\mathbb{E}\mathopen{}\left[C\right]\mathclose{}})}} + {\color{teal}{\beta_Xx}} && \text{(} C \perp\!\!\!\perp X \text{, so } {\mathbb{E}\mathopen{}\left[C|X=x\right]\mathclose{}} = {\mathbb{E}\mathopen{}\left[C\right]\mathclose{}} \text{)} \\&= {\color{red}{\eta_0^*}} + {\color{teal}{\beta_Xx}} && \text{(definition: } \eta_0^* \stackrel{\text{def}}{=}\eta_0 + \beta_C {\mathbb{E}\mathopen{}\left[C\right]\mathclose{}} \text{)} \end{aligned} \]

Then:

\[ \begin{aligned} \frac{\partial}{\partial x} {\mathbb{E}\mathopen{}\left[Y|X=x\right]\mathclose{}} &= \frac{\partial}{\partial x} \mathopen{}\left({\color{red}{\eta_0^*}} + {\color{teal}{\beta_Xx}}\right)\mathclose{} && \text{(marginal mean when } C \perp\!\!\!\perp X \text{)} \\ &= \frac{\partial}{\partial x}\eta_0^* + \frac{\partial}{\partial x}\mathopen{}\left(\beta_X x\right)\mathclose{} && \text{(linearity of differentiation)} \\ &= 0 + \frac{\partial}{\partial x}\mathopen{}\left(\beta_X x\right)\mathclose{} && \text{(} \eta_0^* \text{ does not depend on } x \text{)} \\ &= 0 + \beta_X && \text{(derivative of a linear term)} \\ &= {\color{teal}{\beta_X}} && \text{(additive identity)} \end{aligned} \]

The conditional slope is the same:

\[ \begin{aligned} \frac{\partial}{\partial x} {\mathbb{E}\mathopen{}\left[Y|X=x,C=c\right]\mathclose{}} &= \frac{\partial}{\partial x} \mathopen{}\left(\eta_0 + \beta_Xx + \beta_Cc\right)\mathclose{} && \text{(identity-link model definition of } \pi \text{)} \\ &= 0 + \beta_X + 0 && \text{(term-by-term: only } \beta_X x \text{ depends on } x \text{)} \\ &= {\color{teal}{\beta_X}} && \text{(additive identity)} \end{aligned} \]

Therefore:

\[ \frac{\partial}{\partial x} {\mathbb{E}\mathopen{}\left[Y|X=x\right]\mathclose{}} = {\color{teal}{\beta_X}} = \frac{\partial}{\partial x} {\mathbb{E}\mathopen{}\left[Y|X=x,C=c\right]\mathclose{}} \]

In other words, for a model with an identity link function, if covariates $X$ and $C$ are independent, then the slope with respect to $X$ doesn’t depend on whether $C$ is included in the model (and an analogous result holds if $X$ is discrete or categorical).

Exercise 27

Exercise 27 What are the expressions for ${\mathbb{E}\mathopen{}\left[Y|X=x\right]\mathclose{}}$ and $\frac{\partial}{\partial x} {\mathbb{E}\mathopen{}\left[Y|X=x\right]\mathclose{}}$ for the identity-link model in Equation 50, if ${\mathbb{E}\mathopen{}\left[C|X=x\right]\mathclose{}} = \gamma_0 + \gamma_x x$?

Solution 27

Solution 27. \[ \begin{aligned} {\mathbb{E}\mathopen{}\left[Y|X=x\right]\mathclose{}} &= {\mathbb{E}\mathopen{}\left[\pi(x, C)|X=x\right]\mathclose{}} && \text{(law of total expectation, conditional on } X = x \text{)} \\ &= {\mathbb{E}\mathopen{}\left[\eta_0 + \beta_Xx + \beta_C C|X=x\right]\mathclose{}} && \text{(identity-link model)} \\ &= \eta_0 + \beta_Xx + \beta_C {\mathbb{E}\mathopen{}\left[C|X=x\right]\mathclose{}} && \text{(linearity of expectation)} \\ &= \eta_0 + \beta_Xx + \beta_C (\gamma_0 + \gamma_x x) && \text{(substitute } {\mathbb{E}\mathopen{}\left[C|X=x\right]\mathclose{}} = \gamma_0 + \gamma_x x \text{)} \\ &= \eta_0 + \beta_Xx + \beta_C \gamma_0 + \beta_C \gamma_x x && \text{(distribute)} \\ &= (\eta_0 + \beta_C \gamma_0) + (\beta_X + \beta_C \gamma_x) x && \text{(commute and regroup the terms)} \end{aligned} \]

\[ \begin{aligned} \frac{\partial}{\partial x}{\mathbb{E}\mathopen{}\left[Y|X=x\right]\mathclose{}} &= \frac{\partial}{\partial x}\mathopen{}\left\{(\eta_0 + \beta_C \gamma_0) + (\beta_X + \beta_C \gamma_x) x\right\}\mathclose{} && \text{(marginal mean from the derivation of } {\mathbb{E}\mathopen{}\left[Y|X=x\right]\mathclose{}} \text{)} \\ &= \frac{\partial}{\partial x}(\eta_0 + \beta_C \gamma_0) + \frac{\partial}{\partial x}\mathopen{}\left\{(\beta_X + \beta_C \gamma_x) x\right\}\mathclose{} && \text{(linearity of differentiation)} \\ &= \beta_X + \beta_C \gamma_x && \text{(constants have derivative 0; derivative of a linear term)} \end{aligned} \]

The marginal mean is still linear in $x$, but its slope $\beta_X + \beta_C \gamma_x$ differs from the conditional slope $\beta_X$ unless $\beta_C = 0$ or $\gamma_x = 0$.

Theorem 27 (Marginal mean under an identity link when the covariates are associated)

Theorem 27 (Marginal mean under an identity link when the covariates are associated) In the identity-link model of Equation 50, suppose ${\mathbb{E}\mathopen{}\left[C|X=x\right]\mathclose{}} = \gamma_0 + \gamma_x x$. Then:

\[{\mathbb{E}\mathopen{}\left[Y|X=x\right]\mathclose{}} = (\eta_0 + \beta_C \gamma_0) + (\beta_X + \beta_C \gamma_x) x\]

Proof

Proof. This proof is the solution to Exercise 27, worked in Solution 27.

Example 32 (A marginal mean under an identity link)

Example 32 (A marginal mean under an identity link) Suppose $\eta_0 = 0.1$, $\beta_X = 0.05$ and $\beta_C = 0.1$ in the identity-link model of Equation 50, and ${\mathbb{E}\mathopen{}\left[C|X=x\right]\mathclose{}} = 1 + 0.5 x$, so that $\gamma_0 = 1$ and $\gamma_x = 0.5$. The code below computes ${\mathbb{E}\mathopen{}\left[Y|X=2\right]\mathclose{}}$ by substituting ${\mathbb{E}\mathopen{}\left[C|X=2\right]\mathclose{}}$ into the model, and from the formula of Theorem 27:

Show R code

ex_eta0 <- 0.1
ex_bX <- 0.05
ex_bC <- 0.1
ex_g0 <- 1
ex_gx <- 0.5
ex_x <- 2
ex_direct <- ex_eta0 + ex_bX * ex_x + ex_bC * (ex_g0 + ex_gx * ex_x)
ex_formula <- (ex_eta0 + ex_bC * ex_g0) + (ex_bX + ex_bC * ex_gx) * ex_x

The direct calculation gives 0.4 and the formula gives 0.4, so the two agree.

Corollary 10 (Marginal slope under an identity link when the covariates are associated)

Corollary 10 (Marginal slope under an identity link when the covariates are associated) Under the assumptions of Theorem 27:

\[\frac{\partial}{\partial x}{\mathbb{E}\mathopen{}\left[Y|X=x\right]\mathclose{}} = \beta_X + \beta_C \gamma_x\]

Proof

Proof. This proof is the solution to Exercise 27, worked in Solution 27.

Example 33 (A marginal slope under an identity link)

Example 33 (A marginal slope under an identity link) Take the parameter values of Example 32. Because the marginal mean is linear in $x$, the change in ${\mathbb{E}\mathopen{}\left[Y|X=x\right]\mathclose{}}$ from $x = 2$ to $x = 3$ equals its slope. The code below computes that change, and the slope from Corollary 10:

Show R code

ex_marginal_mean <- function(x) {
  (0.1 + 0.1 * 1) + (0.05 + 0.1 * 0.5) * x
}
ex_change <- ex_marginal_mean(3) - ex_marginal_mean(2)
ex_slope <- 0.05 + 0.1 * 0.5

The change is 0.1 and the slope formula gives 0.1, so the two agree. The slope exceeds the conditional slope $\beta_X = 0.05$, because $\beta_C \gamma_x = 0.05$ is positive.

Exercise 28

Exercise 28 What are the expressions for ${\mathbb{E}\mathopen{}\left[Y|X=x\right]\mathclose{}}$ and $\frac{\partial}{\partial x} {\mathbb{E}\mathopen{}\left[Y|X=x\right]\mathclose{}}$, if instead of the identity-link model in Equation 50, \[\pi(x,c) = \eta_0 + \beta_Xx + \beta_Cc +\beta_{XC}xc\] and ${\mathbb{E}\mathopen{}\left[C|X=x\right]\mathclose{}} = \gamma_0 + \gamma_x x$?

Solution 28

Solution 28. \[ \begin{aligned} {\mathbb{E}\mathopen{}\left[Y|X=x\right]\mathclose{}} &= {\mathbb{E}\mathopen{}\left[\pi(x, C)|X=x\right]\mathclose{}} && \text{(law of total expectation, conditional on } X = x \text{)} \\ &= {\mathbb{E}\mathopen{}\left[\eta_0 + \beta_Xx + \beta_C C + \beta_{XC}xC|X=x\right]\mathclose{}} && \text{(interaction model)} \\ &= \eta_0 + \beta_Xx + \beta_C {\mathbb{E}\mathopen{}\left[C|X=x\right]\mathclose{}} + \beta_{XC}x {\mathbb{E}\mathopen{}\left[C|X=x\right]\mathclose{}} && \text{(linearity of expectation)} \\ &= \eta_0 + \beta_Xx + (\beta_C + \beta_{XC}x){\mathbb{E}\mathopen{}\left[C|X=x\right]\mathclose{}} && \text{(factor out } {\mathbb{E}\mathopen{}\left[C|X=x\right]\mathclose{}} \text{)} \\ &= \eta_0 + \beta_Xx + (\beta_C + \beta_{XC}x)(\gamma_0 + \gamma_x x) && \text{(substitute } {\mathbb{E}\mathopen{}\left[C|X=x\right]\mathclose{}} = \gamma_0 + \gamma_x x \text{)} \\ &= \eta_0 + \beta_Xx + \beta_C\gamma_0 + \beta_C\gamma_x x + \beta_{XC}\gamma_0 x + \beta_{XC}\gamma_x x^2 && \text{(distribute)} \\ &= (\eta_0 + \beta_C\gamma_0) + (\beta_X + \beta_C\gamma_x + \beta_{XC}\gamma_0) x + \beta_{XC}\gamma_x x^2 && \text{(commute and regroup the terms)} \end{aligned} \]

\[ \begin{aligned} \frac{\partial}{\partial x}{\mathbb{E}\mathopen{}\left[Y|X=x\right]\mathclose{}} &= \frac{\partial}{\partial x}\mathopen{}\left\{(\eta_0 + \beta_C\gamma_0) + (\beta_X + \beta_C\gamma_x + \beta_{XC}\gamma_0) x + \beta_{XC}\gamma_x x^2\right\}\mathclose{} && \text{(marginal mean from the derivation of } {\mathbb{E}\mathopen{}\left[Y|X=x\right]\mathclose{}} \text{)} \\ &= \frac{\partial}{\partial x}(\eta_0 + \beta_C\gamma_0) + \frac{\partial}{\partial x}\mathopen{}\left\{(\beta_X + \beta_C\gamma_x + \beta_{XC}\gamma_0) x\right\}\mathclose{} + \frac{\partial}{\partial x}\mathopen{}\left(\beta_{XC}\gamma_x x^2\right)\mathclose{} && \text{(linearity of differentiation)} \\ &= (\beta_X + \beta_C\gamma_x + \beta_{XC}\gamma_0) + 2\beta_{XC}\gamma_x x && \text{(constants have derivative 0; derivative of a linear term; power rule)} \end{aligned} \]

So, answering the hint: yes — adding the interaction term changes the functional form of ${\mathbb{E}\mathopen{}\left[Y|X=x\right]\mathclose{}}$. The marginal mean is now quadratic in $x$ (whenever $\beta_{XC} \neq 0$ and $\gamma_x \neq 0$), even though the conditional model is linear in $x$ for each fixed $c$, and the marginal slope now varies with $x$.

Theorem 28 (Marginal mean under an identity link with an interaction)

Theorem 28 (Marginal mean under an identity link with an interaction) Suppose $\pi(x,c) = \eta_0 + \beta_Xx + \beta_Cc +\beta_{XC}xc$ and ${\mathbb{E}\mathopen{}\left[C|X=x\right]\mathclose{}} = \gamma_0 + \gamma_x x$. Then:

\[ {\mathbb{E}\mathopen{}\left[Y|X=x\right]\mathclose{}} = (\eta_0 + \beta_C\gamma_0) + (\beta_X + \beta_C\gamma_x + \beta_{XC}\gamma_0) x + \beta_{XC}\gamma_x x^2 \]

Proof

Proof. This proof is the solution to Exercise 28, worked in Solution 28.

Example 34 (A marginal mean under an identity link with an interaction)

Example 34 (A marginal mean under an identity link with an interaction) Suppose $\eta_0 = 0.1$, $\beta_X = 0.05$, $\beta_C = 0.1$ and $\beta_{XC} = 0.02$, and ${\mathbb{E}\mathopen{}\left[C|X=x\right]\mathclose{}} = 1 + 0.5 x$, so that $\gamma_0 = 1$ and $\gamma_x = 0.5$. The code below computes ${\mathbb{E}\mathopen{}\left[Y|X=2\right]\mathclose{}}$ by substituting ${\mathbb{E}\mathopen{}\left[C|X=2\right]\mathclose{}}$ into the model, and from the formula of Theorem 28:

Show R code

ex_eta0 <- 0.1
ex_bX <- 0.05
ex_bC <- 0.1
ex_bXC <- 0.02
ex_g0 <- 1
ex_gx <- 0.5
ex_x <- 2
ex_ec <- ex_g0 + ex_gx * ex_x
ex_direct <- ex_eta0 + ex_bX * ex_x + ex_bC * ex_ec + ex_bXC * ex_x * ex_ec
ex_formula <- (ex_eta0 + ex_bC * ex_g0) +
  (ex_bX + ex_bC * ex_gx + ex_bXC * ex_g0) * ex_x +
  ex_bXC * ex_gx * ex_x^2

The direct calculation gives 0.48 and the formula gives 0.48, so the two agree.

Corollary 11 (Marginal slope under an identity link with an interaction)

Corollary 11 (Marginal slope under an identity link with an interaction) Under the assumptions of Theorem 28:

\[ \frac{\partial}{\partial x}{\mathbb{E}\mathopen{}\left[Y|X=x\right]\mathclose{}} = (\beta_X + \beta_C\gamma_x + \beta_{XC}\gamma_0) + 2\beta_{XC}\gamma_x x \]

Proof

Proof. This proof is the solution to Exercise 28, worked in Solution 28.

Example 35 (A marginal slope under an identity link with an interaction)

Example 35 (A marginal slope under an identity link with an interaction) Take the parameter values of Example 34. Because the marginal mean is now quadratic in $x$, its slope varies with $x$. The code below approximates the slope at $x = 2$ and $x = 4$ with a central difference, and compares it with the formula of Corollary 11:

Show R code

ex_marginal_mean <- function(x) {
  (0.1 + 0.1 * 1) + (0.05 + 0.1 * 0.5 + 0.02 * 1) * x + 0.02 * 0.5 * x^2
}
ex_h <- 1e-4
ex_slope_numeric <- sapply(
  c(2, 4),
  function(x) (ex_marginal_mean(x + ex_h) - ex_marginal_mean(x - ex_h)) / (2 * ex_h)
)
ex_slope_formula <- (0.05 + 0.1 * 0.5 + 0.02 * 1) + 2 * 0.02 * 0.5 * c(2, 4)

At $x = 2$ and $x = 4$, the central differences are 0.16, 0.2 and the formula gives 0.16, 0.2, so the two agree, and the slope increases with $x$.

10.2 Deriving risk ratios and risk differences from logistic regression models

If you want to report risk differences or risk ratios instead of odds ratios, you can obtain estimates from logistic regression models, as long as you didn’t stratify sampling by the outcome; in other words, not in case-control studies (see Odds Ratios in Case-Control Studies).

10.2.1 Computing marginal risk differences

Note

This section is optional for 2026 and will not be tested on exams.

Conceptual approach

To compute risk ratios or risk differences from logistic regression models:

Apply the expit function (definition) to the linear predictor for each covariate pattern to compute the (estimated) risks,
Then take the differences or ratios of the risks, as needed.

For example, suppose we have a logistic regression model with a binary exposure $A$ and a covariate $Z$:

\[ {\operatorname{logit}\mathopen{}\left\{\Pr(Y = 1 | A, Z)\right\}\mathclose{}} = \beta_0 + \beta_A A + \beta_Z Z \tag{51}\]

Definition 15 (Conditional predicted risk (conditional risk))

Definition 15 (Conditional predicted risk (conditional risk)) The conditional predicted risk (or conditional risk) for an individual with exposure $A = a$ and covariate $Z = z$ is the population probability

\[ \pi(a, z) \stackrel{\text{def}}{=}\Pr(Y = 1 \mid A = a, Z = z). \]

Under the logistic model in Equation 51, this population risk equals

\[ \pi(a, z) = {\operatorname{expit}\mathopen{}\left\{\beta_0 + \beta_A a + \beta_Z z\right\}\mathclose{}}. \]

Definition 16 (Conditional risk difference)

Definition 16 (Conditional risk difference) The conditional risk difference comparing exposure levels $a = 1$ vs. $a = 0$ at a fixed covariate value $z$ is, using the conditional predicted risk (Definition 15):

\[ \text{RD}(z) \stackrel{\text{def}}{=}\pi(1, z) - \pi(0, z) \]

Definition 17 (Conditional risk ratio)

Definition 17 (Conditional risk ratio) The conditional risk ratio comparing exposure levels $a = 1$ vs. $a = 0$ at a fixed covariate value $z$ is, using the conditional predicted risk (Definition 15):

\[ \text{RR}(z) \stackrel{\text{def}}{=}\frac{\pi(1, z)}{\pi(0, z)} \]

Example 36 (Numerical example: conditional RD and RR at a fixed covariate value)

Example 36 (Numerical example: conditional RD and RR at a fixed covariate value) Using the WCGS data with dibpat (behavior pattern) as the exposure and chd69 (coronary heart disease by 1969) as the outcome, adjusted for age:

Show R code

library(dplyr)
library(haven)

wcgs_clean <- rmb::wcgs |>
  mutate(
    across(where(is.labelled), haven::as_factor),
    dibpat = dibpat |> relevel(ref = "Type B"),
    chd69_binary = as.numeric(chd69 == "Yes")
  ) |>
  filter(!is.na(chd69_binary), !is.na(dibpat), !is.na(age))

fit <- glm(
  chd69_binary ~ dibpat + age,
  data = wcgs_clean,
  family = binomial(link = "logit")
)

At age $z = 50$ (within the WCGS sample’s observed age range):

Show R code

z <- 50
dibpat_levels <- levels(wcgs_clean$dibpat)
wcgs_cf_a <- data.frame(dibpat = factor("Type A", levels = dibpat_levels), age = z)
wcgs_cf_b <- data.frame(dibpat = factor("Type B", levels = dibpat_levels), age = z)

pi_hat_1 <- predict(fit, newdata = wcgs_cf_a, type = "response")
pi_hat_0 <- predict(fit, newdata = wcgs_cf_b, type = "response")

rd_hat_z <- pi_hat_1 - pi_hat_0
rr_hat_z <- pi_hat_1 / pi_hat_0

tibble::tibble(
  quantity = c(
    "$\\hat\\pi(1, 50)$", "$\\hat\\pi(0, 50)$",
    "$\\widehat{\\text{RD}}(50)$", "$\\widehat{\\text{RR}}(50)$"
  ),
  value = c(pi_hat_1, pi_hat_0, rd_hat_z, rr_hat_z)
) |>
  knitr::kable(digits = 3)

quantity	value
$\hat\pi(1, 50)$	0.129
$\hat\pi(0, 50)$	0.063
$\widehat{\text{RD}}(50)$	0.067
$\widehat{\text{RR}}(50)$	2.066

These values are conditional estimates: both hold age fixed at 50 and compare only the two exposure levels at that one age.

Marginal vs. conditional effects

Note that these risk differences and risk ratios are conditional on the covariate value $z$. In many applications, we want to summarize the effect across the population, which requires computing a marginal risk difference or risk ratio.

Definition 18 (Observed marginal risk)

Definition 18 (Observed marginal risk) The observed marginal risk under exposure level $A = a$ is:

\[\pi(a) \stackrel{\text{def}}{=}\Pr(Y = 1 \mid A = a)\]

Example 37 (Illustration: observed marginal risk)

Example 37 (Illustration: observed marginal risk) Continuing the WCGS example (Example 36):

Show R code

pi1_direct <- mean(wcgs_clean$chd69_binary[wcgs_clean$dibpat == "Type A"])

The observed marginal risk among the Type A men ($A = 1$) is $\pi(1) = \Pr(Y = 1 \mid A = 1)$. The proportion of the Type A men who developed CHD by 1969 estimates it:

\[ \hat{\pi}(1) = 0.112 \]

Definition 18 collapses the outcome over everything else in one step. When the model also conditions on covariates $Z$, we can unpack $\pi(a)$ as the covariate-specific risk $\pi(a, z)$ averaged over the distribution of $Z$ among those with $A = a$:

Theorem 29 (Marginal risk as a conditional expectation)

Theorem 29 (Marginal risk as a conditional expectation) \[\pi(a) = {\mathbb{E}\mathopen{}\left[{\color{teal}{\pi(a, Z)}} \mid {\color{red}{A = a}}\right]\mathclose{}}\]

where ${\color{teal}{\pi(a, z)}}$ is the conditional predicted risk (Definition 15).

Proof

Proof. \[ \begin{aligned} \pi(a) &= \Pr(Y = 1 \mid A = a) && \text{[definition of observed marginal risk]} \\ &= \int \Pr(Y = 1 \mid Z=z, A = a)\, {\color{red}{f_{Z \mid A}(z \mid a)}}\, dz && \text{[law of total probability]} \\ &= \int {\color{teal}{\pi(a, z)}}\, {\color{red}{f_{Z \mid A}(z \mid a)}}\, dz && \text{[definition of conditional risk]} \\ &= {\mathbb{E}\mathopen{}\left[{\color{teal}{\pi(a, Z)}} \mid {\color{red}{A = a}}\right]\mathclose{}} && \text{[definition of conditional expectation]} \end{aligned} \]

Example 38 (Observed marginal risk by standardization)

Example 38 (Observed marginal risk by standardization) Take $Z$ to be an indicator for age 50 or older. Among the WCGS men with $A = 1$ (Type A):

Show R code

wcgs_clean$age_ge50 <- as.numeric(wcgs_clean$age >= 50)
wcgs_exposed <- wcgs_clean[wcgs_clean$dibpat == "Type A", ]
pi1_z0 <- mean(wcgs_exposed$chd69_binary[wcgs_exposed$age_ge50 == 0])
pi1_z1 <- mean(wcgs_exposed$chd69_binary[wcgs_exposed$age_ge50 == 1])
p_z1_a1 <- mean(wcgs_exposed$age_ge50)

the age-specific risks are $\pi(1, 0) = 0.089$ (under 50) and $\pi(1, 1) = 0.159$ (50 or older), and $\Pr(Z = 1 \mid A = 1) = 0.329$ of the Type A men are 50 or older. Then Theorem 29 gives:

\[ \begin{aligned} \pi(1) &= {\mathbb{E}\mathopen{}\left[\pi(1, Z) \mid A = 1\right]\mathclose{}} && \text{[observed marginal risk theorem]} \\ &= (1 - 0.329)(0.089) + (0.329)(0.159) && \text{[substitute stratum risks and weights]} \\ &= 0.112 && \text{[arithmetic]} \end{aligned} \]

matching the direct estimate $\hat{\pi}(1) = 0.112$ from Example 37 (up to rounding).

Note

The rest of this section previews causal-inference concepts — potential outcomes, consistency, exchangeability, and positivity — that are formally defined and developed fully in the causal inference chapter.

In causal inference, potential outcomes $Y^a$ represent the outcome each unit would have under exposure level $a$. Population-level causal estimands summarize these potential outcomes:

Definition 19 (Potential mean (mean potential outcome))

Definition 19 (Potential mean (mean potential outcome)) The potential mean (or mean potential outcome) under treatment $A = a$ is the expected value of the potential outcome $Y^a$:

\[\mu_a \stackrel{\text{def}}{=}{\mathbb{E}\mathopen{}\left[Y^a\right]\mathclose{}}\]

Remark 7 (Interpretation of the potential mean)

Remark 7 (Interpretation of the potential mean). The potential mean is what the average outcome would be if the entire population were assigned treatment $a$.

Example 39 (Illustration: potential mean)

Example 39 (Illustration: potential mean) Suppose, hypothetically, that if every man in the WCGS cohort had exhibited Type A behavior pattern ($a = 1$), the fraction who would go on to develop CHD by 1969 were close to the fraction actually observed among the men who really did have that behavior pattern, $\hat{\pi}(1) = 0.112$ (Example 37). Under that supposition, the potential mean is $\mu_1 = {\mathbb{E}\mathopen{}\left[Y^1\right]\mathclose{}} = 0.112$.

For a binary outcome, the potential mean is a probability, which we give its own name:

Definition 20 (Causal marginal risk (potential probability, potential marginal risk))

Definition 20 (Causal marginal risk (potential probability, potential marginal risk)) For a binary outcome $Y \in \{0, 1\}$, the potential mean (Definition 19) is a probability, which we call the causal marginal risk (also: potential probability, potential marginal risk) under exposure level $a$:

\[\pi_a \stackrel{\text{def}}{=}\Pr(Y^a = 1)\]

We use the term causal marginal risk throughout.

Example 40 (Illustration: causal marginal risk)

Example 40 (Illustration: causal marginal risk) Continuing Example 39, under that same supposition the causal marginal risk is $\pi_1 = \Pr(Y^1 = 1) = 0.112$ — the fraction who would develop CHD if every man in the cohort had Type A behavior pattern.

Theorem 30 (Causal marginal risk equals potential mean)

Theorem 30 (Causal marginal risk equals potential mean) The matching values in Example 39 and Example 40 are no coincidence: the causal marginal risk (Definition 20) is a special case of the potential mean (Definition 19):

\[\pi_a = {\mathbb{E}\mathopen{}\left[Y^a\right]\mathclose{}}\]

Proof

Proof. Since $Y^a$ is binary ($Y^a \in \{0, 1\}$):

\[ \begin{aligned} {\mathbb{E}\mathopen{}\left[Y^a\right]\mathclose{}} &= 1 \cdot \Pr(Y^a = 1) + 0 \cdot \Pr(Y^a = 0) && \text{[expectation of a binary variable]} \\ &= \Pr(Y^a = 1) && \text{[arithmetic]} \\ &= \pi_a && \text{[definition of causal marginal risk]} \end{aligned} \]

Example 41 (Illustration: causal marginal risk equals potential mean)

Example 41 (Illustration: causal marginal risk equals potential mean) With $\pi_1 = 0.112$ as in Example 40, reading the potential mean as an expectation gives the same value:

\[ {\mathbb{E}\mathopen{}\left[Y^1\right]\mathclose{}} = 1 \cdot 0.112 + 0 \cdot 0.888 = 0.112 = \pi_1. \]

Under causal identification assumptions (see Consistency, Conditional Exchangeability, and Positivity), the causal marginal risk $\pi_a$ (Definition 20) can be expressed in terms of observed data:

Theorem 31 (Causal marginal risk under identification assumptions)

Theorem 31 (Causal marginal risk under identification assumptions) Under Consistency, Conditional Exchangeability, and Positivity:

\[\pi_a = {\mathbb{E}\mathopen{}\left[{\color{teal}{\pi(a, Z)}}\right]\mathclose{}}\]

where the expectation is over the marginal distribution of $Z$ (not the conditional distribution $f_{Z \mid A}(z \mid a)$).

Proof

Proof. \[ \begin{aligned} \pi_a &= \Pr(Y^a = 1) && \text{[definition of causal marginal risk]} \\ &= \int \Pr(Y^a = 1 \mid Z=z)\, {\color{red}{f_Z(z)}}\, dz && \text{[law of total probability]} \\ &= \int \Pr(Y^a = 1 \mid A=a, Z=z)\, {\color{red}{f_Z(z)}}\, dz && \text{[by conditional exchangeability]} \\ &= \int \Pr(Y=1 \mid A=a, Z=z)\, {\color{red}{f_Z(z)}}\, dz && \text{[by consistency]} \\ &= \int {\color{teal}{\pi(a, z)}}\, {\color{red}{f_Z(z)}}\, dz && \text{[definition of conditional risk]} \\ &= {\mathbb{E}\mathopen{}\left[{\color{teal}{\pi(a, Z)}}\right]\mathclose{}} && \text{[definition of expectation]} \end{aligned} \]

Conditional exchangeability licenses adding the conditioning on $A = a$; positivity ($\Pr(A = a \mid Z = z) > 0$ wherever $f_Z(z) > 0$) guarantees that conditional risk is defined in every stratum; and consistency replaces the potential outcome $Y^a$ with the observed $Y$.

Example 42 (Causal marginal risk by standardization)

Example 42 (Causal marginal risk by standardization) Continuing Example 38 with the same age-specific risks $\pi(1, 0) = 0.089$ and $\pi(1, 1) = 0.159$, now weight by the age distribution of the whole WCGS population rather than just the Type A men:

Show R code

p_z1_pop <- mean(wcgs_clean$age_ge50)

$\Pr(Z = 1) = 0.287$ of the whole population is 50 or older — a smaller share than among the Type A men ($\Pr(Z = 1 \mid A = 1) = 0.329$), since behavior pattern and age are associated in this cohort. Then Theorem 31 gives:

\[ \begin{aligned} \pi_1 &= {\mathbb{E}\mathopen{}\left[\pi(1, Z)\right]\mathclose{}} && \text{[causal marginal risk theorem]} \\ &= (1 - 0.287)(0.089) + (0.287)(0.159) && \text{[substitute stratum risks and weights]} \\ &= 0.109 && \text{[arithmetic]} \end{aligned} \]

This causal marginal risk differs (slightly) from the observed marginal risk $\hat{\pi}(1) = 0.112$ because the Type A men skew somewhat older than the WCGS population as a whole.

We can now place the observed and causal marginal risks side by side:

Remark 8 (Observed vs. causal marginal risk)

Remark 8 (Observed vs. causal marginal risk). The two risks differ in what they define — one conditions on the observed exposure $A = a$, the other on a potential outcome $Y^a$ — and, once unpacked through ${\color{teal}{\pi(a, z)}} = \Pr(Y = 1 \mid A = a, Z = z)$, in the distribution of $Z$ they average over:

\[ \begin{aligned} \text{observed: } \quad \pi(a) &= \Pr(Y=1 \mid {\color{red}{A=a}}) &&= {\mathbb{E}\mathopen{}\left[{\color{teal}{\pi(a, Z)}} \mid {\color{red}{A = a}}\right]\mathclose{}} &&= \int {\color{teal}{\pi(a, z)}}\, {\color{red}{f_{Z \mid A}(z \mid a)}}\, dz \\ \text{causal: } \quad \pi_a &= \Pr({\color{red}{Y^a}}=1) &&= {\mathbb{E}\mathopen{}\left[{\color{teal}{\pi(a, Z)}}\right]\mathclose{}} &&= \int {\color{teal}{\pi(a, z)}}\, {\color{red}{f_{Z}(z)}}\, dz \end{aligned} \]

The observed marginal risk $\pi(a)$ (Theorem 29) weights ${\color{teal}{\pi(a, z)}}$ by the covariate distribution ${\color{red}{f_{Z \mid A}(z \mid a)}}$ among those actually exposed to $A = a$, so it inherits any association between $A$ and $Z$ (that is, any confounding).

The causal marginal risk $\pi_a$ (Theorem 31) weights ${\color{teal}{\pi(a, z)}}$ by the whole population’s covariate distribution ${\color{red}{f_{Z}(z)}}$, which is the same for every exposure level $a$; that common weighting is what makes the causal contrast $\pi_1 - \pi_0$ an apples-to-apples comparison.

When $A$ and $Z$ are associated, the two risks diverge; they coincide in the absence of such association.

Corollary 12 (Observed and causal marginal risks coincide without confounding)

Corollary 12 (Observed and causal marginal risks coincide without confounding) Assume Consistency, Conditional Exchangeability, Positivity, and $Z \perp\!\!\!\perp A$. Then the observed and causal marginal risks are equal:

\[\pi(a) = \pi_a\]

Proof

Proof. When $Z \perp\!\!\!\perp A$ the conditional and marginal distributions of $Z$ coincide, ${\color{red}{f_{Z \mid A}(z \mid a)}} = {\color{red}{f_Z(z)}}$, so Theorem 29 and Theorem 31 give:

\[ \begin{aligned} \pi(a) &= {\mathbb{E}\mathopen{}\left[{\color{teal}{\pi(a, Z)}} \mid A = a\right]\mathclose{}} && \text{[observed marginal risk theorem]} \\ &= {\mathbb{E}\mathopen{}\left[{\color{teal}{\pi(a, Z)}}\right]\mathclose{}} && \text{[no confounding]} \\ &= \pi_a && \text{[causal marginal risk theorem]} \end{aligned} \]

Under complete randomization of $A$, the design delivers $Z \perp\!\!\!\perp A$ together with the other two identification assumptions as parallel consequences — conditional exchangeability (randomized $A$ is independent of the potential outcomes, hence also independent given $Z$) and positivity (every level has positive probability in each stratum) — so consistency and randomization alone suffice [18, Ch. 2–3]. (Marginal independence $Z \perp\!\!\!\perp A$ on its own does not imply exchangeability; randomization is the stronger design assumption that yields all three.)

Example 43 (Illustration: coincidence under randomization)

Example 43 (Illustration: coincidence under randomization) Take the same age-specific risks $\pi(1, 0) = 0.089$ and $\pi(1, 1) = 0.159$ of Example 38, but now suppose $A$ had been randomized, so the exposed would carry the population’s age distribution instead of the actual, older-skewing one: $\Pr(Z = 1 \mid A = 1) = \Pr(Z = 1) = 0.287$. Then the observed marginal risk would be

\[ \begin{aligned} \pi(1) &= {\mathbb{E}\mathopen{}\left[\pi(1, Z) \mid A = 1\right]\mathclose{}} && \text{[observed marginal risk theorem]} \\ &= (1 - 0.287)(0.089) + (0.287)(0.159) && \text{[substitute randomized weights]} \\ &= 0.109 && \text{[arithmetic]} \end{aligned} \]

equal to the causal marginal risk $\pi_1 = 0.109$ of Example 42, exactly as Corollary 12 predicts.

Two related procedures estimate these marginal risks from a fitted regression model:

Definition 21 (G-computation (g-formula, standardization))

Definition 21 (G-computation (g-formula, standardization)) G-computation (also called the g-formula or standardization) is a procedure for estimating the causal marginal risk $\pi_a$ (Definition 20) from observed data [19], see also [18, Ch. 13]:

Fit a regression model for $\hat\pi(a, z) = \widehat{\Pr}(Y = 1 \mid A = a, Z = z)$
For each observation $i$, predict the risk under exposure level $a$, writing $\hat\pi_{a,i} \stackrel{\text{def}}{=}\hat\pi(a, z_i)$ for short
Average these predicted risks over the observed covariate distribution:

\[\hat\pi_a \stackrel{\text{def}}{=}\frac{1}{n}\sum_{i=1}^n\hat\pi_{a,i}\]

The following example carries out this procedure on the WCGS data.

Example 44 (Estimated causal marginal risks (WCGS))

Example 44 (Estimated causal marginal risks (WCGS)) Continuing with the same WCGS data and fitted model (wcgs_clean and fit) introduced in Example 36 — dibpat (behavior pattern) as the exposure and chd69 (coronary heart disease by 1969) as the outcome, adjusted for age:

The causal marginal risks $\hat\pi_a = \frac{1}{n}\sum_{i=1}^n\hat\pi_{a,i}$ standardize the fitted risks $\hat\pi_{a,i} = \hat\pi(a, z_i)$ over the full covariate distribution (Definition 21):

Show R code

dibpat_levels <- levels(wcgs_clean$dibpat)
wcgs_counterfactual_a <- wcgs_clean |>
  mutate(
    dibpat = factor("Type A", levels = dibpat_levels)
  )
wcgs_counterfactual_b <- wcgs_clean |>
  mutate(
    dibpat = factor("Type B", levels = dibpat_levels)
  )

pi1_hat <- mean(
  predict(fit, newdata = wcgs_counterfactual_a, type = "response")
)
pi0_hat <- mean(
  predict(fit, newdata = wcgs_counterfactual_b, type = "response")
)

\[ \hat\pi_1 = 0.109, \quad \hat\pi_0 = 0.052 \]

Under the identification assumptions of Theorem 31, this procedure consistently estimates the causal marginal risk:

Theorem 32 (Consistency of g-computation)

Theorem 32 (Consistency of g-computation) Suppose:

the data $(Y_i, A_i, Z_i)$, $i = 1, \dots, n$, are i.i.d. draws from the population;
the outcome regression is correctly specified, so the fitted coefficients are consistent, $\hat\beta \overset{p}{\to} \beta^*$ (standard MLE consistency for a correctly specified GLM; see Agresti [20], Chapter 4);
the identification assumptions of Theorem 31 hold;
the predictor vectors are uniformly bounded, $\|x_{a,i}\| \le B < \infty$ (as holds when covariates are bounded).

Then the g-computation estimator (Definition 21) is consistent for the causal marginal risk $\pi_a$ (Definition 20):

\[\hat\pi_a \overset{p}{\to} \pi_a\]

Proof

Proof. Split the estimator into the average of the true conditional risks plus an estimation-error term:

\[ \begin{aligned} \hat\pi_a &= \frac{1}{n}\sum_{i=1}^n\hat\pi(a, z_i) && \text{[definition of the estimator]} \\ &= \frac{1}{n}\sum_{i=1}^n{\color{teal}{\pi(a, z_i)}} + \frac{1}{n}\sum_{i=1}^n\mathopen{}\left(\hat\pi(a, z_i) - {\color{teal}{\pi(a, z_i)}}\right)\mathclose{} && \text{[add and subtract the true risks]} \end{aligned} \]

The estimation-error term converges to zero in probability. By assumption, the fitted coefficients are consistent, $\hat\beta \overset{p}{\to} \beta^*$. Express the fitted and true risks as the logistic link of the linear predictor, $\hat\pi(a, z_i) \stackrel{\text{def}}{=}{\operatorname{expit}\mathopen{}\left\{x_{a,i}'\hat\beta\right\}\mathclose{}}$ and ${\color{teal}{\pi(a, z_i)}} \stackrel{\text{def}}{=}{\operatorname{expit}\mathopen{}\left\{x_{a,i}'\beta^*\right\}\mathclose{}}$, and recall that $\operatorname{expit}$ is Lipschitz with constant $\tfrac{1}{4}$ (its derivative ${\operatorname{expit}\mathopen{}\left\{u\right\}\mathclose{}}\,(1 - {\operatorname{expit}\mathopen{}\left\{u\right\}\mathclose{}})$ is at most $\tfrac{1}{4}$). Then

\[ \begin{aligned} \mathopen{}\left|\hat\pi(a, z_i) - {\color{teal}{\pi(a, z_i)}}\right|\mathclose{} &= \mathopen{}\left|{\operatorname{expit}\mathopen{}\left\{x_{a,i}'\hat\beta\right\}\mathclose{}} - {\operatorname{expit}\mathopen{}\left\{x_{a,i}'\beta^*\right\}\mathclose{}}\right|\mathclose{} && \text{[risk as logistic link of the linear predictor]} \\ &\le \tfrac{1}{4}\mathopen{}\left|x_{a,i}'\hat\beta - x_{a,i}'\beta^*\right|\mathclose{} && \text{[$\operatorname{expit}$ is $\tfrac{1}{4}$-Lipschitz, by the mean value theorem]} \\ &= \tfrac{1}{4}\mathopen{}\left|x_{a,i}'(\hat\beta - \beta^*)\right|\mathclose{} && \text{[factor out $x_{a,i}'$]} \\ &\le \tfrac{1}{4}\,\|x_{a,i}\|\,\|\hat\beta - \beta^*\| && \text{[Cauchy-Schwarz]} \\ &\le \tfrac{B}{4}\,\|\hat\beta - \beta^*\| && \text{[boundedness condition $\|x_{a,i}\| \le B$]} \end{aligned} \]

uniformly in $i$, giving

\[ \frac{1}{n}\sum_{i=1}^n\mathopen{}\left|\hat\pi(a, z_i) - {\color{teal}{\pi(a, z_i)}}\right|\mathclose{} \le \tfrac{B}{4}\,\|\hat\beta - \beta^*\| \overset{p}{\to} 0 \]

(a uniform bound that pointwise convergence of the individual terms, correlated through the shared $\hat\beta$, would not provide on its own). The remaining term averages the true risks over an i.i.d. sample $z_1, \dots, z_n$ from the marginal distribution $f_Z$, so the weak law of large numbers gives

\[ \frac{1}{n}\sum_{i=1}^n{\color{teal}{\pi(a, z_i)}} \overset{p}{\to} {\mathbb{E}\mathopen{}\left[{\color{teal}{\pi(a, Z)}}\right]\mathclose{}}. \qquad \text{[weak law of large numbers]} \]

Finally, Theorem 31 identifies this expectation with the causal marginal risk:

\[ {\mathbb{E}\mathopen{}\left[{\color{teal}{\pi(a, Z)}}\right]\mathclose{}} = \pi_a. \qquad \text{[causal marginal risk identification]} \]

Combining the three steps:

\[ \begin{aligned} \hat\pi_a &= \frac{1}{n}\sum_{i=1}^n{\color{teal}{\pi(a, z_i)}} + \frac{1}{n}\sum_{i=1}^n\mathopen{}\left(\hat\pi(a, z_i) - {\color{teal}{\pi(a, z_i)}}\right)\mathclose{} && \text{[add-and-subtract decomposition]} \\ &\overset{p}{\to} {\mathbb{E}\mathopen{}\left[{\color{teal}{\pi(a, Z)}}\right]\mathclose{}} + 0 && \text{[Slutsky's theorem]} \\ &= {\mathbb{E}\mathopen{}\left[{\color{teal}{\pi(a, Z)}}\right]\mathclose{}} && \text{[additive identity]} \\ &= \pi_a. && \text{[causal marginal risk identification]} \end{aligned} \]

The WCGS estimate $\hat\pi_1$ computed in Example 44 is a realization of the estimator that Theorem 32 covers: as the sample grows, that estimate is guaranteed to converge to the causal marginal risk $\pi_1$.

Definition 22 (Predictive margins)

Definition 22 (Predictive margins) A predictive margin is the fitted risk $\hat\pi(a, z)$ averaged over a chosen set of observations $S$ the term is due to [21], [22] develop the underlying standardization-as-prediction framework:

\[ \widehat{\text{PM}}(a \mid S) \stackrel{\text{def}}{=}\frac{1}{|S|} \sum_{i \in S} \hat\pi_{a,i} \]

using the shorthand $\hat\pi_{a,i} = \hat\pi(a, z_i)$ from Definition 21, where $|S|$ is the number of observations in $S$. The choice of the averaging set $S$ determines which estimand the margin targets; the two standard choices each have their own name.

Remark 9 (Where the term “predictive margins” is used)

Remark 9 (Where the term “predictive margins” is used). The term “predictive margins” is commonly used in social science and in Stata’s margins command.

Definition 23 (Full-sample predictive margin)

Definition 23 (Full-sample predictive margin) The full-sample predictive margin averages the fitted risks over the whole sample $S = \{1, \dots, n\}$:

\[ \widehat{\text{PM}}(a) \stackrel{\text{def}}{=}\frac{1}{n}\sum_{i=1}^n\hat\pi_{a,i} = \hat\pi_a \]

Example 45 (Illustration: full-sample predictive margin)

Example 45 (Illustration: full-sample predictive margin) In the WCGS example (Example 44), the g-computation estimate $\hat\pi_1$ is simultaneously the full-sample predictive margin $\widehat{\text{PM}}(1)$: both are the same average $\frac{1}{n}\sum_{i=1}^n\hat\pi_{1,i}$ of the fitted Type A risks over the whole sample.

Because the full-sample predictive margin is defined identically to the g-computation estimator (Example 45), it inherits the same consistency guarantee:

Corollary 13 (Full-sample predictive margin estimates the causal marginal risk)

Corollary 13 (Full-sample predictive margin estimates the causal marginal risk) The full-sample predictive margin is consistent for the causal marginal risk $\pi_a$ (Definition 20):

\[\widehat{\text{PM}}(a) = \hat\pi_a \overset{p}{\to} \pi_a\]

Proof

Proof. The full-sample predictive margin $\frac{1}{n}\sum_{i=1}^n\hat\pi_{a,i}$ is, term for term, the g-computation estimator $\hat\pi_a$ of Definition 21, so its consistency for $\pi_a$ is exactly Theorem 32.

The WCGS predictive margin computed in Example 45 is therefore consistent for the causal marginal risk $\pi_1$ by Corollary 13.

Definition 24 (Exposed-subgroup predictive margin)

Definition 24 (Exposed-subgroup predictive margin) The exposed-subgroup predictive margin averages the fitted risks only over the observations actually exposed to $A = a$, $S = \{i : A_i = a\}$, and we give it its own symbol $\hat\pi_a(a)$:

\[ \hat\pi_a(a) \stackrel{\text{def}}{=}\frac{1}{n_a} \sum_{i : A_i = a} \hat\pi_{a,i} \]

where $n_a$ is the number of observations with $A_i = a$. The subscript records the treatment level the risks are predicted under, and the argument records the subgroup averaged over; the full-sample margin $\hat\pi_a$ averages over everyone instead.

Example 46 (Illustration: exposed-subgroup predictive margin)

Example 46 (Illustration: exposed-subgroup predictive margin) Continuing Example 38, where the exposed ($A = 1$) have $\Pr(Z = 1 \mid A = 1) = 0.329$ and age-specific risks $\pi(1, 0) = 0.089$ and $\pi(1, 1) = 0.159$, averaging the fitted risks over the exposed subgroup gives

\[ \hat\pi_1(1) = (1 - 0.329)(0.089) + (0.329)(0.159) = 0.112, \]

which coincides with the observed marginal risk $\pi(1) = 0.112$ (Example 38), not the causal marginal risk $\pi_1 = 0.109$ (Example 42); Theorem 33 shows this agreement is no coincidence.

Theorem 33 (Exposed-subgroup predictive margin estimates the observed marginal risk)

Theorem 33 (Exposed-subgroup predictive margin estimates the observed marginal risk) With the data $(Y_i, A_i, Z_i)$, $i = 1, \dots, n$, drawn i.i.d. from the population, under correct model specification, and with the predictor vectors uniformly bounded ($\|x_{a,i}\| \le B < \infty$, as in Theorem 32), the exposed-subgroup predictive margin is consistent for the observed marginal risk $\pi(a)$ (Definition 18):

\[\hat\pi_a(a) \overset{p}{\to} \pi(a)\]

Proof

Proof. Split the estimator into the average of the true conditional risks over the exposed subgroup plus an estimation-error term:

\[ \begin{aligned} \hat\pi_a(a) &= \frac{1}{n_a} \sum_{i : A_i = a} \hat\pi(a, z_i) && \text{[definition of the estimator]} \\ &= \frac{1}{n_a} \sum_{i : A_i = a} {\color{teal}{\pi(a, z_i)}} + \frac{1}{n_a} \sum_{i : A_i = a} \mathopen{}\left(\hat\pi(a, z_i) - {\color{teal}{\pi(a, z_i)}}\right)\mathclose{} && \text{[add and subtract the true risks]} \end{aligned} \]

The estimation-error term converges to zero in probability by the same bounded-predictor Lipschitz bound as in Theorem 32: $\frac{1}{n_a}\sum_{i : A_i = a}\mathopen{}\left|\hat\pi(a, z_i) - {\color{teal}{\pi(a, z_i)}}\right|\mathclose{} \le \tfrac{B}{4}\,\|\hat\beta - \beta^*\| \overset{p}{\to} 0$. The observations with $A_i = a$ are an i.i.d. sample from the conditional distribution $f_{Z \mid A}(z \mid a)$, so the weak law of large numbers gives

\[ \frac{1}{n_a} \sum_{i : A_i = a} {\color{teal}{\pi(a, z_i)}} \overset{p}{\to} {\mathbb{E}\mathopen{}\left[{\color{teal}{\pi(a, Z)}} \mid A = a\right]\mathclose{}}. \qquad \text{[weak law of large numbers]} \]

Finally, Theorem 29 identifies this conditional expectation with the observed marginal risk:

\[ {\mathbb{E}\mathopen{}\left[{\color{teal}{\pi(a, Z)}} \mid A = a\right]\mathclose{}} = \pi(a). \qquad \text{[observed marginal risk theorem]} \]

Combining the three steps, $\hat\pi_a(a) \overset{p}{\to} \pi(a)$.

The WCGS exposed-subgroup predictive margin from Example 46 is therefore consistent for the observed marginal risk $\pi(1)$ by Theorem 33.

Lemma 10 (Exposed-subgroup predictive margin reproduces the observed proportion)

Lemma 10 (Exposed-subgroup predictive margin reproduces the observed proportion) If the fitted model includes the exposure $A$ as a categorical covariate, the exposed-subgroup predictive margin equals the observed event proportion in that subgroup exactly, in any finite sample:

\[ \hat\pi_a(a) = \bar Y_a \stackrel{\text{def}}{=}\frac{1}{n_a} \sum_{i : A_i = a} Y_i \]

Proof

Proof. The maximum-likelihood score equations for a logistic GLM set $\sum_{i} x_{ij} (Y_i - \hat\mu_i) = 0$ for each covariate column $x_{\cdot j}$, where $\hat\mu_i = \hat\pi(A_i, z_i)$ is observation $i$’s fitted risk. Because $A$ enters as a categorical covariate, the indicator column for level $a$ contributes the score equation

\[ \sum_{i : A_i = a} (Y_i - \hat\mu_i) = 0, \quad\text{i.e.}\quad \sum_{i : A_i = a} \hat\mu_i = \sum_{i : A_i = a} Y_i. \]

(For the reference level, which has no indicator column of its own, the same identity follows by subtracting the non-reference indicator score equations from the intercept score equation $\sum_{i=1}^n (Y_i - \hat\mu_i) = 0$.)

For an observation with $A_i = a$ we have $\hat\mu_i = \hat\pi(a, z_i)$, so dividing by $n_a$ gives $\hat\pi_a(a) = \frac{1}{n_a}\sum_{i : A_i = a}\hat\pi(a, z_i) = \frac{1}{n_a}\sum_{i : A_i = a} Y_i = \bar Y_a$.

The following example applies these predictive margins to the same WCGS data.

Example 47 (Estimated observed marginal risks (WCGS))

Example 47 (Estimated observed marginal risks (WCGS)) Continuing the WCGS example (Example 44), the observed marginal risks $\pi(a) = \Pr(Y=1 \mid A=a)$ can be estimated in two equivalent ways.

Directly, as the sample proportion of events within each exposure group:

Show R code

pi1_obs <- mean(wcgs_clean$chd69_binary[wcgs_clean$dibpat == "Type A"])
pi0_obs <- mean(wcgs_clean$chd69_binary[wcgs_clean$dibpat == "Type B"])

\[ \hat\pi(1) = 0.112, \quad \hat\pi(0) = 0.05 \]

Or via predictive margins (Definition 22): average the model’s fitted risks over the subgroup actually exposed to $A = a$, keeping each man’s own covariates and observed exposure:

Show R code

fitted_risk <- predict(fit, type = "response")
pi1_obs_pm <- mean(fitted_risk[wcgs_clean$dibpat == "Type A"])
pi0_obs_pm <- mean(fitted_risk[wcgs_clean$dibpat == "Type B"])

\[ \hat\pi_1(1) = 0.112, \quad \hat\pi_0(0) = 0.05 \]

The two estimates agree exactly (to displayed precision), as Lemma 10 guarantees: because the model includes dibpat as a covariate, the exposed-subgroup predictive margin reproduces the raw event proportion in each dibpat group.

Note that $\hat\pi(1) \neq \hat\pi_1$ and $\hat\pi(0) \neq \hat\pi_0$ (Example 44): because age is associated with behavioral pattern (Type A and Type B men have different age distributions), the observed marginal and causal marginal risks differ. Standardization via g-computation adjusts for this difference.

Contrasting marginal risks across exposure levels gives the corresponding marginal risk differences:

Definition 25 (Observed marginal risk difference (OMRD))

Definition 25 (Observed marginal risk difference (OMRD)) The observed marginal risk difference (OMRD) is:

\[ \text{OMRD} \stackrel{\text{def}}{=}\pi(1) - \pi(0) \]

Example 48 (Estimated observed marginal risk difference)

Example 48 (Estimated observed marginal risk difference) Continuing from Example 47, the observed marginal risk difference estimate is:

Show R code

rd_obs <- pi1_obs - pi0_obs

\[ \begin{aligned} \widehat{\text{OMRD}} &= \hat\pi(1) - \hat\pi(0) && \text{[definition of OMRD]} \\ &= 0.112 - 0.05 && \text{[substitute estimates]} \\ &= 0.062 && \text{[arithmetic, computed from full-precision } \hat\pi(1) - \hat\pi(0) \text{]} \end{aligned} \]

Definition 26 (Causal marginal risk difference (CMRD))

Definition 26 (Causal marginal risk difference (CMRD)) The causal marginal risk difference (CMRD) is:

\[ \text{CMRD} \stackrel{\text{def}}{=}\pi_1 - \pi_0 \]

Example 49 (Estimated causal marginal risk difference)

Example 49 (Estimated causal marginal risk difference) Continuing from Example 44, the causal marginal risk difference estimate is:

Show R code

rd_hat <- pi1_hat - pi0_hat

\[ \begin{aligned} \widehat{\text{CMRD}} &= \hat\pi_1 - \hat\pi_0 && \text{[definition of CMRD]} \\ &= 0.109 - 0.052 && \text{[substitute estimates]} \\ &= 0.056 && \text{[arithmetic, computed from full-precision } \hat\pi_1 - \hat\pi_0 \text{]} \end{aligned} \]

Standard errors and confidence intervals

To quantify uncertainty for risk difference or risk ratio estimates derived from logistic regression models (e.g., to calculate SEs, CIs, and p-values), you will need to use the bootstrap, the multivariate delta method, or some other special technique.

The bootstrap is generally the most straightforward approach and does not require deriving complex formulas.

10.2.2 Bootstrap inference

Adapted from [2, Sec. 3.6], p. 62, [23, Sec. 7.11], and [24, Ch. 5], Section 5.2.

The bootstrap is a resampling method that allows us to estimate the sampling distribution of a statistic without making strong parametric assumptions. The method was introduced by Efron [25]; Efron and Tibshirani [26] give a book-length treatment. For an introduction to the bootstrap, see Bootstrap Confidence Intervals.

Definition 27 (Bootstrap algorithm for a marginal risk difference)

Definition 27 (Bootstrap algorithm for a marginal risk difference) To construct a bootstrap confidence interval for a marginal risk difference:

For $b = 1, \ldots, B$ (see Section 10.2.4.1 for guidance on choosing $B$):
1. Draw a bootstrap sample of size $n$ with replacement from the original data
2. Fit the logistic regression model to the bootstrap sample
3. Compute the marginal risk difference from the fitted model
The bootstrap distribution of the $B$ risk difference estimates approximates the sampling distribution
Construct a confidence interval using the percentile method (e.g., the 2.5th and 97.5th percentiles for a 95% CI)

Example 50 (Example: CHD risk and behavioral pattern)

Example 50 (Example: CHD risk and behavioral pattern) We’ll use the Western Collaborative Group Study (WCGS) data to illustrate computing marginal risk differences from a logistic regression model.

The research question is: what is the marginal effect of Type A behavioral pattern on CHD risk, adjusting for age?

Fit the model

We reuse wcgs_clean and fit from Example 44:

Show R code

broom::tidy(fit, conf.int = TRUE) |>
  pander::pander()

term	estimate	std.error	statistic	p.value	conf.low	conf.high
(Intercept)	-6.142	0.554	-11.09	1.461e-28	-7.236	-5.063
dibpatType A	0.7994	0.1413	5.658	1.533e-08	0.5262	1.081
age	0.06868	0.01137	6.04	1.539e-09	0.0464	0.09101

Compute the point estimate

We define helper functions for g-computation — these helper functions are reused in the bootstrap loop of Section 10.2.2.0.3 — and extract the point estimate already computed in Example 49 for the contrast comparing Type A to Type B behavioral patterns:

Show R code

make_counterfactual_datasets <- function(data,
                                         exposure_var,
                                         exposed_level,
                                         unexposed_level) {
  if (!is.factor(data[[exposure_var]])) {
    stop("The exposure variable must be a factor.")
  }
  exposure_levels <- levels(data[[exposure_var]])
  if (!all(c(exposed_level, unexposed_level) %in% exposure_levels)) {
    stop(
      sprintf(
        paste0(
          "Specified exposure levels '%s' and '%s' ",
          "are not in factor levels: %s"
        ),
        exposed_level,
        unexposed_level,
        paste(exposure_levels, collapse = ", ")
      )
    )
  }

  data_exposed <- data
  data_exposed[[exposure_var]] <- factor(
    rep(exposed_level, nrow(data_exposed)),
    levels = exposure_levels
  )

  data_unexposed <- data
  data_unexposed[[exposure_var]] <- factor(
    rep(unexposed_level, nrow(data_unexposed)),
    levels = exposure_levels
  )

  list(
    data_exposed = data_exposed,
    data_unexposed = data_unexposed
  )
}

compute_marginal_rd <- function(model,
                                data,
                                exposure_var,
                                exposed_level,
                                unexposed_level) {
  counterfactual_data <- make_counterfactual_datasets(
    data = data,
    exposure_var = exposure_var,
    exposed_level = exposed_level,
    unexposed_level = unexposed_level
  )
  data_exposed <- counterfactual_data$data_exposed
  data_unexposed <- counterfactual_data$data_unexposed

  risk_exposed <- predict(
    model,
    newdata = data_exposed,
    type = "response"
  )

  risk_unexposed <- predict(
    model,
    newdata = data_unexposed,
    type = "response"
  )

  mean(risk_exposed) - mean(risk_unexposed)
}

# rd_hat is defined in _sec-marginal-risk-differences.qmd (chunk wcgs-causal-marginal-rd);
# alias it here so both computation paths stay in sync
marginal_rd_est <- rd_hat

Bootstrap confidence interval

Now we use the bootstrap to estimate the standard error and construct a 95% confidence interval. In the non-parametric bootstrap, each iteration applies both the model-fitting step and the covariate standardization to the same bootstrap resample. This joint refit-and-restandardize approach mirrors the original world in the bootstrap world and is standard practice for this type of estimator [26, Ch. 6]. (An alternative would hold the covariates at the observed values, but is less common for g-computation estimators.)

Show R code

# Set seed for reproducibility
set.seed(20260512)

# Number of bootstrap iterations in this rendered example
# (illustrative only; use >= 2000 for final CIs)
B <- 300

boot_estimates <- numeric(B)

for (b in 1:B) {

  boot_indices <- sample(
    seq_len(nrow(wcgs_clean)),
    size = nrow(wcgs_clean),
    replace = TRUE
  )

  boot_data <- wcgs_clean[boot_indices, ]

  boot_fit <- glm(
    chd69_binary ~ dibpat + age,
    data = boot_data,
    family = binomial(link = "logit")
  )

  boot_estimates[b] <- compute_marginal_rd(
    model = boot_fit,
    data = boot_data,
    exposure_var = "dibpat",
    exposed_level = "Type A",
    unexposed_level = "Type B"
  )
}

boot_se <- sd(boot_estimates)

# percentile method: quantiles of the bootstrap distribution
ci_lower <- as.numeric(quantile(boot_estimates, 0.025))
ci_upper <- as.numeric(quantile(boot_estimates, 0.975))

Show R code

tibble(
  Estimate = marginal_rd_est,
  `Std. Error` = boot_se,
  `95% CI Lower` = ci_lower,
  `95% CI Upper` = ci_upper
) |>
  knitr::kable(digits = 4)

Table 22: Causal marginal risk difference (CMRD) for Type A vs Type B behavioral pattern (adjusted for age) via g-computation, with bootstrap standard error and 95% confidence interval

Estimate	Std. Error	95% CI Lower	95% CI Upper
0.0562	0.0096	0.037	0.0732

Visualize the bootstrap distribution

We can visualize the bootstrap distribution to assess the sampling distribution of our estimate:

Show R code

tibble(boot_rd = boot_estimates) |>
  ggplot() +
  aes(x = boot_rd) +
  geom_histogram(
    bins = 50,
    fill = "steelblue",
    alpha = 0.7,
    color = "black"
  ) +
  geom_vline(
    xintercept = marginal_rd_est,
    color = "red",
    linetype = "dashed",
    linewidth = 1
  ) +
  geom_vline(
    xintercept = ci_lower,
    color = "darkgreen",
    linetype = "dotted",
    linewidth = 1
  ) +
  geom_vline(
    xintercept = ci_upper,
    color = "darkgreen",
    linetype = "dotted",
    linewidth = 1
  ) +
  labs(
    x = "Bootstrap Marginal Risk Difference",
    y = "Frequency",
    title = "Bootstrap Distribution of Causal Marginal Risk Difference"
  ) +
  theme_minimal()

Figure 22: Bootstrap distribution of the marginal risk difference (Type A vs Type B behavioral pattern, adjusted for age). Red dashed line: point estimate. Green dotted lines: 95% CI bounds.

Interpretation

Under the identification assumptions (Consistency, Conditional Exchangeability, and Positivity), we estimate that Type A behavioral pattern causally increases CHD risk by 5.62 percentage points compared to Type B behavioral pattern, after standardizing over the observed age distribution (95% CI: 3.7 to 7.32 percentage points).

Because this rendered example uses 300 bootstrap samples, the displayed standard error and confidence interval are illustrative. For final inferential reporting, rerun with at least 2000 bootstrap samples.

A 95% CI that excludes zero does not by itself imply practical or clinical importance; also interpret the estimated risk difference magnitude.

Alternative: Using the boot package

The boot package provides a more streamlined interface for bootstrap inference. Here’s how to compute the same confidence interval using boot::boot():

Show R code

library(boot)

statistic_fn <- function(data, indices) {
  boot_data <- data[indices, ]

  boot_fit <- glm(
    chd69_binary ~ dibpat + age,
    data = boot_data,
    family = binomial(link = "logit")
  )

  compute_marginal_rd(
    model = boot_fit,
    data = boot_data,
    exposure_var = "dibpat",
    exposed_level = "Type A",
    unexposed_level = "Type B"
  )
}

set.seed(20260512)
boot_results <- boot(
  data = wcgs_clean,
  statistic = statistic_fn,
  # Keep the rendered example fast; increase to 2000+ for final analyses.
  R = 300
)

boot_results

boot.ci(boot_results, type = c("perc", "bca"))

The boot package provides several types of confidence intervals, including the percentile method (perc) and the bias-corrected and accelerated (BCa) method (bca), which can provide better coverage in some situations. The BCa method is more demanding than the percentile method: its bias-correction and acceleration estimates are unstable at the illustrative R = 300 used here (and can warn or fail outright), so use a substantially larger R (at least 2000) before relying on bca intervals.

10.2.3 Computing marginal risk ratios

Contrasting marginal risks by ratio rather than by difference gives the corresponding marginal risk ratios:

Definition 28 (Observed marginal risk ratio (OMRR))

Definition 28 (Observed marginal risk ratio (OMRR)) The observed marginal risk ratio (OMRR) is:

\[ \text{OMRR} \stackrel{\text{def}}{=}\frac{\pi(1)}{\pi(0)} \]

Example 51 (Estimated observed marginal risk ratio)

Example 51 (Estimated observed marginal risk ratio) Continuing from Example 47, the observed marginal risk ratio estimate is:

Show R code

rr_obs <- pi1_obs / pi0_obs

\[ \begin{aligned} \widehat{\text{OMRR}} &= \frac{\hat\pi(1)}{\hat\pi(0)} && \text{[definition of OMRR]} \\ &= \frac{0.112}{0.05} && \text{[substitute estimates]} \\ &= 2.22 && \text{[arithmetic, computed from full-precision } \hat\pi(1) / \hat\pi(0) \text{]} \end{aligned} \]

Definition 29 (Causal marginal risk ratio (CMRR))

Definition 29 (Causal marginal risk ratio (CMRR)) The causal marginal risk ratio (CMRR) is:

\[ \text{CMRR} \stackrel{\text{def}}{=}\frac{\pi_1}{\pi_0} \]

Example 52 (Estimated causal marginal risk ratio)

Example 52 (Estimated causal marginal risk ratio) Continuing from Example 44, the causal marginal risk ratio estimate is:

Show R code

rr_hat <- pi1_hat / pi0_hat

\[ \begin{aligned} \widehat{\text{CMRR}} &= \frac{\hat\pi_1}{\hat\pi_0} && \text{[definition of CMRR]} \\ &= \frac{0.109}{0.052} && \text{[substitute estimates]} \\ &= 2.07 && \text{[arithmetic, computed from full-precision } \hat\pi_1 / \hat\pi_0 \text{]} \end{aligned} \]

The point estimates in Example 51 and Example 52 use the same fitted model as Example 49. To quantify their uncertainty, we bootstrap the marginal risk ratio, modifying the statistic function to compute ratios instead of differences:

Show R code

library(boot)

compute_marginal_rr <- function(model,
                                data,
                                exposure_var,
                                exposed_level,
                                unexposed_level) {
  counterfactual_data <- make_counterfactual_datasets(
    data = data,
    exposure_var = exposure_var,
    exposed_level = exposed_level,
    unexposed_level = unexposed_level
  )
  data_exposed <- counterfactual_data$data_exposed
  data_unexposed <- counterfactual_data$data_unexposed

  risk_exposed <- predict(
    model,
    newdata = data_exposed,
    type = "response"
  )

  risk_unexposed <- predict(
    model,
    newdata = data_unexposed,
    type = "response"
  )

  mean(risk_exposed) / mean(risk_unexposed)
}

statistic_fn_rr <- function(data, indices) {
  boot_data <- data[indices, ]
  boot_fit <- glm(
    chd69_binary ~ dibpat + age,
    data = boot_data,
    family = binomial(link = "logit")
  )
  compute_marginal_rr(
    model = boot_fit,
    data = boot_data,
    exposure_var = "dibpat",
    exposed_level = "Type A",
    unexposed_level = "Type B"
  )
}

set.seed(20260512)
boot_results_rr <- boot(
  data = wcgs_clean,
  statistic = statistic_fn_rr,
  # Keep the rendered example fast; increase to 2000+ for final analyses.
  R = 300
)

# BCa intervals can be unstable at this small R;
# increase to R = 2000+ before relying on bca results.
boot_ci_rr <- boot.ci(boot_results_rr, type = c("perc", "bca"))

cat("Marginal Risk Ratio (Type A vs Type B):",
    round(boot_results_rr$t0, 3), "\n")
cat("95% Percentile CI: (",
    round(boot_ci_rr$percent[4], 3), ",",
    round(boot_ci_rr$percent[5], 3), ")\n")

10.2.4 Notes and caveats

Definition 30 (Collapsibility)

Definition 30 (Collapsibility) An estimand $\theta$ is collapsible with respect to a covariate $Z$ if the population-level estimand equals the marginal-distribution-weighted average of stratum-specific estimands:

\[ \theta \stackrel{\text{def}}{=}{\mathbb{E}\mathopen{}\left[\theta(Z)\right]\mathclose{}}. \tag{52}\]

Definition 31 (Collapsibility bias)

Definition 31 (Collapsibility bias) In the setting of Definition 30, collapsibility bias is the discrepancy that arises when $\theta \neq {\mathbb{E}\mathopen{}\left[\theta(Z)\right]\mathclose{}}$.

By LOTUS (the Law of the Unconscious Statistician), Equation 52 expands into a weighted sum or integral over $Z$’s distribution, depending on whether $Z$ is discrete or continuous:

\[ {\mathbb{E}\mathopen{}\left[\theta(Z)\right]\mathclose{}} = \begin{cases} \sum_z \theta(z)\, \mathbb{P}(Z=z), & Z \text{ discrete}, \\ \int \theta(z)\, f_Z(z)\, dz, & Z \text{ continuous}. \end{cases} \]

Theorem 34 (Which estimands are collapsible?)

Theorem 34 (Which estimands are collapsible?) For causal estimands (Definition 20), and under the identification assumptions of Theorem 31, the collapsibility criterion (Definition 30) is evaluated with respect to the marginal distribution $f_Z(z)$. Additive (difference) measures are collapsible; ratio and log-odds measures are not collapsible in general.

For observational estimands (Definition 18), the marginal measure uses the conditional distribution $f_{Z \mid A}(z \mid a)$ as weights rather than the marginal $f_Z(z)$. Collapsibility with respect to $f_Z$ therefore holds in particular when $Z \perp\!\!\!\perp A$ (no confounding).

Proof

Proof. Additive measures are collapsible by linearity of expectation, applying the causal-marginal-risk identity (Theorem 31) to each potential probability:

\[ \begin{aligned} \pi_1 - \pi_0 &= {\mathbb{E}\mathopen{}\left[\pi(1,Z)\right]\mathclose{}} - {\mathbb{E}\mathopen{}\left[\pi(0,Z)\right]\mathclose{}} && \text{[causal marginal risk theorem]} \\ &= {\mathbb{E}\mathopen{}\left[\pi(1,Z) - \pi(0,Z)\right]\mathclose{}}. && \text{[linearity of expectation]} \end{aligned} \]

Ratio and log-odds measures are not collapsible in general: Example 53 gives a counterexample in which the marginal risk ratio and odds ratio differ from the marginal-distribution-weighted average of their stratum-specific values, and Equation 54 derives the discrepancy algebraically for the risk-ratio case.

For the observational case, when $Z \perp\!\!\!\perp A$ the conditional weights coincide with the marginal ones, $f_{Z \mid A}(z \mid a) = f_Z(z)$, so by Theorem 29:

\[ \begin{aligned} \pi(a) &= {\mathbb{E}\mathopen{}\left[\pi(a,Z) \mid A = a\right]\mathclose{}} && \text{[observed marginal risk theorem: law of total expectation, given $A = a$]} \\ &= {\mathbb{E}\mathopen{}\left[\pi(a,Z)\right]\mathclose{}}, && \text{[$Z \perp\!\!\!\perp A$: conditioning on $A = a$ does not change $Z$'s distribution]} \end{aligned} \]

establishing that $\pi(a)$ equals the $f_Z$-weighted stratum average, which is collapsibility with respect to $f_Z$, requiring only $Z \perp\!\!\!\perp A$, not the full identification assumptions.

Example 53 (Collapsibility: numerical illustration)

Example 53 (Collapsibility: numerical illustration) Continuing the WCGS example with dibpat as the exposure, chd69 as the outcome, and age 50 or older as $Z$ (Example 38): the causal marginal risk (Definition 20) standardizes both exposure groups’ stratum-specific risks to the same population age distribution $f_Z(z)$ (Remark 8), so this standardization is exactly the common weighting Definition 30 requires – no simplifying assumptions needed:

Show R code

wcgs_nonexposed <- wcgs_clean[wcgs_clean$dibpat == "Type B", ]
pi0_z0 <- mean(wcgs_nonexposed$chd69_binary[wcgs_nonexposed$age_ge50 == 0])
pi0_z1 <- mean(wcgs_nonexposed$chd69_binary[wcgs_nonexposed$age_ge50 == 1])

strata <- tibble::tibble(
  stratum = c("Z = 0 (under 50)", "Z = 1 (50 or older)"),
  weight  = c(1 - p_z1_pop, p_z1_pop),
  pi_0    = c(pi0_z0, pi0_z1),
  pi_1    = c(pi1_z0, pi1_z1)
) |>
  dplyr::mutate(
    RD = pi_1 - pi_0,
    RR = pi_1 / pi_0,
    OR = (pi_1 / (1 - pi_1)) / (pi_0 / (1 - pi_0))
  )

pi1_marg <- sum(strata$weight * strata$pi_1)
pi0_marg <- sum(strata$weight * strata$pi_0)

tibble::tibble(
  Measure = c("Risk difference", "Risk ratio", "Odds ratio"),
  Marginal = c(
    pi1_marg - pi0_marg,
    pi1_marg / pi0_marg,
    (pi1_marg / (1 - pi1_marg)) / (pi0_marg / (1 - pi0_marg))
  ),
  `Weighted avg. conditional` = c(
    sum(strata$weight * strata$RD),
    sum(strata$weight * strata$RR),
    sum(strata$weight * strata$OR)
  ),
  `Marginal = weighted avg. conditional?` = c("Yes", "No", "No")
) |>
  knitr::kable(digits = 4)

Measure	Marginal	Weighted avg. conditional	Marginal = weighted avg. conditional?
Risk difference	0.0572	0.0572	Yes
Risk ratio	2.1028	2.1034	No
Odds ratio	2.2378	2.2401	No

The marginal risk difference equals the weighted average of the conditional risk differences exactly, as Theorem 34 guarantees. The marginal risk ratio and marginal odds ratio both differ from the weighted average of their conditional counterparts – though the risk ratio’s discrepancy only shows up in the fourth decimal place here, because the conditional risk ratios happen to be nearly homogeneous across the two age strata ($2.105$ vs. $2.100$).

Non-collapsibility is distinct from effect-measure modification. The conditional odds ratios vary more across strata ($2.213$ vs. $2.308$), and for the risk ratio, that near-homogeneity is exactly what keeps its discrepancy small here: if the conditional risk ratio were instead constant across strata, the marginal risk ratio would reproduce it exactly, just like the risk difference. The odds ratio’s discrepancy is different in kind: even if the conditional odds ratio were held constant across strata, the marginal odds ratio would generally still differ from it (and lie closer to the null) [18, Ch. 4], [27], [28], whereas a constant conditional risk difference or risk ratio always reproduces the corresponding marginal measure exactly.

Important considerations when computing marginal effects

Target population: The marginal effect is specific to the covariate distribution in your sample. If your sample is not representative of your target population, you may want to use standardization or weighting.
Collapsibility (see Definition 30): Equation 53 and Equation 54 re-derive Theorem 34 concretely for the risk-difference and risk-ratio/odds-ratio cases. Risk differences are collapsible: the causal marginal RD ($\pi_1 - \pi_0$) equals the average of stratum-specific causal RDs ($\pi(1,z) - \pi(0,z)$) weighted by the marginal distribution $f_Z$,

\[ \begin{aligned} \pi_1 - \pi_0 &= {\mathbb{E}\mathopen{}\left[\pi(1, Z)\right]\mathclose{}} - {\mathbb{E}\mathopen{}\left[\pi(0, Z)\right]\mathclose{}} && \text{[causal marginal risk theorem]} \\ &= {\mathbb{E}\mathopen{}\left[\pi(1, Z) - \pi(0, Z)\right]\mathclose{}} && \text{[linearity of expectation]} \\ &= {\mathbb{E}\mathopen{}\left[\text{RD}(Z)\right]\mathclose{}}, && \text{[definition of conditional risk difference]} \end{aligned} \tag{53}\]

so there is no collapsibility bias from averaging over a covariate $Z$. Risk ratios are not collapsible in general: when the conditional RR varies across strata, the marginal RR does not equal the marginal-distribution-weighted average of conditional RRs, ${\mathbb{E}\mathopen{}\left[\text{RR}(Z)\right]\mathclose{}}$, because a ratio of expectations is not the same as an expectation of ratios:

\[ \begin{aligned} \frac{\pi_1}{\pi_0} &= \frac{{\mathbb{E}\mathopen{}\left[\pi(1, Z)\right]\mathclose{}}}{{\mathbb{E}\mathopen{}\left[\pi(0, Z)\right]\mathclose{}}} && \text{[causal marginal risk theorem]} \\ &\neq {\mathbb{E}\mathopen{}\left[\frac{\pi(1, Z)}{\pi(0, Z)}\right]\mathclose{}} && \text{[ratio of expectations, not expectation of ratios]} \\ &= {\mathbb{E}\mathopen{}\left[\text{RR}(Z)\right]\mathclose{}}. && \text{[definition of conditional risk ratio]} \end{aligned} \tag{54}\]

Unlike the odds ratio, though, this discrepancy is entirely a consequence of the conditional RR varying across strata: when the conditional risk ratio is instead constant, $\text{RR}(z) = r$ for every $z$, the marginal RR reproduces it exactly:

\[ \begin{aligned} \pi_1 &= {\mathbb{E}\mathopen{}\left[\pi(1, Z)\right]\mathclose{}} && \text{[causal marginal risk theorem]} \\ &= {\mathbb{E}\mathopen{}\left[\text{RR}(Z) \cdot \pi(0, Z)\right]\mathclose{}} && \text{[definition of conditional risk ratio]} \\ &= {\mathbb{E}\mathopen{}\left[r \cdot \pi(0, Z)\right]\mathclose{}} && \text{[constant conditional risk ratio]} \\ &= r \cdot {\mathbb{E}\mathopen{}\left[\pi(0, Z)\right]\mathclose{}} && \text{[linearity of expectation]} \\ &= r \cdot \pi_0 && \text{[causal marginal risk theorem]} \end{aligned} \]

so $\pi_1 / \pi_0 = r$: like the risk difference, the risk ratio is collapsible under a homogeneous conditional effect.

Odds ratios are non-collapsible in a stronger sense than risk ratios: even when the conditional OR is the same in every stratum, the marginal OR is generally different from it (closer to the null) [18, Ch. 4], [27], [28], whereas a constant conditional RD or RR always reproduces the corresponding marginal RD or RR exactly (the marginal RD is the average ${\mathbb{E}\mathopen{}\left[\text{RD}(Z)\right]\mathclose{}}$ of the stratum-specific RDs by Theorem 34, and the average of a constant is that constant).
Bootstrap sample size: A confidence interval needs more bootstrap resamples than a standard error, because it depends on the tails of the bootstrap distribution rather than just its spread [26, Ch. 6], [29, Ch. 2]. As a conservative rule of thumb, use at least 1000 iterations for standard errors and at least 2000 for confidence intervals. More iterations give more stable estimates but take longer to compute.
Alternative methods: The multivariate delta method can also be used to compute standard errors analytically, but the formulas are complex. The margins package in R provides implementations of the delta method for marginal effects.
Case-control studies: These methods are not valid for case-control studies, where sampling is stratified by outcome. In case-control designs, only odds ratios can be estimated consistently (see Odds Ratios in Case-Control Studies).

10.3 Other link functions for Bernoulli outcomes

Alternatively, if you want to estimate risk ratios more directly from the model, you can sometimes change the link function from ${\operatorname{logit}\mathopen{}\left\{\right\}\mathclose{}}$ to ${\operatorname{log}\mathopen{}\left\{\right\}\mathclose{}}$; then you can obtain risk ratios by exponentiating coefficients ¹, just like we did for odds ratios with the logit link:

Show R code

data(anthers, package = "dobson")
anthers_sum <- aggregate(
  anthers[c("n", "y")],
  by = anthers[c("storage")], FUN = sum
)

anthers_glm_log <- glm(
  formula = cbind(y, n - y) ~ storage,
  data = anthers_sum,
  family = binomial(link = "log")
)

anthers_glm_log |>
  parameters() |>
  print_md()

Parameter	Log-Risk	SE	95% CI	z	p
(Intercept)	-0.80	0.12	(-1.04, -0.58)	-6.81	< .001
storage	0.17	0.07	(0.02, 0.31)	2.31	0.021

Now ${\operatorname{exp}\mathopen{}\left\{\beta\right\}\mathclose{}}$ gives us risk ratios instead of odds ratios:

Show R code

anthers_glm_log |>
  parameters(exponentiate = TRUE) |>
  print_md()

Parameter	Risk Ratio	SE	95% CI	z	p
(Intercept)	0.45	0.05	(0.35, 0.56)	-6.81	< .001
storage	1.18	0.09	(1.03, 1.36)	2.31	0.021

Let’s compare this model with a logistic model:

Show R code

anthers_glm_logit <- glm(
  formula = cbind(y, n - y) ~ storage,
  data = anthers_sum,
  family = binomial(link = "logit")
)

anthers_glm_logit |>
  parameters(exponentiate = TRUE) |>
  print_md()

Parameter	Odds Ratio	SE	95% CI	z	p
(Intercept)	0.76	0.20	(0.45, 1.27)	-1.05	0.296
storage	1.49	0.26	(1.06, 2.10)	2.29	0.022

We can compare the two link functions by plotting their fitted germination probabilities across the range of the storage covariate, alongside the observed proportions:

Show R code

library(tidyr)

anthers_fitted_grid <-
  data.frame(
    storage = seq(
      min(anthers_sum$storage),
      max(anthers_sum$storage),
      length.out = 100
    )
  ) |>
  mutate(
    `Log link` = predict(anthers_glm_log, pick(storage), type = "response"),
    `Logit link` = predict(anthers_glm_logit, pick(storage), type = "response")
  ) |>
  pivot_longer(
    cols = c(`Log link`, `Logit link`),
    names_to = "Link function",
    values_to = "fitted"
  )

anthers_observed <-
  anthers_sum |>
  mutate(proportion = y / n)

ggplot() +
  geom_line(
    data = anthers_fitted_grid,
    mapping = aes(x = storage, y = fitted, color = `Link function`)
  ) +
  geom_point(
    data = anthers_observed,
    mapping = aes(x = storage, y = proportion),
    size = 3
  ) +
  labs(
    x = "Storage condition",
    y = "Fitted probability of germination"
  ) +
  theme_bw()

Figure 23: Fitted germination probabilities from the log-link and logit-link models for the `anthers` data, with the observed proportions as points. The two link functions nearly coincide here because the model is saturated (two parameters fit to two storage conditions), so both reproduce the observed proportions at the data points and differ only slightly in between.

In practice, fitting a binomial model with link = "log" often fails to converge, producing errors about not finding good starting values for the estimation procedure. This convergence failure is likely because the model is producing fitted probabilities greater than 1.

When this happens, you can instead switch the outcome distribution from binomial to Poisson and fit a Poisson regression model (we will see those soon!). Note that this substitution is a change in model structure — a different outcome distribution — not just a different way of fitting the same model. With a Poisson outcome distribution, you won’t get warnings about fitted probabilities greater than 1, but that distribution isn’t quite right for binary outcomes. Despite this mismatch, Poisson regression is the usual fallback when the log-binomial model fails to converge.

10.3.1 WCGS: link functions

Show R code

wcgs_glm_logit_link <- chd_grouped_data |>
  mutate(type = relevel(dibpat, ref = "Type B")) |>
  glm(
    "formula" = cbind(x, `n - x`) ~ dibpat * age,
    "data" = _,
    "family" = binomial(link = "logit")
  )

wcgs_glm_identity_link <-
  chd_grouped_data |>
  mutate(type = relevel(dibpat, ref = "Type B")) |>
  glm(
    "formula" = cbind(x, `n - x`) ~ dibpat * age,
    "data" = _,
    "family" = binomial(link = "identity")
  )
wcgs_glm_identity_link |>
  coef() |>
  pander()

(Intercept)	dibpatType A	age	dibpatType A:age
-0.08257	-0.1374	0.002906	0.004194

Figure 24: Residuals vs Fitted plot for `wcgs` models

Figure 25: Residuals vs Fitted plot for `BeetleMortality` models

10.4 Quasibinomial

See Hua Zhou’s lecture notes

11 Further reading

Hosmer et al. [30] is a classic textbook on logistic regression

Exercises

Exercise 29 (Choosing a link function for binary outcomes)

Exercise 29 (Choosing a link function for binary outcomes) (adapted from Dunn and Smyth [31], Chapter 3)

Two researchers are modeling the probability that a patient experiences a side effect, as a function of dose. Define:

$x$: the dose administered to the patient ($x > 0$)
$\pi(x)$: the probability that a patient given dose $x$ experiences the side effect
$\beta_0$, $\beta_1$: the intercept and slope parameters of each model

The two models are:

Researcher A uses the logit link: $\operatorname{logit}(\pi) = \beta_0 + \beta_1 x$
Researcher B uses the log link: ${\operatorname{log}\mathopen{}\left\{\pi\right\}\mathclose{}} = \beta_0 + \beta_1 x$

(a) For each model, write $\pi(x)$ as an explicit function of $x$.

(b) For the log-link model (Researcher B), what constraint on the parameters ensures $\pi(x) \leq 1$ for all $x > 0$?

(c) Which link is more commonly used for binary outcomes? Give one practical advantage of that link.

Solution

Solution. (a)

Logit link (Researcher A):

\[ \pi(x) = \frac{e^{\beta_0 + \beta_1 x}}{1 + e^{\beta_0 + \beta_1 x}} = {\operatorname{expit}\mathopen{}\left\{\beta_0 + \beta_1 x\right\}\mathclose{}} \]

This probability is always in $(0, 1)$, regardless of the values of $\beta_0$, $\beta_1$, or $x$.

Log link (Researcher B):

\[ \pi(x) = e^{\beta_0 + \beta_1 x} \]

This exponential expression is always positive, but may exceed 1.

(b)

For the log-link model, $\pi(x) \leq 1$ requires $e^{\beta_0 + \beta_1 x} \leq 1$.

Since the exponential function is increasing, this requirement is equivalent to \[ \beta_0 + \beta_1 x \leq 0 \qquad \text{for all } x > 0. \]

Because this must hold for all positive $x$, a positive slope $\beta_1 > 0$ is not possible on this unbounded domain: for sufficiently large $x$, we would have $\beta_0 + \beta_1 x > 0$. Thus we need $\beta_1 \leq 0$. Also, to keep $\beta_0 + \beta_1 x \leq 0$ for $x$ arbitrarily close to 0, we need $\beta_0 \leq 0$. So the parameter constraint is $\beta_0 \leq 0$ and $\beta_1 \leq 0$.

(c)

The logit link is more commonly used for binary outcomes.

One practical advantage: the logit link automatically constrains $\pi(x) \in (0,1)$ for any real values of $\beta_0$, $\beta_1$, and $x$, eliminating the risk of predicted probabilities outside $[0,1]$. Additionally, the logit link yields odds ratios as the natural measure of association, which are widely used in epidemiology (see Vittinghoff et al. [2, Ch. 5]).

Summary of definitions and results

Odds and log-odds

These association-measure results are covered in Measures of Association for Binary Outcomes.

Odds (def) \[\omega\stackrel{\text{def}}{=}\frac{\Pr(A)}{\Pr(\neg A)}\]

Conditional odds (def) \[\omega(A|B) \stackrel{\text{def}}{=}\frac{\Pr(A|B)}{\Pr(\neg A|B)}\]

Odds function (def) \[{\operatorname{odds}\mathopen{}\left\{\pi\right\}\mathclose{}} \stackrel{\text{def}}{=}\frac{\pi}{1-\pi}\]

Probability to odds (thm, cor) \[\omega= \frac{\pi}{1-\pi} = {\operatorname{odds}\mathopen{}\left\{\pi\right\}\mathclose{}}\]

Simplified odds expressions; odds of a non-event (thm, cor) \[{\operatorname{odds}\mathopen{}\left\{\pi\right\}\mathclose{}} = \frac{1}{\pi^{-1}-1} = {\mathopen{}\left(\pi^{-1}-1\right)\mathclose{}}^{-1}, \qquad \omega(\neg A) = \frac{1-\pi}{\pi} = \pi^{-1}-1\]

Odds ratio (def) \[\text{ϙ}(\omega_1, \omega_2) \stackrel{\text{def}}{=}\frac{\omega_1}{\omega_2}\]

OR as ratio of probability ratios (thm) \[\text{ϙ}(\omega_1, \omega_2) = \frac{\omega_1}{\omega_2} = \frac{\mathopen{}\left(\frac{\pi_1}{1-\pi_1}\right)\mathclose{}}{\mathopen{}\left(\frac{\pi_2}{1-\pi_2}\right)\mathclose{}}\]

Odds ratios are reversible, marginally and conditionally (thm, thm) \[\text{ϙ}_{\omega}(A|B) = \text{ϙ}_{\omega}(B|A), \qquad \text{ϙ}_{\omega}(A|B,C) = \text{ϙ}_{\omega}(B|A,C)\]

Inverse-odds and probability recovery

Odds to probability (thm) \[\pi = \frac{\omega}{1+\omega}\]

Inverse-odds function (def; recovers probability by cor) \[{\operatorname{invodds}\mathopen{}\left\{\omega\right\}\mathclose{}} \stackrel{\text{def}}{=}\frac{\omega}{1 + \omega}, \qquad \pi= {\operatorname{invodds}\mathopen{}\left\{\omega\right\}\mathclose{}}\]

Simplified inverse-odds (lem) \[{\operatorname{invodds}\mathopen{}\left\{\omega\right\}\mathclose{}} = \frac{1}{1+\omega^{-1}} = (1+\omega^{-1})^{-1}\]

One minus inverse-odds, and its complement (lem, cor) \[1 - \pi= \frac{1}{1+\omega}, \qquad 1+\omega= \frac{1}{1-\pi}\]

Log-odds (logit) and expit

Log-odds, and log-odds from probability (def, thm) \[\eta\stackrel{\text{def}}{=}{\operatorname{log}\mathopen{}\left\{\omega\right\}\mathclose{}}, \qquad \eta= {\operatorname{log}\mathopen{}\left\{\frac{\pi}{1-\pi}\right\}\mathclose{}}\]

Logit function, and expanded form (def, thm) \[\operatorname{logit}(\pi) \stackrel{\text{def}}{=}{\operatorname{log}\mathopen{}\left\{{\operatorname{odds}\mathopen{}\left\{\pi\right\}\mathclose{}}\right\}\mathclose{}} = {\operatorname{log}\mathopen{}\left\{\frac{\pi}{1-\pi}\right\}\mathclose{}}\]

Log-odds equals logit (cor) \[\eta= {\operatorname{logit}\mathopen{}\left\{\pi\right\}\mathclose{}}\]

Odds and probability from log-odds (lem, thm) \[\omega= {\operatorname{exp}\mathopen{}\left\{\eta\right\}\mathclose{}}, \qquad \pi= \frac{{\operatorname{exp}\mathopen{}\left\{\eta\right\}\mathclose{}}}{1+{\operatorname{exp}\mathopen{}\left\{\eta\right\}\mathclose{}}}\]

Expit / inverse-logit function, and equivalent expressions (def, thm) \[\operatorname{expit}(\eta) \stackrel{\text{def}}{=}{\operatorname{invodds}\mathopen{}\left\{{\operatorname{exp}\mathopen{}\left\{\eta\right\}\mathclose{}}\right\}\mathclose{}} = \frac{{\operatorname{exp}\mathopen{}\left\{\eta\right\}\mathclose{}}}{1+{\operatorname{exp}\mathopen{}\left\{\eta\right\}\mathclose{}}} = (1 + {\operatorname{exp}\mathopen{}\left\{-\eta\right\}\mathclose{}})^{-1}\]

Probability as expit (thm) \[\pi= {\operatorname{expit}\mathopen{}\left\{\eta\right\}\mathclose{}} \tag{55}\]

Logit and expit are inverses (thm) \[{\operatorname{logit}\mathopen{}\left\{{\operatorname{expit}\mathopen{}\left\{\eta\right\}\mathclose{}}\right\}\mathclose{}} = \eta\qquad {\operatorname{expit}\mathopen{}\left\{{\operatorname{logit}\mathopen{}\left\{\pi\right\}\mathclose{}}\right\}\mathclose{}} = \pi\]

Figure 26: Diagram of logistic regression link and inverse link functions

\[ \underbrace{\pi}_{{\Pr\mathopen{}\left(Y=1\right)\mathclose{}}} \overbrace{ \underbrace{ \underset{ \xleftarrow[\frac{\omega}{1+\omega}]{} } { \xrightarrow{\frac{\pi}{1-\pi}} } \underbrace{\omega}_{{\operatorname{odds}\mathopen{}\left\{Y=1\right\}\mathclose{}}} \underset{ \xleftarrow[{\operatorname{exp}\mathopen{}\left\{\eta\right\}\mathclose{}}]{} } { \xrightarrow{{\operatorname{log}\mathopen{}\left\{\omega\right\}\mathclose{}}} } }_{{\operatorname{expit}\mathopen{}\left\{\eta\right\}\mathclose{}}} }^{{\operatorname{logit}\mathopen{}\left\{\pi\right\}\mathclose{}}} \underbrace{\eta}_{{\eta\mathopen{}\left(Y=1\right)\mathclose{}}} \]

Rare events

Odds minus probability (thm) \[\omega- \pi = \frac{\pi^2}{1-\pi}, \quad \text{where } \omega= \frac{\pi}{1-\pi}\]

OR as RR times a correction factor (thm) \[\text{ϙ}(\omega_1, \omega_2) = \rho(\pi_1, \pi_2) \cdot \frac{1-\pi_2}{1-\pi_1}\] When $\pi_1$ and $\pi_2$ are both small, the correction factor is close to 1, so the odds ratio is close to the risk ratio.

Derivatives

Column labels indicate the numerators of the derivatives; row labels indicate the denominators (dimensions and details in tbl).

Derivative of expit (cor) \[{\operatorname{expit}'\mathopen{}\left\{\eta\right\}\mathclose{}} = {\operatorname{expit}\mathopen{}\left\{\eta\right\}\mathclose{}}(1 - {\operatorname{expit}\mathopen{}\left\{\eta\right\}\mathclose{}})\]

Logistic regression model

Logistic regression (def) \[Y_i|\mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{X}}\vphantom{X}}_i \ \sim_{\perp\!\!\!\perp}\ \operatorname{Ber}(\pi(\mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{X}}\vphantom{X}}_i)), \qquad {\operatorname{logit}\mathopen{}\left\{\pi(\mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{x}}\vphantom{x}})\right\}\mathclose{}} = {\mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{x}}\vphantom{x}}}^{\top}\mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{\beta}}\vphantom{\beta}}\]

Throughout this summary, $\mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{\beta}}\vphantom{\beta}}= (\beta_0, \beta_1, \ldots, \beta_p)$ is the $(p+1) \times 1$ coefficient vector (including the intercept), $\mathbf{X}$ is the $n \times (p+1)$ design matrix whose $i^{\text{th}}$ row is ${\mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{x}}\vphantom{x}}_i}^{\top}$, and $\mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{\varepsilon}}\vphantom{\varepsilon}}$ is the $n \times 1$ error vector with components $\varepsilon_i \stackrel{\text{def}}{=}y_i - \pi_i$.

Log-likelihood and score function

Log-likelihood component (lem) \[\ell_i(\pi_i) = y_i \eta_i - {\operatorname{log}\mathopen{}\left\{1+\omega_i\right\}\mathclose{}}\]

Score function as sum of components (lem, thm) \[\mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{\ell'}}\vphantom{\ell'}}(\mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{\beta}}\vphantom{\beta}}) = \sum_{i=1}^n\mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{\ell'_i}}\vphantom{\ell'_i}}(\mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{\beta}}\vphantom{\beta}}), \qquad \ell_i'(\mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{\beta}}\vphantom{\beta}}) = \mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{x}}\vphantom{x}}_i \varepsilon_i\]

Score function (thm) \[\mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{\ell'}}\vphantom{\ell'}}(\mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{\beta}}\vphantom{\beta}}) = \sum_{i=1}^n\mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{x}}\vphantom{x}}_i\varepsilon_i = \underbrace{{\mathbf{X}}^{\top}}_{(p+1) \times n}\underbrace{\mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{\varepsilon}}\vphantom{\varepsilon}}}_{n \times 1}\]

Maximum likelihood estimation

Estimating equation (eq) The MLE $\hat{\mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{\beta}}\vphantom{\beta}}}$ solves the score equation: \[\underbrace{\mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{\ell'}}\vphantom{\ell'}}(\hat{\mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{\beta}}\vphantom{\beta}}})}_{(p+1) \times 1} = \sum_{i=1}^n\underbrace{\mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{x}}\vphantom{x}}_i}_{(p+1) \times 1}\underbrace{\mathopen{}\left(y_i - {\operatorname{expit}\mathopen{}\left\{{\mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{x}}\vphantom{x}}_i}^{\top}\hat{\mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{\beta}}\vphantom{\beta}}}\right\}\mathclose{}}\right)\mathclose{}}_{1 \times 1} = \mathbf{0}_{(p+1) \times 1}\]

This estimating equation has no closed-form solution in general; $\hat{\mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{\beta}}\vphantom{\beta}}}$ must be computed by numerical iteration.

Hessian (eq) \[\underbrace{\ell''(\mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{\beta}}\vphantom{\beta}})}_{(p+1) \times (p+1)} = -\underbrace{{\mathbf{X}}^{\top}}_{(p+1) \times n} \underbrace{\mathbf{D}}_{n \times n} \underbrace{\mathbf{X}}_{n \times (p+1)}, \qquad \mathbf{D} \stackrel{\text{def}}{=}\text{diag}({\operatorname{Var}\mathopen{}\left(Y_i|\mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{X}}\vphantom{X}}_i=\mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{x}}\vphantom{x}}_i\right)\mathclose{}}) = \text{diag}(\pi_i(1-\pi_i))\]

Concavity (rem): the Hessian is negative semi-definite for every $\mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{\beta}}\vphantom{\beta}}$ (negative definite when $\mathbf{X}$ has full column rank), so the log-likelihood is concave and every solution of the score equation is a global maximum.

Newton-Raphson update (Newton-Raphson method) \[\underbrace{{\widehat{\mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{\beta}}\vphantom{\beta}}}}^*}_{(p+1) \times 1} \leftarrow \underbrace{{\widehat{\mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{\beta}}\vphantom{\beta}}}}^*}_{(p+1) \times 1} - \underbrace{{\mathopen{}\left({\ell''\mathopen{}\left(\mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{y}}\vphantom{y}}; {\widehat{\mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{\beta}}\vphantom{\beta}}}}^*\right)\mathclose{}}\right)\mathclose{}}^{-1}}_{(p+1) \times (p+1)} \underbrace{{\ell'\mathopen{}\left(\mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{y}}\vphantom{y}}; {\widehat{\mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{\beta}}\vphantom{\beta}}}}^*\right)\mathclose{}}}_{(p+1) \times 1}\]

One-sample MLE for odds (thm) \[\hat{\omega}= \frac{x}{n-x}\]

Wald tests and confidence intervals for coefficients

Wald test statistic for $H_0: \beta_k = \beta_{k,0}$ (CLT for MLEs) \[z_k = \frac{\hat{\beta}_k - \beta_{k,0}}{{\mathop{\widehat{\operatorname{SE}}}\nolimits\mathopen{}\left(\hat{\beta}_k\right)\mathclose{}}}, \qquad z_k \ \dot{\sim} \ N(0,1) \text{ under } H_0\]

95% confidence intervals for $\beta_k$ and $e^{\beta_k}$ (MLE invariance) \[\hat{\beta}_k \pm 1.96 \cdot {\mathop{\widehat{\operatorname{SE}}}\nolimits\mathopen{}\left(\hat{\beta}_k\right)\mathclose{}}, \qquad e^{\beta_k} \in \mathopen{}\left(e^{\hat{\beta}_k - 1.96 \cdot {\mathop{\widehat{\operatorname{SE}}}\nolimits\mathopen{}\left(\hat{\beta}_k\right)\mathclose{}}},\; e^{\hat{\beta}_k + 1.96 \cdot {\mathop{\widehat{\operatorname{SE}}}\nolimits\mathopen{}\left(\hat{\beta}_k\right)\mathclose{}}}\right)\mathclose{}\]

For $k \neq 0$, $e^{\beta_k}$ is an odds ratio; for $k = 0$, $e^{\beta_0}$ is the baseline odds.

Odds ratios in logistic regression

General OR formula (lem) \[\text{ϙ}_{\omega}(\mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{x}}\vphantom{x}},\mathord{{\mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{x}}\vphantom{x}}^*}}) = {\operatorname{exp}\mathopen{}\left\{\eta(\mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{x}}\vphantom{x}}) - \eta(\mathord{{\mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{x}}\vphantom{x}}^*}})\right\}\mathclose{}}\]

Difference in log-odds; OR in terms of $\Delta\eta$ (def, cor) \[\Delta\eta\stackrel{\text{def}}{=}\eta(\mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{x}}\vphantom{x}}) - \eta(\mathord{{\mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{x}}\vphantom{x}}^*}}), \qquad \text{ϙ}_{\omega}(\mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{x}}\vphantom{x}},\mathord{{\mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{x}}\vphantom{x}}^*}}) = {\operatorname{exp}\mathopen{}\left\{\Delta\eta\right\}\mathclose{}}\]

$\Delta\eta$ from covariates (lem) \[\Delta\eta= (\mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{x}}\vphantom{x}}- \mathord{{\mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{x}}\vphantom{x}}^*}})\cdot\mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{\beta}}\vphantom{\beta}}\]

Difference in covariate patterns; $\Delta\eta$ from $\Delta\mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{x}}\vphantom{x}}$ (def, cor) \[\Delta\mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{x}}\vphantom{x}}\stackrel{\text{def}}{=}\mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{x}}\vphantom{x}}- \mathord{{\mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{x}}\vphantom{x}}^*}}, \qquad \Delta\eta= \Delta\mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{x}}\vphantom{x}}\cdot \mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{\beta}}\vphantom{\beta}}\]

OR in terms of $\Delta\mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{x}}\vphantom{x}}$ (thm) \[\text{ϙ}_{\omega}(\mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{x}}\vphantom{x}},\mathord{{\mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{x}}\vphantom{x}}^*}}) = {\operatorname{exp}\mathopen{}\left\{(\Delta\mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{x}}\vphantom{x}}) \cdot \mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{\beta}}\vphantom{\beta}}\right\}\mathclose{}}\]

Log OR equals $\Delta\eta$ (cor) \[{\operatorname{log}\mathopen{}\left\{\text{ϙ}_{\omega}(\mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{x}}\vphantom{x}},\mathord{{\mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{x}}\vphantom{x}}^*}})\right\}\mathclose{}} = \Delta\eta\]

Inference for log-odds and odds ratios

Estimated SE of log-odds (thm) \[{\mathop{\widehat{\operatorname{Var}}}\nolimits\mathopen{}\left(\hat\eta(\mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{x}}\vphantom{x}})\right)\mathclose{}} = \underbrace{{\mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{x}}\vphantom{x}}}^{\top}}_{1 \times (p+1)}\underbrace{\hat{\Sigma}}_{(p+1) \times (p+1)}\underbrace{\mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{x}}\vphantom{x}}}_{(p+1) \times 1}, \qquad {\mathop{\widehat{\operatorname{SE}}}\nolimits\mathopen{}\left(\hat\eta(\mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{x}}\vphantom{x}})\right)\mathclose{}} = \sqrt{{\mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{x}}\vphantom{x}}}^{\top}\hat{\Sigma}\mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{x}}\vphantom{x}}}\]

Estimated SE of $\Delta\widehat{\eta}$ (thm) \[{\mathop{\widehat{\operatorname{Var}}}\nolimits\mathopen{}\left(\Delta{\hat\eta}\right)\mathclose{}} = \underbrace{{\Delta\mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{x}}\vphantom{x}}}^{\top}}_{1 \times (p+1)}\underbrace{\hat{\Sigma}}_{(p+1) \times (p+1)}\underbrace{(\Delta\mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{x}}\vphantom{x}})}_{(p+1) \times 1}, \qquad {\mathop{\widehat{\operatorname{SE}}}\nolimits\mathopen{}\left(\Delta{\hat\eta}\right)\mathclose{}} = \sqrt{{\Delta\mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{x}}\vphantom{x}}}^{\top}\hat{\Sigma}(\Delta\mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{x}}\vphantom{x}})}\]

CI for an odds ratio (eq; details in sec): exponentiate the endpoints of the CI for $\Delta\eta$: \[\text{ϙ}_{\omega}(\mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{x}}\vphantom{x}},\mathord{{\mathord{\smash[b]{\underset{\raise.3ex\hbox{$\scriptstyle\sim$}}{x}}\vphantom{x}}^*}}) \in (e^L, e^R), \qquad (L, R) = \widehat{\Delta\eta}\mp 1.96 \cdot {\mathop{\widehat{\operatorname{SE}}}\nolimits\mathopen{}\left(\widehat{\Delta\eta}\right)\mathclose{}}\]

Odds ratios in study designs

Disease and exposure odds ratios (def, def) \[\text{ϙ}_{\omega}(D|E) \stackrel{\text{def}}{=}\frac{\omega(D|E)}{\omega(D|\neg E)}, \qquad \text{ϙ}_{\omega}(E|D) \stackrel{\text{def}}{=}\frac{\omega(E|D)}{\omega(E|\neg D)}\]

Case-control studies (section): outcome-stratified sampling breaks estimation of risks, risk ratios, and the components of the disease odds ratio (def), but the exposure odds ratio (def) is estimable, and it equals the disease odds ratio by reversibility (thm).

$2 \times 2$ table shortcut (table; cell counts $a, b$ = exposed events and non-events, $c, d$ = unexposed events and non-events): \[\hat{\omega}(Event|Exposed) = \frac{a}{b}, \qquad \hat{\omega}(Event|\neg Exposed) = \frac{c}{d}, \qquad \text{ϙ}_{\omega}(Exposed, \neg Exposed) = \frac{ad}{bc}\]

Model fit and comparison

Details in sec; here $q$ is the number of distinct covariate patterns, $p$ is the number of $\beta$ parameters, and $\ell_{\text{full}}$ is the saturated-model log-likelihood.

Deviance test (def) \[D \stackrel{\text{def}}{=}2(\ell_{\text{full}} - \ell(\hat{\beta}; \mathbf x)), \qquad D \ \dot{\sim} \ \chi^2(q - p)\]

Hosmer-Lemeshow test (def; $g$ groups by predicted probability) \[X^2 \stackrel{\text{def}}{=}\sum_{c=1}^g \frac{(o_c - e_c)^2}{e_c} \ \dot{\sim} \ \chi^2(g-2)\]

Pearson chi-squared GOF test (sum of squared Pearson residuals, def) \[X^2 = \sum_{k=1}^q X_k^2 \ \dot{\sim} \ \chi^2(q-p)\]

AIC and BIC [lower is better] (AIC [13]; BIC [14]) \[\text{AIC} = -2 \ell(\hat{\theta}) + 2p, \qquad \text{BIC} = -2 \ell(\hat{\theta}) + p {\operatorname{log}\mathopen{}\left\{n\right\}\mathclose{}}\]

Likelihood ratio test (def; for nested models with $p_0 < p_1$ parameters — here $\ell_1$ and $\ell_0$ are the two fitted models’ log-likelihoods, not the saturated model’s) \[\Lambda \stackrel{\text{def}}{=}2(\ell_1(\hat{\theta}_1) - \ell_0(\hat{\theta}_0)), \qquad \Lambda \ \dot{\sim} \ \chi^2(p_1 - p_0) \text{ under } H_0\] by Wilks’ theorem.

Residual-based diagnostics

Residuals are computed per covariate pattern $k$ (grouped data); $h_k$ denotes the leverage of pattern $k$ (def).

Response residual (def) \[e_k \stackrel{\text{def}}{=}\bar y_k - \hat{\pi}(x_k)\]

Pearson residual (and standardized version) (def, def) \[X_k \stackrel{\text{def}}{=}\frac{\bar y_k - \hat\pi_k}{\sqrt{\hat \pi_k (1-\hat\pi_k)/n_k}}, \qquad r_{P_k} \stackrel{\text{def}}{=}\frac{X_k}{\sqrt{1-h_k}}\]

Deviance residual (and standardized version) (def) \[d_k \stackrel{\text{def}}{=}\operatorname{sign}(y_k - n_k \hat \pi_k) {\mathopen{}\left\{\sqrt{2[\ell_{\text{full}}(x_k) - \ell(\hat{\beta}; x_k)]}\right\}\mathclose{}}, \qquad r_{D_k} \stackrel{\text{def}}{=}\frac{d_k}{\sqrt{1-h_k}}\]

Cook’s distance (def) \[D_k \stackrel{\text{def}}{=}\frac{(r_{P_k})^2}{p} \cdot \frac{h_k}{1 - h_k}\]

Leverage (def): $h_k$ is the $k$-th diagonal element of the weighted hat matrix (with $\mathbf{X}$ here the $q \times p$ design matrix of covariate patterns): \[\underbrace{\mathbf{H}}_{q \times q} \stackrel{\text{def}}{=} \underbrace{\mathbf{W}^{1/2}}_{q \times q} \underbrace{\mathbf{X}}_{q \times p} \mathopen{}\left(\underbrace{{\mathbf{X}}^{\top}\,\mathbf{W}\,\mathbf{X}}_{p \times p}\right)\mathclose{}^{-1} \underbrace{{\mathbf{X}}^{\top}}_{p \times q} \underbrace{\mathbf{W}^{1/2}}_{q \times q}, \qquad \underbrace{\mathbf{W}}_{q \times q} \stackrel{\text{def}}{=}\text{diag}\mathopen{}\left(n_k \, \hat\pi_k \, (1 - \hat\pi_k)\right)\mathclose{}\]

Comparing probabilities

Risk difference (def) \[\delta(\pi_1,\pi_2) \stackrel{\text{def}}{=}\pi_1 - \pi_2\]

Risk ratio (def) \[\rho(\pi_1,\pi_2) \stackrel{\text{def}}{=}\frac{\pi_1}{\pi_2}\]

Relative risk difference (def; equals RR minus 1 by thm) \[\xi(\pi_1,\pi_2) \stackrel{\text{def}}{=}\frac{\delta(\pi_1,\pi_2)}{\pi_2} = \rho(\pi_1,\pi_2) - 1\]

Marginal risks from logistic regression

Conditional predicted risk (def) \[\pi(a, z) \stackrel{\text{def}}{=}\Pr(Y = 1 \mid A = a, Z = z)\]

Conditional RD and RR (def, def) \[\text{RD}(z) \stackrel{\text{def}}{=}\pi(1, z) - \pi(0, z), \qquad \text{RR}(z) \stackrel{\text{def}}{=}\frac{\pi(1, z)}{\pi(0, z)}\]

Observed marginal risk (def; standardization form by thm) \[\pi(a) \stackrel{\text{def}}{=}\Pr(Y = 1 \mid A = a) = {\mathbb{E}\mathopen{}\left[\pi(a, Z) \mid A = a\right]\mathclose{}}\]

Potential mean and causal marginal risk (def, def; identification form by thm) \[\mu_a \stackrel{\text{def}}{=}{\mathbb{E}\mathopen{}\left[Y^a\right]\mathclose{}}, \qquad \pi_a \stackrel{\text{def}}{=}\Pr(Y^a = 1) = {\mathbb{E}\mathopen{}\left[\pi(a, Z)\right]\mathclose{}}\]

No confounding: observed = causal (cor; the two estimands are contrasted in rem) \[Z \perp\!\!\!\perp A \implies \pi(a) = \pi_a\]

G-computation estimator (def; consistent for $\pi_a$ by thm) \[\hat\pi_a \stackrel{\text{def}}{=}\frac{1}{n}\sum_{i=1}^n\hat\pi_{a,i}, \qquad \hat\pi_{a,i} \stackrel{\text{def}}{=}\hat\pi(a, z_i)\]

Predictive margins (def; full-sample form def is consistent for $\pi_a$ by cor) \[\widehat{\text{PM}}(a \mid S) \stackrel{\text{def}}{=}\frac{1}{|S|} \sum_{i \in S} \hat\pi_{a,i}, \qquad \widehat{\text{PM}}(a) \stackrel{\text{def}}{=}\frac{1}{n}\sum_{i=1}^n\hat\pi_{a,i} = \hat\pi_a\]

Exposed-subgroup predictive margin (def; consistent for $\pi(a)$ by thm; equals $\bar Y_a$ exactly by lem) \[\hat\pi_a(a) \stackrel{\text{def}}{=}\frac{1}{n_a} \sum_{i : A_i = a} \hat\pi_{a,i} = \bar Y_a\]

Observed marginal RD and RR (def, def) \[\text{OMRD} \stackrel{\text{def}}{=}\pi(1) - \pi(0), \qquad \text{OMRR} \stackrel{\text{def}}{=}\frac{\pi(1)}{\pi(0)}\]

Causal marginal RD and RR (def, def) \[\text{CMRD} \stackrel{\text{def}}{=}\pi_1 - \pi_0, \qquad \text{CMRR} \stackrel{\text{def}}{=}\frac{\pi_1}{\pi_0}\]

Bootstrap SE and CI for marginal contrasts (def; see Bootstrap Confidence Intervals and exm): resample the data with replacement $B$ times; refit the logistic model and recompute the marginal contrast on each resample; the bootstrap SE is the standard deviation of the $B$ estimates, and a 95% percentile CI uses their 2.5th and 97.5th percentiles.

Collapsibility (def): an estimand $\theta$ is collapsible with respect to $Z$ if \[\theta \stackrel{\text{def}}{=}{\mathbb{E}\mathopen{}\left[\theta(Z)\right]\mathclose{}}\] Risk differences are collapsible; risk ratios and odds ratios are not collapsible in general (thm; counterexample in exm).

References

[1]

A. J. Dobson and A. G. Barnett, An introduction to generalized linear models, 4th ed. CRC press, 2018. Available: https://doi.org/10.1201/9781315182780

[2]

E. Vittinghoff, D. V. Glidden, S. C. Shiboski, and C. E. McCulloch, Regression methods in biostatistics: Linear, logistic, survival, and repeated measures models, 2nd ed. Springer, 2012. Available: https://doi.org/10.1007/978-1-4614-1353-0

[3]

R. W. Nahhas, Introduction to regression methods for public health using R. CRC Press, 2024. Available: https://www.bookdown.org/rwnahhas/RMPH/

[4]

D. M. Rocke, “Epi 204 lecture notes, Spring 2021.” University of California, Davis, 2021. Available: https://dmrocke.ucdavis.edu/Class/EPI204-Spring-2021/EPI204-Spring-2021.html

[5]

J. Starmer, “StatQuest with Josh Starmer.” YouTube channel. Available: https://statquest.org/

[6]

R. McElreath, Statistical rethinking : A Bayesian course with examples in R and Stan, Second edition. in Chapman & hall/CRC texts in statistical science series. Boca Raton, FL: CRC Press, 2020.

[7]

R. McElreath, “Statistical rethinking 2026.” Lecture videos, YouTube, 2026. Available: https://github.com/rmcelreath/stat_rethinking_2026

[8]

C. I. Bliss, “The calculation of the dosage-mortality curve,” Annals of Applied Biology, vol. 22, no. 1, pp. 134–167, 1935, doi: 10.1111/j.1744-7348.1935.tb07713.x.

[9]

S. Boyd and L. Vandenberghe, Convex optimization. Cambridge, UK: Cambridge University Press, 2004. Available: https://web.stanford.edu/~boyd/cvxbook/

[10]

R. H. Rosenman, R. J. Brand, C. D. Jenkins, M. Friedman, R. Straus, and M. Wurm, “Coronary heart disease in the Western Collaborative Group Study: Final follow-up experience of 8 1/2 years,” JAMA, vol. 233, no. 8, pp. 872–877, 1975, doi: 10.1001/jama.1975.03260080034016.

[11]

D. W. Hosmer and S. Lemeshow, “Goodness of fit tests for the multiple logistic regression model,” Communications in Statistics — Theory and Methods, vol. 9, no. 10, pp. 1043–1069, 1980, Available: https://doi.org/10.1080/03610928008827941

[12]

D. W. Hosmer, T. Hosmer, S. Le Cessie, and S. Lemeshow, “A comparison of goodness-of-fit tests for the logistic regression model,” Statistics in Medicine, vol. 16, no. 9, pp. 965–980, 1997, Available: https://doi.org/10.1002/(SICI)1097-0258(19970515)16:9<965::AID-SIM509>3.0.CO;2-O

[13]

H. Akaike, “A new look at the statistical model identification,” IEEE Transactions on Automatic Control, vol. 19, no. 6, pp. 716–723, 1974, Available: https://doi.org/10.1109/TAC.1974.1100705

[14]

G. Schwarz, “Estimating the dimension of a model,” The Annals of Statistics, vol. 6, no. 2, pp. 461–464, 1978, Available: https://doi.org/10.1214/aos/1176344136

[15]

D. Pregibon, “Logistic regression diagnostics,” The Annals of Statistics, vol. 9, no. 4, pp. 705–724, 1981, Available: https://doi.org/10.1214/aos/1176345513

[16]

D. L. Sackett, J. J. Deeks, and D. G. Altman, “Down with odds ratios!” BMJ Evidence-Based Medicine, vol. 1, no. 6, p. 164, 1996.

[17]

E. C. Norton, B. E. Dowd, M. M. Garrido, and M. L. Maciejewski, “Requiem for odds ratios,” Health Services Research, vol. 59, no. 4, p. e14337, 2024, doi: https://doi.org/10.1111/1475-6773.14337.

[18]

M. A. Hernán and J. M. Robins, Causal inference: What if. Chapman & Hall/CRC, 2020. Available: https://www.hsph.harvard.edu/miguel-hernan/causal-inference-book/

[19]

J. Robins, “A new approach to causal inference in mortality studies with a sustained exposure period—application to control of the healthy worker survivor effect,” Mathematical Modelling, vol. 7, no. 9–12, pp. 1393–1512, 1986, doi: 10.1016/0270-0255(86)90088-6.

[20]

A. Agresti, Foundations of linear and generalized linear models. John Wiley & Sons, 2015. Available: https://www.wiley.com/en-us/Foundations+of+Linear+and+Generalized+Linear+Models-p-9781118730034

[21]

B. I. Graubard and E. L. Korn, “Predictive margins with survey data,” Biometrics, vol. 55, no. 2, pp. 652–659, 1999, doi: 10.1111/j.0006-341X.1999.00652.x.

[22]

P. W. Lane and J. A. Nelder, “Analysis of covariance and standardization as instances of prediction,” Biometrics, vol. 38, no. 3, pp. 613–621, 1982, doi: 10.2307/2530043.

[23]

T. Hastie, R. Tibshirani, and J. Friedman, The elements of statistical learning: Data mining, inference, and prediction, 2nd ed. Springer, 2009. doi: 10.1007/978-0-387-84858-7.

[24]

G. James, D. Witten, T. Hastie, and R. Tibshirani, An introduction to statistical learning: With applications in R, 2nd ed. Springer, 2021. doi: 10.1007/978-1-0716-1418-1.

[25]

B. Efron, “Bootstrap methods: Another look at the jackknife,” The Annals of Statistics, vol. 7, no. 1, pp. 1–26, 1979, Available: https://doi.org/10.1214/aos/1176344552

[26]

B. Efron and R. J. Tibshirani, An introduction to the bootstrap. in Monographs on statistics and applied probability, no. 57. New York: Chapman & Hall/CRC, 1993. Available: https://doi.org/10.1201/9780429246593

[27]

S. Greenland, J. M. Robins, and J. Pearl, “Confounding and collapsibility in causal inference,” Statistical Science, vol. 14, no. 1, pp. 29–46, 1999, Available: https://doi.org/10.1214/ss/1009211805

[28]

S. Greenland and J. M. Robins, “Identifiability, exchangeability, and epidemiological confounding,” International Journal of Epidemiology, vol. 15, no. 3, pp. 413–419, 1986, Available: https://doi.org/10.1093/ije/15.3.413

[29]

A. C. Davison and D. V. Hinkley, Bootstrap methods and their application. in Cambridge series in statistical and probabilistic mathematics, no. 1. Cambridge: Cambridge University Press, 1997. Available: https://doi.org/10.1017/CBO9780511802843

[30]

D. W. Hosmer, S. Lemeshow, and R. X. Sturdivant, Applied logistic regression. John Wiley & Sons, 2013. Available: https://onlinelibrary.wiley.com/doi/book/10.1002/9781118548387

[31]

P. K. Dunn and G. K. Smyth, Generalized linear models with examples in R, vol. 53. Springer, 2018. Available: https://link.springer.com/book/10.1007/978-1-4419-0118-7

Footnotes

or linear combinations of coefficients, depending on what covariate patterns you are contrasting↩︎

quantity	value
\(\hat\pi(1, 50)\)	0.129
\(\hat\pi(0, 50)\)	0.063
\(\widehat{\text{RD}}(50)\)	0.067
\(\widehat{\text{RR}}(50)\)	2.066

Configuring R

Acknowledgements

1 Introduction

1.0.1 Logistic regression versus linear regression

2 Introduction to logistic regression

2.0.1 Independent binary outcomes - general

2.0.2 Modeling \(\pi_i\) as a function of \(X_i\)

2.0.3 Meet the beetles

2.0.4 Why don’t we use linear regression?

2.0.5 Zoom out

2.0.6 log transformation of dose?

2.0.7 Logistic regression

2.0.8 Three parts to regression models

2.0.9 Fitting and manipulating logistic regression models in R

Fitted values

Count scale

Logit scale

Individual observations

3 Derivatives of logistic regression functions

3.0.1 Derivatives of odds function

3.0.2 Derivatives of inverse-odds function

3.0.3 Derivatives of logit function

3.0.4 Derivatives of expit function

3.0.5 Summary matrix of derivatives

4 Understanding logistic regression models

5 Estimating logistic regression models

5.1 Model

5.2 Likelihood function

5.3 Log-likelihood function

5.4 Score function

5.5 Hessian function

6 Inference for logistic regression models

6.1 Inference for individual predictor coefficients

6.1.1 Wald tests and confidence intervals

Wald test statistic

Confidence intervals for regression coefficients

Confidence intervals for exponentiated coefficients

In R

6.2 Inference for predicted probabilities

6.3 Inference for odds ratios

7 Multiple logistic regression

7.0.1 Coronary heart disease (WCGS) study data

Study design

7.0.2 Baseline data collection

7.0.3 Load the data

7.0.4 Data cleaning

7.0.5 What’s in the data

7.0.6 Data by age and personality type

7.0.7 Graphical exploration

7.1 Odds scale

7.2 Log-odds (logit) scale

7.2.1 Logistic regression models for CHD data

7.2.2 Models superimposed on data

probability scale

odds scale

log-odds (logit) scale

7.2.3 Interpreting the model parameters

7.2.4 Interpreting the model parameter estimates

7.2.5 Stratified parametrization

8 Model comparisons for logistic models

8.0.1 Deviance test

8.0.2 Hosmer-Lemeshow test

8.0.3 Comparing models

9 Residual-based diagnostics

9.0.1 Logistic regression residuals only work for grouped data

9.0.2 (Response) residuals

Response residual

9.0.3 Pearson residuals

Pearson residuals with individual (ungrouped) data

Residuals plot by hand

Pearson chi-squared goodness of fit test

9.0.4 Deviance residuals

Standardized deviance residuals

9.0.5 Diagnostic plots

Cook’s distance for a GLM

10 Alternatives to reporting odds ratios

10.1 Objections to odds ratios

10.2 Deriving risk ratios and risk differences from logistic regression models

10.2.1 Computing marginal risk differences

Conceptual approach
