Introduction to Maximum Likelihood Inference

Published

Last modified: 2026-10-06 17:48:05 (PDT)

1 Overview of maximum likelihood estimation

These notes are derived primarily from (Dobson and Barnett 2018, chaps. 1–5), with some material from (McLachlan and Krishnan 2007) and (Casella and Berger 2002).

1.1 The likelihood function

Definition 1 (Likelihood of a single observation) Let \(X\) be a random variable, with observed value \(x\), and let \(\operatorname{p}_{\Theta}(X = x)\) be a probability model for the distribution of \(X\), with parameter vector \(\Theta\). The likelihood of the parameter value \(\theta\), for model \(\operatorname{p}_{\Theta}(X = x)\) and data \(X = x\), is the probability of the event \(X = x\) when \(\Theta= \theta\):

\[\mathcal{L}(\theta) \stackrel{\text{def}}{=}\operatorname{p}_{\theta}(X = x)\]

For a continuous random variable, the likelihood is the probability density of \(X\) at \(x\) instead.

Example 1 (Likelihood of one Bernoulli observation) If \(X \sim \operatorname{Ber}(\pi)\), then \(\operatorname{p}_{\pi}(X = x) = \pi^x (1 - \pi)^{1 - x}\) for \(x \in \mathopen{}\left\{0, 1\right\}\mathclose{}\). If we observe \(x = 1\), the likelihood is \(\mathcal{L}(\pi) = \pi\): for example, \(\mathcal{L}(0.2) = 0.2\) and \(\mathcal{L}(0.7) = 0.7\), so the observation \(x = 1\) is more likely under \(\pi = 0.7\) than under \(\pi = 0.2\).

Definition 2 (Likelihood of a dataset) Let \(\tilde{x}\stackrel{\text{def}}{=}x_1, \ldots, x_n\) be a dataset with corresponding random vector \(\tilde{X}\), and let \(\operatorname{p}_{\Theta}(\tilde{X}= \tilde{x})\) be a probability model for the distribution of \(\tilde{X}\), with unknown parameter vector \(\Theta\). The likelihood of the parameter value \(\theta\), for model \(\operatorname{p}_{\Theta}\) and data \(\tilde{X}= \tilde{x}\), is the joint probability (or joint density) of \(\tilde{X}= \tilde{x}\) when \(\Theta= \theta\):

\[ \begin{aligned} \mathcal{L}(\theta) &\stackrel{\text{def}}{=}\operatorname{p}(\tilde{X}= \tilde{x}\mid \Theta = \theta) && \text{(definition of the likelihood)}\\ &= \operatorname{p}(X_1 = x_1, \ldots, X_n = x_n \mid \Theta = \theta) && \text{(write $\tilde{X}= \tilde{x}$ componentwise)} \end{aligned} \]

NoteNotation for the likelihood function

Sources write the likelihood function in several ways, all meaning the same function:

  • \(\mathcal{L}(\theta)\);
  • \(\mathcal{L}(\tilde{x}; \theta)\) or \(\mathcal{L}(\theta; \tilde{x})\);
  • \(\mathcal{L}_{\tilde{x}}(\theta)\) or \(\mathcal{L}_{\theta}(\tilde{x})\);
  • \(\mathcal{L}(\tilde{x}\mid \theta)\).

These notes mostly write \(\mathcal{L}(\theta)\), leaving the data implicit, to emphasize that the likelihood is a function of the parameters, with the data held fixed at their observed values.

Exercise 1 (Likelihood of an independent sample) For mutually independent data \(X_1, \ldots, X_n\), write the likelihood \(\mathcal{L}(\theta)\) in terms of the distributions of the individual \(X_i\).

Solution 1. \[ \begin{aligned} \mathcal{L}(\theta) &\stackrel{\text{def}}{=}\operatorname{p}(X_1 = x_1, \ldots, X_n = x_n \mid \theta) && \text{(definition of likelihood)}\\ &= \prod_{i=1}^n \operatorname{p}(X_i = x_i \mid \theta) && \text{(definition of mutual independence)} \end{aligned} \]

Theorem 1 (Likelihood of an independent sample) For mutually independent data \(X_1, \ldots, X_n\):

\[\mathcal{L}(\theta) = \prod_{i=1}^n \operatorname{p}(X_i = x_i \mid \theta) \tag{1}\]

Proof. This is the solution to Exercise 1.

Definition 3 (Likelihood components) For a dataset \(\tilde{x}\) of mutually independent observations, the likelihood component (or likelihood factor) of observation \(X_i = x_i\) is the likelihood of that observation alone:

\[\mathcal{L}_i(\theta) \stackrel{\text{def}}{=}\operatorname{p}(X_i = x_i \mid \theta)\]

Exercise 2 (Dataset likelihood from likelihood components) For mutually independent data \(\tilde{x}\stackrel{\text{def}}{=}x_1, \ldots, x_n\), use Theorem 1 to write the likelihood of the dataset in terms of the observations’ likelihood components.

Solution 2. \[ \begin{aligned} \mathcal{L}(\theta) &= \prod_{i=1}^n \operatorname{p}(X_i = x_i \mid \theta) && \text{(likelihood of an independent sample)}\\ &= \prod_{i=1}^n\mathcal{L}_i(\theta) && \text{(definition of likelihood components)} \end{aligned} \]

Theorem 2 (Dataset likelihood as a product of observation likelihoods) For mutually independent data \(\tilde{x}\stackrel{\text{def}}{=}x_1, \ldots, x_n\), the likelihood of the dataset is the product of the observations’ likelihood components:

\[\mathcal{L}(\theta) = \prod_{i=1}^n\mathcal{L}_i(\theta)\]

Proof. This is the solution to Exercise 2.

Exercise 3 (Likelihood of binary outcomes with one event probability) A binary outcome \(Y\) with event probability \(\pi\) has

\[ \begin{aligned} \Pr(Y = 1) &= \pi && \text{(definition of the event probability)}\\ \Pr(Y = 0) &= 1 - \pi && \text{(complement rule)}\\ \Pr(Y = y) &= \pi^y (1 - \pi)^{1 - y}, \quad y \in \mathopen{}\left\{0, 1\right\}\mathclose{} && \text{(combine the two cases)} \end{aligned} \]

Let \(\tilde{y}\stackrel{\text{def}}{=}(y_1, \ldots, y_n)\) be a dataset of mutually independent binary outcomes, all with the same event probability \(\pi\): \(Y_i \ \sim_{\perp\!\!\!\perp}\ \operatorname{Ber}(\pi)\). Write the likelihood of \(\tilde{y}\).

Solution 3. \[ \begin{aligned} \mathcal{L}(\pi; \tilde{y}) &= \prod_{i=1}^n \mathcal{L}_i(\pi) && \text{(product of likelihood components)}\\ &= \prod_{i=1}^n \Pr(Y_i = y_i) && \text{(definition of likelihood components)}\\ &= \prod_{i=1}^n\pi^{y_i} (1 - \pi)^{1 - y_i} && \text{(Bernoulli PMF)}\\ &= \mathopen{}\left(\prod_{i=1}^n\pi^{y_i}\right)\mathclose{} \mathopen{}\left(\prod_{i=1}^n(1 - \pi)^{1 - y_i}\right)\mathclose{} && \text{(regroup the factors of the product)}\\ &= \pi^{\sum_{i=1}^ny_i} (1 - \pi)^{\sum_{i=1}^n(1 - y_i)} && \text{(product of powers of a common base)}\\ &= \pi^{\sum_{i=1}^ny_i} (1 - \pi)^{\sum_{i=1}^n1 - \sum_{i=1}^ny_i} && \text{(split the sum in the exponent)}\\ &= \pi^{\sum_{i=1}^ny_i} (1 - \pi)^{n - \sum_{i=1}^ny_i} && \text{($\textstyle\sum_{i=1}^n1 = n$)} \end{aligned} \]

1.2 The maximum likelihood estimate

Definition 4 (Maximum likelihood estimate) The maximum likelihood estimate (MLE) of a parameter vector \(\Theta\), written \(\hat\theta_{\text{ML}}\), is the value of \(\Theta\) that maximizes the likelihood:

\[\hat\theta_{\text{ML}}\stackrel{\text{def}}{=}\arg \max_\Theta\mathcal{L}(\Theta) \tag{2}\]

Example 2 (MLE for one Bernoulli observation) In Example 1, the likelihood of the observation \(x = 1\) is \(\mathcal{L}(\pi) = \pi\) for \(\pi \in [0, 1]\). This function is increasing, so it is maximized at the upper edge of the parameter space: \(\hat\pi_{\text{ML}} = 1\).

1.3 Finding the maximum of a function

Definition 5 (Critical point) A critical point of a differentiable function \(f\) is an input value \(x_0\) where the derivative of \(f\) is zero, or, for a function of a vector, a point \(\tilde{x}_0\) where the gradient \(f'\) of \(f\) is the zero vector:

\[ \begin{aligned} f'(x_0) &= 0 && \text{(scalar input)}\\ f'(\tilde{x}_0) &= \tilde{0}&& \text{(vector input)} \end{aligned} \]

From calculus: if \(f(x)\) is differentiable, its maximum over an interval of input values can occur only at an endpoint of the interval or at a critical point. At a critical point \(x_0\), \(f''(x_0) < 0\) is sufficient for \(x_0\) to be a local maximum, but not necessary: \(f(x) = -x^4\) has a maximum at \(x_0 = 0\), where \(f''(0) = 0\). For a function of a vector, a negative definite Hessian matrix at a critical point is sufficient for a local maximum.

1.4 Directly maximizing the likelihood function for independent data

To find the maximizer of the likelihood function, we solve \(\mathcal{L}'(\theta) = 0\) for \(\theta\). For mutually independent data, Equation 1 gives:

\[ \begin{aligned} \mathcal{L}'(\theta) &= \frac{\partial}{\partial \theta} \mathcal{L}(\theta) && \text{(notation for the derivative)}\\ &= \frac{\partial}{\partial \theta} \prod_{i=1}^n \operatorname{p}(X_i = x_i \mid \theta) && \text{(likelihood of mutually independent data)} \end{aligned} \tag{3}\]

Equation 3 is the derivative of a product of \(n\) factors, which takes \(n - 1\) applications of the product rule and produces \(n\) terms. The log-likelihood avoids this work.

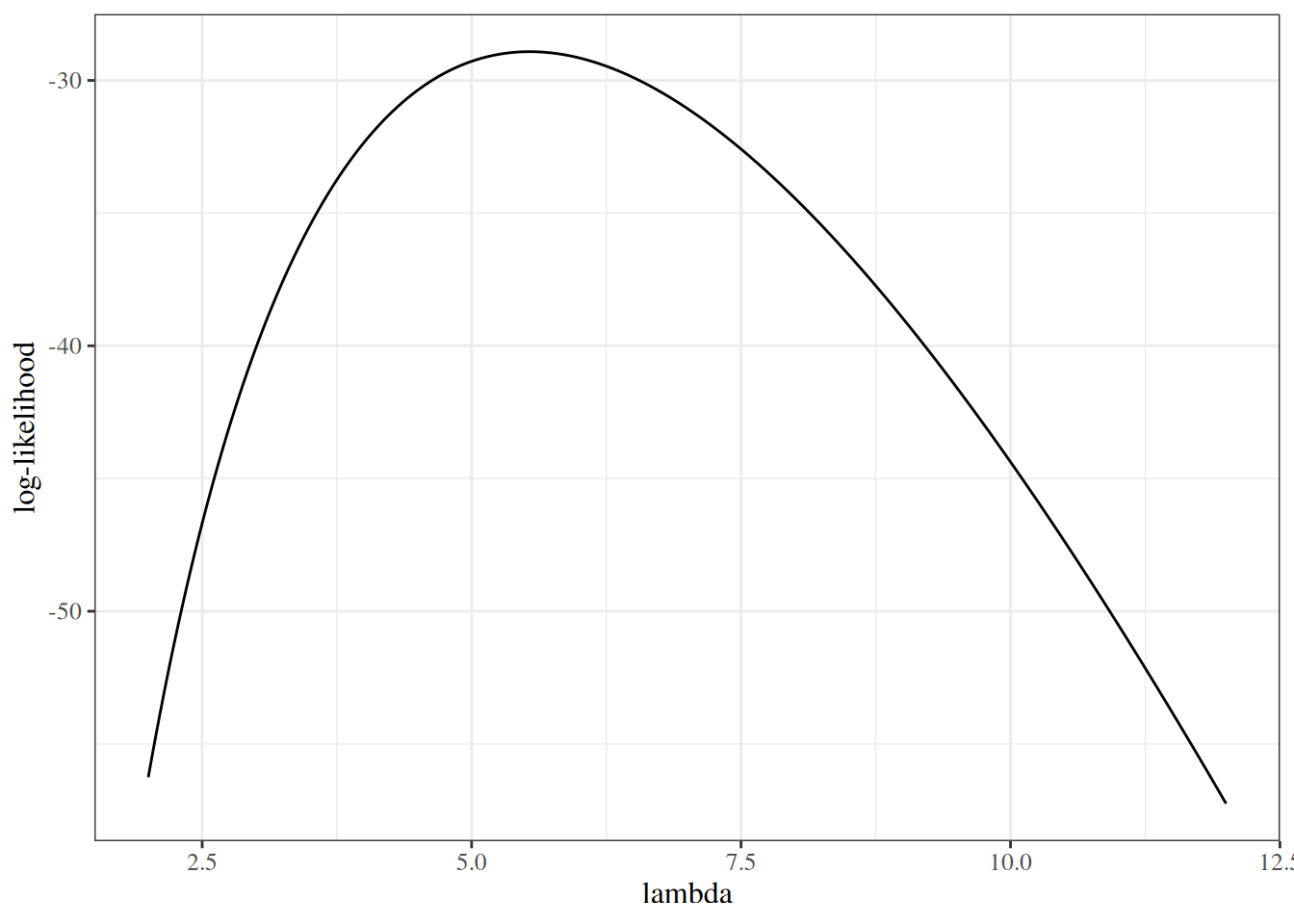

1.5 The log-likelihood function

Definition 6 (Log-likelihood) The log-likelihood of parameter value \(\theta\), for model \(\operatorname{p}_{\Theta}(\tilde{X})\) and data \(\tilde{X}= \tilde{x}\), is the natural logarithm of the likelihood:

\[\ell\stackrel{\text{def}}{=}\operatorname{log}\mathopen{}\left\{\mathcal{L}(\tilde{x}|\theta)\right\}\mathclose{} \tag{4}\]

Example 3 (Log-likelihood of one Bernoulli observation) In Example 1, \(\mathcal{L}(\pi) = \pi\), so \(\ell(\pi) = \log \pi\); for example, \(\ell(0.7) = \log 0.7 \approx -0.357\).

Exercise 4 (Comparing likelihoods through log-likelihoods) Suppose \(\mathcal{L}(\theta) > 0\) for every \(\theta\). Show that a parameter value \(\theta^*\) maximizes the likelihood \(\mathcal{L}\) if and only if it maximizes the log-likelihood \(\ell\).

Solution 4. The natural logarithm is strictly increasing on \((0, \infty)\), so for any \(\theta_1\) and \(\theta_2\), \(\mathcal{L}(\theta_1) \ge \mathcal{L}(\theta_2)\) if and only if \(\log \mathcal{L}(\theta_1) \ge \log \mathcal{L}(\theta_2)\), that is, \(\ell(\theta_1) \ge \ell(\theta_2)\). So \(\theta^*\) satisfies \(\mathcal{L}(\theta^*) \ge \mathcal{L}(\theta)\) for every \(\theta\) if and only if it satisfies \(\ell(\theta^*) \ge \ell(\theta)\) for every \(\theta\).

Theorem 3 (Maximize the log-likelihood instead of the likelihood) If \(\mathcal{L}(\theta) > 0\) for every \(\theta\), the likelihood and log-likelihood have the same maximizers:

\[ \arg \max_\theta\mathcal{L}(\theta) = \arg \max_\theta\ell(\theta) \]

Proof. This is the solution to Exercise 4.

Exercise 5 (Log-likelihood of an independent sample) For mutually independent data \(X_1, \ldots, X_n\), use Theorem 1 to write the log-likelihood \(\ell(\theta)\) as a sum over the observations. What does each term become if the \(X_i\) also share a common distribution \(\operatorname{p}(X = x \mid \theta)\)?

Solution 5. \[ \begin{aligned} \ell(\theta) &\stackrel{\text{def}}{=}\log{\mathcal{L}(\theta)} && \text{(definition of log-likelihood)}\\ &= \log{\prod_{i=1}^n \operatorname{p}(X_i = x_i \mid \theta)} && \text{(likelihood of an independent sample)}\\ &= \sum_{i=1}^n \log{\operatorname{p}(X_i = x_i \mid \theta)} && \text{(log of a product is a sum of logs)} \end{aligned} \]

With a common distribution, \(\operatorname{p}(X_i = x_i \mid \theta) = \operatorname{p}(X = x_i \mid \theta)\), so each term is \(\log{\operatorname{p}(X = x_i \mid \theta)}\).

Theorem 4 (Log-likelihood of an independent sample) For mutually independent data \(X_1, \ldots, X_n\):

\[\ell(\theta) = \sum_{i=1}^n \log{\operatorname{p}(X_i = x_i \mid \theta)} \tag{5}\]

If the \(X_i\) also share a common distribution \(\operatorname{p}(X = x \mid \theta)\), each term is \(\log{\operatorname{p}(X = x_i \mid \theta)}\).

Proof. This is the solution to Exercise 5.

Exercise 6 (Derivative of the log-likelihood for \(\operatorname{iid}\) data) For \(\operatorname{iid}\) data, use Theorem 4 to write the derivative \(\ell'(\theta)\) of the log-likelihood as a sum over the observations.

Solution 6. \[ \begin{aligned} \ell'(\theta) &= \frac{\partial}{\partial \theta} \ell(\theta) && \text{(notation for the derivative)}\\ &= \frac{\partial}{\partial \theta} \sum_{i=1}^n \log{\operatorname{p}(X = x_i \mid \theta)} && \text{(log-likelihood of an $\operatorname{iid}$ sample)}\\ &= \sum_{i=1}^n \frac{\partial}{\partial \theta} \log{\operatorname{p}(X = x_i \mid \theta)} && \text{(derivative of a sum is the sum of derivatives)} \end{aligned} \]

Unlike Equation 3, each term involves only one observation, so no product rule is needed.

Theorem 5 (Derivative of the log-likelihood function for \(\operatorname{iid}\) data) For \(\operatorname{iid}\) data:

\[\ell'(\theta) = \sum_{i=1}^n\frac{\partial}{\partial \theta} \log{\operatorname{p}(X = x_i \mid \theta)} \tag{6}\]

Proof. This is the solution to Exercise 6.

Exercise 7 (Log-likelihood of binary outcomes with one event probability) Write the log-likelihood of \(\tilde{y}\) from Exercise 3.

Solution 7. Starting from the likelihood in Solution 3:

\[ \begin{aligned} \ell(\pi; \tilde{y}) &= \operatorname{log}\mathopen{}\left\{\pi^{\sum_{i=1}^ny_i} (1 - \pi)^{n - \sum_{i=1}^ny_i}\right\}\mathclose{} && \text{(log of the likelihood)}\\ &= \operatorname{log}\mathopen{}\left\{\pi^{\sum_{i=1}^ny_i}\right\}\mathclose{} + \operatorname{log}\mathopen{}\left\{(1 - \pi)^{n - \sum_{i=1}^ny_i}\right\}\mathclose{} && \text{(log of a product)}\\ &= \mathopen{}\left(\sum_{i=1}^ny_i\right)\mathclose{} \operatorname{log}\mathopen{}\left\{\pi\right\}\mathclose{} + \mathopen{}\left(n - \sum_{i=1}^ny_i\right)\mathclose{} \operatorname{log}\mathopen{}\left\{1 - \pi\right\}\mathclose{} && \text{(log of a power)}\\ &= \mathopen{}\left(\sum_{i=1}^ny_i\right)\mathclose{} \operatorname{log}\mathopen{}\left\{\pi\right\}\mathclose{} + n \operatorname{log}\mathopen{}\left\{1 - \pi\right\}\mathclose{} - \mathopen{}\left(\sum_{i=1}^ny_i\right)\mathclose{} \operatorname{log}\mathopen{}\left\{1 - \pi\right\}\mathclose{} && \text{(distribute $\operatorname{log}\mathopen{}\left\{1 - \pi\right\}\mathclose{}$)}\\ &= \mathopen{}\left(\sum_{i=1}^ny_i\right)\mathclose{} \operatorname{log}\mathopen{}\left\{\pi\right\}\mathclose{} - \mathopen{}\left(\sum_{i=1}^ny_i\right)\mathclose{} \operatorname{log}\mathopen{}\left\{1 - \pi\right\}\mathclose{} + n \operatorname{log}\mathopen{}\left\{1 - \pi\right\}\mathclose{} && \text{(reorder the terms)}\\ &= \mathopen{}\left(\sum_{i=1}^ny_i\right)\mathclose{} \mathopen{}\left(\operatorname{log}\mathopen{}\left\{\pi\right\}\mathclose{} - \operatorname{log}\mathopen{}\left\{1 - \pi\right\}\mathclose{}\right)\mathclose{} + n \operatorname{log}\mathopen{}\left\{1 - \pi\right\}\mathclose{} && \text{(collect the terms in $\textstyle\sum_{i=1}^ny_i$)}\\ &= \mathopen{}\left(\sum_{i=1}^ny_i\right)\mathclose{} \operatorname{log}\mathopen{}\left\{\frac{\pi}{1 - \pi}\right\}\mathclose{} + n \operatorname{log}\mathopen{}\left\{1 - \pi\right\}\mathclose{} && \text{(log of a quotient)}\\ &= \mathopen{}\left(\sum_{i=1}^ny_i\right)\mathclose{} \operatorname{logit}(\pi) + n \operatorname{log}\mathopen{}\left\{1 - \pi\right\}\mathclose{} && \text{(definition of $\operatorname{logit}$)} \end{aligned} \]

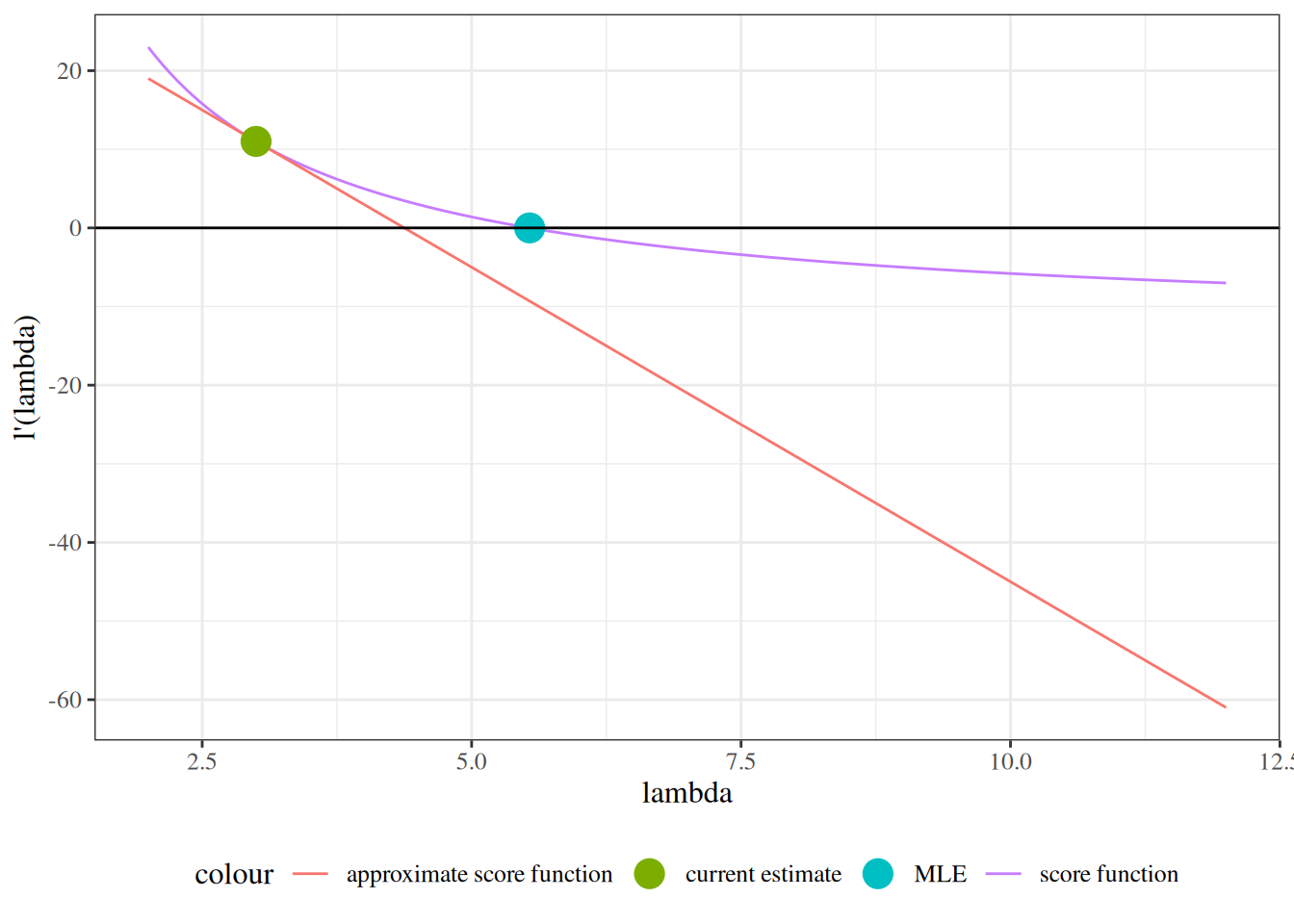

1.6 The score function

Definition 7 (Score function) The score function of a statistical model \(\operatorname{p}(\tilde{X}= \tilde{x})\) is the gradient (vector of first derivatives) of the model’s log-likelihood with respect to the parameters:

\[\ell'\stackrel{\text{def}}{=}\frac{\partial}{\partial \theta} \ell(\tilde{x}|\theta) \tag{7}\]

We often omit the arguments \(\tilde{x}\) and \(\theta\), writing \(\ell' \stackrel{\text{def}}{=}\ell'(\tilde{x}\mid \theta) \stackrel{\text{def}}{=}\ell'(\theta)\). Some sources write \(U\) or \(S\) for the score function instead of \(\ell'\); for example, Dobson and Barnett (2018) write \(U\). These notes use \(\ell'\), which keeps \(U\) and \(S\) free for other uses and needs no extra symbol to memorize.

Exercise 8 (Score function of a Bernoulli variable) Derive the score function for a single Bernoulli random variable \(X\). In other words, differentiate the log-likelihood of a single Bernoulli random variable \(X\) with respect to the event probability parameter \(\pi\). Simplify as much as possible.

Solution 8. With \(n = 1\), Solution 7 gives \(\ell= x \operatorname{log}\mathopen{}\left\{\pi\right\}\mathclose{} + (1 - x) \operatorname{log}\mathopen{}\left\{1 - \pi\right\}\mathclose{}\), so:

\[ \begin{aligned} \ell' &\stackrel{\text{def}}{=}\frac{\partial}{\partial \pi} \ell && \text{(definition of the score)}\\ &= \frac{\partial}{\partial \pi} \mathopen{}\left(x \operatorname{log}\mathopen{}\left\{\pi\right\}\mathclose{} + (1 - x) \operatorname{log}\mathopen{}\left\{1 - \pi\right\}\mathclose{}\right)\mathclose{} && \text{(Bernoulli log-likelihood)}\\ &= \frac{\partial}{\partial \pi} \mathopen{}\left(x \operatorname{log}\mathopen{}\left\{\pi\right\}\mathclose{}\right)\mathclose{} + \frac{\partial}{\partial \pi} \mathopen{}\left((1 - x) \operatorname{log}\mathopen{}\left\{1 - \pi\right\}\mathclose{}\right)\mathclose{} && \text{(linearity of differentiation)}\\ &= x \frac{\partial}{\partial \pi} \operatorname{log}\mathopen{}\left\{\pi\right\}\mathclose{} + (1 - x) \frac{\partial}{\partial \pi} \operatorname{log}\mathopen{}\left\{1 - \pi\right\}\mathclose{} && \text{(constant multiple rule)}\\ &= x \frac{1}{\pi} + (1 - x) \frac{\partial}{\partial \pi} \operatorname{log}\mathopen{}\left\{1 - \pi\right\}\mathclose{} && \text{(derivative of $\log$)}\\ &= x \frac{1}{\pi} + (1 - x) \frac{1}{1 - \pi} \frac{\partial}{\partial \pi}(1 - \pi) && \text{(chain rule)} \end{aligned} \]

The inner derivative is:

\[ \begin{aligned} \frac{\partial}{\partial \pi}(1 - \pi) &= \frac{\partial}{\partial \pi} 1 - \frac{\partial}{\partial \pi} \pi && \text{(linearity of differentiation)}\\ &= 0 - \frac{\partial}{\partial \pi} \pi && \text{(derivative of a constant)}\\ &= 0 - 1 && \text{(derivative of $\pi$ with respect to itself)}\\ &= -1 && \text{(subtract)} \end{aligned} \]

Substituting the inner derivative back in:

\[ \begin{aligned} \ell' &= x \frac{1}{\pi} + (1 - x) \frac{1}{1 - \pi} (-1) && \text{(inner derivative is $-1$)}\\ &= x \frac{1}{\pi} - (1 - x) \frac{1}{1 - \pi} && \text{(multiply by $-1$)}\\ &= \frac{x}{\pi} - \frac{1 - x}{1 - \pi} && \text{(multiply)}\\ &= \frac{x(1 - \pi)}{\pi(1 - \pi)} - \frac{(1 - x)\pi}{\pi(1 - \pi)} && \text{(write both terms over the common denominator)}\\ &= \frac{x(1 - \pi) - (1 - x)\pi}{\pi(1 - \pi)} && \text{(combine the fractions)}\\ &= \frac{x - x\pi - \pi + x\pi}{\pi(1 - \pi)} && \text{(expand the numerator)}\\ &= \frac{x - \pi}{\pi(1 - \pi)} && \text{(cancel $x\pi$)}\\ &= \frac{x - \operatorname{E}\mathopen{}\left[X\right]\mathclose{}}{\pi(1 - \pi)} && \text{($\operatorname{E}\mathopen{}\left[X\right]\mathclose{} = \pi$)}\\ &= \frac{x - \operatorname{E}\mathopen{}\left[X\right]\mathclose{}}{\operatorname{Var}\mathopen{}\left(X\right)\mathclose{}} && \text{($\operatorname{Var}\mathopen{}\left(X\right)\mathclose{} = \pi(1 - \pi)$)} \end{aligned} \]

Exercise 9 (Score function of a Poisson variable) Derive the score function for a single Poisson random variable \(X\), with respect to its mean parameter \({\lambda}\).

Solution 9. The log-likelihood of one Poisson observation is \(\ell= x \operatorname{log}\mathopen{}\left\{{\lambda}\right\}\mathclose{} - {\lambda}- \operatorname{log}\mathopen{}\left\{x!\right\}\mathclose{}\), so:

\[ \begin{aligned} \ell' &\stackrel{\text{def}}{=}\frac{\partial}{\partial {\lambda}}\ell && \text{(definition of the score)}\\ &= \frac{\partial}{\partial {\lambda}}\mathopen{}\left(x\operatorname{log}\mathopen{}\left\{{\lambda}\right\}\mathclose{} - {\lambda}- \operatorname{log}\mathopen{}\left\{x!\right\}\mathclose{}\right)\mathclose{} && \text{(Poisson log-likelihood)}\\ &= \frac{\partial}{\partial {\lambda}}\mathopen{}\left(x\operatorname{log}\mathopen{}\left\{{\lambda}\right\}\mathclose{}\right)\mathclose{} - \frac{\partial}{\partial {\lambda}}{\lambda}- \frac{\partial}{\partial {\lambda}}\operatorname{log}\mathopen{}\left\{x!\right\}\mathclose{} && \text{(linearity of differentiation)}\\ &= \frac{\partial}{\partial {\lambda}}\mathopen{}\left(x\operatorname{log}\mathopen{}\left\{{\lambda}\right\}\mathclose{}\right)\mathclose{} - \frac{\partial}{\partial {\lambda}}{\lambda}- 0 && \text{(derivative of a constant)}\\ &= \frac{\partial}{\partial {\lambda}}\mathopen{}\left(x\operatorname{log}\mathopen{}\left\{{\lambda}\right\}\mathclose{}\right)\mathclose{} - \frac{\partial}{\partial {\lambda}}{\lambda} && \text{(drop the zero term)}\\ &= x\frac{\partial}{\partial {\lambda}}\operatorname{log}\mathopen{}\left\{{\lambda}\right\}\mathclose{} - \frac{\partial}{\partial {\lambda}}{\lambda} && \text{(constant multiple rule)}\\ &= x{\lambda}^{-1} - \frac{\partial}{\partial {\lambda}}{\lambda} && \text{(derivative of $\log {\lambda}$)}\\ &= x{\lambda}^{-1} - 1 && \text{(derivative of ${\lambda}$ with respect to itself)}\\ &= \frac{x}{{\lambda}} - 1 && \text{(write the negative power as a fraction)}\\ &= \frac{x}{{\lambda}} - \frac{{\lambda}}{{\lambda}} && \text{(write both terms over the common denominator)}\\ &= \frac{x - {\lambda}}{{\lambda}} && \text{(combine the fractions)}\\ &= \frac{x - \operatorname{E}\mathopen{}\left[X\right]\mathclose{}}{{\lambda}} && \text{($\operatorname{E}\mathopen{}\left[X\right]\mathclose{} = {\lambda}$)}\\ &= \frac{x - \operatorname{E}\mathopen{}\left[X\right]\mathclose{}}{\operatorname{Var}\mathopen{}\left(X\right)\mathclose{}} && \text{($\operatorname{Var}\mathopen{}\left(X\right)\mathclose{} = {\lambda}$)} \end{aligned} \]

Exercise 10 (Score function of a Gaussian variable) Derive the score function for a single Gaussian random variable \(X\), with respect to the mean parameter \(\mu\), treating the variance \(\sigma^2\) as known.

Solution 10. \[ \begin{aligned} \ell' &\stackrel{\text{def}}{=}\frac{\partial}{\partial \mu}\ell && \text{(definition of the score)}\\ &= \frac{\partial}{\partial \mu}\mathopen{}\left(\frac{-1}{2}\mathopen{}\left(\operatorname{log}\mathopen{}\left\{2\pi\sigma^2\right\}\mathclose{} + \frac{(x - \mu)^2}{\sigma^2}\right)\mathclose{}\right)\mathclose{} && \text{(Gaussian log-likelihood)}\\ &= \frac{-1}{2}\frac{\partial}{\partial \mu}\mathopen{}\left(\operatorname{log}\mathopen{}\left\{2\pi\sigma^2\right\}\mathclose{} + \frac{(x - \mu)^2}{\sigma^2}\right)\mathclose{} && \text{(constant multiple rule)}\\ &= \frac{-1}{2}\mathopen{}\left(\frac{\partial}{\partial \mu}\operatorname{log}\mathopen{}\left\{2\pi\sigma^2\right\}\mathclose{} + \frac{\partial}{\partial \mu}\frac{(x - \mu)^2}{\sigma^2}\right)\mathclose{} && \text{(linearity of differentiation)}\\ &= \frac{-1}{2}\mathopen{}\left(0 + \frac{\partial}{\partial \mu}\frac{(x - \mu)^2}{\sigma^2}\right)\mathclose{} && \text{(derivative of a constant)}\\ &= \frac{-1}{2}\mathopen{}\left(0 + \frac{1}{\sigma^2}\frac{\partial}{\partial \mu}(x - \mu)^2\right)\mathclose{} && \text{(constant multiple rule)}\\ &= \frac{-1}{2}\mathopen{}\left(0 + \frac{1}{\sigma^2} \cdot 2(x - \mu) \frac{\partial}{\partial \mu}(x - \mu)\right)\mathclose{} && \text{(chain rule, outer function $u^2$)} \end{aligned} \]

The inner derivative is:

\[ \begin{aligned} \frac{\partial}{\partial \mu}(x - \mu) &= \frac{\partial}{\partial \mu} x - \frac{\partial}{\partial \mu} \mu && \text{(linearity of differentiation)}\\ &= 0 - \frac{\partial}{\partial \mu} \mu && \text{($x$ does not depend on $\mu$)}\\ &= 0 - 1 && \text{(derivative of $\mu$ with respect to itself)}\\ &= -1 && \text{(subtract)} \end{aligned} \]

Substituting the inner derivative back in:

\[ \begin{aligned} \ell' &= \frac{-1}{2}\mathopen{}\left(0 + \frac{1}{\sigma^2} \cdot 2(x - \mu) \cdot (-1)\right)\mathclose{} && \text{(inner derivative is $-1$)}\\ &= \frac{-1}{2}\mathopen{}\left(0 + \frac{-2(x - \mu)}{\sigma^2}\right)\mathclose{} && \text{(multiply)}\\ &= \frac{-1}{2} \cdot \frac{-2(x - \mu)}{\sigma^2} && \text{(drop the zero term)}\\ &= \frac{x - \mu}{\sigma^2} && \text{(multiply)}\\ &= \frac{x - \operatorname{E}\mathopen{}\left[X\right]\mathclose{}}{\sigma^2} && \text{($\operatorname{E}\mathopen{}\left[X\right]\mathclose{} = \mu$)}\\ &= \frac{x - \operatorname{E}\mathopen{}\left[X\right]\mathclose{}}{\operatorname{Var}\mathopen{}\left(X\right)\mathclose{}} && \text{($\operatorname{Var}\mathopen{}\left(X\right)\mathclose{} = \sigma^2$)} \end{aligned} \]

Exercise 11 (Score function of an exponential variable) Derive the score function for a single exponential random variable \(X\), with respect to the mean parameter \(\mu\).

Solution 11. The exponential density with mean \(\mu\) is \(\operatorname{p}(X = x) = \mu^{-1} e^{-x/\mu}\) for \(x > 0\), so \(\ell= -\operatorname{log}\mathopen{}\left\{\mu\right\}\mathclose{} - \frac{x}{\mu}\), and:

\[ \begin{aligned} \ell' &\stackrel{\text{def}}{=}\frac{\partial}{\partial \mu}\ell && \text{(definition of the score)}\\ &= \frac{\partial}{\partial \mu}\mathopen{}\left(-\operatorname{log}\mathopen{}\left\{\mu\right\}\mathclose{} - \frac{x}{\mu}\right)\mathclose{} && \text{(exponential log-likelihood)}\\ &= \frac{\partial}{\partial \mu}\mathopen{}\left(-\operatorname{log}\mathopen{}\left\{\mu\right\}\mathclose{} - x \mu^{-1}\right)\mathclose{} && \text{(write $\frac{x}{\mu}$ as $x \mu^{-1}$)}\\ &= \frac{\partial}{\partial \mu}\mathopen{}\left(-\operatorname{log}\mathopen{}\left\{\mu\right\}\mathclose{}\right)\mathclose{} - \frac{\partial}{\partial \mu}\mathopen{}\left(x \mu^{-1}\right)\mathclose{} && \text{(linearity of differentiation)}\\ &= -\frac{\partial}{\partial \mu}\operatorname{log}\mathopen{}\left\{\mu\right\}\mathclose{} - x \frac{\partial}{\partial \mu} \mu^{-1} && \text{(constant multiple rule)}\\ &= -\mu^{-1} - x \frac{\partial}{\partial \mu} \mu^{-1} && \text{(derivative of $\log \mu$)}\\ &= -\mu^{-1} - x \mathopen{}\left(-\mu^{-2}\right)\mathclose{} && \text{(power rule)}\\ &= -\mu^{-1} + x \mu^{-2} && \text{(multiply)}\\ &= -\frac{1}{\mu} + \frac{x}{\mu^2} && \text{(write the negative powers as fractions)}\\ &= -\frac{\mu}{\mu^2} + \frac{x}{\mu^2} && \text{(write both terms over the common denominator)}\\ &= \frac{-\mu+ x}{\mu^2} && \text{(combine the fractions)}\\ &= \frac{x - \mu}{\mu^2} && \text{(reorder the numerator)}\\ &= \frac{x - \operatorname{E}\mathopen{}\left[X\right]\mathclose{}}{\mu^2} && \text{($\operatorname{E}\mathopen{}\left[X\right]\mathclose{} = \mu$)}\\ &= \frac{x - \operatorname{E}\mathopen{}\left[X\right]\mathclose{}}{\operatorname{Var}\mathopen{}\left(X\right)\mathclose{}} && \text{($\operatorname{Var}\mathopen{}\left(X\right)\mathclose{} = \mu^2$)} \end{aligned} \]

In all four examples (Exercise 8, Exercise 9, Exercise 10, and Exercise 11), the score function with respect to the mean turned out to be:

\[\ell'= \frac{x - \operatorname{E}\mathopen{}\left[X\right]\mathclose{}}{\operatorname{Var}\mathopen{}\left(X\right)\mathclose{}}\]

This pattern is no coincidence. With the mean as the parameter, each of these four models is a one-parameter natural (or linear) exponential family, whose log-density is linear in \(x\); for every such family, the score with respect to the mean is \((x - \operatorname{E}\mathopen{}\left[X\right]\mathclose{})/\operatorname{Var}\mathopen{}\left(X\right)\mathclose{}\). Other members of the broader exponential family, such as the Weibull distribution with known shape \(k \ne 1\), do not have this form. Exponential-family distributions share many special properties (Hogg et al. 2019, sec. 6.7; Dobson and Barnett 2018, chap. 3).

Definition 8 (Score equation) The score equation (also called the estimating equation) is the equation that sets the score function to zero:

\[ \ell'(\tilde{\theta}) = \tilde{0} \]

Example 4 (Score equation of a Bernoulli sample) For \(n\) independent Bernoulli observations with \(r = \sum_i y_i\) successes, the score is \(\sum_{i=1}^n (y_i - \pi)/\mathopen{}\left(\pi(1 - \pi)\right)\mathclose{} = (r - n\pi)/\mathopen{}\left(\pi(1-\pi)\right)\mathclose{}\) (summing Exercise 8 over the observations), so for \(0 < r < n\) the score equation \((r - n\pi)/\mathopen{}\left(\pi(1-\pi)\right)\mathclose{} = 0\) has the single solution \(\pi = r/n\).

1.7 Information matrices

Definition 9 (Hessian) The Hessian matrix of the log-likelihood function is the matrix of its second derivatives with respect to the parameters:

\[ \ell''\stackrel{\text{def}}{=}\frac{\partial}{\partial \tilde{\theta}}\frac{\partial}{\partial \tilde{\theta}^{\top}} \ell(\tilde{x}| \tilde{\theta}) \tag{8}\]

The Hessian is named after the mathematician Otto Hesse.

Exercise 12 (Entries of the Hessian) If \(\tilde{\theta}\) is a \(p \times 1\) vector, find the dimensions of the Hessian \(\frac{\partial}{\partial \tilde{\theta}}\frac{\partial}{\partial \tilde{\theta}^{\top}}\ell\) and an expression for its \(ij\)th entry.

Solution 12. \(\frac{\partial}{\partial \tilde{\theta}^{\top}}\ell\) is the \(1 \times p\) row vector whose \(j\)th entry is \(\frac{\partial}{\partial \theta_j}\ell\). Differentiating each entry with respect to the \(p \times 1\) vector \(\tilde{\theta}\) gives a \(p \times 1\) column of derivatives per entry, so \(\frac{\partial}{\partial \tilde{\theta}}\frac{\partial}{\partial \tilde{\theta}^{\top}}\ell\) is \(p \times p\), with \(ij\)th entry \(\frac{\partial}{\partial \theta_i}\frac{\partial}{\partial \theta_j}\ell\).

Theorem 6 (Elements of the Hessian matrix) If \(\tilde{\theta}\) is a \(p \times 1\) vector, then the Hessian is a \(p \times p\) matrix, whose \(ij\)th entry is:

\[ \ell_{ij}''= \frac{\partial}{\partial \theta_i}\frac{\partial}{\partial \theta_j} \ell(\tilde{X}= \tilde{x}| \tilde{\theta}) \tag{9}\]

Proof. This is the solution to Exercise 12.

Exercise 13 (Hessian from the score) Write the Hessian \(\ell''\) as a derivative of the score function \(\ell'\).

Solution 13. By Definition 7, \(\ell'= \frac{\partial}{\partial \tilde{\theta}}\ell\), so \(\mathopen{}\left(\ell'\right)\mathclose{}^{\top} = \frac{\partial}{\partial \tilde{\theta}^{\top}}\ell\). Then:

\[ \begin{aligned} \frac{\partial}{\partial \tilde{\theta}}\mathopen{}\left(\ell'\right)\mathclose{}^{\top} &= \frac{\partial}{\partial \tilde{\theta}}\frac{\partial}{\partial \tilde{\theta}^{\top}}\ell && \text{(transpose of the score)}\\ &= \ell'' && \text{(definition of the Hessian)} \end{aligned} \]

Theorem 7 (Hessian is the derivative of the transposed score) \[ \ell''(\tilde{x}\mid \tilde{\theta}) = \frac{\partial}{\partial \tilde{\theta}} \mathopen{}\left(\ell'(\tilde{x}\mid \tilde{\theta})\right)\mathclose{}^{\top} \]

Proof. This is the solution to Exercise 13.

Definition 10 (Observed information matrix) The observed information matrix, written \(I\), is the negative of the Hessian of the log-likelihood:

\[I\stackrel{\text{def}}{=}-\ell''(\tilde{x}|\tilde{\theta}) \tag{10}\]

Definition 11 (Expected information) The expected information matrix, also called the Fisher information matrix or just the information matrix, is written \(\mathcal{I}\), and is the expected value of the observed information matrix, with the data \(\tilde{X}\) treated as random:

\[\mathcal{I}(\tilde{\theta}) \stackrel{\text{def}}{=}\operatorname{E}\mathopen{}\left[I(\tilde{X}\mid \tilde{\theta})\right]\mathclose{} \tag{11}\]

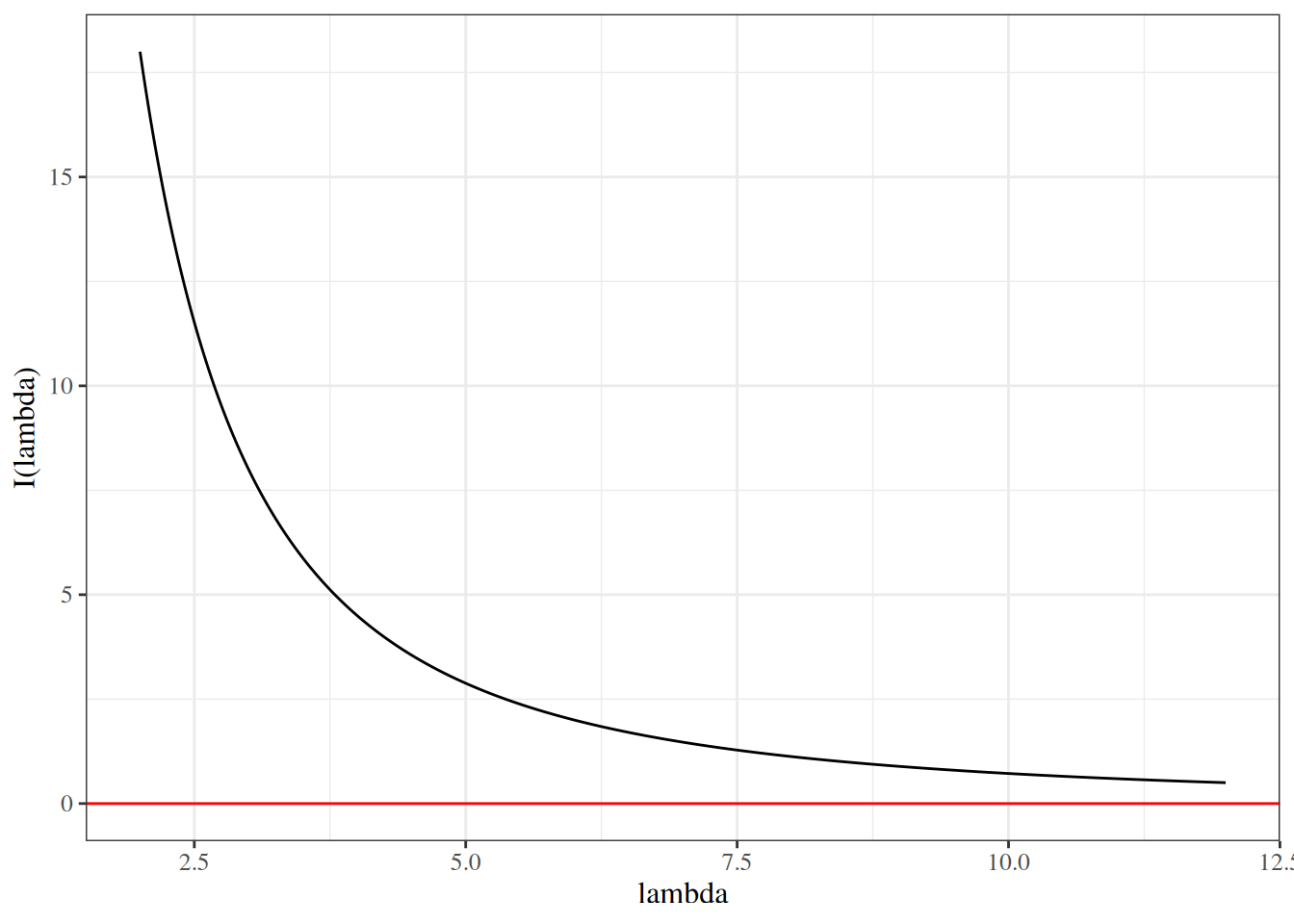

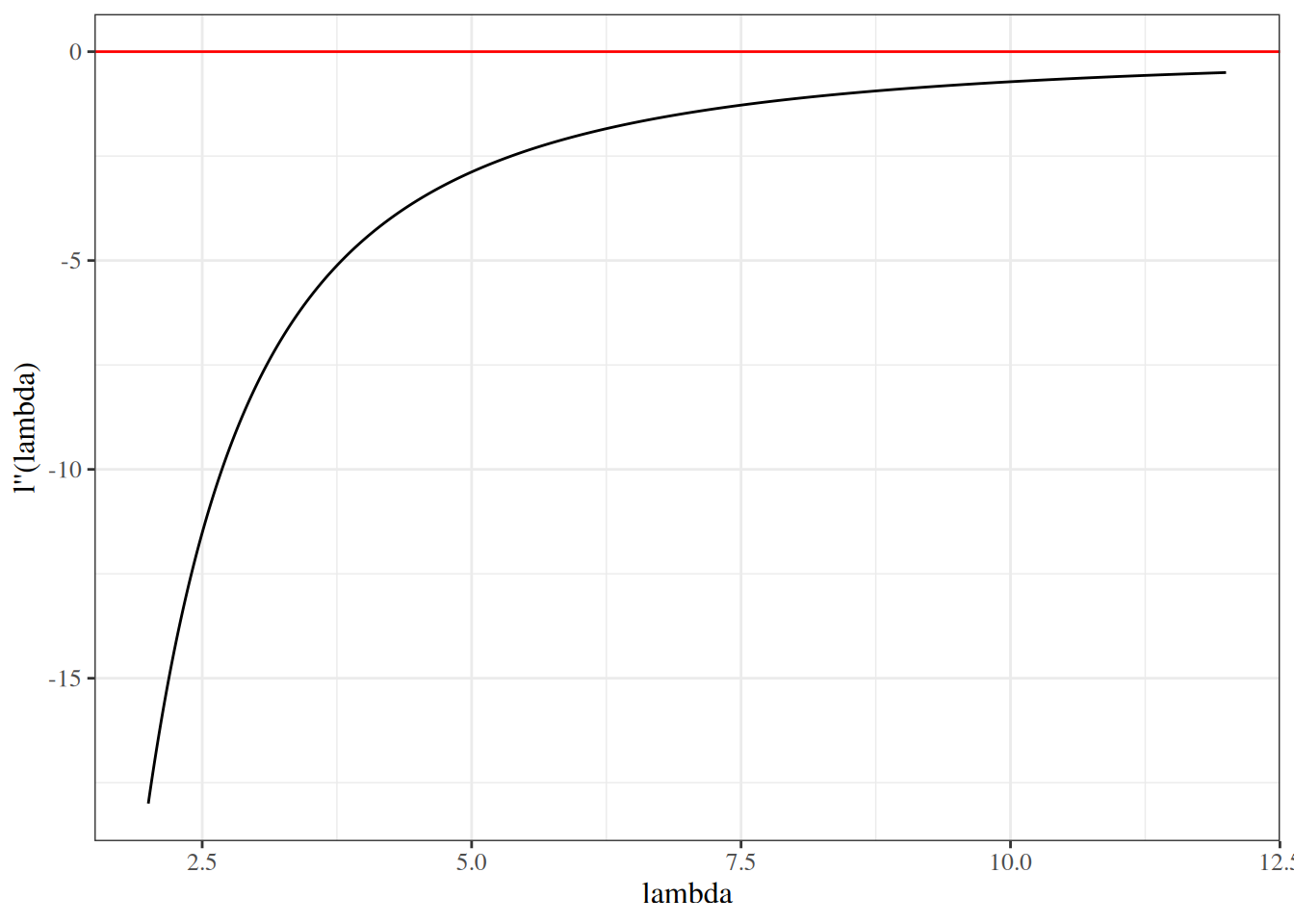

Example 5 (Information for Poisson data) For \(X_1, \ldots, X_n \ \sim_{\operatorname{iid}}\ \operatorname{Pois}({\lambda})\), one observation’s score is \(x/{\lambda}- 1\) (Exercise 9), whose derivative with respect to \({\lambda}\) is \(-x/{\lambda}^2\). Summing over the observations (Theorem 5), the Hessian is \(\ell''= -\sum_{i=1}^n x_i / {\lambda}^2\), so:

\[ \begin{aligned} I({\lambda}) &= -\ell'' && \text{(observed information: negative Hessian)}\\ &= -\mathopen{}\left(-\frac{\sum_{i=1}^n x_i}{{\lambda}^2}\right)\mathclose{} && \text{(substitute the Hessian)}\\ &= \frac{\sum_{i=1}^n x_i}{{\lambda}^2} && \text{(two negatives make a positive)}\\ \mathcal{I}({\lambda}) &= \operatorname{E}\mathopen{}\left[\frac{\sum_{i=1}^n X_i}{{\lambda}^2}\right]\mathclose{} && \text{(expected information)}\\ &= \frac{\operatorname{E}\mathopen{}\left[\sum_{i=1}^n X_i\right]\mathclose{}}{{\lambda}^2} && \text{(factor the constant $\tfrac{1}{{\lambda}^2}$ out of the expectation)}\\ &= \frac{\sum_{i=1}^n \operatorname{E}\mathopen{}\left[X_i\right]\mathclose{}}{{\lambda}^2} && \text{(linearity of expectation)}\\ &= \frac{\sum_{i=1}^n {\lambda}}{{\lambda}^2} && \text{($\operatorname{E}\mathopen{}\left[X_i\right]\mathclose{} = {\lambda}$)}\\ &= \frac{n{\lambda}}{{\lambda}^2} && \text{(sum of $n$ copies of ${\lambda}$)}\\ &= \frac{n}{{\lambda}} && \text{(cancel one factor of ${\lambda}$)} \end{aligned} \]

Exercise 14 (Derivative of a density through its logarithm) Let \(\operatorname{p}(\tilde{x}\mid \theta)\) be a density that is positive and differentiable in a scalar parameter \(\theta\). Write \(\frac{\partial}{\partial \theta}\operatorname{p}(\tilde{x}\mid \theta)\) in terms of \(\frac{\partial}{\partial \theta}\log \operatorname{p}(\tilde{x}\mid \theta)\).

Solution 14. By the chain rule, with outer function \(\log u\) and inner function \(u = \operatorname{p}(\tilde{x}\mid \theta)\):

\[ \frac{\partial}{\partial \theta} \log \operatorname{p}(\tilde{x}\mid \theta) = \mathopen{}\left(\frac{d}{du} \log u\right)\mathclose{}\bigg|_{u = \operatorname{p}(\tilde{x}\mid \theta)} \frac{\partial}{\partial \theta}\operatorname{p}(\tilde{x}\mid \theta). \]

The inner derivative \(\frac{\partial}{\partial \theta}\operatorname{p}(\tilde{x}\mid \theta)\) is the quantity we want, so only the outer derivative needs working out:

\[ \begin{aligned} \frac{d}{du} \log u &= \frac{1}{u} && \text{(derivative of the natural logarithm)} \end{aligned} \]

Plugging the outer derivative back in:

\[ \begin{aligned} \frac{\partial}{\partial \theta} \log \operatorname{p}(\tilde{x}\mid \theta) &= \frac{1}{\operatorname{p}(\tilde{x}\mid \theta)} \frac{\partial}{\partial \theta}\operatorname{p}(\tilde{x}\mid \theta) && \text{(outer derivative is $1/u$)}\\ \frac{\partial}{\partial \theta}\operatorname{p}(\tilde{x}\mid \theta) &= \mathopen{}\left(\frac{\partial}{\partial \theta} \log \operatorname{p}(\tilde{x}\mid \theta)\right)\mathclose{} \operatorname{p}(\tilde{x}\mid \theta) && \text{(multiply both sides by $\operatorname{p}(\tilde{x}\mid \theta) > 0$)} \end{aligned} \]

Exercise 15 (Mean of the score) Let \(\tilde{X}\) be continuous with density \(\operatorname{p}(\tilde{x}\mid \theta)\) for a scalar parameter \(\theta\). Suppose the set of possible data values does not depend on \(\theta\), and the order of differentiation with respect to \(\theta\) and integration over the data can be exchanged. Show that the score has mean zero.

Solution 15. The step that rewrites the derivative of \(\log \operatorname{p}(\tilde{x}\mid \theta)\) uses Exercise 14:

\[ \begin{aligned} \operatorname{E}\mathopen{}\left[\ell'\right]\mathclose{} &= \int \ell'\, \operatorname{p}(\tilde{x}\mid \theta) \, d\tilde{x} && \text{(definition of expectation)}\\ &= \int \mathopen{}\left(\frac{\partial}{\partial \theta} \log \operatorname{p}(\tilde{x}\mid \theta)\right)\mathclose{} \operatorname{p}(\tilde{x}\mid \theta) \, d\tilde{x} && \text{(definition of the score)}\\ &= \int \frac{\frac{\partial}{\partial \theta} \operatorname{p}(\tilde{x}\mid \theta)}{\operatorname{p}(\tilde{x}\mid \theta)} \operatorname{p}(\tilde{x}\mid \theta) \, d\tilde{x} && \text{(chain rule for $\log$)}\\ &= \int \frac{\partial}{\partial \theta} \operatorname{p}(\tilde{x}\mid \theta) \, d\tilde{x} && \text{(cancel $\operatorname{p}(\tilde{x}\mid \theta)$)}\\ &= \frac{\partial}{\partial \theta} \int \operatorname{p}(\tilde{x}\mid \theta) \, d\tilde{x} && \text{(exchange derivative and integral)}\\ &= \frac{\partial}{\partial \theta} 1 && \text{(a density integrates to 1)}\\ &= 0 && \text{(derivative of a constant)} \end{aligned} \]

Exercise 16 (Second moment of the score) Under the assumptions of Exercise 15, show that \(\operatorname{E}\mathopen{}\left[\ell'^2\right]\mathclose{} = \mathcal{I}(\theta)\), the expected information.

Solution 16. By Exercise 15, \(0 = \int \mathopen{}\left(\frac{\partial}{\partial \theta} \log \operatorname{p}(\tilde{x}\mid \theta)\right)\mathclose{} \operatorname{p}(\tilde{x}\mid \theta) \, d\tilde{x}\) for every \(\theta\). Differentiate this identity with respect to \(\theta\); the step that substitutes for \(\frac{\partial}{\partial \theta}\operatorname{p}(\tilde{x}\mid \theta)\) uses Exercise 14:

\[ \begin{aligned} \frac{\partial}{\partial \theta} 0 &= \frac{\partial}{\partial \theta} \int \mathopen{}\left(\frac{\partial}{\partial \theta} \log \operatorname{p}(\tilde{x}\mid \theta)\right)\mathclose{} \operatorname{p}(\tilde{x}\mid \theta) \, d\tilde{x} && \text{(differentiate both sides)}\\ 0 &= \frac{\partial}{\partial \theta} \int \mathopen{}\left(\frac{\partial}{\partial \theta} \log \operatorname{p}(\tilde{x}\mid \theta)\right)\mathclose{} \operatorname{p}(\tilde{x}\mid \theta) \, d\tilde{x} && \text{(derivative of a constant)}\\ &= \int \frac{\partial}{\partial \theta}\mathopen{}\left[\mathopen{}\left(\frac{\partial}{\partial \theta} \log \operatorname{p}(\tilde{x}\mid \theta)\right)\mathclose{} \operatorname{p}(\tilde{x}\mid \theta)\right]\mathclose{} d\tilde{x} && \text{(exchange derivative and integral)}\\ &= \int \mathopen{}\left(\frac{\partial^2}{\partial \theta^2} \log \operatorname{p}(\tilde{x}\mid \theta)\right)\mathclose{} \operatorname{p}(\tilde{x}\mid \theta) \, d\tilde{x} + \int \mathopen{}\left(\frac{\partial}{\partial \theta} \log \operatorname{p}(\tilde{x}\mid \theta)\right)\mathclose{} \frac{\partial}{\partial \theta}\operatorname{p}(\tilde{x}\mid \theta) \, d\tilde{x} && \text{(product rule)}\\ &= \int \mathopen{}\left(\frac{\partial^2}{\partial \theta^2} \log \operatorname{p}(\tilde{x}\mid \theta)\right)\mathclose{} \operatorname{p}(\tilde{x}\mid \theta) \, d\tilde{x} + \int \mathopen{}\left(\frac{\partial}{\partial \theta} \log \operatorname{p}(\tilde{x}\mid \theta)\right)\mathclose{} \mathopen{}\left(\frac{\partial}{\partial \theta}\log \operatorname{p}(\tilde{x}\mid \theta)\right)\mathclose{} \operatorname{p}(\tilde{x}\mid \theta) \, d\tilde{x} && \text{($\frac{\partial}{\partial \theta}\operatorname{p}= \mathopen{}\left(\frac{\partial}{\partial \theta}\log \operatorname{p}\right)\mathclose{} \operatorname{p}$)}\\ &= \int \mathopen{}\left(\frac{\partial^2}{\partial \theta^2} \log \operatorname{p}(\tilde{x}\mid \theta)\right)\mathclose{} \operatorname{p}(\tilde{x}\mid \theta) \, d\tilde{x} + \int \mathopen{}\left(\frac{\partial}{\partial \theta} \log \operatorname{p}(\tilde{x}\mid \theta)\right)\mathclose{}^2 \operatorname{p}(\tilde{x}\mid \theta) \, d\tilde{x} && \text{(product of two equal factors is a square)}\\ &= \operatorname{E}\mathopen{}\left[\frac{\partial^2}{\partial \theta^2} \log \operatorname{p}(\tilde{X}\mid \theta)\right]\mathclose{} + \int \mathopen{}\left(\frac{\partial}{\partial \theta} \log \operatorname{p}(\tilde{x}\mid \theta)\right)\mathclose{}^2 \operatorname{p}(\tilde{x}\mid \theta) \, d\tilde{x} && \text{(definition of expectation)}\\ &= \operatorname{E}\mathopen{}\left[\ell''\right]\mathclose{} + \int \mathopen{}\left(\frac{\partial}{\partial \theta} \log \operatorname{p}(\tilde{x}\mid \theta)\right)\mathclose{}^2 \operatorname{p}(\tilde{x}\mid \theta) \, d\tilde{x} && \text{(definition of the Hessian)}\\ &= \operatorname{E}\mathopen{}\left[\ell''\right]\mathclose{} + \operatorname{E}\mathopen{}\left[\mathopen{}\left(\frac{\partial}{\partial \theta} \log \operatorname{p}(\tilde{X}\mid \theta)\right)\mathclose{}^2\right]\mathclose{} && \text{(definition of expectation)}\\ &= \operatorname{E}\mathopen{}\left[\ell''\right]\mathclose{} + \operatorname{E}\mathopen{}\left[\ell'^2\right]\mathclose{} && \text{(definition of the score)} \end{aligned} \]

Rearranging:

\[ \begin{aligned} \operatorname{E}\mathopen{}\left[\ell'^2\right]\mathclose{} &= -\operatorname{E}\mathopen{}\left[\ell''\right]\mathclose{} && \text{(subtract $\operatorname{E}\mathopen{}\left[\ell''\right]\mathclose{}$ from both sides)}\\ &= \operatorname{E}\mathopen{}\left[-\ell''\right]\mathclose{} && \text{(move the constant factor $-1$ into the expectation)}\\ &= \operatorname{E}\mathopen{}\left[I\right]\mathclose{} && \text{(observed information is the negative Hessian)}\\ &= \mathcal{I}(\theta) && \text{(definition of expected information)} \end{aligned} \]

Theorem 8 (Mean and variance of the score) Suppose the set of possible data values does not depend on \(\tilde{\theta}\), and the order of differentiation with respect to \(\tilde{\theta}\) and integration over the data can be exchanged. Then the score has mean zero, and its variance is the expected information:

\[\operatorname{E}\mathopen{}\left[\ell'(\tilde{X}\mid \tilde{\theta})\right]\mathclose{} = \mathbf{0}_{p \times 1} \tag{12}\]

\[\mathcal{I}(\tilde{\theta}) = \operatorname{Cov}\mathopen{}\left(\ell'(\tilde{X}\mid \tilde{\theta})\right)\mathclose{} = \operatorname{E}\mathopen{}\left[\ell'{\ell'}^{\top}\right]\mathclose{} \tag{13}\]

Proof. We give the proof for a scalar \(\theta\) and a continuous \(\tilde{X}\) with density \(\operatorname{p}(\tilde{x}\mid \theta)\); the vector case applies the same steps to each pair of entries, and a discrete \(\tilde{X}\) replaces integrals with sums.

Equation 12 is the solution to Exercise 15. For Equation 13, Exercise 16 gives \(\mathcal{I}(\theta) = \operatorname{E}\mathopen{}\left[\ell'^2\right]\mathclose{}\), and because \(\operatorname{E}\mathopen{}\left[\ell'\right]\mathclose{} = 0\), \(\operatorname{E}\mathopen{}\left[\ell'^2\right]\mathclose{} = \operatorname{E}\mathopen{}\left[\ell'^2\right]\mathclose{} - \mathopen{}\left(\operatorname{E}\mathopen{}\left[\ell'\right]\mathclose{}\right)^2\mathclose{} = \operatorname{Var}\mathopen{}\left(\ell'\right)\mathclose{}\).

Example 6 (Checking the information equality for Poisson data) For \(X_1, \ldots, X_n \ \sim_{\operatorname{iid}}\ \operatorname{Pois}({\lambda})\), the score is \(\ell'= \sum_{i=1}^n X_i/{\lambda}- n\) (Example 5). Then:

\[ \begin{aligned} \operatorname{E}\mathopen{}\left[\ell'\right]\mathclose{} &= \operatorname{E}\mathopen{}\left[\frac{\sum_{i=1}^n X_i}{{\lambda}} - n\right]\mathclose{} && \text{(Poisson score)}\\ &= \operatorname{E}\mathopen{}\left[\frac{\sum_{i=1}^n X_i}{{\lambda}}\right]\mathclose{} - \operatorname{E}\mathopen{}\left[n\right]\mathclose{} && \text{(linearity of expectation)}\\ &= \operatorname{E}\mathopen{}\left[\frac{\sum_{i=1}^n X_i}{{\lambda}}\right]\mathclose{} - n && \text{(the expectation of a constant is that constant)}\\ &= \frac{\operatorname{E}\mathopen{}\left[\sum_{i=1}^n X_i\right]\mathclose{}}{{\lambda}} - n && \text{(factor the constant $\tfrac{1}{{\lambda}}$ out of the expectation)}\\ &= \frac{\sum_{i=1}^n \operatorname{E}\mathopen{}\left[X_i\right]\mathclose{}}{{\lambda}} - n && \text{(linearity of expectation)}\\ &= \frac{\sum_{i=1}^n {\lambda}}{{\lambda}} - n && \text{($\operatorname{E}\mathopen{}\left[X_i\right]\mathclose{} = {\lambda}$)}\\ &= \frac{n{\lambda}}{{\lambda}} - n && \text{(sum of $n$ copies of ${\lambda}$)}\\ &= n - n && \text{(cancel ${\lambda}$)}\\ &= 0 && \text{(subtract)}\\ \operatorname{Var}\mathopen{}\left(\ell'\right)\mathclose{} &= \operatorname{Var}\mathopen{}\left(\frac{\sum_{i=1}^n X_i}{{\lambda}} - n\right)\mathclose{} && \text{(Poisson score)}\\ &= \operatorname{Var}\mathopen{}\left(\frac{\sum_{i=1}^n X_i}{{\lambda}}\right)\mathclose{} && \text{(subtracting a constant does not change a variance)}\\ &= \frac{\operatorname{Var}\mathopen{}\left(\sum_{i=1}^n X_i\right)\mathclose{}}{{\lambda}^2} && \text{($\operatorname{Var}\mathopen{}\left(aY\right)\mathclose{} = a^2 \operatorname{Var}\mathopen{}\left(Y\right)\mathclose{}$)}\\ &= \frac{\sum_{i=1}^n \operatorname{Var}\mathopen{}\left(X_i\right)\mathclose{}}{{\lambda}^2} && \text{(variance of a sum of independent variables)}\\ &= \frac{\sum_{i=1}^n {\lambda}}{{\lambda}^2} && \text{($\operatorname{Var}\mathopen{}\left(X_i\right)\mathclose{} = {\lambda}$)}\\ &= \frac{n{\lambda}}{{\lambda}^2} && \text{(sum of $n$ copies of ${\lambda}$)}\\ &= \frac{n}{{\lambda}} && \text{(cancel one factor of ${\lambda}$)} \end{aligned} \]

which matches \(\mathcal{I}({\lambda}) = n/{\lambda}\) from Example 5.

Example 7 (When the support depends on the parameter) Let \(X_1, \ldots, X_n \ \sim_{\operatorname{iid}}\ \text{Uniform}(0, \theta)\). The likelihood is \(\mathcal{L}(\theta) = \theta^{-n}\) for \(\theta\ge \max_i x_i\) (and 0 otherwise), so on that range \(\ell(\theta) = -n \log \theta\) and \(\ell'(\theta) = -n/\theta\). The score is a nonzero constant, so \(\operatorname{E}\mathopen{}\left[\ell'\right]\mathclose{} = -n/\theta\ne 0\): Equation 12 fails, because the set of possible data values, \((0, \theta)\), depends on \(\theta\).

Sources disagree on the symbols for the observed and expected information (Table 1).

Table 1: Notation for information matrices in several sources
Source Observed information Expected information
These notes \(I\) \(\mathcal{I}\)
Dobson and Barnett (2018) \(-U'\) \(\mathfrak{I}\)
Dunn and Smyth (2018) \(\mathfrak{I}\) \(\mathcal{I}\)
McLachlan and Krishnan (2007) \(I\) \(\mathcal{I}\)
Wood (2017) \(\hat{I}\) \(\mathcal{I}\)

1.8 Asymptotic distribution of the maximum likelihood estimate

Theorem 9 (Central limit theorem for MLEs) For \(\operatorname{iid}\) data from a correctly specified model satisfying regularity conditions (including those of Theorem 8, an identifiable parameter, a true parameter value in the interior of the parameter space, and a positive definite information matrix), a consistent solution \(\hat\theta_{\text{ML}}\) of the score equation exists, and for large \(n\) it has approximately a Gaussian distribution, centered at the true parameter value \(\tilde{\theta}\), with covariance matrix equal to the inverse of the expected information:

\[ \hat\theta_{\text{ML}}\ \dot{\sim} \ \operatorname{N}\mathopen{}\left(\tilde{\theta}, \mathopen{}\left(\mathcal{I}(\tilde{\theta})\right)^{-1}\mathclose{}\right)\mathclose{} \tag{14}\]

Proof. The proof is beyond the scope of these notes; see (Lehmann 1999, Theorem 7.5.2, p. 501) and (Newey and McFadden 1994).

These conditions guarantee a consistent root of the score equation; that root is the global maximizer of the likelihood under further conditions, for example when the log-likelihood is strictly concave, as for Poisson data, whose Hessian is negative for every \({\lambda}\) (Example 5).

Example 8 (Approximate distribution of the Poisson MLE) For \(X_1, \ldots, X_n \ \sim_{\operatorname{iid}}\ \operatorname{Pois}({\lambda})\), setting the score \(\sum_{i=1}^n X_i/{\lambda}- n\) (Example 6) to zero gives \(\hat{\lambda}_{\text{ML}} = \bar X\), and \(\mathcal{I}({\lambda}) = n/{\lambda}\) (Example 5), so Theorem 9 says that for large \(n\):

\[\hat{\lambda}_{\text{ML}} \ \dot{\sim} \ \operatorname{N}\mathopen{}\left({\lambda}, \frac{{\lambda}}{n}\right)\mathclose{}\]

In this example the mean and variance are exact: \(\operatorname{E}\mathopen{}\left[\bar X\right]\mathclose{} = {\lambda}\) and \(\operatorname{Var}\mathopen{}\left(\bar X\right)\mathclose{} = {\lambda}/n\). The approximation is in the Gaussian shape.

Theorem 9 involves the unknown \(\tilde{\theta}\), so to use it we estimate \(\mathcal{I}(\tilde{\theta})\), by either the expected information at the MLE, \(\mathcal{I}(\hat\theta_{\text{ML}})\), or the observed information at the MLE, \(I(\tilde{x}; \hat\theta_{\text{ML}})\). Either way, the estimated standard error of the \(k\)th entry of \(\hat\theta_{\text{ML}}\) is:

\[ \mathop{\widehat{\operatorname{SE}}}\nolimits\mathopen{}\left(\hat\theta_k\right)\mathclose{} = \sqrt{\mathopen{}\left[\mathopen{}\left(\hat{\mathcal{I}}\right)^{-1}\mathclose{}\right]\mathclose{}_{kk}} \]

where \(\hat{\mathcal{I}}\) is whichever estimate of \(\mathcal{I}(\tilde{\theta})\) we chose.

Using the observed information is often more convenient, and there are settings where it is provably better by some criteria (Efron and Hinkley 1978).

1.9 Quantifying uncertainty about MLEs

1.9.1 Confidence intervals for MLEs

Definition 12 (Wald confidence interval) The approximate \(100(1-\alpha)\%\) Wald confidence interval for the \(k\)th entry \(\theta_k\) of a parameter vector is

\[ \hat\theta_k \pm z_{1 - \alpha/2} \times \mathop{\widehat{\operatorname{SE}}}\nolimits\mathopen{}\left(\hat\theta_k\right)\mathclose{} \]

where \(\hat\theta_k\) is the \(k\)th entry of \(\hat\theta_{\text{ML}}\), \(\mathop{\widehat{\operatorname{SE}}}\nolimits\mathopen{}\left(\hat\theta_k\right)\mathclose{}\) is its estimated standard error, and \(z_{\beta}\) is the \(\beta\) quantile of the standard Gaussian distribution.

By Theorem 9, \((\hat\theta_k - \theta_k)/\mathop{\widehat{\operatorname{SE}}}\nolimits\mathopen{}\left(\hat\theta_k\right)\mathclose{}\) has approximately a standard Gaussian distribution in large samples, so the Wald interval is an approximate confidence interval for \(\theta_k\). For a 95% interval, \(z_{0.975} \approx 1.96\).

1.9.2 Wald tests

Definition 13 (Wald test) The Wald test of \(H_0: \theta_k = \theta_{k,0}\) uses the test statistic

\[Z \stackrel{\text{def}}{=}\frac{\hat\theta_k - \theta_{k,0}}{\mathop{\widehat{\operatorname{SE}}}\nolimits\mathopen{}\left(\hat\theta_k\right)\mathclose{}}\]

which, by Theorem 9, has approximately a standard Gaussian distribution under \(H_0\) in large samples. For \(q\) constraints \(H_0: \tilde{\theta}_{(q)} = \tilde{\theta}_{(q),0}\) on a \(q \times 1\) subvector, the Wald statistic is \({\mathopen{}\left(\hat{\tilde{\theta}}_{(q)} - \tilde{\theta}_{(q),0}\right)\mathclose{}}^{\top}\,\mathopen{}\left(\hat{V}_{(q)}\right)^{-1}\mathclose{}\,\mathopen{}\left(\hat{\tilde{\theta}}_{(q)} - \tilde{\theta}_{(q),0}\right)\mathclose{}\), where \(\hat V_{(q)}\) is the corresponding \(q \times q\) block of \(\mathopen{}\left(\hat{\mathcal{I}}\right)^{-1}\mathclose{}\); it has approximately a \(\chi^2_q\) distribution under \(H_0\).

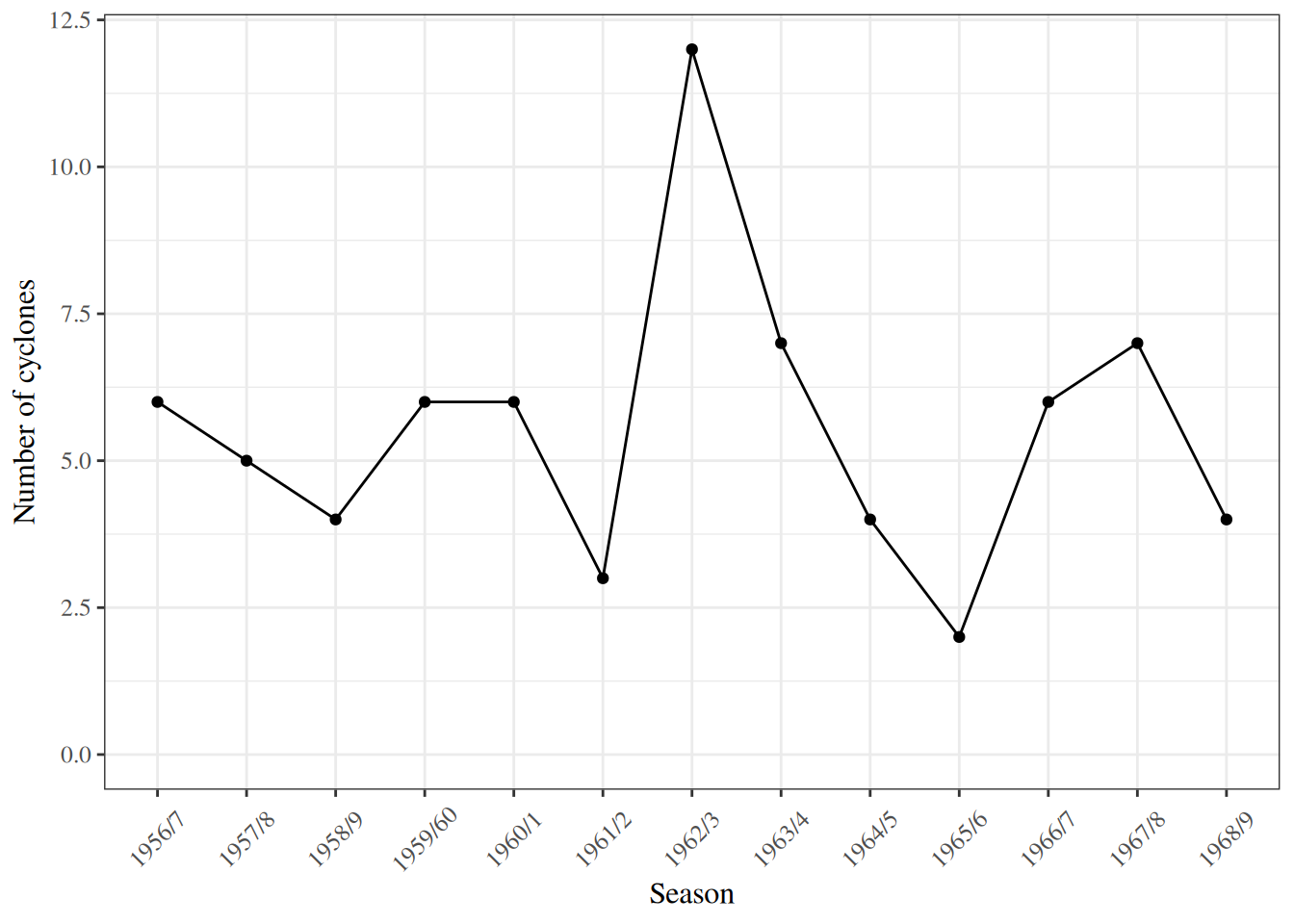

Example 9 (Wald interval and test for a Poisson rate) For \(X_1, \ldots, X_n \ \sim_{\operatorname{iid}}\ \operatorname{Pois}({\lambda})\), \(\hat{\lambda}_{\text{ML}} = \bar x\) and \(\mathcal{I}({\lambda}) = n/{\lambda}\) (Example 8), so \(\mathop{\widehat{\operatorname{SE}}}\nolimits\mathopen{}\left(\hat{\lambda}\right)\mathclose{} = \sqrt{\bar x/n}\). With \(n = 13\) and \(\bar x = 72/13\), the 95% Wald interval for \({\lambda}\), and the Wald test of \(H_0: {\lambda}= 4\), are:

n_obs <- 13
xbar_obs <- 72 / 13
se_rate <- sqrt(xbar_obs / n_obs)
z_wald <- (xbar_obs - 4) / se_rate
c(
  lower = xbar_obs - qnorm(0.975) * se_rate,
  upper = xbar_obs + qnorm(0.975) * se_rate,
  z = z_wald,
  p_value = 2 * pnorm(-abs(z_wald))
)
#>     lower     upper         z   p_value
#> 4.2591657 6.8177574 2.3570226 0.0184221

1.9.3 Likelihood ratio tests for MLEs

Definition 14 (Likelihood ratio statistic) Suppose a null hypothesis \(H_0\) imposes \(q\) constraints on the parameter vector \(\tilde{\theta}\). Let \(\hat\theta_{\text{ML}}\) be the unrestricted MLE and \(\hat\theta_0\) the MLE under \(H_0\). The likelihood ratio statistic is

\[ \Lambda \stackrel{\text{def}}{=}2\mathopen{}\left(\ell(\hat\theta_{\text{ML}}) - \ell(\hat\theta_0)\right)\mathclose{} \]

Exercise 17 (Quadratic approximation to the log-likelihood) Let \(\theta\) be a scalar parameter, and suppose the MLE \(\hat\theta_{\text{ML}}\) maximizes \(\ell\) at an interior point of the parameter space, where \(\ell\) is twice differentiable. Use a second-order Taylor expansion around \(\hat\theta_{\text{ML}}\) to approximate \(\ell(\theta_0)\) in terms of \(\ell(\hat\theta_{\text{ML}})\) and the Hessian \(\ell''(\hat\theta_{\text{ML}})\).

Solution 17. The MLE maximizes \(\ell\) at an interior point, so \(\ell'(\hat\theta_{\text{ML}}) = 0\). A second-order Taylor expansion of \(\ell(\theta_0)\) around \(\hat\theta_{\text{ML}}\) gives:

\[ \begin{aligned} \ell(\theta_0) &\approx \ell(\hat\theta_{\text{ML}}) + \ell'(\hat\theta_{\text{ML}})(\theta_0 - \hat\theta_{\text{ML}}) + \frac{1}{2}\ell''(\hat\theta_{\text{ML}})(\theta_0 - \hat\theta_{\text{ML}})^2 && \text{(Taylor expansion)}\\ &= \ell(\hat\theta_{\text{ML}}) + 0 \cdot (\theta_0 - \hat\theta_{\text{ML}}) + \frac{1}{2}\ell''(\hat\theta_{\text{ML}})(\theta_0 - \hat\theta_{\text{ML}})^2 && \text{($\ell'(\hat\theta_{\text{ML}}) = 0$)}\\ &= \ell(\hat\theta_{\text{ML}}) + \frac{1}{2}\ell''(\hat\theta_{\text{ML}})(\theta_0 - \hat\theta_{\text{ML}})^2 && \text{(drop the zero term)} \end{aligned} \]

Exercise 18 (Likelihood ratio statistic for a point null hypothesis) With a scalar parameter \(\theta\), the point null hypothesis \(H_0: \theta= \theta_0\) imposes \(q = 1\) constraint. Use Exercise 17 to approximate the likelihood ratio statistic \(\Lambda\) in terms of the observed information \(I(\hat\theta_{\text{ML}})\).

Solution 18. Under \(H_0\), the only allowed value is \(\theta_0\), so the restricted MLE is \(\hat\theta_0 = \theta_0\). Substituting the approximation from Exercise 17:

\[ \begin{aligned} \Lambda &= 2\mathopen{}\left(\ell(\hat\theta_{\text{ML}}) - \ell(\hat\theta_0)\right)\mathclose{} && \text{(definition of $\Lambda$)}\\ &= 2\mathopen{}\left(\ell(\hat\theta_{\text{ML}}) - \ell(\theta_0)\right)\mathclose{} && \text{($\hat\theta_0 = \theta_0$)}\\ &\approx 2\mathopen{}\left(\ell(\hat\theta_{\text{ML}}) - \mathopen{}\left(\ell(\hat\theta_{\text{ML}}) + \frac{1}{2}\ell''(\hat\theta_{\text{ML}})(\theta_0 - \hat\theta_{\text{ML}})^2\right)\mathclose{}\right)\mathclose{} && \text{(substitute the expansion)}\\ &= 2\mathopen{}\left(\ell(\hat\theta_{\text{ML}}) - \ell(\hat\theta_{\text{ML}}) - \frac{1}{2}\ell''(\hat\theta_{\text{ML}})(\theta_0 - \hat\theta_{\text{ML}})^2\right)\mathclose{} && \text{(distribute the minus sign)}\\ &= 2\mathopen{}\left(-\frac{1}{2}\ell''(\hat\theta_{\text{ML}})(\theta_0 - \hat\theta_{\text{ML}})^2\right)\mathclose{} && \text{(cancel $\ell(\hat\theta_{\text{ML}})$)}\\ &= -\ell''(\hat\theta_{\text{ML}})(\theta_0 - \hat\theta_{\text{ML}})^2 && \text{(multiply by 2)}\\ &= -\ell''(\hat\theta_{\text{ML}})(\hat\theta_{\text{ML}}- \theta_0)^2 && \text{($(a - b)^2 = (b - a)^2$)}\\ &= I(\hat\theta_{\text{ML}})(\hat\theta_{\text{ML}}- \theta_0)^2 && \text{(observed information is the negative Hessian)} \end{aligned} \]

Exercise 19 (Standardizing an approximately Gaussian estimate) Suppose \(\hat\theta_{\text{ML}}\ \dot{\sim} \ \operatorname{N}\mathopen{}\left(\theta_0, \mathcal{I}(\theta_0)^{-1}\right)\mathclose{}\), and define \(Z \stackrel{\text{def}}{=}\sqrt{\mathcal{I}(\theta_0)}\,(\hat\theta_{\text{ML}}- \theta_0)\). Show that \(Z\) is approximately standard Gaussian, and find the approximate distribution of \(Z^2\).

Solution 19. \(Z\) is a linear function of \(\hat\theta_{\text{ML}}\), so it is approximately Gaussian, with approximate mean and variance:

\[ \begin{aligned} \operatorname{E}\mathopen{}\left[Z\right]\mathclose{} &= \operatorname{E}\mathopen{}\left[\sqrt{\mathcal{I}(\theta_0)}\,(\hat\theta_{\text{ML}}- \theta_0)\right]\mathclose{} && \text{(definition of $Z$)}\\ &= \sqrt{\mathcal{I}(\theta_0)}\,\operatorname{E}\mathopen{}\left[\hat\theta_{\text{ML}}- \theta_0\right]\mathclose{} && \text{(factor the constant $\sqrt{\mathcal{I}(\theta_0)}$ out of the expectation)}\\ &= \sqrt{\mathcal{I}(\theta_0)}\,\mathopen{}\left(\operatorname{E}\mathopen{}\left[\hat\theta_{\text{ML}}\right]\mathclose{} - \operatorname{E}\mathopen{}\left[\theta_0\right]\mathclose{}\right)\mathclose{} && \text{(linearity of expectation)}\\ &= \sqrt{\mathcal{I}(\theta_0)}\,\mathopen{}\left(\operatorname{E}\mathopen{}\left[\hat\theta_{\text{ML}}\right]\mathclose{} - \theta_0\right)\mathclose{} && \text{(the expectation of a constant is that constant)}\\ &\approx \sqrt{\mathcal{I}(\theta_0)}\,(\theta_0 - \theta_0) && \text{(approximate mean of $\hat\theta_{\text{ML}}$)}\\ &= \sqrt{\mathcal{I}(\theta_0)} \cdot 0 && \text{(subtract)}\\ &= 0 && \text{(multiply by zero)} \end{aligned} \]

\[ \begin{aligned} \operatorname{Var}\mathopen{}\left(Z\right)\mathclose{} &= \operatorname{Var}\mathopen{}\left(\sqrt{\mathcal{I}(\theta_0)}\,(\hat\theta_{\text{ML}}- \theta_0)\right)\mathclose{} && \text{(definition of $Z$)}\\ &= \mathcal{I}(\theta_0) \operatorname{Var}\mathopen{}\left(\hat\theta_{\text{ML}}\right)\mathclose{} && \text{($\operatorname{Var}\mathopen{}\left(aY + b\right)\mathclose{} = a^2 \operatorname{Var}\mathopen{}\left(Y\right)\mathclose{}$)}\\ &\approx \mathcal{I}(\theta_0) \mathcal{I}(\theta_0)^{-1} && \text{(approximate variance of $\hat\theta_{\text{ML}}$)}\\ &= 1 && \text{(a number times its inverse is 1)} \end{aligned} \]

So \(Z \ \dot{\sim} \ \operatorname{N}\mathopen{}\left(0, 1\right)\mathclose{}\). The square of a standard Gaussian variable has a \(\chi^2_1\) distribution, so \(Z^2\) has approximately a \(\chi^2_1\) distribution.

Theorem 10 (Wilks’ theorem) Suppose the conditions of Theorem 9 hold, and a null hypothesis \(H_0\) imposes \(q\) constraints on the parameter vector \(\tilde{\theta}\). Then, if \(H_0\) is true, as \(n \to \infty\), the likelihood ratio statistic \(\Lambda\) satisfies:

\[ \Lambda \overset{d}{\to} \chi^2_q \]

Proof. We sketch the argument for a scalar parameter and the point null hypothesis \(H_0: \theta= \theta_0\), which imposes \(q = 1\) constraint. For the full proof, see (Wilks 1938) or (Dobson and Barnett 2018, sec. 5.7).

By Exercise 18, \(\Lambda \approx I(\hat\theta_{\text{ML}})(\hat\theta_{\text{ML}}- \theta_0)^2\). Under the regularity conditions, \(I(\hat\theta_{\text{ML}})/\mathcal{I}(\theta_0) \to 1\) in probability, by the law of large numbers and the consistency of \(\hat\theta_{\text{ML}}\); this sketch assumes that step rather than proving it. So, with \(Z\) as in Exercise 19:

\[ \begin{aligned} \Lambda &\approx I(\hat\theta_{\text{ML}})(\hat\theta_{\text{ML}}- \theta_0)^2 && \text{(quadratic approximation to $\Lambda$)}\\ &\approx \mathcal{I}(\theta_0)(\hat\theta_{\text{ML}}- \theta_0)^2 && \text{($I(\hat\theta_{\text{ML}})/\mathcal{I}(\theta_0) \to 1$)}\\ &= \mathopen{}\left(\sqrt{\mathcal{I}(\theta_0)}\,(\hat\theta_{\text{ML}}- \theta_0)\right)\mathclose{}^2 && \text{(write the product as a square)}\\ &= Z^2 && \text{(definition of $Z$)} \end{aligned} \]

By Theorem 9, \(\hat\theta_{\text{ML}}\ \dot{\sim} \ \operatorname{N}\mathopen{}\left(\theta_0, \mathcal{I}(\theta_0)^{-1}\right)\mathclose{}\) under \(H_0\), so by Exercise 19, \(\Lambda \approx Z^2\) has approximately a \(\chi^2_1\) distribution.

With \(q\) constraints, the same argument in matrix form makes \(\Lambda\) approximately a sum of \(q\) squared, independent standard Gaussian variables, which has a \(\chi^2_q\) distribution; this sketch does not derive the matrix form.

Equivalently, in terms of nested models: if a full model \(M_1\) has \(p\) free parameters, and a nested model \(M_0 \subset M_1\), obtained by imposing \(q\) constraints on \(M_1\), has \(p_0 = p - q\) free parameters, then when \(M_0\) is true, \(\Lambda = 2\mathopen{}\left(\ell_{M_1}(\hat\theta_{\text{ML}}) - \ell_{M_0}(\hat\theta_0)\right)\mathclose{}\) converges in distribution to \(\chi^2_q\).

Example 10 (Likelihood ratio test for a Poisson rate) For \(X_1, \ldots, X_n \ \sim_{\operatorname{iid}}\ \operatorname{Pois}({\lambda})\) and \(H_0: {\lambda}= {\lambda}_0\), the log-likelihood is \(\ell({\lambda}) = n\bar x \log{\lambda}- n{\lambda}- \sum_i \log x_i!\) and \(\hat{\lambda}_{\text{ML}} = \bar x\), so:

\[ \begin{aligned} \Lambda &= 2\mathopen{}\left(\ell(\bar x) - \ell({\lambda}_0)\right)\mathclose{} && \text{(definition of $\Lambda$)}\\ &= 2\mathopen{}\left(\mathopen{}\left(n\bar x \log \bar x - n\bar x - \sum_i \log x_i!\right)\mathclose{} - \mathopen{}\left(n\bar x \log{\lambda}_0 - n{\lambda}_0 - \sum_i \log x_i!\right)\mathclose{}\right)\mathclose{} && \text{(substitute $\ell(\bar x)$ and $\ell({\lambda}_0)$)}\\ &= 2\mathopen{}\left(n\bar x \log \bar x - n\bar x - \sum_i \log x_i! - n\bar x \log{\lambda}_0 + n{\lambda}_0 + \sum_i \log x_i!\right)\mathclose{} && \text{(distribute the minus sign)}\\ &= 2\mathopen{}\left(n\bar x \log \bar x - n\bar x - n\bar x \log{\lambda}_0 + n{\lambda}_0\right)\mathclose{} && \text{(the $\log x_i!$ terms cancel)}\\ &= 2n\mathopen{}\left(\bar x \log \bar x - \bar x - \bar x \log{\lambda}_0 + {\lambda}_0\right)\mathclose{} && \text{(factor out $n$)}\\ &= 2n\mathopen{}\left(\bar x \log \bar x - \bar x \log{\lambda}_0 - \bar x + {\lambda}_0\right)\mathclose{} && \text{(reorder the terms)}\\ &= 2n\mathopen{}\left(\bar x \mathopen{}\left(\log \bar x - \log{\lambda}_0\right)\mathclose{} - \bar x + {\lambda}_0\right)\mathclose{} && \text{(factor $\bar x$ out of the two log terms)}\\ &= 2n\mathopen{}\left(\bar x \log\frac{\bar x}{{\lambda}_0} - \bar x + {\lambda}_0\right)\mathclose{} && \text{(log of a quotient)} \end{aligned} \]

For example, with \(n = 13\), \(\bar x = 72/13\), and \({\lambda}_0 = 4\):

n_obs <- 13
xbar_obs <- 72 / 13
lambda0 <- 4
lr_stat <- 2 * n_obs *
  (xbar_obs * log(xbar_obs / lambda0) - xbar_obs + lambda0)
c(
  statistic = lr_stat,
  p_value = pchisq(lr_stat, df = 1, lower.tail = FALSE)
)
#>  statistic    p_value
#> 6.86082566 0.00881058

See also (Dobson and Barnett 2018, sec. 5.7) and https://online.stat.psu.edu/stat504/Lesson02.

1.9.4 Exact and approximate tests

Table 2: Exact tests that assume Gaussian outcomes, and their approximate, large-sample counterparts based on maximum likelihood. \(p\) is the number of regression coefficients.
Inference goal Exact test (Gaussian outcomes) Null distribution Approximate test (MLE) Approximate null distribution
Single coefficient t-test \(T_{n-p}\) Wald z-test \(Z \sim N(0,1)\)
Linear combination of coefficients t-test \(T_{n-p}\) Wald z-test \(Z \sim N(0,1)\)
Nested models (\(q\) constraints) Partial F-test \(F_{q,\, n-p}\) Likelihood ratio test or Wald test \(\chi^2_q\)
One-sample mean One-sample t-test \(T_{n-1}\) z-test \(Z \sim N(0,1)\)
Two-sample means Two-sample t-test (pooled variance) \(T_{n_1+n_2-2}\) z-test \(Z \sim N(0,1)\)
\(K\)-group means (ANOVA) F-test \(F_{K-1,\, n-K}\) Likelihood ratio test or Wald test \(\chi^2_{K-1}\)

The \(t\) and \(F\) distributions are defined in Statistical Inference. The exact tests assume \(Y_i \ \sim_{\perp\!\!\!\perp}\ N(\mu_i, \sigma^2)\), with a common variance. The approximate tests hold asymptotically, for any model that is correctly specified and satisfies the regularity conditions of Theorem 9, Gaussian or not.

1.9.5 Prediction intervals

Definition 15 (Prediction interval) A \(100(1-\alpha)\%\) prediction interval for a future random quantity \(Y^*\) is a pair of statistics \(L\) and \(U\), computed from the observed data, such that the interval from \(L\) to \(U\) contains \(Y^*\) with probability \(1 - \alpha\), where the probability accounts for the randomness of both the observed data and \(Y^*\):

\[ \Pr\mathopen{}\left(L \le Y^* \le U\right)\mathclose{} = 1 - \alpha \]

Suppose \(X_1, \ldots, X_n \ \sim_{\operatorname{iid}}\ \operatorname{N}\mathopen{}\left(\mu, \sigma^2\right)\mathclose{}\) with \(\sigma^2\) known, and we want to predict the mean \(\bar X^*\) of \(m\) new observations from the same distribution, independent of the first \(n\). The MLE of \(\mu\) is \(\hat\mu = \bar X\), and the difference \(\bar X^* - \hat\mu\) (the negative of the prediction error) is a difference of independent Gaussian variables, so:

\[ \begin{aligned} \operatorname{Var}\mathopen{}\left(\bar X^* - \hat\mu\right)\mathclose{} &= \operatorname{Var}\mathopen{}\left(\bar X^*\right)\mathclose{} + \operatorname{Var}\mathopen{}\left(\hat\mu\right)\mathclose{} && \text{(variance of a difference of independent variables)}\\ &= \frac{\sigma^2}{m} + \frac{\sigma^2}{n} && \text{(variance of a sample mean)} \end{aligned} \]

and \(\bar X^* - \hat\mu \sim \operatorname{N}\mathopen{}\left(0, \sigma^2\mathopen{}\left(\frac{1}{m} + \frac{1}{n}\right)\mathclose{}\right)\mathclose{}\). So a \(100(1 - \alpha)\%\) prediction interval for \(\bar X^*\) is:

\[\hat\mu \pm z_{1 - \alpha/2} \, \sigma \sqrt{\frac{1}{m} + \frac{1}{n}}\]

Usually \(m = 1\). The term \(1/n\) accounts for the uncertainty in \(\hat\mu\), and becomes negligible when \(n\) is much larger than \(m\).

Remark 1 (Prediction intervals versus confidence intervals). A confidence interval covers a fixed parameter, such as the mean \(\mu\). A prediction interval (Definition 15) covers a random quantity, such as a new outcome, or, in the example above, the mean \(\bar X^*\) of \(m\) new observations. Its probability accounts for the randomness of the new observations, not only of the observed data.

In the Gaussian example above, the standard error of \(\hat\mu = \bar X\) is \(\sigma / \sqrt{n}\), so the two intervals, the Wald confidence interval for \(\mu\) and the prediction interval for \(\bar X^*\), are

\[ \begin{aligned} &\hat\mu \pm z_{1 - \alpha/2} \, \sigma \sqrt{\frac{1}{n}} && \text{(confidence interval for $\mu$)}\\ &\hat\mu \pm z_{1 - \alpha/2} \, \sigma \sqrt{\frac{1}{m} + \frac{1}{n}} && \text{(prediction interval for $\bar X^*$)} \end{aligned} \]

The prediction interval is always the wider of the two, because its variance has the extra term \(\sigma^2 / m\), the variance of the new observations’ mean. As \(n\) grows, the width of the confidence interval shrinks to 0, but the width of the prediction interval shrinks only to \(2 z_{1 - \alpha/2} \, \sigma / \sqrt{m}\): more data pins down \(\mu\), but cannot remove the randomness of the new observations. The same contrast holds in regression, between a confidence interval for the conditional mean \(\operatorname{E}\mathopen{}\left[Y \mid X = x\right]\mathclose{}\) and a prediction interval for a new outcome \(Y\) at \(X = x\).

2 Example: maximum likelihood for tropical cyclones in Australia

Adapted from (Dobson and Barnett 2018, sec. 1.6.5).

2.1 Data

Table 3 records the number of tropical cyclones in northeastern Australia during 13 November-to-April cyclone seasons, from 1956/57 to 1968/69 (Dobson and Barnett 2018, sec. 1.6.5). Figure 1 graphs the number of cyclones by season. Let \(X_i\) represent the number of cyclones in season \(i\), and \(x_i\) its observed value.

Show R code
cyclones <- tibble::tibble(
  years = c(
    "1956/7", "1957/8", "1958/9", "1959/60", "1960/1", "1961/2", "1962/3",
    "1963/4", "1964/5", "1965/6", "1966/7", "1967/8", "1968/9"
  ),
  season = 1:13,
  number = c(6, 5, 4, 6, 6, 3, 12, 7, 4, 2, 6, 7, 4)
)
cyclones |> knitr::kable()
Table 3: Number of tropical cyclones during each November-to-April season in northeastern Australia (Dobson and Barnett 2018, sec. 1.6.5)
years season number
1956/7 1 6
1957/8 2 5
1958/9 3 4
1959/60 4 6
1960/1 5 6
1961/2 6 3
1962/3 7 12
1963/4 8 7
1964/5 9 4
1965/6 10 2
1966/7 11 6
1967/8 12 7
1968/9 13 4

2.2 Exploratory analysis

Suppose we want to learn how many cyclones to expect per season.

Show R code
cyclones |>
  dplyr::mutate(years = factor(years, levels = years)) |>
  ggplot2::ggplot() +
  ggplot2::aes(x = years, y = number, group = 1) +
  ggplot2::geom_point() +
  ggplot2::geom_line() +
  ggplot2::xlab("Season") +
  ggplot2::ylab("Number of cyclones") +
  ggplot2::expand_limits(y = 0) +
  ggplot2::theme(axis.text.x = ggplot2::element_text(vjust = .5, angle = 45))
Figure 1: Number of tropical cyclones per season in northeastern Australia, 1956/57 to 1968/69

Figure 1 shows no obvious trend, and no obvious correlation between adjacent seasons, so we assume that the seasons’ counts are mutually independent. We also assume that they are identically distributed, with a common distribution \(\Pr(X = x)\); the expression has no index \(i\), because the distribution is the same for every season.

Figure 2 shows the empirical distribution of the counts.

Show R code
cyclones |>
  ggplot2::ggplot() +
  ggplot2::aes(x = number) +
  ggplot2::geom_bar() +
  ggplot2::expand_limits(x = 0) +
  ggplot2::xlab("Number of cyclones") +
  ggplot2::ylab("Count (number of seasons)")

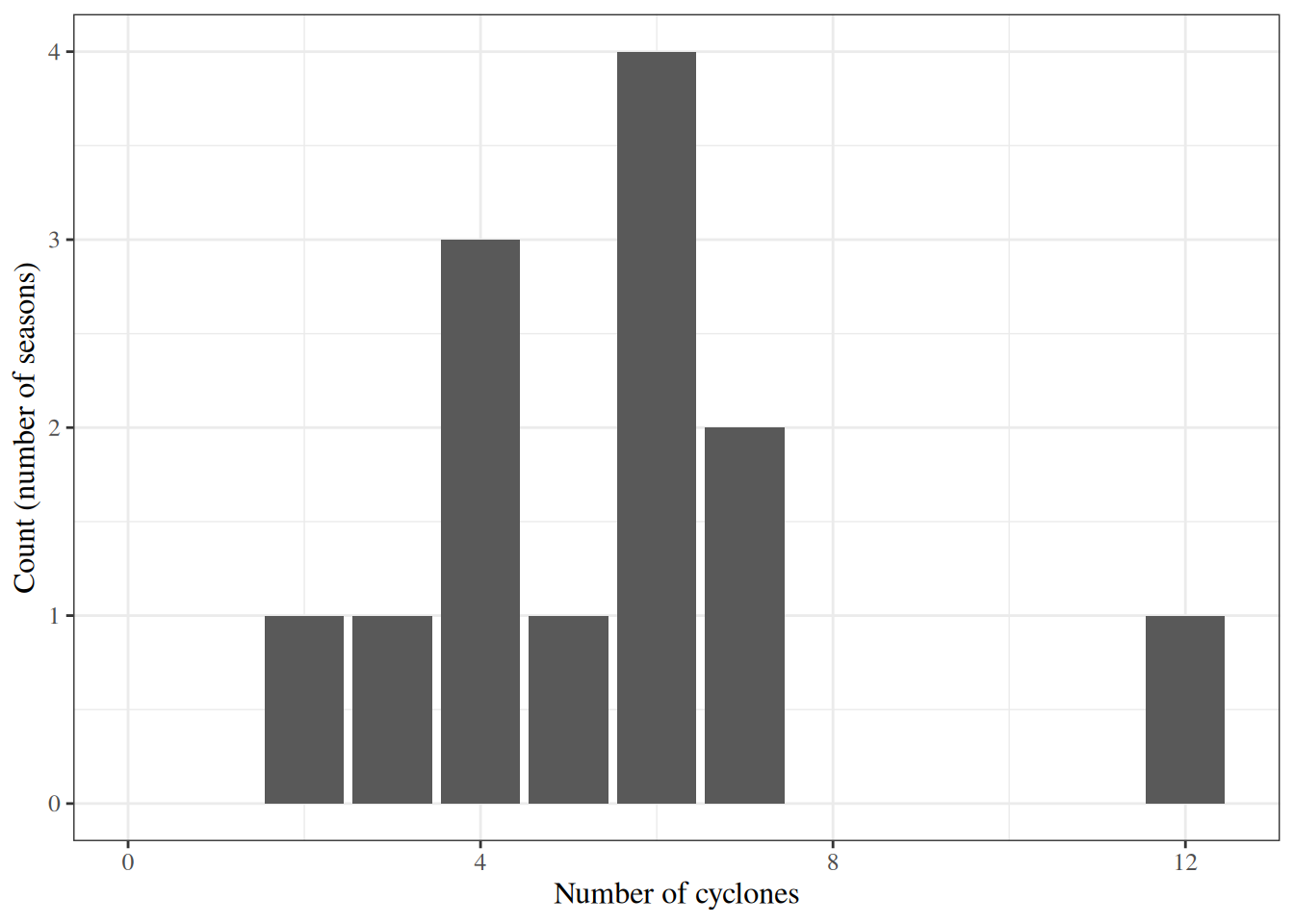

Figure 2: Bar plot of cyclones per season

Table 4 provides summary statistics.

Show R code
n <- nrow(cyclones)
sumx <- sum(cyclones$number)
xbar <- mean(cyclones$number)
tibble::tibble(
  seasons = n,
  total = sumx,
  mean = xbar,
  variance = var(cyclones$number)
) |>
  knitr::kable(digits = 2)
Table 4: Summary statistics for the cyclones data
seasons total mean variance
13 72 5.54 6.1

2.3 Model

We want to estimate \(\Pr(X = x)\); that is, \(\Pr(X = x)\) is our estimand.

We could estimate \(\Pr(X = x)\) for each value of \(x\) in \(0, 1, 2, \ldots\) separately (“nonparametrically”), using the fraction of our data with \(X_i = x\); but then we would be estimating an infinite set of parameters from 13 observations, and each estimate would be imprecise. A parametric model, with a few parameters, will probably do better.

Exercise 20 (Choosing a distribution family) What parametric family of probability distributions might we use to model this empirical distribution?

Solution 20. The Poisson family. The data are counts, which can take any non-negative integer value. The binomial family also models counts, but a binomial count has an upper limit (its number of trials), and there is no natural upper limit on the number of cyclones in a season.

Exercise 21 (The Poisson probability mass function) Write down the Poisson distribution’s probability mass function.

Solution 21. \[\Pr(X = x) = \frac{\lambda^{x} e^{-\lambda}}{x!}, \quad x \in \mathopen{}\left\{0, 1, 2, \ldots\right\}\mathclose{} \tag{15}\]

2.4 Estimating the model parameters using maximum likelihood

We can estimate the parameter \(\lambda\) using maximum likelihood estimation.

Exercise 22 (Likelihood of one observation) Write down the likelihood of a single observation \(x\), according to the Poisson model.

Solution 22. \[ \begin{aligned} \mathcal{L}(\lambda; x) &\stackrel{\text{def}}{=}\Pr(X = x) && \text{(definition of likelihood)}\\ &= \frac{\lambda^x e^{-\lambda}}{x!} && \text{(Poisson PMF)} \end{aligned} \]

Exercise 23 (Model parameters) Write down the vector of parameters in the model.

Solution 23. There is only one parameter, \(\lambda\):

\[\theta = (\lambda)\]

Exercise 24 (Mean and variance) Write down the population mean and variance of a single observation from the model, as functions of the parameters.

Solution 24.

  • Population mean: \(\operatorname{E}\mathopen{}\left[X\right]\mathclose{} = \lambda\).
  • Population variance: \(\operatorname{Var}\mathopen{}\left(X\right)\mathclose{} = \lambda\).

The sample mean and variance in Table 4 are of similar size, as the model implies.

Exercise 25 (Likelihood of the dataset) Write down the likelihood of the full dataset.

Solution 25. \[ \begin{aligned} \mathcal{L}(\lambda; \tilde{x}) &\stackrel{\text{def}}{=}\Pr(\tilde{X}= \tilde{x}) && \text{(definition of likelihood)}\\ &= \Pr(X_1 = x_1, X_2 = x_2, \ldots, X_{13} = x_{13}) && \text{(write out the vector)}\\ &= \prod_{i=1}^{13} \Pr(X_i = x_i) && \text{(independence)}\\ &= \prod_{i=1}^{13} \frac{\lambda^{x_i} e^{-\lambda}}{x_i!} && \text{(Poisson PMF)} \end{aligned} \]

Exercise 26 (Graphing the likelihood) Graph the likelihood as a function of \(\lambda\).

Solution 26.

Show R code
# `cyclones` is defined earlier on the page:
# nolint next: object_usage_linter.
lik <- function(lambda, y = cyclones$number, n = length(y)) {
  lambda^sum(y) * exp(-n * lambda) / prod(factorial(y))
}

lik_plot <-
  ggplot2::ggplot() +
  ggplot2::geom_function(fun = lik, n = 1001) +
  ggplot2::xlim(min(cyclones$number), max(cyclones$number)) +
  ggplot2::ylab("likelihood") +
  ggplot2::xlab("lambda")

print(lik_plot)

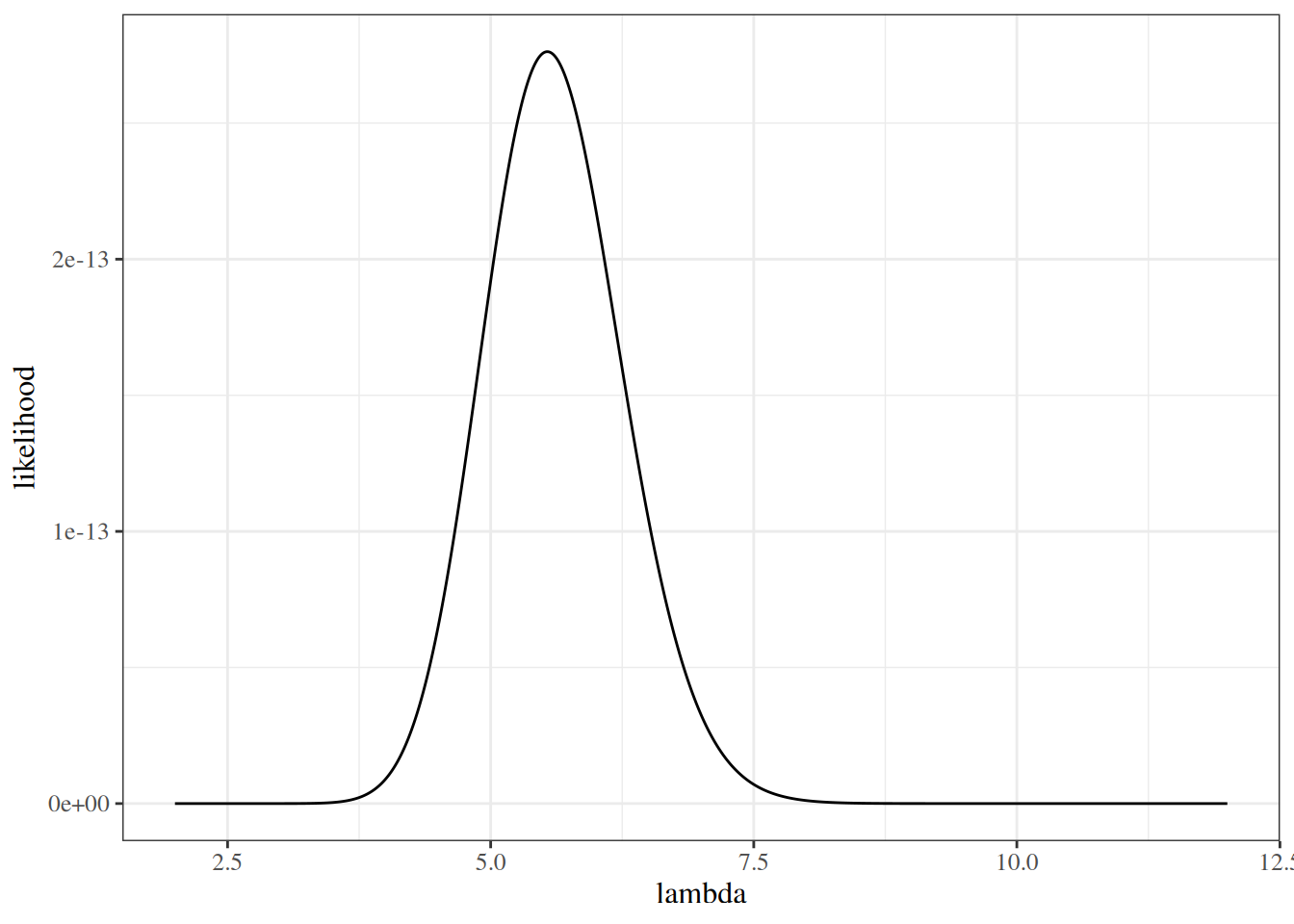

Figure 3: Likelihood of the cyclone data

Exercise 27 (Log-likelihood of the dataset) Write down the log-likelihood of the full dataset.

Solution 27. \[ \begin{aligned} \ell(\lambda; \tilde{x}) &\stackrel{\text{def}}{=}\operatorname{log}\mathopen{}\left\{\mathcal{L}(\lambda; \tilde{x})\right\}\mathclose{} && \text{(definition of log-likelihood)}\\ &= \operatorname{log}\mathopen{}\left\{\prod_{i = 1}^n \frac{\lambda^{x_i} e^{-\lambda}}{x_i!}\right\}\mathclose{} && \text{(likelihood of the dataset)}\\ &= \sum_{i = 1}^n \operatorname{log}\mathopen{}\left\{\frac{\lambda^{x_i} e^{-\lambda}}{x_i!}\right\}\mathclose{} && \text{(log of a product)}\\ &= \sum_{i = 1}^n \mathopen{}\left(\operatorname{log}\mathopen{}\left\{\lambda^{x_i}\right\}\mathclose{} + \operatorname{log}\mathopen{}\left\{e^{-\lambda}\right\}\mathclose{} - \operatorname{log}\mathopen{}\left\{x_i!\right\}\mathclose{}\right)\mathclose{} && \text{(log of a product and of a quotient)}\\ &= \sum_{i = 1}^n \mathopen{}\left(x_i \operatorname{log}\mathopen{}\left\{\lambda\right\}\mathclose{} - \lambda - \operatorname{log}\mathopen{}\left\{x_i!\right\}\mathclose{}\right)\mathclose{} && \text{(log of a power; $\log e^{a} = a$)}\\ &= \mathopen{}\left(\sum_{i = 1}^n x_i\right)\mathclose{} \operatorname{log}\mathopen{}\left\{\lambda\right\}\mathclose{} - n\lambda - \sum_{i = 1}^n \operatorname{log}\mathopen{}\left\{x_i!\right\}\mathclose{} && \text{(split the sum)} \end{aligned} \]

Exercise 28 (Graphing the log-likelihood) Graph the log-likelihood as a function of \(\lambda\).

Solution 28.

Show R code
# `cyclones` is defined earlier on the page:
# nolint next: object_usage_linter.
loglik <- function(lambda, y = cyclones$number, n = length(y)) {
  sum(y) * log(lambda) - n * lambda - sum(lfactorial(y))
}

ll_plot <- ggplot2::ggplot() +
  ggplot2::geom_function(fun = loglik, n = 1001) +
  ggplot2::xlim(min(cyclones$number), max(cyclones$number)) +
  ggplot2::ylab("log-likelihood") +
  ggplot2::xlab("lambda")
ll_plot
Figure 4: Log-likelihood of the cyclone data

2.4.1 The score function

Exercise 29 (Score function of the dataset) Derive the score function for the dataset.

Solution 29. The score function is the first derivative of the log-likelihood from Exercise 27:

\[ \begin{aligned} \ell'(\lambda; \tilde{x}) &\stackrel{\text{def}}{=}\frac{\partial}{\partial \lambda}\mathopen{}\left(\mathopen{}\left(\sum_{i = 1}^n x_i\right)\mathclose{}\operatorname{log}\mathopen{}\left\{\lambda\right\}\mathclose{} - n\lambda - \sum_{i = 1}^n \operatorname{log}\mathopen{}\left\{x_i!\right\}\mathclose{}\right)\mathclose{} && \text{(definition of the score)}\\ &= \mathopen{}\left(\sum_{i = 1}^n x_i\right)\mathclose{}\frac{\partial}{\partial \lambda}\operatorname{log}\mathopen{}\left\{\lambda\right\}\mathclose{} - n\frac{\partial}{\partial \lambda}\lambda - \frac{\partial}{\partial \lambda}\sum_{i = 1}^n \operatorname{log}\mathopen{}\left\{x_i!\right\}\mathclose{} && \text{(linearity of differentiation)}\\ &= \mathopen{}\left(\sum_{i = 1}^n x_i\right)\mathclose{}\frac{1}{\lambda} - n - 0 && \text{(derivatives of $\log \lambda$, $\lambda$, and a constant)}\\ &= \frac{n \bar x}{\lambda} - n && \text{($\textstyle\sum_{i=1}^n x_i = n \bar x$)} \end{aligned} \]

For the cyclone data, \(n = 13\) and \(n \bar x = 72\), so \(\ell'(\lambda; \tilde{x}) = 72/\lambda - 13\).

Exercise 30 (Graphing the score function) Graph the score function.

Solution 30.

Show R code
# `cyclones` is defined earlier on the page:
# nolint next: object_usage_linter.
score <- function(lambda, y = cyclones$number, n = length(y)) {
  (sum(y) / lambda) - n
}

ggplot2::ggplot() +
  ggplot2::geom_function(fun = score, n = 1001) +
  ggplot2::xlim(min(cyclones$number), max(cyclones$number)) +
  ggplot2::ylab("l'(lambda)") +
  ggplot2::xlab("lambda") +
  ggplot2::geom_hline(yintercept = 0, col = "red")

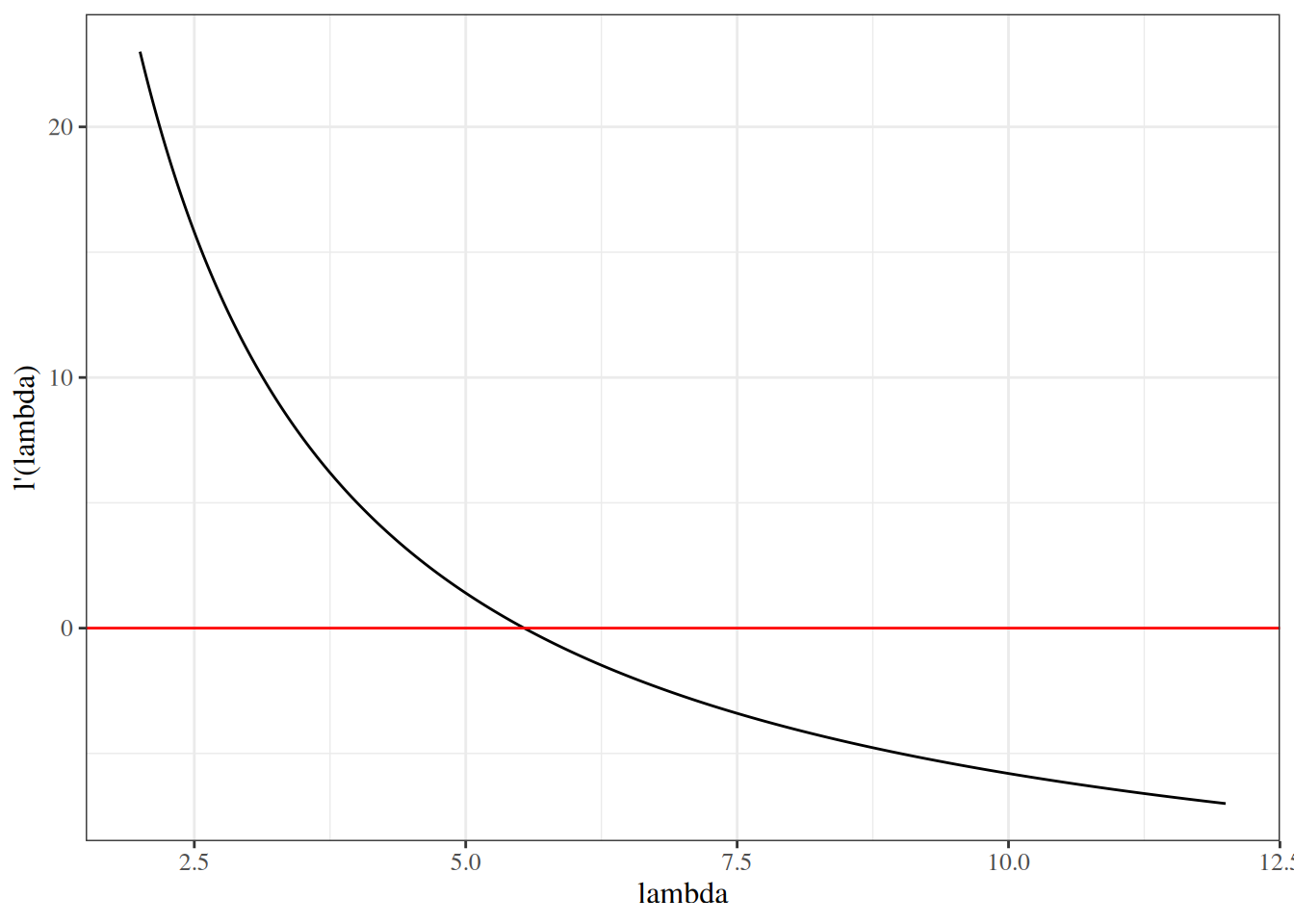

Figure 5: Score function of the cyclone data

2.4.2 The Hessian

Exercise 31 (Hessian) Derive the Hessian.

Solution 31. With one parameter, the Hessian is the second derivative of the log-likelihood, which is the derivative of the score from Exercise 29:

\[ \begin{aligned} \ell''(\lambda; \tilde{x}) &= \frac{\partial}{\partial \lambda}\mathopen{}\left(\frac{n \bar x}{\lambda} - n\right)\mathclose{} && \text{(differentiate the score)}\\ &= n \bar x \frac{\partial}{\partial \lambda}\frac{1}{\lambda} - \frac{\partial}{\partial \lambda} n && \text{(linearity of differentiation)}\\ &= -\frac{n \bar x}{\lambda^2} && \text{($\tfrac{d}{d\lambda}\lambda^{-1} = -\lambda^{-2}$; $n$ is constant)} \end{aligned} \]

For the cyclone data, \(\ell''(\lambda; \tilde{x}) = -72/\lambda^2\).

Exercise 32 (Graphing the Hessian) Graph the Hessian.

Solution 32.

Show R code
# `cyclones` is defined earlier on the page:
# nolint next: object_usage_linter.
hessian <- function(lambda, y = cyclones$number, n = length(y)) {
  -sum(y) / (lambda^2)
}

ggplot2::ggplot() +
  ggplot2::geom_function(fun = hessian, n = 1001) +
  ggplot2::xlim(min(cyclones$number), max(cyclones$number)) +
  ggplot2::ylab("l''(lambda)") +
  ggplot2::xlab("lambda") +
  ggplot2::geom_hline(yintercept = 0, col = "red")
Figure 6: Hessian of the cyclone data’s log-likelihood

Exercise 33 (Score equation) Write the score equation.

Solution 33. \[\ell'(\lambda; \tilde{x}) = 0\]

2.5 Finding the MLE analytically

In this example, we can find the MLE of \(\lambda\) by solving the score equation algebraically.

Exercise 34 (Solving the score equation) Solve the score equation from Exercise 33 for \(\lambda\), using the score from Exercise 29.

Solution 34. \[ \begin{aligned} 0 &= \frac{n \bar x}{\lambda} - n && \text{(score of the dataset)}\\ n &= \frac{n \bar x}{\lambda} && \text{(add $n$ to both sides)}\\ n\lambda &= n \bar x && \text{(multiply both sides by $\lambda > 0$)}\\ \lambda &= \bar x && \text{(divide both sides by $n$)} \end{aligned} \]

Call this solution of the score equation \(\tilde \lambda\) for now:

\[\tilde \lambda \stackrel{\text{def}}{=}\bar x\]

Exercise 35 (Checking the second derivative) Confirm that the Hessian \(\ell''(\lambda; \tilde{x})\) is negative when evaluated at \(\tilde \lambda\), using Exercise 31.

Solution 35. \[ \begin{aligned} \ell''(\tilde\lambda; \tilde{x}) &= -\frac{n \bar x}{\tilde\lambda^2} && \text{(Hessian of the log-likelihood)}\\ &= -\frac{n \bar x}{\bar x^2} && \text{(substitute $\tilde\lambda = \bar x$)}\\ &= -\frac{n}{\bar x} && \text{(cancel one factor of $\bar x$)}\\ &< 0 && \text{($n > 0$ and $\bar x > 0$)} \end{aligned} \]

Exercise 36 (Identifying the MLE) Draw conclusions about the MLE of \(\lambda\).

Solution 36. Since \(\ell''(\tilde \lambda; \tilde{x}) < 0\), \(\tilde \lambda\) is a local maximizer of the log-likelihood. Moreover, \(\ell''(\lambda; \tilde{x}) = -n\bar x/\lambda^2 < 0\) for every \(\lambda > 0\), so the log-likelihood is strictly concave, and a local maximizer of a strictly concave function is its unique global maximizer. So \(\tilde \lambda\) maximizes \(\ell\), and therefore \(\mathcal{L}\):

mle <- mean(cyclones$number)
mle
#> [1] 5.53846

\[\hat{\lambda}_{\text{ML}} = \bar x = 5.538\]

Exercise 37 (Graphing the MLE) Graph the log-likelihood with the MLE superimposed.

Solution 37.

Show R code
mle_data <- tibble::tibble(x = mle, y = loglik(mle))
ll_plot +
  ggplot2::geom_point(data = mle_data, ggplot2::aes(x = x, y = y), col = "red")
Figure 7: Log-likelihood of the cyclone data, with the MLE marked in red

Figure 8 graphs the observed information, \(I(\lambda; \tilde{x}) = -\ell''(\lambda; \tilde{x})\).

Show R code
obs_inf <- function(...) -hessian(...) # nolint: object_usage_linter.
ggplot2::ggplot() +
  ggplot2::geom_function(fun = obs_inf, n = 1001) +
  ggplot2::xlim(min(cyclones$number), max(cyclones$number)) +
  ggplot2::ylab("I(lambda)") +
  ggplot2::xlab("lambda") +
  ggplot2::geom_hline(yintercept = 0, col = "red")
Figure 8: Observed information of the cyclone data

2.6 Finding the MLE using the Newton-Raphson algorithm

2.6.1 Iterative maximization

When we cannot solve the score equation \(\ell'(\theta) = 0\) algebraically, we can search for its solution numerically (Dobson and Barnett 2018, chap. 4).

Definition 16 (Newton-Raphson algorithm) The Newton-Raphson algorithm for solving the score equation \(\ell'(\theta) = 0\) starts from an initial guess \({\widehat{\theta}}^*\) and repeats the update

\[ \begin{aligned} {\widehat{\theta}}^* &\leftarrow {\widehat{\theta}}^* - \mathopen{}\left(\ell''\mathopen{}\left(\tilde{x}; {\widehat{\theta}}^*\right)\mathclose{}\right)^{-1}\mathclose{} \ell'\mathopen{}\left(\tilde{x}; {\widehat{\theta}}^*\right)\mathclose{}\\ &= {\widehat{\theta}}^* + \mathopen{}\left(I\mathopen{}\left(\tilde{x}; {\widehat{\theta}}^*\right)\mathclose{}\right)^{-1}\mathclose{} \ell'\mathopen{}\left(\tilde{x}; {\widehat{\theta}}^*\right)\mathclose{} \end{aligned} \]

until the estimate stops changing.

The second line of the update uses \(I= -\ell''\) (observed information).

The update comes from approximating the score function near \({\widehat{\theta}}^*\) by its first-order Taylor polynomial:

\[ \begin{aligned} \ell'(\theta) &\approx \ell'^*(\theta)\\ &\stackrel{\text{def}}{=}\ell'({\widehat{\theta}}^*) + \ell''({\widehat{\theta}}^*)(\theta- {\widehat{\theta}}^*) \end{aligned} \]

The approximate score function \(\ell'^*(\theta)\) is linear in \(\theta\), so the approximate score equation \(\ell'^*(\theta) = 0\) is easy to solve:

\[ \begin{aligned} 0 &= \ell'({\widehat{\theta}}^*) + \ell''({\widehat{\theta}}^*)(\theta- {\widehat{\theta}}^*) && \text{(set $\ell'^*(\theta) = 0$)}\\ -\ell'({\widehat{\theta}}^*) &= \ell''({\widehat{\theta}}^*)(\theta- {\widehat{\theta}}^*) && \text{(subtract $\ell'({\widehat{\theta}}^*)$)}\\ -\mathopen{}\left(\ell''({\widehat{\theta}}^*)\right)^{-1}\mathclose{}\ell'({\widehat{\theta}}^*) &= \theta- {\widehat{\theta}}^* && \text{(multiply by $\mathopen{}\left(\ell''({\widehat{\theta}}^*)\right)^{-1}\mathclose{}$ on the left)}\\ \theta&= {\widehat{\theta}}^* - \mathopen{}\left(\ell''({\widehat{\theta}}^*)\right)^{-1}\mathclose{}\ell'({\widehat{\theta}}^*) && \text{(add ${\widehat{\theta}}^*$)} \end{aligned} \]

and the solution becomes the next guess.

Definition 17 (Fisher scoring) Fisher scoring (also called the method of scoring) is the Newton-Raphson algorithm with the observed information \(I(\tilde{x}; {\widehat{\theta}}^*)\) in the update replaced by the expected information \(\mathcal{I}({\widehat{\theta}}^*)\):

\[ {\widehat{\theta}}^* \leftarrow {\widehat{\theta}}^* + \mathopen{}\left(\mathcal{I}\mathopen{}\left({\widehat{\theta}}^*\right)\mathclose{}\right)^{-1}\mathclose{} \ell'\mathopen{}\left(\tilde{x}; {\widehat{\theta}}^*\right)\mathclose{} \]

The expected information is sometimes simpler to compute than the observed information.

Example 11 (Fisher scoring for Poisson data) For \(X_1, \ldots, X_n \ \sim_{\operatorname{iid}}\ \operatorname{Pois}({\lambda})\), the score is \(\ell'({\lambda}) = n\bar x/{\lambda}- n\) and the expected information is \(\mathcal{I}({\lambda}) = n/{\lambda}\) (Example 5), so one Fisher scoring step from any \({\widehat{\lambda}}^*> 0\) gives:

\[ \begin{aligned} {\widehat{\lambda}}^*+ \mathopen{}\left(\mathcal{I}({\widehat{\lambda}}^*)\right)^{-1}\mathclose{} \ell'({\widehat{\lambda}}^*) &= {\widehat{\lambda}}^*+ \frac{{\widehat{\lambda}}^*}{n}\mathopen{}\left(\frac{n\bar x}{{\widehat{\lambda}}^*} - n\right)\mathclose{} && \text{(substitute $\mathcal{I}$ and $\ell'$)}\\ &= {\widehat{\lambda}}^*+ \bar x - {\widehat{\lambda}}^* && \text{(distribute ${\widehat{\lambda}}^*/n$)}\\ &= \bar x && \text{(cancel ${\widehat{\lambda}}^*$)} \end{aligned} \]

So Fisher scoring reaches the MLE \(\bar x\) in one step, while Newton-Raphson needs several (Table 5).

Definition 18 (Empirical information matrix) For mutually independent observations, the empirical information matrix is (McLachlan and Krishnan 2007):

\[ I_e(\theta; \tilde{x}) \stackrel{\text{def}}{=} \sum_{i = 1}^{n} \ell'_i {\ell'_i}^{\top} - \frac{1}{n} \ell'{\ell'}^{\top} \]

where \(\ell'_i\) is the score of the \(i\)th observation’s log-likelihood, and \(\ell'= \sum_{i = 1}^{n} \ell'_i\).

For \(\operatorname{iid}\) data, \(\frac{1}{n}I_e(\theta; \tilde{x})\) is the sample covariance matrix (with divisor \(n\)) of the observations’ scores, so it estimates the covariance matrix of one observation’s score, \(\mathcal{I}(\theta)/n\) (Theorem 8). The empirical information needs only first derivatives, so it can be easier to compute than the observed information, and it can replace the observed information in the Newton-Raphson update.

2.6.2 Applying Newton-Raphson to the cyclone data

Example 12 (Finding the MLE using the Newton-Raphson algorithm) We found the MLE \(\hat{\lambda} = \bar{x}\) by solving the score equation \(\ell'(\lambda) = 0\) algebraically (Exercise 34). If we could not have solved it, we could instead start from an initial guess such as \({\widehat{\lambda}}^*= 3\) and apply the Newton-Raphson algorithm.

cur_lambda_est <- 3
cur_lambda_est
#> [1] 3

From Exercise 29 and Exercise 31, the score function and Hessian are:

\[ \begin{aligned} \ell'(\lambda; \tilde{x}) &= \frac{72}{\lambda} - 13\\ \ell''(\lambda; \tilde{x}) &= -\frac{72}{\lambda^2} \end{aligned} \]

So the first-order Taylor approximation of the score function around \({\widehat{\lambda}}^*\) is:

\[ \begin{aligned} \ell'(\lambda) &\approx \ell'^*(\lambda)\\ &\stackrel{\text{def}}{=}\ell'({\widehat{\lambda}}^*) + \ell''({\widehat{\lambda}}^*)(\lambda - {\widehat{\lambda}}^*)\\ &= \mathopen{}\left(\frac{72}{{\widehat{\lambda}}^*} - 13\right)\mathclose{} + \mathopen{}\left(-\frac{72}{\mathopen{}\left({\widehat{\lambda}}^*\right)^2\mathclose{}}\right)\mathclose{} (\lambda - {\widehat{\lambda}}^*) \end{aligned} \]

Figure 9 compares the score function and the approximate score function at \({\widehat{\lambda}}^*= 3\).

Show R code
# score(), hessian() and loglik() are defined earlier on the page
# nolint start: object_usage_linter.
approx_score <- function(lambda, lhat, ...) {
  score(lambda = lhat, ...) +
    hessian(lambda = lhat, ...) * (lambda - lhat)
}
# nolint end

point_size <- 5

plot1 <- ggplot2::ggplot() +
  ggplot2::geom_function(
    fun = score,
    ggplot2::aes(col = "score function"),
    n = 1001
  ) +
  ggplot2::geom_function(
    fun = approx_score,
    ggplot2::aes(col = "approximate score function"),
    n = 1001,
    args = list(lhat = cur_lambda_est)
  ) +
  ggplot2::geom_point(
    size = point_size,
    ggplot2::aes(
      x = cur_lambda_est, y = score(lambda = cur_lambda_est),
      col = "current estimate"
    )
  ) +
  ggplot2::geom_point(
    size = point_size,
    ggplot2::aes(x = xbar, y = 0, col = "MLE")
  ) +
  ggplot2::xlim(min(cyclones$number), max(cyclones$number)) +
  ggplot2::ylab("l'(lambda)") +
  ggplot2::xlab("lambda") +
  ggplot2::geom_hline(yintercept = 0)

print(plot1)
Figure 9: Score function of the cyclone data and its first-order approximation at the initial guess

Approximating the score function by a linear function is equivalent to approximating the log-likelihood by a second-order Taylor polynomial (Figure 10):

\[ \ell^*(\lambda) \stackrel{\text{def}}{=} \ell({\widehat{\lambda}}^*) + (\lambda - {\widehat{\lambda}}^*) \ell'({\widehat{\lambda}}^*) + \frac{1}{2}\ell''({\widehat{\lambda}}^*)(\lambda - {\widehat{\lambda}}^*)^2 \]

Show R code
# nolint start: object_usage_linter.
approx_loglik <- function(lambda, lhat, ...) {
  loglik(lambda = lhat, ...) +
    score(lambda = lhat, ...) * (lambda - lhat) +
    1 / 2 * hessian(lambda = lhat, ...) * (lambda - lhat)^2
}
# nolint end

plot_loglik <- ggplot2::ggplot() +
  ggplot2::geom_function(
    fun = loglik,
    ggplot2::aes(col = "log-likelihood"),
    n = 1001
  ) +
  ggplot2::geom_function(
    fun = approx_loglik,
    ggplot2::aes(col = "approximate log-likelihood"),
    n = 1001,
    args = list(lhat = cur_lambda_est)
  ) +
  ggplot2::geom_point(
    size = point_size,
    ggplot2::aes(
      x = cur_lambda_est, y = loglik(lambda = cur_lambda_est),
      col = "current estimate"
    )
  ) +
  ggplot2::geom_point(
    size = point_size,
    ggplot2::aes(x = xbar, y = loglik(xbar), col = "MLE")
  ) +
  ggplot2::xlim(min(cyclones$number) - 1, max(cyclones$number)) +
  ggplot2::ylab("log-likelihood") +
  ggplot2::xlab("lambda")

print(plot_loglik)

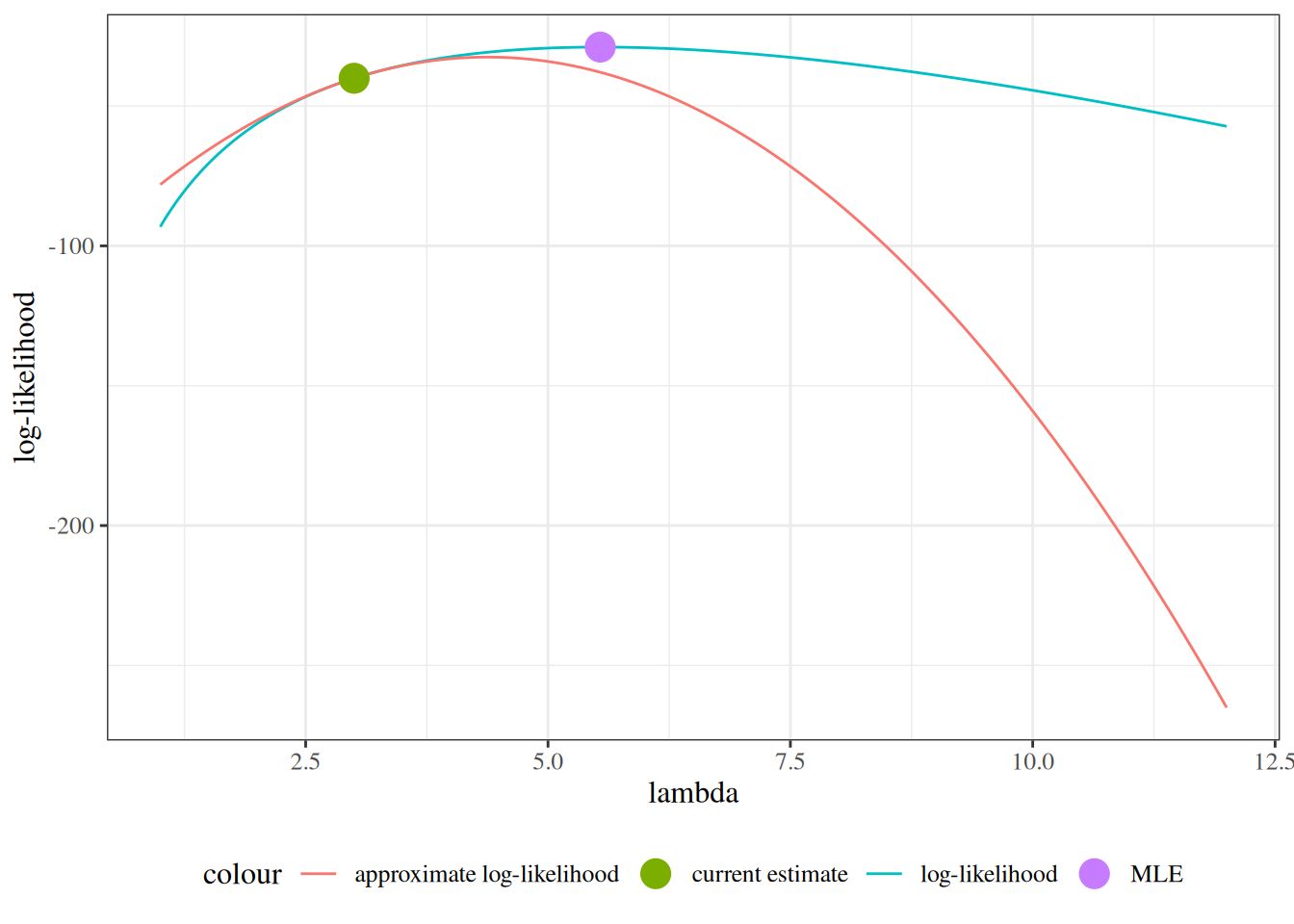

Figure 10: Log-likelihood of the cyclone data and its second-order approximation at the initial guess

Solving the approximate score equation \(\ell'^*(\lambda) = 0\) gives the next estimate:

\[ \begin{aligned} \lambda &= {\widehat{\lambda}}^*- \ell'({\widehat{\lambda}}^*) \cdot\mathopen{}\left(\ell''({\widehat{\lambda}}^*)\right)^{-1}\mathclose{}\\ &= 4.375 \end{aligned} \]

new_lambda_est <-
  cur_lambda_est - score(cur_lambda_est) / hessian(cur_lambda_est)
new_lambda_est
#> [1] 4.375
Show R code
plot2 <- plot1 +
  ggplot2::geom_point(
    size = point_size,
    ggplot2::aes(x = new_lambda_est, y = 0, col = "new estimate")
  ) +
  ggplot2::geom_segment(
    arrow = grid::arrow(),
    linewidth = 2,
    alpha = .7,
    ggplot2::aes(
      x = cur_lambda_est,
      y = approx_score(lhat = cur_lambda_est, lambda = cur_lambda_est),
      xend = new_lambda_est,
      yend = 0,
      col = "update"
    )
  )
print(plot2)

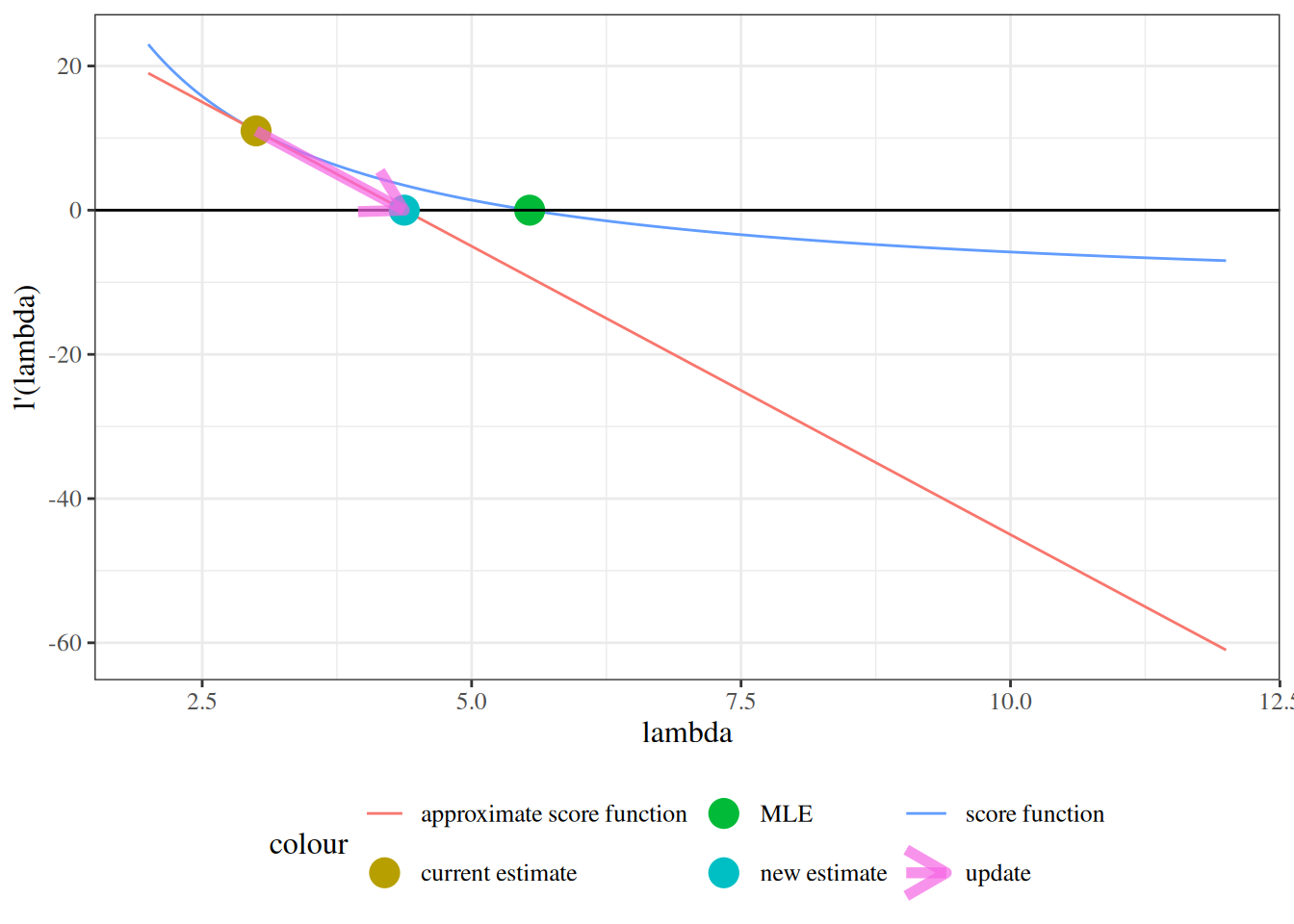

Figure 11: The first Newton-Raphson update: the new estimate is where the approximate score function crosses zero

We update \({\widehat{\lambda}}^*\leftarrow 4.375\) and repeat the process (Figure 12).

Show R code
plot2 +
  ggplot2::geom_function(
    fun = approx_score,
    ggplot2::aes(col = "new approximate score function"),
    n = 1001,
    args = list(lhat = new_lambda_est)
  ) +
  ggplot2::geom_point(
    size = point_size,
    ggplot2::aes(
      x = new_lambda_est, y = score(lambda = new_lambda_est),
      col = "new estimate"
    )
  )

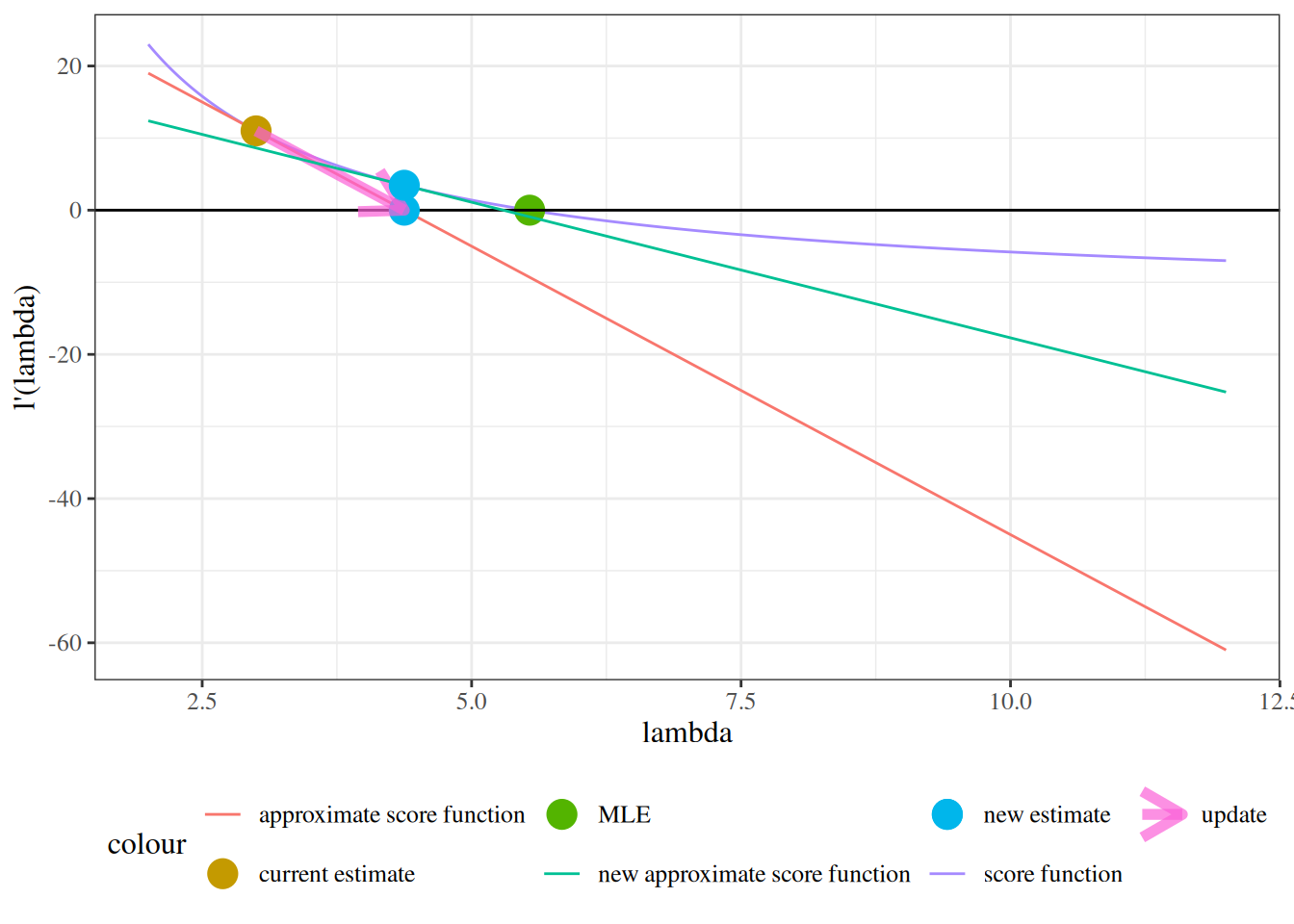

Figure 12: The approximate score function at the updated estimate

We repeat this process until the log-likelihood stops changing (Table 5).

Table 5: Convergence of the Newton-Raphson algorithm to the MLE for the cyclone data
cur_lambda_est <- 3 # restart from the initial guess
tolerance <- 10^-4
max_iter <- 100
nr_info <- tibble::tibble(
  iteration = 0,
  lambda = cur_lambda_est,
  `log(likelihood)` = loglik(cur_lambda_est),
  score = score(cur_lambda_est),
  hessian = hessian(cur_lambda_est)
)

for (cur_iter in 1:max_iter) {
  new_lambda_est <-
    cur_lambda_est - score(cur_lambda_est) / hessian(cur_lambda_est)

  diff_loglik <- loglik(new_lambda_est) - loglik(cur_lambda_est)

  nr_info <- nr_info |>
    dplyr::bind_rows(
      tibble::tibble(
        iteration = cur_iter,
        lambda = new_lambda_est,
        `log(likelihood)` = loglik(new_lambda_est),
        score = score(new_lambda_est),
        hessian = hessian(new_lambda_est),
        `diff(loglik)` = diff_loglik
      )
    )

  cur_lambda_est <- new_lambda_est

  if (abs(diff_loglik) < tolerance) {
    break
  }
}

nr_info |> knitr::kable(digits = 5)
iteration lambda log(likelihood) score hessian diff(loglik)
0 3.00000 -40.0610 11.00000 -8.00000 NA
1 4.37500 -30.7708 3.45714 -3.76163 9.29018
2 5.29405 -28.9897 0.60016 -2.56895 1.78110
3 5.52768 -28.9176 0.02537 -2.35639 0.07210
4 5.53844 -28.9175 0.00005 -2.34724 0.00014
5 5.53846 -28.9175 0.00000 -2.34722 0.00000

The final estimate matches the closed-form MLE, \(\bar x = 5.53846\) (Exercise 36).

Show R code
ll_plot +
  ggplot2::geom_segment(
    data = nr_info,
    arrow = grid::arrow(),
    alpha = .7,
    ggplot2::aes(
      x = lambda,
      xend = dplyr::lead(lambda),
      y = `log(likelihood)`,
      yend = dplyr::lead(`log(likelihood)`),
      col = factor(iteration)
    )
  ) +
  ggplot2::labs(col = "iteration")

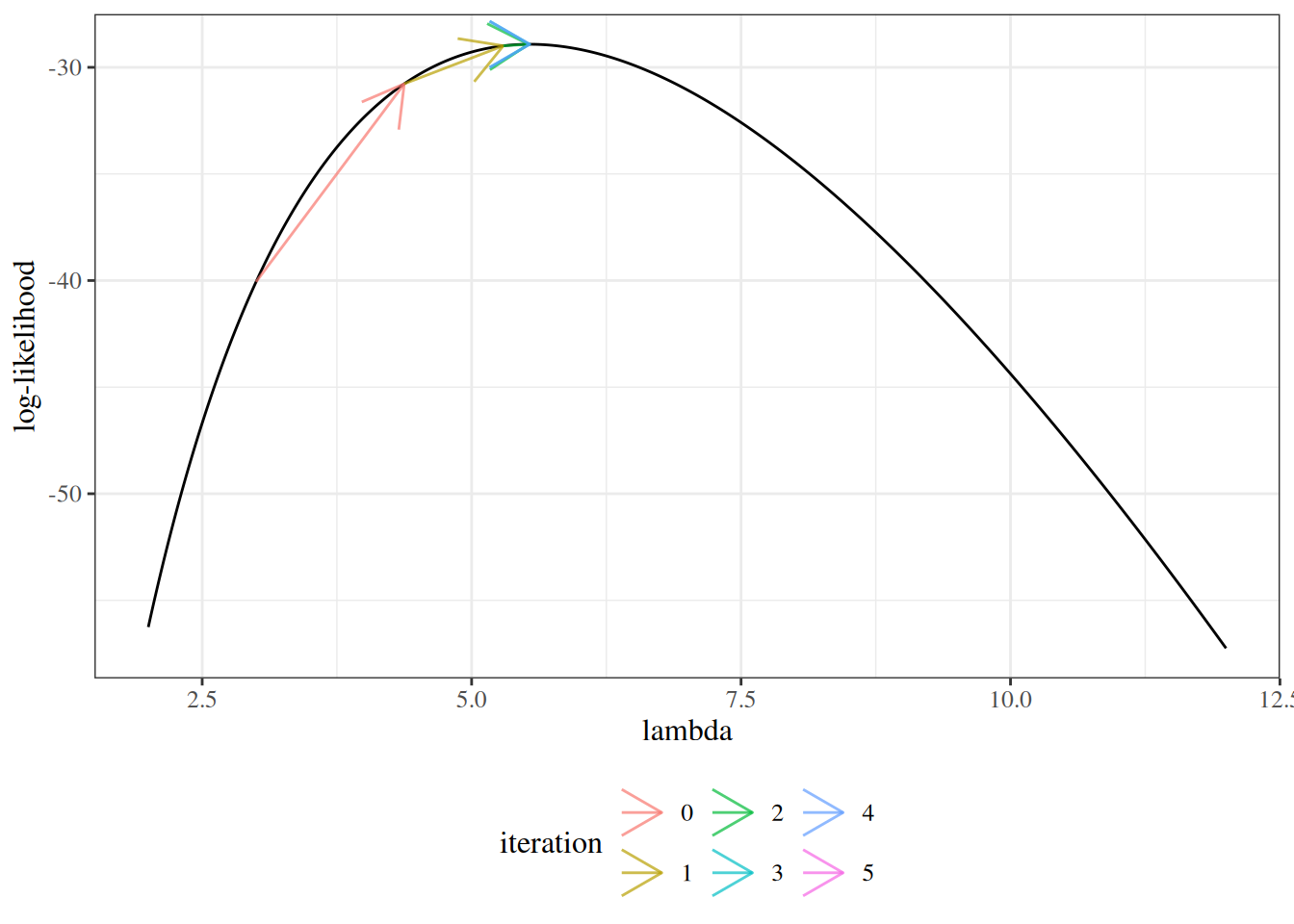

Figure 13: Newton-Raphson steps toward the MLE of the Poisson model (Equation 15) for the cyclone data

3 Maximum likelihood for univariate Gaussian models

Suppose \(X_1, \ldots, X_n \ \sim_{\operatorname{iid}}\ \operatorname{N}\mathopen{}\left(\mu, \sigma^2\right)\mathclose{}\), and let \(x_1, \ldots, x_n\) be the observed values. The parameter vector is \(\tilde{\theta}= (\mu, \sigma^2)\). We treat \(\sigma^2\), rather than \(\sigma\), as the second parameter, and differentiate with respect to \(\sigma^2\) directly.

By Theorem 1, the likelihood is:

\[ \mathcal{L}(\mu, \sigma^2) = \prod_{i=1}^n (2\pi\sigma^2)^{-1/2} \operatorname{exp}\mathopen{}\left\{-\frac{(x_i - \mu)^2}{2\sigma^2}\right\}\mathclose{} \]

and by Theorem 4, the log-likelihood is:

\[ \begin{aligned} \ell(\mu, \sigma^2) &= \sum_{i=1}^n \operatorname{log}\mathopen{}\left\{(2\pi\sigma^2)^{-1/2} \operatorname{exp}\mathopen{}\left\{-\frac{(x_i - \mu)^2}{2\sigma^2}\right\}\mathclose{}\right\}\mathclose{} && \text{(log of each Gaussian density)}\\ &= \sum_{i=1}^n \mathopen{}\left(\operatorname{log}\mathopen{}\left\{(2\pi\sigma^2)^{-1/2}\right\}\mathclose{} + \operatorname{log}\mathopen{}\left\{\operatorname{exp}\mathopen{}\left\{-\frac{(x_i - \mu)^2}{2\sigma^2}\right\}\mathclose{}\right\}\mathclose{}\right)\mathclose{} && \text{(log of a product)}\\ &= \sum_{i=1}^n \mathopen{}\left(-\frac{1}{2}\operatorname{log}\mathopen{}\left\{2\pi\sigma^2\right\}\mathclose{} + \operatorname{log}\mathopen{}\left\{\operatorname{exp}\mathopen{}\left\{-\frac{(x_i - \mu)^2}{2\sigma^2}\right\}\mathclose{}\right\}\mathclose{}\right)\mathclose{} && \text{(log of a power)}\\ &= \sum_{i=1}^n \mathopen{}\left(-\frac{1}{2}\operatorname{log}\mathopen{}\left\{2\pi\sigma^2\right\}\mathclose{} - \frac{(x_i - \mu)^2}{2\sigma^2}\right)\mathclose{} && \text{($\operatorname{log}$ undoes $\operatorname{exp}$)}\\ &= \sum_{i=1}^n \mathopen{}\left(-\frac{1}{2}\operatorname{log}\mathopen{}\left\{2\pi\sigma^2\right\}\mathclose{}\right)\mathclose{} - \sum_{i=1}^n \frac{(x_i - \mu)^2}{2\sigma^2} && \text{(split the sum)}\\ &= -\frac{n}{2}\operatorname{log}\mathopen{}\left\{2\pi\sigma^2\right\}\mathclose{} - \sum_{i=1}^n \frac{(x_i - \mu)^2}{2\sigma^2} && \text{(sum of $n$ identical terms)}\\ &= -\frac{n}{2}\operatorname{log}\mathopen{}\left\{2\pi\sigma^2\right\}\mathclose{} - \frac{1}{2\sigma^2}\sum_{i=1}^n (x_i - \mu)^2 && \text{(factor the constant $\tfrac{1}{2\sigma^2}$ out of the sum)}\\ &= -\frac{n}{2}\mathopen{}\left(\operatorname{log}\mathopen{}\left\{2\pi\right\}\mathclose{} + \operatorname{log}\mathopen{}\left\{\sigma^2\right\}\mathclose{}\right)\mathclose{} - \frac{1}{2\sigma^2}\sum_{i=1}^n (x_i - \mu)^2 && \text{(log of a product)}\\ &= -\frac{n}{2}\operatorname{log}\mathopen{}\left\{2\pi\right\}\mathclose{} - \frac{n}{2}\operatorname{log}\mathopen{}\left\{\sigma^2\right\}\mathclose{} - \frac{1}{2\sigma^2}\sum_{i=1}^n (x_i - \mu)^2 && \text{(distribute $-\tfrac{n}{2}$)} \end{aligned} \]

3.1 The score function

The score function is the vector of the two partial derivatives:

\[ \ell'(\mu, \sigma^2) = \begin{pmatrix} \frac{\partial}{\partial \mu}\ell(\mu, \sigma^2) \\ \frac{\partial}{\partial \sigma^2}\ell(\mu, \sigma^2) \end{pmatrix} \]

For the first entry, only the last term of \(\ell\) depends on \(\mu\):

\[ \begin{aligned} \frac{\partial}{\partial \mu}\ell &= \frac{\partial}{\partial \mu}\mathopen{}\left(-\frac{n}{2}\operatorname{log}\mathopen{}\left\{2\pi\right\}\mathclose{} - \frac{n}{2}\operatorname{log}\mathopen{}\left\{\sigma^2\right\}\mathclose{} - \frac{1}{2\sigma^2}\sum_{i=1}^n (x_i - \mu)^2\right)\mathclose{} && \text{(Gaussian log-likelihood)}\\ &= \frac{\partial}{\partial \mu}\mathopen{}\left(-\frac{n}{2}\operatorname{log}\mathopen{}\left\{2\pi\right\}\mathclose{}\right)\mathclose{} + \frac{\partial}{\partial \mu}\mathopen{}\left(-\frac{n}{2}\operatorname{log}\mathopen{}\left\{\sigma^2\right\}\mathclose{}\right)\mathclose{} + \frac{\partial}{\partial \mu}\mathopen{}\left(-\frac{1}{2\sigma^2}\sum_{i=1}^n (x_i - \mu)^2\right)\mathclose{} && \text{(linearity of differentiation)}\\ &= 0 + 0 + \frac{\partial}{\partial \mu}\mathopen{}\left(-\frac{1}{2\sigma^2}\sum_{i=1}^n (x_i - \mu)^2\right)\mathclose{} && \text{(derivative of a constant)}\\ &= \frac{\partial}{\partial \mu}\mathopen{}\left(-\frac{1}{2\sigma^2}\sum_{i=1}^n (x_i - \mu)^2\right)\mathclose{} && \text{(drop the zero terms)}\\ &= -\frac{1}{2\sigma^2}\frac{\partial}{\partial \mu}\sum_{i=1}^n (x_i - \mu)^2 && \text{(constant multiple rule)}\\ &= -\frac{1}{2\sigma^2}\sum_{i=1}^n \frac{\partial}{\partial \mu}(x_i - \mu)^2 && \text{(derivative of a sum is the sum of derivatives)}\\ &= -\frac{1}{2\sigma^2}\sum_{i=1}^n 2(x_i - \mu)\frac{\partial}{\partial \mu}(x_i - \mu) && \text{(chain rule, outer function $u^2$)} \end{aligned} \]

The inner derivative is:

\[ \begin{aligned} \frac{\partial}{\partial \mu}(x_i - \mu) &= \frac{\partial}{\partial \mu} x_i - \frac{\partial}{\partial \mu} \mu && \text{(linearity of differentiation)}\\ &= 0 - \frac{\partial}{\partial \mu} \mu && \text{($x_i$ does not depend on $\mu$)}\\ &= 0 - 1 && \text{(derivative of $\mu$ with respect to itself)}\\ &= -1 && \text{(subtract)} \end{aligned} \]

Substituting the inner derivative back in:

\[ \begin{aligned} \frac{\partial}{\partial \mu}\ell &= -\frac{1}{2\sigma^2}\sum_{i=1}^n 2(x_i - \mu) \cdot (-1) && \text{(inner derivative is $-1$)}\\ &= -\frac{1}{2\sigma^2}\sum_{i=1}^n -2(x_i - \mu) && \text{(multiply)}\\ &= -\frac{1}{2\sigma^2} \cdot (-2) \sum_{i=1}^n (x_i - \mu) && \text{(factor the constant $-2$ out of the sum)}\\ &= \frac{1}{\sigma^2}\sum_{i=1}^n (x_i - \mu) && \text{(multiply the constants)}\\ &= \frac{1}{\sigma^2}\mathopen{}\left(\sum_{i=1}^n x_i - \sum_{i=1}^n \mu\right)\mathclose{} && \text{(split the sum)}\\ &= \frac{1}{\sigma^2}\mathopen{}\left(\sum_{i=1}^n x_i - n\mu\right)\mathclose{} && \text{(sum of $n$ copies of $\mu$)} \end{aligned} \]

For the second entry, write \(\sigma^2\) as a single variable \(v\), so that \(\ell\) contains \(-\frac{n}{2}\log v\) and \(-\frac{1}{2}v^{-1}\sum_i (x_i - \mu)^2\):

\[ \begin{aligned} \frac{\partial}{\partial \sigma^2}\ell &= \frac{\partial}{\partial \sigma^2}\mathopen{}\left(-\frac{n}{2}\operatorname{log}\mathopen{}\left\{2\pi\right\}\mathclose{} - \frac{n}{2}\operatorname{log}\mathopen{}\left\{\sigma^2\right\}\mathclose{} - \frac{1}{2}\mathopen{}\left(\sigma^2\right)\mathclose{}^{-1}\sum_{i=1}^n (x_i - \mu)^2\right)\mathclose{} && \text{(Gaussian log-likelihood)}\\ &= \frac{\partial}{\partial \sigma^2}\mathopen{}\left(-\frac{n}{2}\operatorname{log}\mathopen{}\left\{2\pi\right\}\mathclose{}\right)\mathclose{} + \frac{\partial}{\partial \sigma^2}\mathopen{}\left(-\frac{n}{2}\operatorname{log}\mathopen{}\left\{\sigma^2\right\}\mathclose{}\right)\mathclose{} + \frac{\partial}{\partial \sigma^2}\mathopen{}\left(-\frac{1}{2}\mathopen{}\left(\sigma^2\right)\mathclose{}^{-1}\sum_{i=1}^n (x_i - \mu)^2\right)\mathclose{} && \text{(linearity of differentiation)}\\ &= 0 + \frac{\partial}{\partial \sigma^2}\mathopen{}\left(-\frac{n}{2}\operatorname{log}\mathopen{}\left\{\sigma^2\right\}\mathclose{}\right)\mathclose{} + \frac{\partial}{\partial \sigma^2}\mathopen{}\left(-\frac{1}{2}\mathopen{}\left(\sigma^2\right)\mathclose{}^{-1}\sum_{i=1}^n (x_i - \mu)^2\right)\mathclose{} && \text{(derivative of a constant)}\\ &= \frac{\partial}{\partial \sigma^2}\mathopen{}\left(-\frac{n}{2}\operatorname{log}\mathopen{}\left\{\sigma^2\right\}\mathclose{}\right)\mathclose{} + \frac{\partial}{\partial \sigma^2}\mathopen{}\left(-\frac{1}{2}\mathopen{}\left(\sigma^2\right)\mathclose{}^{-1}\sum_{i=1}^n (x_i - \mu)^2\right)\mathclose{} && \text{(drop the zero term)}\\ &= \frac{\partial}{\partial \sigma^2}\mathopen{}\left(-\frac{n}{2}\operatorname{log}\mathopen{}\left\{\sigma^2\right\}\mathclose{}\right)\mathclose{} + \frac{\partial}{\partial \sigma^2}\mathopen{}\left(-\frac{1}{2}\sum_{i=1}^n (x_i - \mu)^2 \mathopen{}\left(\sigma^2\right)\mathclose{}^{-1}\right)\mathclose{} && \text{(reorder the factors)}\\ &= -\frac{n}{2}\frac{\partial}{\partial \sigma^2}\operatorname{log}\mathopen{}\left\{\sigma^2\right\}\mathclose{} - \frac{1}{2}\sum_{i=1}^n (x_i - \mu)^2 \frac{\partial}{\partial \sigma^2}\mathopen{}\left(\sigma^2\right)\mathclose{}^{-1} && \text{(constant multiple rule)}\\ &= -\frac{n}{2}\mathopen{}\left(\sigma^2\right)\mathclose{}^{-1} - \frac{1}{2}\sum_{i=1}^n (x_i - \mu)^2 \frac{\partial}{\partial \sigma^2}\mathopen{}\left(\sigma^2\right)\mathclose{}^{-1} && \text{(derivative of $\log v$)}\\ &= -\frac{n}{2}\mathopen{}\left(\sigma^2\right)\mathclose{}^{-1} - \frac{1}{2}\sum_{i=1}^n (x_i - \mu)^2 \mathopen{}\left(-\mathopen{}\left(\sigma^2\right)\mathclose{}^{-2}\right)\mathclose{} && \text{(power rule for $v^{-1}$)}\\ &= -\frac{n}{2}\mathopen{}\left(\sigma^2\right)\mathclose{}^{-1} + \frac{1}{2}\sum_{i=1}^n (x_i - \mu)^2 \mathopen{}\left(\sigma^2\right)\mathclose{}^{-2} && \text{(multiply)}\\ &= -\frac{n}{2}\mathopen{}\left(\sigma^2\right)\mathclose{}^{-1} + \frac{1}{2}\mathopen{}\left(\sigma^2\right)\mathclose{}^{-2}\sum_{i=1}^n (x_i - \mu)^2 && \text{(reorder the factors)} \end{aligned} \]

3.2 MLE of \(\mu\)

Setting \(\frac{\partial}{\partial \mu}\ell = 0\):

\[ \begin{aligned} 0 &= \frac{1}{\sigma^2}\mathopen{}\left(\sum_{i=1}^n x_i - n\mu\right)\mathclose{} && \text{(score for $\mu$)}\\ 0 &= \sum_{i=1}^n x_i - n\mu && \text{(multiply both sides by $\sigma^2$)}\\ n\mu &= \sum_{i=1}^n x_i && \text{(add $n\mu$ to both sides)}\\ \mu &= \frac{1}{n}\sum_{i=1}^n x_i && \text{(divide by $n$)}\\ \mu &= \bar x && \text{(definition of $\bar x$)} \end{aligned} \]

This solution does not depend on \(\sigma^2\). The second derivative is

\[ \begin{aligned} \frac{\partial^2 \ell}{\partial \mu^2} &= \frac{\partial}{\partial \mu}\mathopen{}\left(\frac{1}{\sigma^2}\mathopen{}\left(\sum_{i=1}^n x_i - n\mu\right)\mathclose{}\right)\mathclose{} && \text{(differentiate the score for $\mu$)}\\ &= \frac{1}{\sigma^2}\frac{\partial}{\partial \mu}\mathopen{}\left(\sum_{i=1}^n x_i - n\mu\right)\mathclose{} && \text{(constant multiple rule)}\\ &= \frac{1}{\sigma^2}\mathopen{}\left(\frac{\partial}{\partial \mu}\sum_{i=1}^n x_i - \frac{\partial}{\partial \mu}\mathopen{}\left(n\mu\right)\mathclose{}\right)\mathclose{} && \text{(linearity of differentiation)}\\ &= \frac{1}{\sigma^2}\mathopen{}\left(0 - \frac{\partial}{\partial \mu}\mathopen{}\left(n\mu\right)\mathclose{}\right)\mathclose{} && \text{($\textstyle\sum_{i=1}^n x_i$ does not depend on $\mu$)}\\ &= \frac{1}{\sigma^2}\mathopen{}\left(0 - n\frac{\partial}{\partial \mu}\mu\right)\mathclose{} && \text{(constant multiple rule)}\\ &= \frac{1}{\sigma^2}\mathopen{}\left(0 - n\right)\mathclose{} && \text{(derivative of $\mu$ with respect to itself)}\\ &= \frac{1}{\sigma^2}\mathopen{}\left(-n\right)\mathclose{} && \text{(subtract)}\\ &= -\frac{n}{\sigma^2} && \text{(multiply)}\\ &< 0, && \text{($n > 0$ and $\sigma^2 > 0$)} \end{aligned} \]

so for every fixed \(\sigma^2\), \(\ell\) is maximized over \(\mu\) at \(\bar x\), and \(\hat\mu_{\text{ML}} = \bar x\).

3.3 MLE of \(\sigma^2\)

Definition 19 (Profile log-likelihood) Split a parameter vector into \((\psi, \lambda)\), and for each fixed value of \(\psi\) let \(\hat\lambda(\psi)\) maximize \(\ell(\psi, \lambda)\) over \(\lambda\). The profile log-likelihood of \(\psi\) is

\[\ell_p(\psi) \stackrel{\text{def}}{=}\ell\mathopen{}\left(\psi, \hat\lambda(\psi)\right)\mathclose{}.\]

Example 13 (Profile log-likelihood of a Gaussian variance) In the Gaussian model, \(\hat\mu = \bar x\) maximizes \(\ell\) over \(\mu\) for every value of \(\sigma^2\) (Section 3), so the profile log-likelihood of \(\sigma^2\) is

\[ \begin{aligned} \ell_p(\sigma^2) &= \ell(\bar x, \sigma^2) && \text{(definition of the profile log-likelihood)}\\ &= -\frac{n}{2}\operatorname{log}\mathopen{}\left\{2\pi\right\}\mathclose{} - \frac{n}{2}\operatorname{log}\mathopen{}\left\{\sigma^2\right\}\mathclose{} - \frac{1}{2\sigma^2}\sum_{i=1}^n (x_i - \bar x)^2 && \text{(Gaussian log-likelihood at $\mu = \bar x$)} \end{aligned} \]

Setting \(\frac{\partial}{\partial \sigma^2}\ell = 0\):

\[ \begin{aligned} 0 &= -\frac{n}{2}\mathopen{}\left(\sigma^2\right)\mathclose{}^{-1} + \frac{1}{2}\mathopen{}\left(\sigma^2\right)\mathclose{}^{-2}\sum_{i=1}^n (x_i - \mu)^2 && \text{(score for $\sigma^2$)}\\ \frac{n}{2}\mathopen{}\left(\sigma^2\right)\mathclose{}^{-1} &= \frac{1}{2}\mathopen{}\left(\sigma^2\right)\mathclose{}^{-2}\sum_{i=1}^n (x_i - \mu)^2 && \text{(add $\tfrac{n}{2}(\sigma^2)^{-1}$)}\\ n\sigma^2 &= \sum_{i=1}^n (x_i - \mu)^2 && \text{(multiply both sides by $2(\sigma^2)^2$)}\\ \sigma^2 &= \frac{1}{n}\sum_{i=1}^n (x_i - \mu)^2 && \text{(divide both sides by $n$)} \end{aligned} \]

Substituting the maximizer \(\mu = \bar x\), which does not depend on \(\sigma^2\), maximizes the profile log-likelihood of Example 13, and gives:

\[\hat{\sigma}^2_{\text{ML}} = \frac{1}{n}\sum_{i=1}^n (x_i - \bar x)^2\]

The profile log-likelihood, \(\ell_p(\sigma^2) = -\frac{n}{2}\operatorname{log}\mathopen{}\left\{2\pi\right\}\mathclose{} - \frac{n}{2}\operatorname{log}\mathopen{}\left\{\sigma^2\right\}\mathclose{} - \frac{n\hat\sigma^2_{\text{ML}}}{2\sigma^2}\), increases for \(\sigma^2 < \hat\sigma^2_{\text{ML}}\) and decreases for \(\sigma^2 > \hat\sigma^2_{\text{ML}}\), because its derivative, \(\frac{n}{2}\mathopen{}\left(\sigma^2\right)\mathclose{}^{-2}\mathopen{}\left(\hat\sigma^2_{\text{ML}} - \sigma^2\right)\mathclose{}\), has the sign of \(\hat\sigma^2_{\text{ML}} - \sigma^2\). So \((\bar x, \hat\sigma^2_{\text{ML}})\) is the global maximizer, provided the \(x_i\) are not all equal.

Differentiating with respect to \(\sigma^2\) as a single variable, rather than with respect to \(\sigma\), keeps the algebra short. Replacing \(\sigma^2\) with the precision \(\tau \stackrel{\text{def}}{=}1/\sigma^2\) and differentiating with respect to \(\tau\) can be shorter still, because \(\tau\) enters the log-likelihood as \(\frac{n}{2}\log\tau - \frac{\tau}{2}\sum_{i=1}^n (x_i - \mu)^2\). By the invariance of maximum likelihood estimates, \(\hat\tau_{\text{ML}} = 1/\hat\sigma^2_{\text{ML}}\).

This MLE divides by \(n\), so it is a biased estimator of \(\sigma^2\) (bias of the divide-by-\(n\) estimator).

3.4 Second derivatives

The remaining second derivatives are:

\[ \begin{aligned} \frac{\partial^2 \ell}{\partial (\sigma^2)^2} &= \frac{\partial}{\partial \sigma^2}\mathopen{}\left(-\frac{n}{2}\mathopen{}\left(\sigma^2\right)\mathclose{}^{-1} + \frac{1}{2}\mathopen{}\left(\sigma^2\right)\mathclose{}^{-2}\sum_{i=1}^n (x_i - \mu)^2\right)\mathclose{} && \text{(differentiate the score for $\sigma^2$)}\\ &= \frac{\partial}{\partial \sigma^2}\mathopen{}\left(-\frac{n}{2}\mathopen{}\left(\sigma^2\right)\mathclose{}^{-1}\right)\mathclose{} + \frac{\partial}{\partial \sigma^2}\mathopen{}\left(\frac{1}{2}\mathopen{}\left(\sigma^2\right)\mathclose{}^{-2}\sum_{i=1}^n (x_i - \mu)^2\right)\mathclose{} && \text{(linearity of differentiation)}\\ &= \frac{\partial}{\partial \sigma^2}\mathopen{}\left(-\frac{n}{2}\mathopen{}\left(\sigma^2\right)\mathclose{}^{-1}\right)\mathclose{} + \frac{\partial}{\partial \sigma^2}\mathopen{}\left(\frac{1}{2}\sum_{i=1}^n (x_i - \mu)^2 \mathopen{}\left(\sigma^2\right)\mathclose{}^{-2}\right)\mathclose{} && \text{(reorder the factors)}\\ &= -\frac{n}{2}\frac{\partial}{\partial \sigma^2}\mathopen{}\left(\sigma^2\right)\mathclose{}^{-1} + \frac{1}{2}\sum_{i=1}^n (x_i - \mu)^2 \frac{\partial}{\partial \sigma^2}\mathopen{}\left(\sigma^2\right)\mathclose{}^{-2} && \text{(constant multiple rule)}\\ &= -\frac{n}{2}\mathopen{}\left(-\mathopen{}\left(\sigma^2\right)\mathclose{}^{-2}\right)\mathclose{} + \frac{1}{2}\sum_{i=1}^n (x_i - \mu)^2 \frac{\partial}{\partial \sigma^2}\mathopen{}\left(\sigma^2\right)\mathclose{}^{-2} && \text{(power rule for $v^{-1}$)}\\ &= -\frac{n}{2}\mathopen{}\left(-\mathopen{}\left(\sigma^2\right)\mathclose{}^{-2}\right)\mathclose{} + \frac{1}{2}\sum_{i=1}^n (x_i - \mu)^2 \mathopen{}\left(-2\mathopen{}\left(\sigma^2\right)\mathclose{}^{-3}\right)\mathclose{} && \text{(power rule for $v^{-2}$)}\\ &= \frac{n}{2}\mathopen{}\left(\sigma^2\right)\mathclose{}^{-2} - \sum_{i=1}^n (x_i - \mu)^2 \mathopen{}\left(\sigma^2\right)\mathclose{}^{-3} && \text{(multiply the constants)}\\ &= \frac{n}{2}\mathopen{}\left(\sigma^2\right)\mathclose{}^{-2} - \mathopen{}\left(\sigma^2\right)\mathclose{}^{-3}\sum_{i=1}^n (x_i - \mu)^2 && \text{(reorder the factors)}\\ \frac{\partial^2 \ell}{\partial \mu \, \partial \sigma^2} &= \frac{\partial}{\partial \mu}\mathopen{}\left(-\frac{n}{2}\mathopen{}\left(\sigma^2\right)\mathclose{}^{-1} + \frac{1}{2}\mathopen{}\left(\sigma^2\right)\mathclose{}^{-2}\sum_{i=1}^n (x_i - \mu)^2\right)\mathclose{} && \text{(differentiate the score for $\sigma^2$)}\\ &= \frac{\partial}{\partial \mu}\mathopen{}\left(-\frac{n}{2}\mathopen{}\left(\sigma^2\right)\mathclose{}^{-1}\right)\mathclose{} + \frac{\partial}{\partial \mu}\mathopen{}\left(\frac{1}{2}\mathopen{}\left(\sigma^2\right)\mathclose{}^{-2}\sum_{i=1}^n (x_i - \mu)^2\right)\mathclose{} && \text{(linearity of differentiation)}\\ &= 0 + \frac{\partial}{\partial \mu}\mathopen{}\left(\frac{1}{2}\mathopen{}\left(\sigma^2\right)\mathclose{}^{-2}\sum_{i=1}^n (x_i - \mu)^2\right)\mathclose{} && \text{(derivative of a constant)}\\ &= \frac{\partial}{\partial \mu}\mathopen{}\left(\frac{1}{2}\mathopen{}\left(\sigma^2\right)\mathclose{}^{-2}\sum_{i=1}^n (x_i - \mu)^2\right)\mathclose{} && \text{(drop the zero term)}\\ &= \frac{1}{2}\mathopen{}\left(\sigma^2\right)\mathclose{}^{-2}\frac{\partial}{\partial \mu}\sum_{i=1}^n (x_i - \mu)^2 && \text{(constant multiple rule)}\\ &= \frac{1}{2}\mathopen{}\left(\sigma^2\right)\mathclose{}^{-2}\sum_{i=1}^n \frac{\partial}{\partial \mu}(x_i - \mu)^2 && \text{(derivative of a sum is the sum of derivatives)}\\ &= \frac{1}{2}\mathopen{}\left(\sigma^2\right)\mathclose{}^{-2}\sum_{i=1}^n -2(x_i - \mu) && \text{(chain-rule result from the score for $\mu$)}\\ &= \frac{1}{2}\mathopen{}\left(\sigma^2\right)\mathclose{}^{-2} \cdot (-2) \sum_{i=1}^n (x_i - \mu) && \text{(factor the constant $-2$ out of the sum)}\\ &= -\mathopen{}\left(\sigma^2\right)\mathclose{}^{-2}\sum_{i=1}^n (x_i - \mu) && \text{(multiply the constants)} \end{aligned} \]

At the MLE, \(\sum_{i=1}^n (x_i - \bar x) = 0\) and \(\sum_{i=1}^n (x_i - \bar x)^2 = n\hat\sigma^2\) (writing \(\hat\sigma^2\) for \(\hat\sigma^2_{\text{ML}}\)), so:

\[ \begin{aligned} \frac{\partial^2 \ell}{\partial (\sigma^2)^2}\bigg|_{\text{MLE}} &= \frac{n}{2}\mathopen{}\left(\hat\sigma^2\right)\mathclose{}^{-2} - \mathopen{}\left(\hat\sigma^2\right)\mathclose{}^{-3}\sum_{i=1}^n (x_i - \bar x)^2 && \text{(evaluate at $\mu = \bar x$, $\sigma^2 = \hat\sigma^2$)}\\ &= \frac{n}{2}\mathopen{}\left(\hat\sigma^2\right)\mathclose{}^{-2} - \mathopen{}\left(\hat\sigma^2\right)\mathclose{}^{-3} n\hat\sigma^2 && \text{(substitute $\textstyle\sum_{i=1}^n (x_i - \bar x)^2 = n\hat\sigma^2$)}\\ &= \frac{n}{2}\mathopen{}\left(\hat\sigma^2\right)\mathclose{}^{-2} - n\mathopen{}\left(\hat\sigma^2\right)\mathclose{}^{-3}\hat\sigma^2 && \text{(reorder the factors)}\\ &= \frac{n}{2}\mathopen{}\left(\hat\sigma^2\right)\mathclose{}^{-2} - n\mathopen{}\left(\hat\sigma^2\right)\mathclose{}^{-2} && \text{(cancel one factor of $\hat\sigma^2$)}\\ &= -\frac{n}{2}\mathopen{}\left(\hat\sigma^2\right)\mathclose{}^{-2} && \text{(combine like terms)}\\ \frac{\partial^2 \ell}{\partial \mu \, \partial \sigma^2}\bigg|_{\text{MLE}} &= -\mathopen{}\left(\hat\sigma^2\right)\mathclose{}^{-2}\sum_{i=1}^n (x_i - \bar x) && \text{(evaluate at $\mu = \bar x$, $\sigma^2 = \hat\sigma^2$)}\\ &= -\mathopen{}\left(\hat\sigma^2\right)\mathclose{}^{-2} \cdot 0 && \text{(substitute $\textstyle\sum_{i=1}^n (x_i - \bar x) = 0$)}\\ &= 0 && \text{(multiply by zero)} \end{aligned} \]

3.5 Information matrix and standard errors

Collecting the second derivatives at the MLE, the observed information is

\[ I(\hat\mu, \hat\sigma^2) = \begin{bmatrix} \frac{n}{\hat\sigma^2} & 0 \\ 0 & \frac{n}{2\mathopen{}\left(\hat\sigma^2\right)\mathclose{}^2} \end{bmatrix} \]

Its diagonal entries are positive and its off-diagonal entries are zero, so it is positive definite, consistent with the MLE being a maximum. The inverse of a diagonal matrix inverts each diagonal entry, so:

\[ \mathopen{}\left(I(\hat\mu, \hat\sigma^2)\right)^{-1}\mathclose{} = \begin{bmatrix} \frac{\hat\sigma^2}{n} & 0 \\ 0 & \frac{2\mathopen{}\left(\hat\sigma^2\right)\mathclose{}^2}{n} \end{bmatrix} \]

By Theorem 9, the estimated standard errors are \(\mathop{\widehat{\operatorname{SE}}}\nolimits\mathopen{}\left(\hat\mu\right)\mathclose{} = \hat\sigma/\sqrt{n}\) and \(\mathop{\widehat{\operatorname{SE}}}\nolimits\mathopen{}\left(\hat\sigma^2\right)\mathclose{} = \hat\sigma^2 \sqrt{2/n}\), and the two estimates are approximately uncorrelated in large samples.

See also (Casella and Berger 2002, Example 7.2.12).

4 Example: hormone therapy study

This example fits a Gaussian model to real data by maximum likelihood, and then uses simulation to examine the properties of maximum likelihood estimation for that model.

4.1 Data

The “heart and estrogen/progestin study” (HERS) was a clinical trial of hormone therapy for prevention of recurrent heart attacks and death among 2,763 post-menopausal women with existing coronary heart disease (CHD) (Hulley et al. 1998).

The trial was conducted at 20 US clinical centers. Participants were randomized to receive either conjugated equine estrogens (0.625 mg/day) plus medroxyprogesterone acetate (2.5 mg/day) or a matching placebo (Hulley et al. 1998). Women were followed for an average of 4.1 years (Hulley et al. 1998).

The primary outcome was nonfatal myocardial infarction or CHD death (Hulley et al. 1998).

We model the distribution of fasting glucose among HERS participants who do not have diabetes and do not exercise.

The HERS data are distributed with Vittinghoff et al. (2012) on the book’s companion website:

# one unbroken string, so that link checkers test the whole URL:
url <- "https://regression.ucsf.edu/sites/g/files/tkssra16191/files/wysiwyg/home/data/hersdata.dta" # nolint: line_length_linter.
hers <- haven::read_dta(url)

The rmb R package includes the same file, which these notes use so that rendering does not depend on the website (Table 6):

Table 6: The first rows of the HERS dataset
hers <- rmb::hers |> haven::zap_labels()
hers |> head()

To keep the likelihood graphs readable, we use only the first 100 eligible participants (Figure 14); with the whole subset, the likelihood would be too concentrated to graph clearly.

Show R code
n_obs <- 100

data1 <-
  hers |>
  dplyr::filter(
    diabetes == 0,
    exercise == 0
  ) |>
  head(n_obs)

glucose_data <- data1$glucose

summary(glucose_data)
#>    Min. 1st Qu.  Median    Mean 3rd Qu.    Max.
#>    80.0    91.5    98.0    98.7   105.0   125.0
Show R code
plot1 <-
  data1 |>
  ggplot2::ggplot() +
  ggplot2::aes(x = glucose) +
  ggplot2::geom_histogram(
    ggplot2::aes(y = ggplot2::after_stat(density)),
    bins = 20
  ) +
  ggplot2::xlab("Fasting glucose (mg/dL)")

print(plot1)

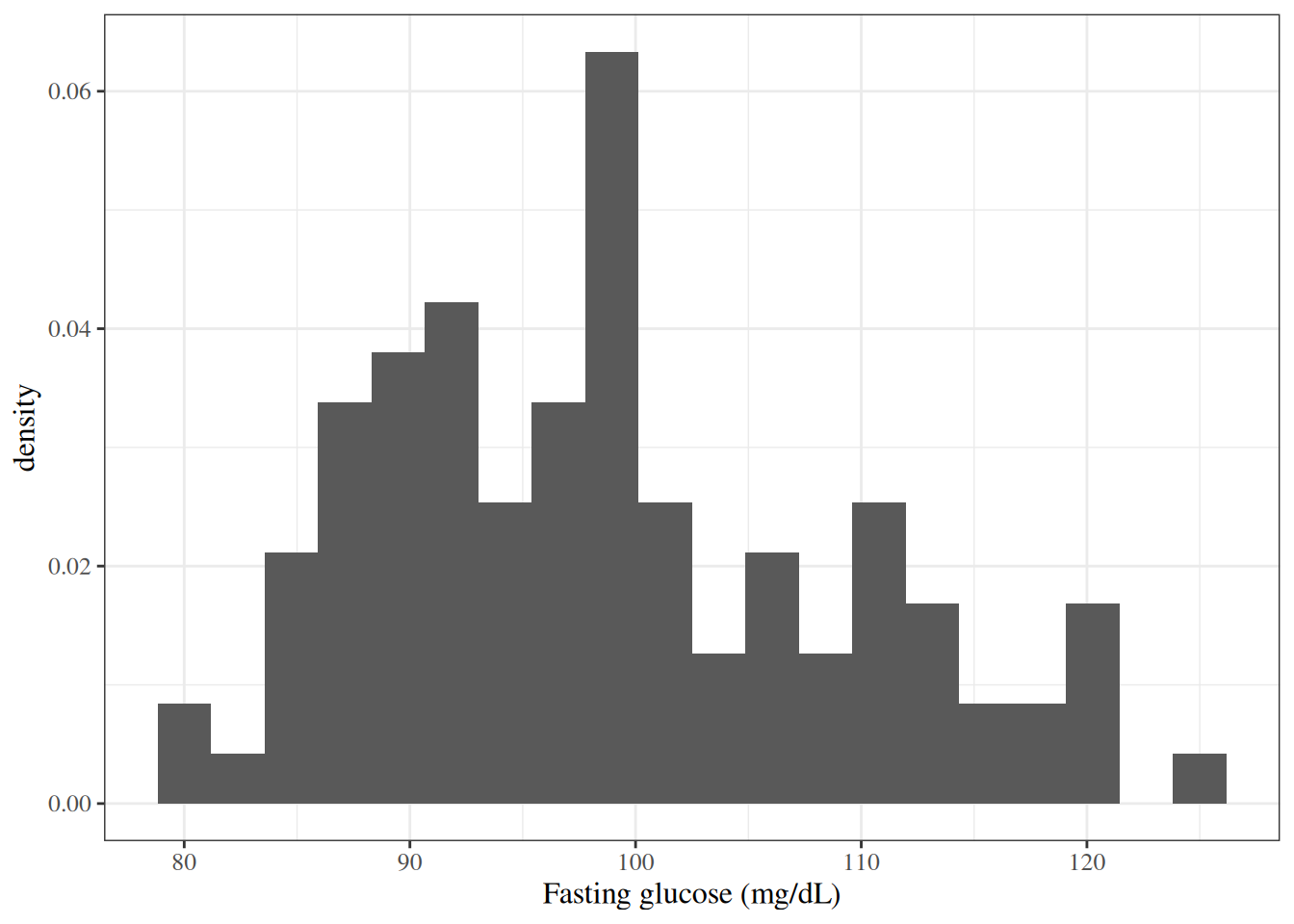

Figure 14: Fasting glucose among 100 HERS participants without diabetes who do not exercise

The histogram is irregular, as histograms of 100 observations often are, with a somewhat longer right tail than left tail. A Gaussian model is a rough but usable starting point.

4.2 Maximum likelihood estimates

By the Gaussian MLEs, \(\hat\mu_{\text{ML}} = \bar x\) and \(\hat\sigma^2_{\text{ML}} = \frac{1}{n}\sum_i (x_i - \bar x)^2\):

mu_hat <- mean(glucose_data)
sigma_sq_hat <- mean((glucose_data - mu_hat)^2)
sigma_hat <- sqrt(sigma_sq_hat)
c(mu_hat = mu_hat, sigma_sq_hat = sigma_sq_hat)
#>       mu_hat sigma_sq_hat
#>       98.660      104.744

Figure 15 superimposes the fitted Gaussian density on the histogram.

Show R code
plot1 +
  ggplot2::geom_function(
    fun = function(x) dnorm(x, mean = mu_hat, sd = sigma_hat),
    col = "red"
  )
Figure 15: Fasting glucose, with the fitted Gaussian density in red

The fitted curve follows the overall shape of the histogram, but it underestimates the frequency of values between 110 and 122 mg/dL, consistent with the histogram’s longer right tail.

4.3 Likelihood and log-likelihood functions

It is numerically better to compute the log-likelihood first and exponentiate it to get the likelihood, because a product of 100 densities can underflow to zero:

loglik <- function(mu, sigma, x) {
  n <- length(x)
  normalizing_constant <- -n / 2 * log(2 * pi * sigma^2)
  # written with sum(x), sum(x^2) so that `mu` can be a vector of values:
  kernel <- -1 / (2 * sigma^2) * (sum(x^2) - 2 * sum(x) * mu + n * mu^2)
  normalizing_constant + kernel
}

lik <- function(...) exp(loglik(...))

# log-likelihood at the MLEs:
loglik(mu = mu_hat, sigma = sigma_hat, x = glucose_data)
#> [1] -374.47

Figure 16 graphs the likelihood and log-likelihood as functions of \(\mu\), with \(\sigma\) fixed at \(\hat\sigma_{\text{ML}}\).

Figure 16: Likelihood and log-likelihood of the HERS glucose data as functions of \(\mu\), with \(\sigma = \hat\sigma_{\text{ML}}\); the red line marks \(\hat\mu_{\text{ML}}\)
Show R code
ggplot2::ggplot() +
  ggplot2::geom_function(
    fun = lik,
    args = list(sigma = sigma_hat, x = glucose_data)
  ) +
  ggplot2::xlim(mu_hat + c(-1, 1) * sigma_hat) +
  ggplot2::xlab("mu") +
  ggplot2::ylab("likelihood") +
  ggplot2::geom_vline(xintercept = mu_hat, col = "red")

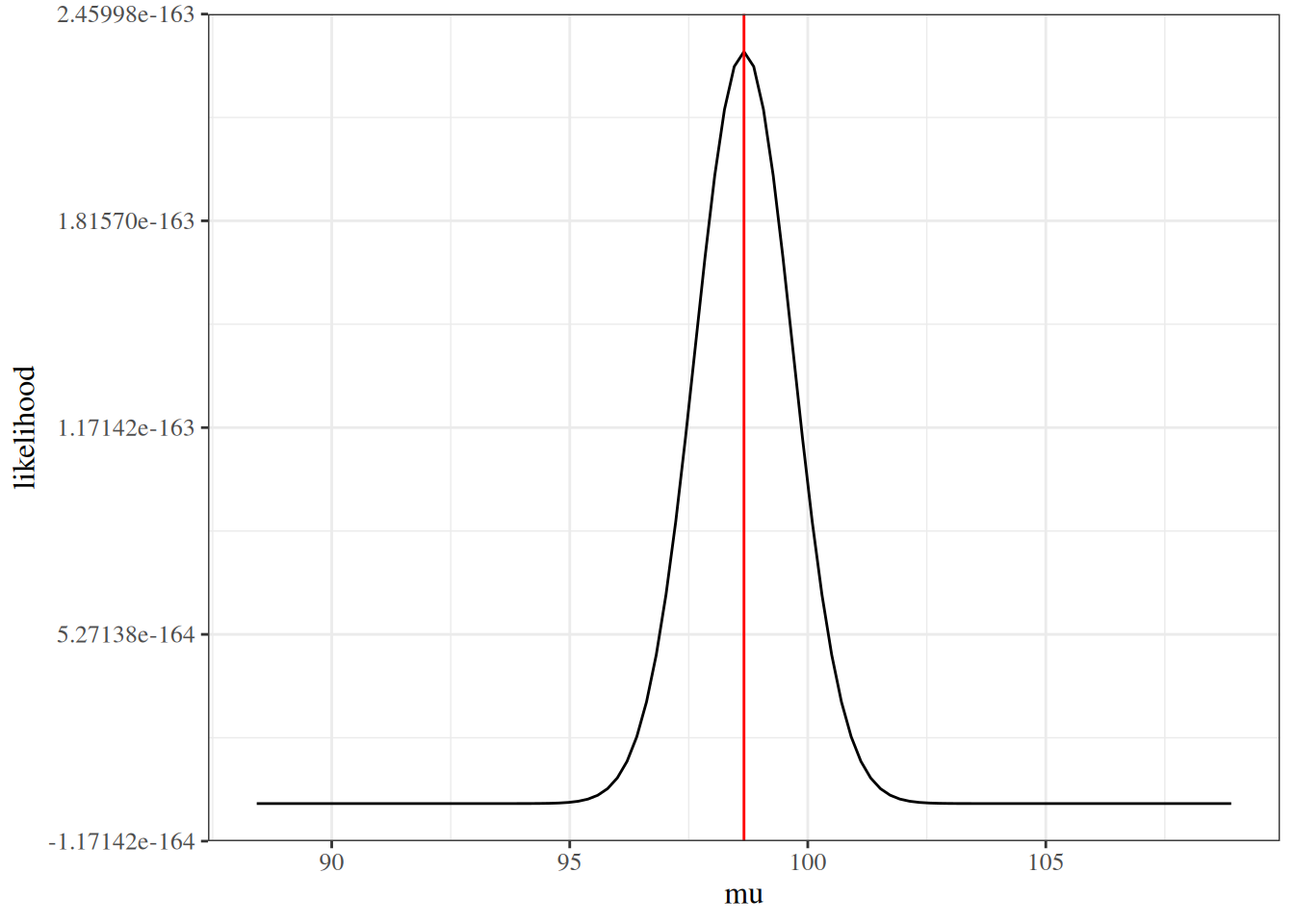

(a) Likelihood

Show R code
ggplot2::ggplot() +
  ggplot2::geom_function(
    fun = loglik,
    args = list(sigma = sigma_hat, x = glucose_data)
  ) +
  ggplot2::xlim(mu_hat + c(-1, 1) * sigma_hat) +
  ggplot2::xlab("mu") +
  ggplot2::ylab("log-likelihood") +
  ggplot2::geom_vline(xintercept = mu_hat, col = "red")

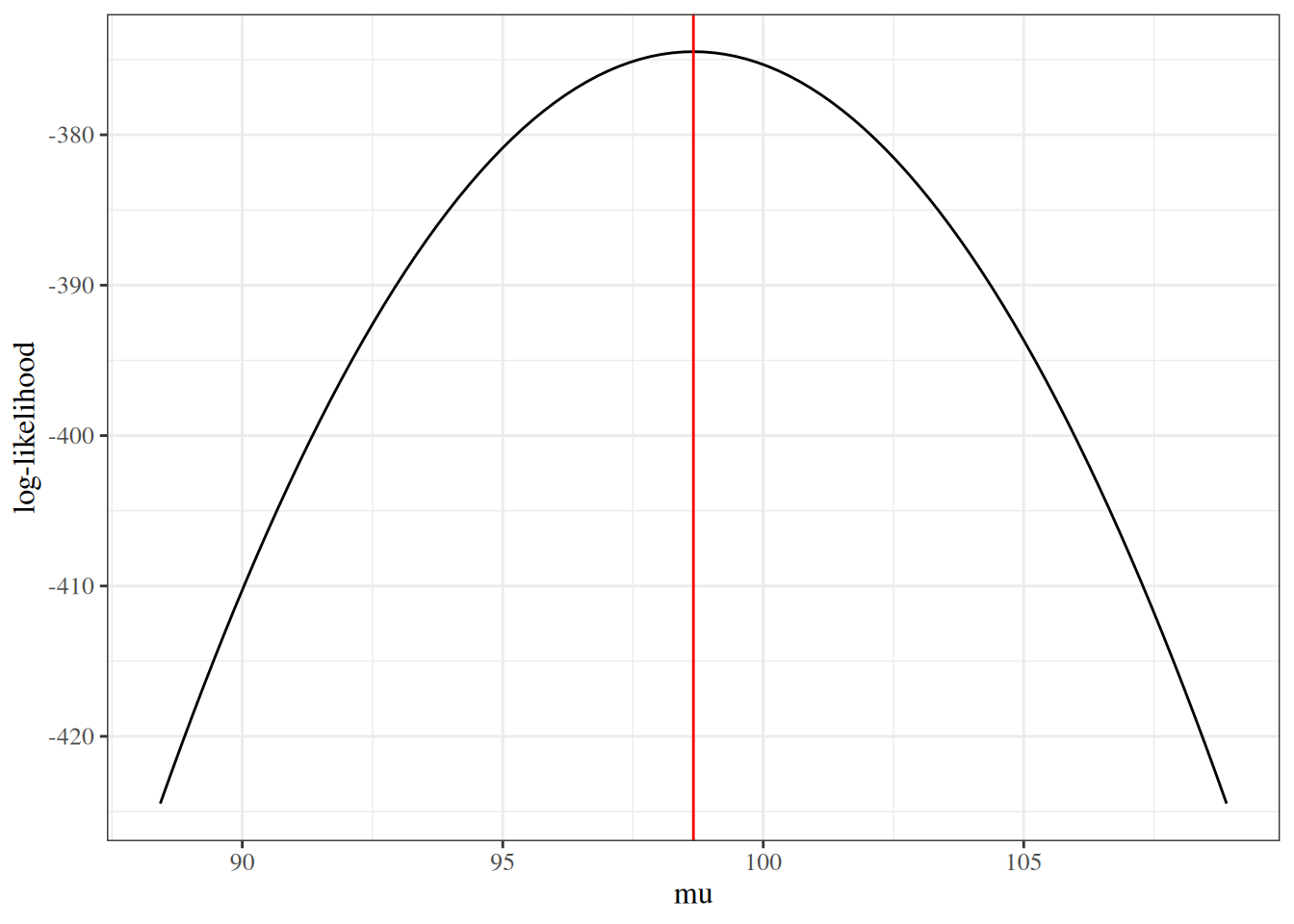

(b) Log-likelihood

Figure 17 graphs them as functions of \(\sigma\), with \(\mu\) fixed at \(\hat\mu_{\text{ML}}\).

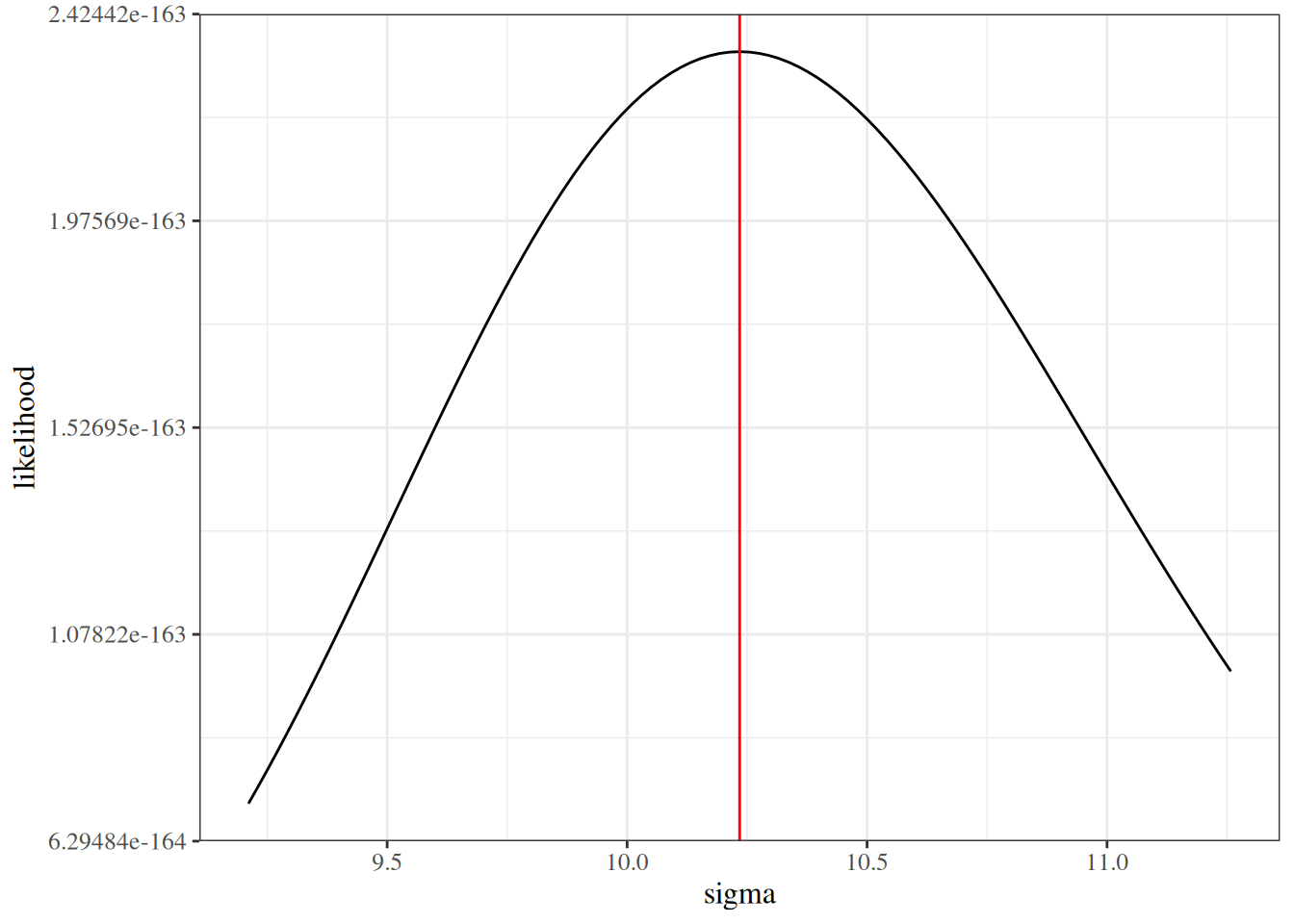

Figure 17: Likelihood and log-likelihood of the HERS glucose data as functions of \(\sigma\), with \(\mu = \hat\mu_{\text{ML}}\); the red line marks \(\hat\sigma_{\text{ML}}\)
Show R code
ggplot2::ggplot() +
  ggplot2::geom_function(
    fun = lik,
    args = list(mu = mu_hat, x = glucose_data)
  ) +
  ggplot2::xlim(sigma_hat * c(0.9, 1.1)) +
  ggplot2::geom_vline(xintercept = sigma_hat, col = "red") +
  ggplot2::xlab("sigma") +
  ggplot2::ylab("likelihood")
(a) Likelihood

Show R code
ggplot2::ggplot() +
  ggplot2::geom_function(
    fun = loglik,
    args = list(mu = mu_hat, x = glucose_data)
  ) +
  ggplot2::xlim(sigma_hat * c(0.9, 1.1)) +
  ggplot2::geom_vline(xintercept = sigma_hat, col = "red") +
  ggplot2::xlab("sigma") +
  ggplot2::ylab("log-likelihood")

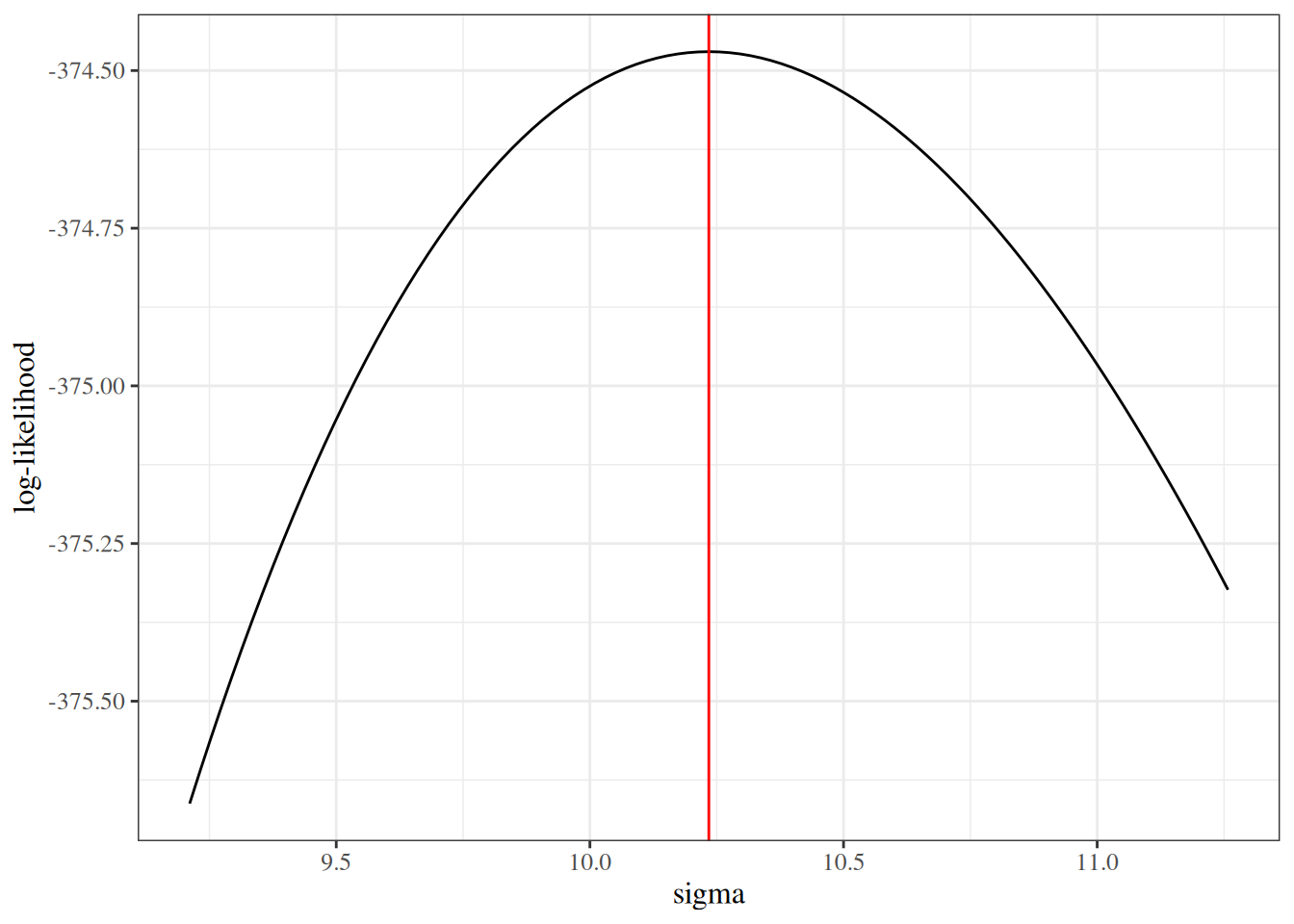

(b) Log-likelihood

4.4 Log-likelihood surface

Figure 18 graphs the log-likelihood over both parameters at once.

Show R code
n_points <- 25
mu_grid <- seq(94, 104, length.out = n_points)
sigma_grid <- seq(7, 15, length.out = n_points)
lliks <- outer(mu_grid, sigma_grid, loglik, x = glucose_data)

plotly::plot_ly(
  type = "surface",
  x = ~mu_grid,
  y = ~sigma_grid,
  # plot_ly() expects rows of z to correspond to y values,
  # so the matrix is transposed;
  # see https://stackoverflow.com/questions/69472185
  z = ~ t(lliks)
) |>
  plotly::layout(
    scene = list(
      xaxis = list(title = "mu"),
      yaxis = list(title = "sigma"),
      zaxis = list(title = "log-likelihood")
    )
  )
Figure 18: Log-likelihood of the HERS glucose data as a function of \(\mu\) and \(\sigma\) (interactive: drag to rotate)

4.5 Standard errors by sample size

By Section 3.5, the estimated standard error of \(\hat\mu_{\text{ML}}\) is

\[ \begin{aligned} \mathop{\widehat{\operatorname{SE}}}\nolimits\mathopen{}\left(\hat\mu\right)\mathclose{} &= \sqrt{\mathopen{}\left[\mathopen{}\left(I(\hat\mu, \hat\sigma^2)\right)^{-1}\mathclose{}\right]\mathclose{}_{11}} && \text{(estimated standard error from the inverse information)}\\ &= \sqrt{\frac{\hat\sigma^2}{n}} && \text{(first diagonal entry of the inverse information)}\\ &= \frac{\hat\sigma}{\sqrt{n}} && \text{(square root of a quotient)} \end{aligned} \]

which shrinks in proportion to \(1/\sqrt{n}\) (Figure 19).

Show R code
se_mu_hat <- function(n, sigma) sigma / sqrt(n)
ggplot2::ggplot() +
  ggplot2::geom_function(fun = se_mu_hat, args = list(sigma = sigma_hat)) +
  ggplot2::scale_x_log10(
    limits = c(10, 10^5), name = "Sample size",
    labels = scales::label_comma()
  ) +
  ggplot2::ylab("Standard error of mu-hat (mg/dL)")

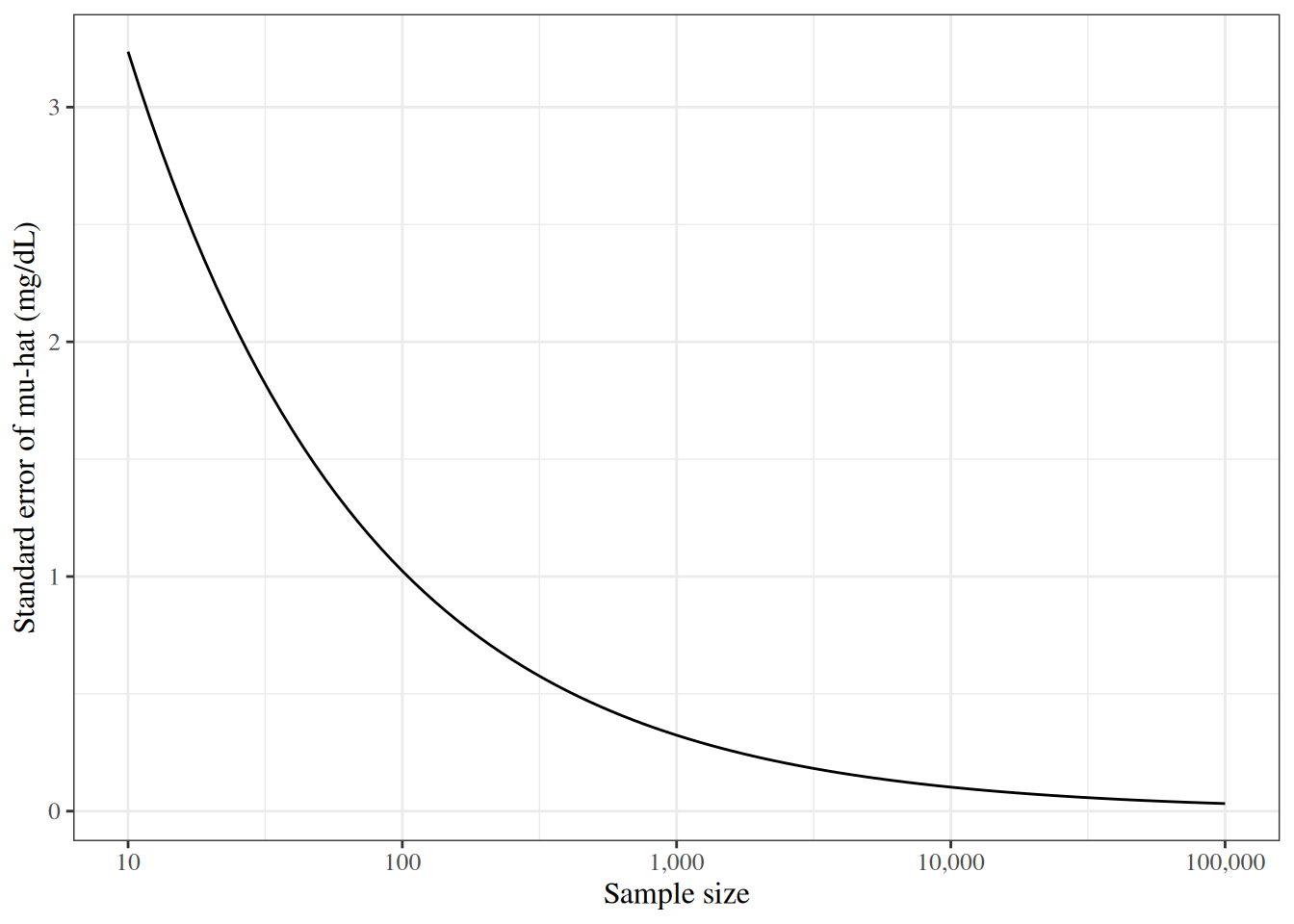

Figure 19: Standard error of \(\hat\mu_{\text{ML}}\) as a function of sample size, with \(\sigma = \hat\sigma_{\text{ML}}\)

4.6 Power

Suppose we test the null hypothesis \(H_0: \mu = \mu_0\), with \(\mu_0 = 95\) mg/dL, at significance level \(\alpha = 0.05\), and suppose for simplicity that \(\sigma\) is known, equal to \(\hat\sigma_{\text{ML}}\). Then under \(H_0\), \(\bar X \sim \operatorname{N}\mathopen{}\left(\mu_0, \sigma^2/n\right)\mathclose{}\), and the test rejects \(H_0\) when \(\bar x\) falls outside the non-rejection interval

\[\mu_0 \pm z_{1 - \alpha/2} \frac{\sigma}{\sqrt{n}}\]

mu0 <- 95
se <- se_mu_hat(n = n_obs, sigma = sigma_hat)
margin <- qnorm(0.975) * se
bounds <- mu0 + c(lower = -1, upper = 1) * margin
bounds
#>   lower   upper
#> 92.9941 97.0059

Definition 20 (Power) The power of a test of a null hypothesis \(H_0\) about a parameter \(\theta\), against an alternative value \(\theta_1\), is the probability that the test rejects \(H_0\) when \(\theta\) equals \(\theta_1\):

\[\text{power}(\theta_1) \stackrel{\text{def}}{=}\Pr\mathopen{}\left(\text{reject } H_0 \mid \theta= \theta_1\right)\mathclose{}.\]

For this test, under \(\mu = \mu_1\), \(\bar X \sim \operatorname{N}\mathopen{}\left(\mu_1, \sigma^2/n\right)\mathclose{}\), so:

\[ \text{power}(\mu_1) = \Phi\mathopen{}\left(\frac{\mu_0 - z_{1-\alpha/2}\,\sigma/\sqrt{n} - \mu_1}{\sigma/\sqrt{n}}\right)\mathclose{} + 1 - \Phi\mathopen{}\left(\frac{\mu_0 + z_{1-\alpha/2}\,\sigma/\sqrt{n} - \mu_1}{\sigma/\sqrt{n}}\right)\mathclose{} \]

where \(\Phi\) is the standard Gaussian CDF. For example, the power against \(\mu_1 = 100\) mg/dL is:

power <- function(n, null, alt, sigma) {
  se <- sigma / sqrt(n)
  lower <- null - qnorm(0.975) * se
  upper <- null + qnorm(0.975) * se
  pnorm((lower - alt) / se) + pnorm((upper - alt) / se, lower.tail = FALSE)
}
mu1 <- 100
power(n = n_obs, null = mu0, alt = mu1, sigma = sigma_hat)
#> [1] 0.99828

Figure 20 graphs the power as a function of the sample size.

Show R code
ggplot2::ggplot() +
  ggplot2::geom_function(
    fun = power,
    args = list(null = mu0, alt = mu1, sigma = sigma_hat),
    n = 199
  ) +
  ggplot2::xlim(c(2, 200)) +
  ggplot2::ylim(0, 1) +
  ggplot2::ylab("Power") +
  ggplot2::xlab("n")

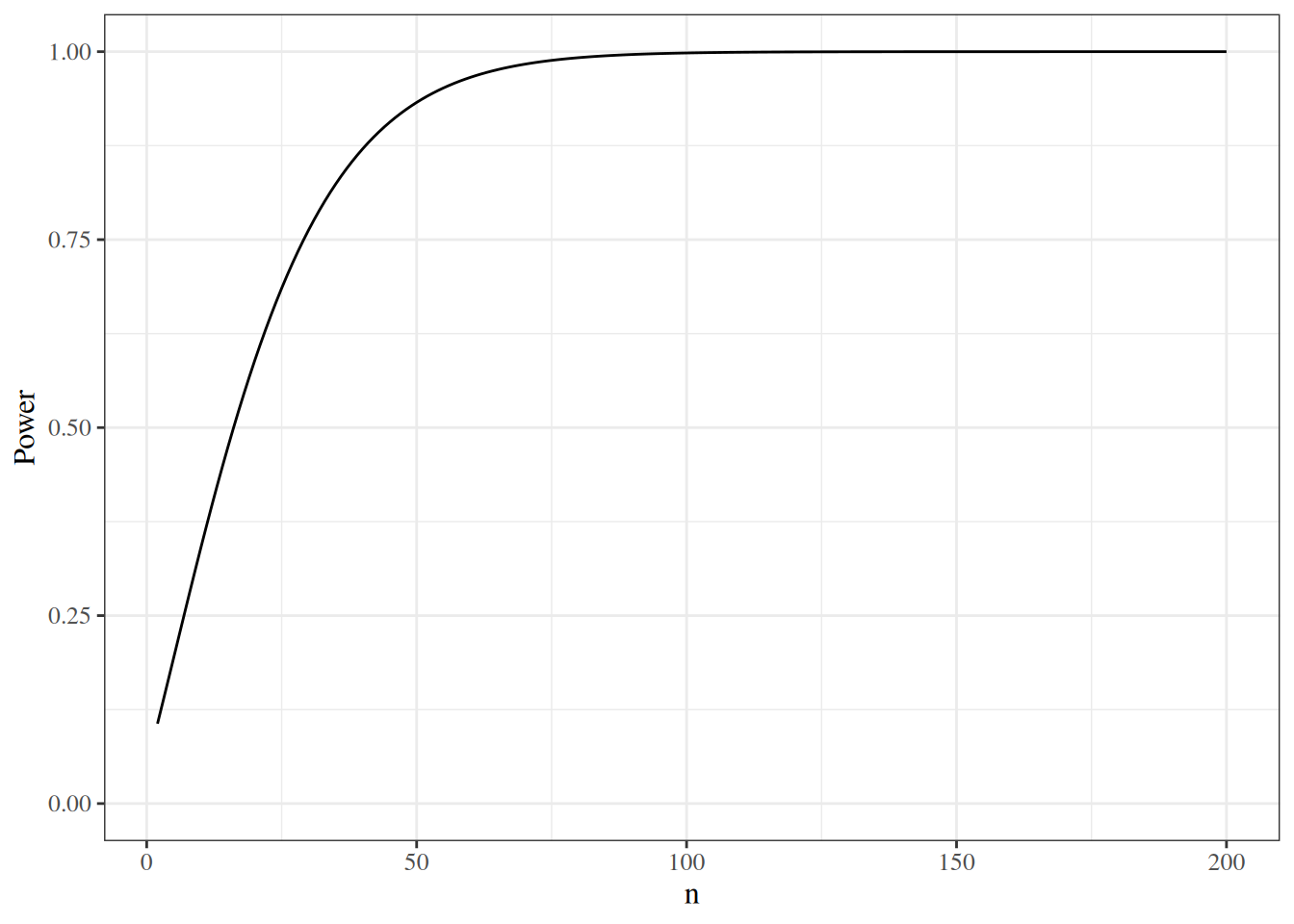

Figure 20: Power of the test of \(H_0: \mu = 95\) against \(\mu_1 = 100\) mg/dL, by sample size

The alternative \(\mu_1\) should be chosen before seeing the data, as a difference worth detecting. Power computed at \(\mu_1 = \hat\mu\) (“observed power”) is a function of the p-value, so it adds no information about the data already analyzed (Hoenig and Heisey 2001).

4.7 Simulation

To check how maximum likelihood estimation behaves for this model, we simulate many datasets from a Gaussian distribution whose parameters equal the HERS estimates, analyze each one, and summarize the results.

do_one_sim() simulates and analyzes one dataset: it computes \(\hat\mu\), its estimated standard error, a 95% \(t\)-based confidence interval for \(\mu\), and the \(t\)-test of \(H_0: \mu = \mu_0\).

do_one_sim <- function(n, mu, mu0, sigma2, return_data = FALSE) {
  # generate data
  x <- rnorm(n = n, mean = mu, sd = sqrt(sigma2))

  # analyze data
  est <- mean(x)
  se_est <- sd(x) / sqrt(n)
  confint <- est + c(-1, 1) * se_est * qt(0.975, df = n - 1)
  tstat <- abs(est - mu0) / se_est
  pval <- 2 * pt(q = tstat, df = n - 1, lower.tail = FALSE)

  results <- tibble::tibble(
    mu_hat = est,
    sigma_hat = sd(x),
    se_hat = se_est,
    confint_left = confint[1],
    confint_right = confint[2],
    tstat = tstat,
    pval = pval,
    confint_covers = dplyr::between(mu, confint[1], confint[2]),
    test_rejects = pval < 0.05
  )

  if (return_data) {
    list(data = x, results = results)
  } else {
    results
  }
}

# one small example dataset:
set.seed(0)
do_one_sim(n = 10, mu = 0, mu0 = 0, sigma2 = 1)

To check do_one_sim(), we compare its output with stats::t.test() on the same simulated data:

set.seed(1)
sim_output <- do_one_sim(
  n = 100, mu = mu_hat, mu0 = 80, sigma2 = sigma_sq_hat,
  return_data = TRUE
)
t_test <- t.test(sim_output$data, mu = 80)

dplyr::bind_rows(
  `do_one_sim()` = sim_output$results |>
    dplyr::select(mu_hat, se_hat, confint_left, confint_right, pval),
  `t.test()` = tibble::tibble(
    mu_hat = unname(t_test$estimate),
    se_hat = t_test$stderr,
    confint_left = t_test$conf.int[1],
    confint_right = t_test$conf.int[2],
    pval = t_test$p.value
  ),
  .id = "source"
)

The two rows agree.

do_n_sims() repeats the simulation n_sims times, with a different random seed for each dataset:

do_n_sims <- function(n_sims = 1000, ...) {
  lapply(seq_len(n_sims), function(i) {
    set.seed(i)
    do_one_sim(...) |>
      dplyr::mutate(sim_number = i, .before = dplyr::everything())
  }) |>
    dplyr::bind_rows()
}

sim_results <- do_n_sims(
  n_sims = 1000,
  n = 100, mu = mu_hat, mu0 = 0.9 * mu_hat, sigma2 = sigma_sq_hat
)
sim_results

summarize_sim() compares the simulation results with the true data-generating parameters:

summarize_sim <- function(sim_results, mu, sigma2, n) {
  true_se <- sqrt(sigma2 / n)
  tibble::tibble(
    bias_mu_hat = mean(sim_results$mu_hat) - mu,
    sd_mu_hat = sd(sim_results$mu_hat),
    true_se = true_se,
    bias_se_hat = mean(sim_results$se_hat) - true_se,
    coverage = mean(sim_results$confint_covers),
    power = mean(sim_results$test_rejects)
  )
}

sim_summary <- summarize_sim(
  sim_results,
  mu = mu_hat, sigma2 = sigma_sq_hat, n = 100
)
sim_summary

Across 1000 simulated datasets:

  • the average error of \(\hat\mu\) is -0.005 mg/dL, small relative to its standard error of 1.02 mg/dL, consistent with \(\hat\mu\) being unbiased;
  • the standard deviation of the \(\hat\mu\) values, 0.996, is close to the true standard error;
  • the 95% confidence intervals covered the true \(\mu\) in 95.9% of datasets, close to their nominal 95%;
  • the test of \(H_0: \mu = 0.9\,\hat\mu\) rejected in 100% of datasets: with \(n = 100\), a 10% difference in the mean is easy to detect.

Changing the sample size, the true \(\mu\), or \(\sigma^2\) in do_n_sims() shows how these properties depend on them.

5 Practice exercises

Exercise 38 (Binomial likelihood (adapted from Dobson and Barnett (2018), Chapter 3)) Let \(Y \sim \text{Binomial}(n, \pi)\), so that

\[ \operatorname{p}(Y = y \mid \pi) = \binom{n}{y} \pi^y (1-\pi)^{n-y}, \quad y \in \{0, 1, \ldots, n\}. \]

Assume \(0 < y < n\) so the MLE lies in the interior of \((0, 1)\).

(a) Write the log-likelihood \(\ell(\pi; y)\) for a single observation \(y\).

(b) Derive the score function \(\ell'(\pi; y) \stackrel{\text{def}}{=}\frac{\partial}{\partial \pi}\ell(\pi; y)\).

(c) Set the score equal to zero and solve for \(\hat\pi_{ML}\). Confirm that \(\hat\pi_{ML} = y/n\).

(d) Compute the second derivative \(\ell''(\pi; y)\) and verify that it is negative, confirming a maximum.

Solution 38. (a)

\[ \begin{aligned} \ell(\pi; y) &= \operatorname{log}\mathopen{}\left\{\binom{n}{y} \pi^y (1-\pi)^{n-y}\right\}\mathclose{} && \text{(log of the binomial PMF)} \\ &= \operatorname{log}\mathopen{}\left\{\binom{n}{y}\right\}\mathclose{} + \operatorname{log}\mathopen{}\left\{\pi^y\right\}\mathclose{} + \operatorname{log}\mathopen{}\left\{(1-\pi)^{n-y}\right\}\mathclose{} && \text{(log of a product)} \\ &= \operatorname{log}\mathopen{}\left\{\binom{n}{y}\right\}\mathclose{} + y\operatorname{log}\mathopen{}\left\{\pi\right\}\mathclose{} + (n-y)\operatorname{log}\mathopen{}\left\{1-\pi\right\}\mathclose{} && \text{(log of a power)} \end{aligned} \]

The first term does not depend on \(\pi\), so it drops out of every derivative with respect to \(\pi\).

(b)

\[ \begin{aligned} \ell'(\pi; y) &= \frac{\partial}{\partial \pi}\mathopen{}\left[\operatorname{log}\mathopen{}\left\{\binom{n}{y}\right\}\mathclose{} + y\operatorname{log}\mathopen{}\left\{\pi\right\}\mathclose{} + (n-y)\operatorname{log}\mathopen{}\left\{1-\pi\right\}\mathclose{}\right]\mathclose{} && \text{(log-likelihood from (a))} \\ &= \frac{\partial}{\partial \pi}\operatorname{log}\mathopen{}\left\{\binom{n}{y}\right\}\mathclose{} + \frac{\partial}{\partial \pi}\mathopen{}\left[y\operatorname{log}\mathopen{}\left\{\pi\right\}\mathclose{}\right]\mathclose{} + \frac{\partial}{\partial \pi}\mathopen{}\left[(n-y)\operatorname{log}\mathopen{}\left\{1-\pi\right\}\mathclose{}\right]\mathclose{} && \text{(linearity of differentiation)} \\ &= 0 + \frac{\partial}{\partial \pi}\mathopen{}\left[y\operatorname{log}\mathopen{}\left\{\pi\right\}\mathclose{}\right]\mathclose{} + \frac{\partial}{\partial \pi}\mathopen{}\left[(n-y)\operatorname{log}\mathopen{}\left\{1-\pi\right\}\mathclose{}\right]\mathclose{} && \text{(derivative of a constant)} \\ &= \frac{\partial}{\partial \pi}\mathopen{}\left[y\operatorname{log}\mathopen{}\left\{\pi\right\}\mathclose{}\right]\mathclose{} + \frac{\partial}{\partial \pi}\mathopen{}\left[(n-y)\operatorname{log}\mathopen{}\left\{1-\pi\right\}\mathclose{}\right]\mathclose{} && \text{(drop the zero term)} \\ &= y\frac{\partial}{\partial \pi}\operatorname{log}\mathopen{}\left\{\pi\right\}\mathclose{} + (n-y)\frac{\partial}{\partial \pi}\operatorname{log}\mathopen{}\left\{1-\pi\right\}\mathclose{} && \text{(constant multiple rule)} \\ &= y\frac{1}{\pi} + (n-y)\frac{\partial}{\partial \pi}\operatorname{log}\mathopen{}\left\{1-\pi\right\}\mathclose{} && \text{(derivative of $\log$)} \\ &= y\frac{1}{\pi} + (n-y)\frac{1}{1-\pi}\frac{\partial}{\partial \pi}(1-\pi) && \text{(chain rule)} \end{aligned} \]

The inner derivative is:

\[ \begin{aligned} \frac{\partial}{\partial \pi}(1-\pi) &= \frac{\partial}{\partial \pi} 1 - \frac{\partial}{\partial \pi} \pi && \text{(linearity of differentiation)} \\ &= 0 - \frac{\partial}{\partial \pi} \pi && \text{(derivative of a constant)} \\ &= 0 - 1 && \text{(derivative of $\pi$ with respect to itself)} \\ &= -1 && \text{(subtract)} \end{aligned} \]

Substituting the inner derivative back in:

\[ \begin{aligned} \ell'(\pi; y) &= y\frac{1}{\pi} + (n-y)\frac{1}{1-\pi}(-1) && \text{(inner derivative is $-1$)} \\ &= y\frac{1}{\pi} - (n-y)\frac{1}{1-\pi} && \text{(multiply by $-1$)} \\ &= \frac{y}{\pi} - \frac{n-y}{1-\pi} && \text{(multiply)} \\ &= \frac{y(1-\pi)}{\pi(1-\pi)} - \frac{(n-y)\pi}{\pi(1-\pi)} && \text{(write both terms over the common denominator)} \\ &= \frac{y(1-\pi) - (n-y)\pi}{\pi(1-\pi)} && \text{(combine the fractions)} \\ &= \frac{y - y\pi - n\pi + y\pi}{\pi(1-\pi)} && \text{(expand the numerator)} \\ &= \frac{y - n\pi}{\pi(1-\pi)} && \text{(cancel $y\pi$)} \end{aligned} \]

(c)

Setting \(\ell'(\pi; y) = 0\):

\[ \begin{aligned} 0 &= \frac{y - n\pi}{\pi(1-\pi)} && \text{(score from (b))} \\ 0 &= y - n\pi && \text{(multiply both sides by $\pi(1-\pi)$)} \\ y &= n\pi && \text{(add $n\pi$ to both sides)} \\ \hat\pi_{ML} &= \frac{y}{n} && \text{(divide both sides by $n$)} \end{aligned} \]

(d)

\[ \begin{aligned} \ell''(\pi; y) &= \frac{\partial}{\partial \pi}\mathopen{}\left[\frac{y}{\pi} - \frac{n-y}{1-\pi}\right]\mathclose{} && \text{(score from (b))} \\ &= \frac{\partial}{\partial \pi}\mathopen{}\left[y\pi^{-1} - (n-y)(1-\pi)^{-1}\right]\mathclose{} && \text{(write the fractions as negative powers)} \\ &= \frac{\partial}{\partial \pi}\mathopen{}\left[y\pi^{-1}\right]\mathclose{} - \frac{\partial}{\partial \pi}\mathopen{}\left[(n-y)(1-\pi)^{-1}\right]\mathclose{} && \text{(linearity of differentiation)} \\ &= y\frac{\partial}{\partial \pi}\pi^{-1} - (n-y)\frac{\partial}{\partial \pi}(1-\pi)^{-1} && \text{(constant multiple rule)} \\ &= y\mathopen{}\left(-\pi^{-2}\right)\mathclose{} - (n-y)\frac{\partial}{\partial \pi}(1-\pi)^{-1} && \text{(power rule)} \\ &= y\mathopen{}\left(-\pi^{-2}\right)\mathclose{} - (n-y)\mathopen{}\left(-(1-\pi)^{-2}\right)\mathclose{}\frac{\partial}{\partial \pi}(1-\pi) && \text{(chain rule, outer function $u^{-1}$)} \\ &= y\mathopen{}\left(-\pi^{-2}\right)\mathclose{} - (n-y)\mathopen{}\left(-(1-\pi)^{-2}\right)\mathclose{}(-1) && \text{(inner derivative from (b) is $-1$)} \\ &= -y\pi^{-2} - (n-y)(1-\pi)^{-2} && \text{(multiply)} \\ &= -\frac{y}{\pi^2} - \frac{n-y}{(1-\pi)^2} && \text{(write the negative powers as fractions)} \end{aligned} \]

Since \(y \geq 0\), \(n - y \geq 0\), and \(y\) and \(n - y\) are not both zero, \(\ell''(\pi; y) < 0\) for every \(\pi \in (0,1)\). So \(\ell\) is strictly concave, and its critical point \(\hat\pi_{ML} = y/n\) is its global maximum.

Exercise 39 (Gaussian log-likelihood (adapted from Kleinbaum et al. (2014), Chapter 5)) Let \(X_1, \ldots, X_n \ \sim_{\operatorname{iid}}\ \operatorname{N}(\mu, \sigma^2)\).

(a) Write the likelihood \(\mathcal{L}(\mu, \sigma^2; \tilde{x})\) for the observed data \(\tilde{x}= (x_1, \ldots, x_n)\).

(b) Write the log-likelihood \(\ell(\mu, \sigma^2; \tilde{x})\). Show that it can be written as

\[ \ell(\mu, \sigma^2; \tilde{x}) = -\frac{n}{2}\operatorname{log}\mathopen{}\left\{2\pi\sigma^2\right\}\mathclose{} - \frac{1}{2\sigma^2}\sum_{i=1}^n (x_i - \mu)^2. \]

(c) Derive the MLE \(\hat\mu_{ML}\) and \(\hat\sigma^2_{ML}\).

Solution 39. (a)

\[ \begin{aligned} \mathcal{L}(\mu, \sigma^2; \tilde{x}) &= \prod_{i=1}^n (2\pi\sigma^2)^{-1/2} \operatorname{exp}\mathopen{}\left\{-\frac{(x_i - \mu)^2}{2\sigma^2}\right\}\mathclose{} && \text{(likelihood of an $\operatorname{iid}$ sample)} \\ &= \mathopen{}\left(\prod_{i=1}^n (2\pi\sigma^2)^{-1/2}\right)\mathclose{} \mathopen{}\left(\prod_{i=1}^n \operatorname{exp}\mathopen{}\left\{-\frac{(x_i - \mu)^2}{2\sigma^2}\right\}\mathclose{}\right)\mathclose{} && \text{(regroup the factors of the product)} \\ &= (2\pi\sigma^2)^{-n/2} \prod_{i=1}^n \operatorname{exp}\mathopen{}\left\{-\frac{(x_i - \mu)^2}{2\sigma^2}\right\}\mathclose{} && \text{(product of $n$ copies of a power)} \\ &= (2\pi\sigma^2)^{-n/2} \operatorname{exp}\mathopen{}\left\{\sum_{i=1}^n -\frac{(x_i - \mu)^2}{2\sigma^2}\right\}\mathclose{} && \text{(product of exponentials)} \\ &= (2\pi\sigma^2)^{-n/2} \operatorname{exp}\mathopen{}\left\{-\frac{1}{2\sigma^2}\sum_{i=1}^n (x_i-\mu)^2\right\}\mathclose{} && \text{(factor the constant out of the sum)} \end{aligned} \]

(b)

\[ \begin{aligned} \ell(\mu, \sigma^2; \tilde{x}) &= \operatorname{log}\mathopen{}\left\{\mathcal{L}(\mu, \sigma^2; \tilde{x})\right\}\mathclose{} && \text{(definition of the log-likelihood)} \\ &= \operatorname{log}\mathopen{}\left\{(2\pi\sigma^2)^{-n/2} \operatorname{exp}\mathopen{}\left\{-\frac{1}{2\sigma^2}\sum_{i=1}^n (x_i-\mu)^2\right\}\mathclose{}\right\}\mathclose{} && \text{(likelihood from (a))} \\ &= \operatorname{log}\mathopen{}\left\{(2\pi\sigma^2)^{-n/2}\right\}\mathclose{} + \operatorname{log}\mathopen{}\left\{\operatorname{exp}\mathopen{}\left\{-\frac{1}{2\sigma^2}\sum_{i=1}^n (x_i-\mu)^2\right\}\mathclose{}\right\}\mathclose{} && \text{(log of a product)} \\ &= -\frac{n}{2}\operatorname{log}\mathopen{}\left\{2\pi\sigma^2\right\}\mathclose{} + \operatorname{log}\mathopen{}\left\{\operatorname{exp}\mathopen{}\left\{-\frac{1}{2\sigma^2}\sum_{i=1}^n (x_i-\mu)^2\right\}\mathclose{}\right\}\mathclose{} && \text{(log of a power)} \\ &= -\frac{n}{2}\operatorname{log}\mathopen{}\left\{2\pi\sigma^2\right\}\mathclose{} - \frac{1}{2\sigma^2}\sum_{i=1}^n (x_i - \mu)^2 && \text{($\operatorname{log}$ undoes $\operatorname{exp}$)} \end{aligned} \]

(c)

Deriving \(\hat\mu_{ML}\):

\[ \begin{aligned} \frac{\partial}{\partial \mu}\ell &= \frac{\partial}{\partial \mu}\mathopen{}\left[-\frac{n}{2}\operatorname{log}\mathopen{}\left\{2\pi\sigma^2\right\}\mathclose{} - \frac{1}{2\sigma^2}\sum_{i=1}^n (x_i - \mu)^2\right]\mathclose{} && \text{(log-likelihood from (b))} \\ &= \frac{\partial}{\partial \mu}\mathopen{}\left[-\frac{n}{2}\operatorname{log}\mathopen{}\left\{2\pi\sigma^2\right\}\mathclose{}\right]\mathclose{} + \frac{\partial}{\partial \mu}\mathopen{}\left[-\frac{1}{2\sigma^2}\sum_{i=1}^n (x_i - \mu)^2\right]\mathclose{} && \text{(linearity of differentiation)} \\ &= 0 + \frac{\partial}{\partial \mu}\mathopen{}\left[-\frac{1}{2\sigma^2}\sum_{i=1}^n (x_i - \mu)^2\right]\mathclose{} && \text{(derivative of a constant)} \\ &= \frac{\partial}{\partial \mu}\mathopen{}\left[-\frac{1}{2\sigma^2}\sum_{i=1}^n (x_i - \mu)^2\right]\mathclose{} && \text{(drop the zero term)} \\ &= -\frac{1}{2\sigma^2}\frac{\partial}{\partial \mu}\sum_{i=1}^n (x_i - \mu)^2 && \text{(constant multiple rule)} \\ &= -\frac{1}{2\sigma^2}\sum_{i=1}^n \frac{\partial}{\partial \mu}(x_i - \mu)^2 && \text{(derivative of a sum is the sum of derivatives)} \\ &= -\frac{1}{2\sigma^2}\sum_{i=1}^n 2(x_i - \mu)\frac{\partial}{\partial \mu}(x_i - \mu) && \text{(chain rule, outer function $u^2$)} \end{aligned} \]

The inner derivative is:

\[ \begin{aligned} \frac{\partial}{\partial \mu}(x_i - \mu) &= \frac{\partial}{\partial \mu} x_i - \frac{\partial}{\partial \mu} \mu && \text{(linearity of differentiation)} \\ &= 0 - \frac{\partial}{\partial \mu} \mu && \text{($x_i$ does not depend on $\mu$)} \\ &= 0 - 1 && \text{(derivative of $\mu$ with respect to itself)} \\ &= -1 && \text{(subtract)} \end{aligned} \]

Substituting the inner derivative back in:

\[ \begin{aligned} \frac{\partial}{\partial \mu}\ell &= -\frac{1}{2\sigma^2}\sum_{i=1}^n 2(x_i - \mu) \cdot (-1) && \text{(inner derivative is $-1$)} \\ &= -\frac{1}{2\sigma^2}\sum_{i=1}^n -2(x_i - \mu) && \text{(multiply)} \\ &= -\frac{1}{2\sigma^2} \cdot (-2) \sum_{i=1}^n (x_i - \mu) && \text{(factor the constant $-2$ out of the sum)} \\ &= \frac{1}{\sigma^2}\sum_{i=1}^n (x_i - \mu) && \text{(multiply the constants)} \\ &= \frac{1}{\sigma^2}\mathopen{}\left(\sum_{i=1}^n x_i - \sum_{i=1}^n \mu\right)\mathclose{} && \text{(split the sum)} \\ &= \frac{1}{\sigma^2}\mathopen{}\left(\sum_{i=1}^n x_i - n\mu\right)\mathclose{} && \text{(sum of $n$ copies of $\mu$)} \end{aligned} \]

Setting this to zero: \(\hat\mu_{ML} = \bar{x} \stackrel{\text{def}}{=}\frac{1}{n}\sum_{i=1}^n x_i\).

Deriving \(\hat\sigma^2_{ML}\):

\[ \begin{aligned} \frac{\partial}{\partial \sigma^2}\ell &= \frac{\partial}{\partial \sigma^2}\mathopen{}\left[-\frac{n}{2}\operatorname{log}\mathopen{}\left\{2\pi\sigma^2\right\}\mathclose{} - \frac{1}{2\sigma^2}\sum_{i=1}^n (x_i - \mu)^2\right]\mathclose{} && \text{(log-likelihood from (b))} \\ &= \frac{\partial}{\partial \sigma^2}\mathopen{}\left[-\frac{n}{2}\mathopen{}\left(\operatorname{log}\mathopen{}\left\{2\pi\right\}\mathclose{} + \operatorname{log}\mathopen{}\left\{\sigma^2\right\}\mathclose{}\right)\mathclose{} - \frac{1}{2\sigma^2}\sum_{i=1}^n (x_i - \mu)^2\right]\mathclose{} && \text{(log of a product)} \\ &= \frac{\partial}{\partial \sigma^2}\mathopen{}\left[-\frac{n}{2}\operatorname{log}\mathopen{}\left\{2\pi\right\}\mathclose{} - \frac{n}{2}\operatorname{log}\mathopen{}\left\{\sigma^2\right\}\mathclose{} - \frac{1}{2\sigma^2}\sum_{i=1}^n (x_i - \mu)^2\right]\mathclose{} && \text{(distribute $-\tfrac{n}{2}$)} \\ &= \frac{\partial}{\partial \sigma^2}\mathopen{}\left[-\frac{n}{2}\operatorname{log}\mathopen{}\left\{2\pi\right\}\mathclose{} - \frac{n}{2}\operatorname{log}\mathopen{}\left\{\sigma^2\right\}\mathclose{} - \frac{1}{2}(\sigma^2)^{-1}\sum_{i=1}^n (x_i - \mu)^2\right]\mathclose{} && \text{(write $\tfrac{1}{2\sigma^2}$ as $\tfrac{1}{2}(\sigma^2)^{-1}$)} \\ &= \frac{\partial}{\partial \sigma^2}\mathopen{}\left[-\frac{n}{2}\operatorname{log}\mathopen{}\left\{2\pi\right\}\mathclose{}\right]\mathclose{} + \frac{\partial}{\partial \sigma^2}\mathopen{}\left[-\frac{n}{2}\operatorname{log}\mathopen{}\left\{\sigma^2\right\}\mathclose{}\right]\mathclose{} + \frac{\partial}{\partial \sigma^2}\mathopen{}\left[-\frac{1}{2}(\sigma^2)^{-1}\sum_{i=1}^n (x_i - \mu)^2\right]\mathclose{} && \text{(linearity of differentiation)} \\ &= 0 + \frac{\partial}{\partial \sigma^2}\mathopen{}\left[-\frac{n}{2}\operatorname{log}\mathopen{}\left\{\sigma^2\right\}\mathclose{}\right]\mathclose{} + \frac{\partial}{\partial \sigma^2}\mathopen{}\left[-\frac{1}{2}(\sigma^2)^{-1}\sum_{i=1}^n (x_i - \mu)^2\right]\mathclose{} && \text{(derivative of a constant)} \\ &= \frac{\partial}{\partial \sigma^2}\mathopen{}\left[-\frac{n}{2}\operatorname{log}\mathopen{}\left\{\sigma^2\right\}\mathclose{}\right]\mathclose{} + \frac{\partial}{\partial \sigma^2}\mathopen{}\left[-\frac{1}{2}(\sigma^2)^{-1}\sum_{i=1}^n (x_i - \mu)^2\right]\mathclose{} && \text{(drop the zero term)} \\ &= \frac{\partial}{\partial \sigma^2}\mathopen{}\left[-\frac{n}{2}\operatorname{log}\mathopen{}\left\{\sigma^2\right\}\mathclose{}\right]\mathclose{} + \frac{\partial}{\partial \sigma^2}\mathopen{}\left[-\frac{1}{2}\sum_{i=1}^n (x_i - \mu)^2 (\sigma^2)^{-1}\right]\mathclose{} && \text{(reorder the factors)} \\ &= -\frac{n}{2}\frac{\partial}{\partial \sigma^2}\operatorname{log}\mathopen{}\left\{\sigma^2\right\}\mathclose{} - \frac{1}{2}\sum_{i=1}^n (x_i - \mu)^2 \frac{\partial}{\partial \sigma^2}(\sigma^2)^{-1} && \text{(constant multiple rule)} \\ &= -\frac{n}{2}(\sigma^2)^{-1} - \frac{1}{2}\sum_{i=1}^n (x_i - \mu)^2 \frac{\partial}{\partial \sigma^2}(\sigma^2)^{-1} && \text{(derivative of $\log$)} \\ &= -\frac{n}{2}(\sigma^2)^{-1} - \frac{1}{2}\sum_{i=1}^n (x_i - \mu)^2 \mathopen{}\left(-(\sigma^2)^{-2}\right)\mathclose{} && \text{(power rule)} \\ &= -\frac{n}{2}(\sigma^2)^{-1} + \frac{1}{2}\sum_{i=1}^n (x_i - \mu)^2 (\sigma^2)^{-2} && \text{(multiply)} \\ &= -\frac{n}{2}(\sigma^2)^{-1} + \frac{1}{2}(\sigma^2)^{-2}\sum_{i=1}^n (x_i - \mu)^2 && \text{(reorder the factors)} \end{aligned} \]

Setting this to zero and solving:

\[ \begin{aligned} 0 &= -\frac{n}{2}(\sigma^2)^{-1} + \frac{1}{2}(\sigma^2)^{-2}\sum_{i=1}^n (x_i - \mu)^2 && \text{(set the derivative to zero)} \\ \frac{n}{2}(\sigma^2)^{-1} &= \frac{1}{2}(\sigma^2)^{-2}\sum_{i=1}^n (x_i - \mu)^2 && \text{(add $\tfrac{n}{2}(\sigma^2)^{-1}$ to both sides)} \\ n(\sigma^2)^{-1}(\sigma^2)^2 &= (\sigma^2)^{-2}(\sigma^2)^2\sum_{i=1}^n (x_i - \mu)^2 && \text{(multiply both sides by $2(\sigma^2)^2$)} \\ n\sigma^2 &= (\sigma^2)^{-2}(\sigma^2)^2\sum_{i=1}^n (x_i - \mu)^2 && \text{($(\sigma^2)^{-1}(\sigma^2)^2 = \sigma^2$)} \\ n\sigma^2 &= \sum_{i=1}^n (x_i - \mu)^2 && \text{($(\sigma^2)^{-2}(\sigma^2)^2 = 1$)} \\ \sigma^2 &= \frac{1}{n}\sum_{i=1}^n (x_i - \mu)^2 && \text{(divide both sides by $n$)} \end{aligned} \]

Substituting \(\hat\mu_{ML} = \bar{x}\):

\[ \hat\sigma^2_{ML} = \frac{1}{n}\sum_{i=1}^n (x_i - \bar{x})^2 \]

Note: this maximum likelihood estimator is a biased estimator of \(\sigma^2\); the unbiased sample variance divides by \(n-1\).

Exercise 40 (Score at the MLE (adapted from Dobson and Barnett (2018), Chapter 3)) Let \(X_1, \ldots, X_n \ \sim_{\operatorname{iid}}\ \operatorname{Pois}({\lambda})\).

(a) Write the log-likelihood \(\ell({\lambda}; \tilde{x})\).

(b) Derive the score function \(\ell'({\lambda}; \tilde{x})\).

(c) Show that \(\hat{\lambda}_{ML} = \bar{x}\), and verify that the score equals zero at the MLE.

(d) Provide an intuitive interpretation: why does the score being zero at \(\hat{\lambda}_{ML}\) make sense?

Solution 40. (a)

\[ \begin{aligned} \ell({\lambda}; \tilde{x}) &= \operatorname{log}\mathopen{}\left\{\prod_{i=1}^n \frac{{\lambda}^{x_i} e^{-{\lambda}}}{x_i!}\right\}\mathclose{} && \text{(log of the likelihood of an $\operatorname{iid}$ sample)} \\ &= \sum_{i=1}^n \operatorname{log}\mathopen{}\left\{\frac{{\lambda}^{x_i} e^{-{\lambda}}}{x_i!}\right\}\mathclose{} && \text{(log of a product)} \\ &= \sum_{i=1}^n \mathopen{}\left(\operatorname{log}\mathopen{}\left\{{\lambda}^{x_i} e^{-{\lambda}}\right\}\mathclose{} - \operatorname{log}\mathopen{}\left\{x_i!\right\}\mathclose{}\right)\mathclose{} && \text{(log of a quotient)} \\ &= \sum_{i=1}^n \mathopen{}\left(\operatorname{log}\mathopen{}\left\{{\lambda}^{x_i}\right\}\mathclose{} + \operatorname{log}\mathopen{}\left\{e^{-{\lambda}}\right\}\mathclose{} - \operatorname{log}\mathopen{}\left\{x_i!\right\}\mathclose{}\right)\mathclose{} && \text{(log of a product)} \\ &= \sum_{i=1}^n \mathopen{}\left(x_i \operatorname{log}\mathopen{}\left\{{\lambda}\right\}\mathclose{} + \operatorname{log}\mathopen{}\left\{e^{-{\lambda}}\right\}\mathclose{} - \operatorname{log}\mathopen{}\left\{x_i!\right\}\mathclose{}\right)\mathclose{} && \text{(log of a power)} \\ &= \sum_{i=1}^n \mathopen{}\left(x_i \operatorname{log}\mathopen{}\left\{{\lambda}\right\}\mathclose{} - {\lambda}- \operatorname{log}\mathopen{}\left\{x_i!\right\}\mathclose{}\right)\mathclose{} && \text{($\operatorname{log}$ undoes $\operatorname{exp}$)} \\ &= \sum_{i=1}^n x_i \operatorname{log}\mathopen{}\left\{{\lambda}\right\}\mathclose{} - \sum_{i=1}^n {\lambda}- \sum_{i=1}^n \operatorname{log}\mathopen{}\left\{x_i!\right\}\mathclose{} && \text{(split the sum)} \\ &= \mathopen{}\left(\sum_{i=1}^n x_i\right)\mathclose{}\operatorname{log}\mathopen{}\left\{{\lambda}\right\}\mathclose{} - \sum_{i=1}^n {\lambda}- \sum_{i=1}^n \operatorname{log}\mathopen{}\left\{x_i!\right\}\mathclose{} && \text{(factor $\operatorname{log}\mathopen{}\left\{{\lambda}\right\}\mathclose{}$ out of the first sum)} \\ &= \mathopen{}\left(\sum_{i=1}^n x_i\right)\mathclose{}\operatorname{log}\mathopen{}\left\{{\lambda}\right\}\mathclose{} - n{\lambda}- \sum_{i=1}^n \operatorname{log}\mathopen{}\left\{x_i!\right\}\mathclose{} && \text{(sum of $n$ copies of ${\lambda}$)} \end{aligned} \]

(b)

\[ \begin{aligned} \ell'({\lambda}; \tilde{x}) &= \frac{\partial}{\partial {\lambda}}\mathopen{}\left[\mathopen{}\left(\sum_{i=1}^n x_i\right)\mathclose{}\operatorname{log}\mathopen{}\left\{{\lambda}\right\}\mathclose{} - n{\lambda}- \sum_{i=1}^n \operatorname{log}\mathopen{}\left\{x_i!\right\}\mathclose{}\right]\mathclose{} && \text{(log-likelihood from (a))} \\ &= \frac{\partial}{\partial {\lambda}}\mathopen{}\left[\mathopen{}\left(\sum_{i=1}^n x_i\right)\mathclose{}\operatorname{log}\mathopen{}\left\{{\lambda}\right\}\mathclose{}\right]\mathclose{} - \frac{\partial}{\partial {\lambda}}\mathopen{}\left[n{\lambda}\right]\mathclose{} - \frac{\partial}{\partial {\lambda}}\mathopen{}\left[\sum_{i=1}^n \operatorname{log}\mathopen{}\left\{x_i!\right\}\mathclose{}\right]\mathclose{} && \text{(linearity of differentiation)} \\ &= \frac{\partial}{\partial {\lambda}}\mathopen{}\left[\mathopen{}\left(\sum_{i=1}^n x_i\right)\mathclose{}\operatorname{log}\mathopen{}\left\{{\lambda}\right\}\mathclose{}\right]\mathclose{} - \frac{\partial}{\partial {\lambda}}\mathopen{}\left[n{\lambda}\right]\mathclose{} - 0 && \text{(derivative of a constant)} \\ &= \frac{\partial}{\partial {\lambda}}\mathopen{}\left[\mathopen{}\left(\sum_{i=1}^n x_i\right)\mathclose{}\operatorname{log}\mathopen{}\left\{{\lambda}\right\}\mathclose{}\right]\mathclose{} - \frac{\partial}{\partial {\lambda}}\mathopen{}\left[n{\lambda}\right]\mathclose{} && \text{(drop the zero term)} \\ &= \mathopen{}\left(\sum_{i=1}^n x_i\right)\mathclose{}\frac{\partial}{\partial {\lambda}}\operatorname{log}\mathopen{}\left\{{\lambda}\right\}\mathclose{} - n\frac{\partial}{\partial {\lambda}}{\lambda} && \text{(constant multiple rule)} \\ &= \mathopen{}\left(\sum_{i=1}^n x_i\right)\mathclose{}{\lambda}^{-1} - n\frac{\partial}{\partial {\lambda}}{\lambda} && \text{(derivative of $\log$)} \\ &= \mathopen{}\left(\sum_{i=1}^n x_i\right)\mathclose{}{\lambda}^{-1} - n && \text{(derivative of ${\lambda}$ with respect to itself)} \\ &= \frac{\sum_{i=1}^n x_i}{{\lambda}} - n && \text{(write the negative power as a fraction)} \\ &= \frac{n\bar{x}}{{\lambda}} - n && \text{($\textstyle\sum_{i=1}^n x_i = n\bar{x}$)} \end{aligned} \]

(c)

Setting \(\ell'({\lambda}; \tilde{x}) = 0\):

\[ \begin{aligned} 0 &= \frac{n\bar{x}}{{\lambda}} - n && \text{(score from (b))} \\ \frac{n\bar{x}}{{\lambda}} &= n && \text{(add $n$ to both sides)} \\ n\bar{x} &= n{\lambda} && \text{(multiply both sides by ${\lambda}$)} \\ \hat{\lambda}_{ML} &= \bar{x} && \text{(divide both sides by $n$)} \end{aligned} \]

If \(\bar{x} > 0\) (equivalently, at least one \(x_i > 0\)), then

\[ \begin{aligned} \ell'(\bar{x}; \tilde{x}) &= \frac{n\bar{x}}{\bar{x}} - n && \text{(score from (b) at ${\lambda}= \bar{x}$)} \\ &= n - n && \text{(cancel $\bar{x}$, since $\bar{x} > 0$)} \\ &= 0 && \text{(subtract)} \end{aligned} \]

If instead all \(x_i = 0\), then \(\bar{x} = 0\) and \(\hat{\lambda}_{ML} = 0\) is a boundary value. In that case, the score formula \(\ell'({\lambda}; \tilde{x}) = \frac{n\bar{x}}{{\lambda}} - n\) is not defined at \({\lambda}= 0\), so the usual interior verification \(\ell'(\hat{\lambda}_{ML}; \tilde{x}) = 0\) does not apply.

(d)

The score measures the rate of change of the log-likelihood. When it equals zero, increasing or decreasing \({\lambda}\) slightly would not improve the fit; we are at a “flat” point. Intuitively, \(\hat{\lambda}_{ML} = \bar{x}\) is the value of \({\lambda}\) that makes the expected count per observation (\({\lambda}\)) exactly equal to the observed average count (\(\bar{x}\)).

Exercise 41 (Standard error of an MLE (adapted from Dobson and Barnett (2018), Chapter 5)) Let \(X_1, \ldots, X_n \ \sim_{\operatorname{iid}}\ \operatorname{Pois}({\lambda})\).

(a) Derive the Hessian \(\ell''({\lambda}; \tilde{x}) = \frac{\partial}{\partial [}2]{{\lambda}}\ell({\lambda};\tilde{x})\).

(b) Derive the observed information \(I({\lambda}; \tilde{x}) = -\ell''({\lambda}; \tilde{x})\).

(c) Evaluate \(I(\hat{\lambda}_{ML}; \tilde{x})\).

(d) Give an approximate 95% confidence interval for \({\lambda}\) using the asymptotic normal distribution of the MLE.

Solution 41. (a)

From Exercise 40, \(\ell'({\lambda}; \tilde{x}) = \frac{n\bar{x}}{{\lambda}} - n\).

\[ \begin{aligned} \ell''({\lambda}; \tilde{x}) &= \frac{\partial}{\partial {\lambda}}\mathopen{}\left[\frac{n\bar{x}}{{\lambda}} - n\right]\mathclose{} && \text{(Poisson score)} \\ &= \frac{\partial}{\partial {\lambda}}\mathopen{}\left[n\bar{x}{\lambda}^{-1} - n\right]\mathclose{} && \text{(write $\tfrac{n\bar{x}}{{\lambda}}$ as $n\bar{x}{\lambda}^{-1}$)} \\ &= \frac{\partial}{\partial {\lambda}}\mathopen{}\left[n\bar{x}{\lambda}^{-1}\right]\mathclose{} - \frac{\partial}{\partial {\lambda}} n && \text{(linearity of differentiation)} \\ &= \frac{\partial}{\partial {\lambda}}\mathopen{}\left[n\bar{x}{\lambda}^{-1}\right]\mathclose{} - 0 && \text{(derivative of a constant)} \\ &= \frac{\partial}{\partial {\lambda}}\mathopen{}\left[n\bar{x}{\lambda}^{-1}\right]\mathclose{} && \text{(drop the zero term)} \\ &= n\bar{x}\frac{\partial}{\partial {\lambda}}{\lambda}^{-1} && \text{(constant multiple rule)} \\ &= n\bar{x}\mathopen{}\left(-{\lambda}^{-2}\right)\mathclose{} && \text{(power rule)} \\ &= -n\bar{x}{\lambda}^{-2} && \text{(multiply)} \\ &= -\frac{n\bar{x}}{{\lambda}^2} && \text{(write the negative power as a fraction)} \end{aligned} \]

(b)

\[ \begin{aligned} I({\lambda}; \tilde{x}) &= -\ell''({\lambda}; \tilde{x}) && \text{(observed information is the negative Hessian)} \\ &= -\mathopen{}\left(-\frac{n\bar{x}}{{\lambda}^2}\right)\mathclose{} && \text{(Hessian from (a))} \\ &= \frac{n\bar{x}}{{\lambda}^2} && \text{(two negatives make a positive)} \end{aligned} \]

(c)

Assuming \(\bar{x} > 0\) (i.e., at least one \(x_i > 0\)), substituting \(\hat{\lambda}_{ML} = \bar{x}\):

\[ \begin{aligned} I(\hat{\lambda}_{ML}; \tilde{x}) &= \frac{n\bar{x}}{\bar{x}^2} && \text{(observed information at ${\lambda}= \bar{x}$)} \\ &= \frac{n}{\bar{x}} && \text{(cancel one factor of $\bar{x}$)} \end{aligned} \]

(d)

By the asymptotic theory of MLEs:

\[ \hat{\lambda}_{ML} \;\dot\sim\; \operatorname{N}\!\mathopen{}\left({\lambda},\; \mathopen{}\left(\mathcal{I}({\lambda})\right)^{-1}\mathclose{}\right)\mathclose{} \]

We estimate this asymptotic variance using the observed information evaluated at the MLE. Since \(I(\hat{\lambda}_{ML};\tilde{x})^{-1} = \bar{x}/n\):

\[ \operatorname{SE}\mathopen{}\left(\hat{\lambda}_{ML}\right)\mathclose{} \approx \sqrt{\frac{\bar{x}}{n}} \]

An approximate 95% CI for \({\lambda}\) is:

\[ \hat{\lambda}_{ML} \pm 1.96 \times \sqrt{\frac{\bar{x}}{n}} = \bar{x} \pm 1.96\sqrt{\frac{\bar{x}}{n}} \]

Exercise 42 (Exponential MLE (adapted from Dobson and Barnett (2018), Chapter 3)) Let \(X_1, \ldots, X_n \ \sim_{\operatorname{iid}}\ \text{Exponential}(\mu)\), so that \[ \operatorname{p}(X = x \mid \mu) = \frac{1}{\mu} e^{-x/\mu}, \quad x > 0, \quad \mu> 0. \]

(a) Write the log-likelihood \(\ell(\mu; \tilde{x})\) for the observed data \(\tilde{x}= (x_1, \ldots, x_n)\).

(b) Derive the score function \(\ell'(\mu; \tilde{x}) = \frac{\partial}{\partial \mu}\ell(\mu; \tilde{x})\).

(c) Set the score equal to zero and show that \(\hat\mu_{ML} = \bar{x}\). Compute the second derivative and verify this critical point is a maximum.

(d) Derive the observed information \(I(\mu; \tilde{x}) = -\ell''(\mu; \tilde{x})\), evaluate it at \(\hat\mu_{ML}\), and give an approximate 95% confidence interval for \(\mu\).

Solution 42. (a)

\[ \begin{aligned} \ell(\mu; \tilde{x}) &= \operatorname{log}\mathopen{}\left\{\prod_{i=1}^n \frac{1}{\mu} e^{-x_i/\mu}\right\}\mathclose{} && \text{(log of the likelihood of an $\operatorname{iid}$ sample)} \\ &= \sum_{i=1}^n \operatorname{log}\mathopen{}\left\{\frac{1}{\mu} e^{-x_i/\mu}\right\}\mathclose{} && \text{(log of a product)} \\ &= \sum_{i=1}^n \mathopen{}\left(\operatorname{log}\mathopen{}\left\{\frac{1}{\mu}\right\}\mathclose{} + \operatorname{log}\mathopen{}\left\{e^{-x_i/\mu}\right\}\mathclose{}\right)\mathclose{} && \text{(log of a product)} \\ &= \sum_{i=1}^n \mathopen{}\left(-\operatorname{log}\mathopen{}\left\{\mu\right\}\mathclose{} + \operatorname{log}\mathopen{}\left\{e^{-x_i/\mu}\right\}\mathclose{}\right)\mathclose{} && \text{(log of a reciprocal)} \\ &= \sum_{i=1}^n \mathopen{}\left(-\operatorname{log}\mathopen{}\left\{\mu\right\}\mathclose{} - \frac{x_i}{\mu}\right)\mathclose{} && \text{($\operatorname{log}$ undoes $\operatorname{exp}$)} \\ &= \sum_{i=1}^n \mathopen{}\left(-\operatorname{log}\mathopen{}\left\{\mu\right\}\mathclose{}\right)\mathclose{} - \sum_{i=1}^n \frac{x_i}{\mu} && \text{(split the sum)} \\ &= -n\operatorname{log}\mathopen{}\left\{\mu\right\}\mathclose{} - \sum_{i=1}^n \frac{x_i}{\mu} && \text{(sum of $n$ identical terms)} \\ &= -n\operatorname{log}\mathopen{}\left\{\mu\right\}\mathclose{} - \frac{1}{\mu}\sum_{i=1}^n x_i && \text{(factor the constant $\tfrac{1}{\mu}$ out of the sum)} \\ &= -n\operatorname{log}\mathopen{}\left\{\mu\right\}\mathclose{} - \frac{n\bar{x}}{\mu} && \text{($\textstyle\sum_{i=1}^n x_i = n\bar{x}$)} \end{aligned} \]

(b)

\[ \begin{aligned} \ell'(\mu; \tilde{x}) &= \frac{\partial}{\partial \mu}\mathopen{}\left(-n\operatorname{log}\mathopen{}\left\{\mu\right\}\mathclose{} - \frac{n\bar{x}}{\mu}\right)\mathclose{} && \text{(log-likelihood from (a))} \\ &= \frac{\partial}{\partial \mu}\mathopen{}\left(-n\operatorname{log}\mathopen{}\left\{\mu\right\}\mathclose{} - n\bar{x}\mu^{-1}\right)\mathclose{} && \text{(write $\tfrac{n\bar{x}}{\mu}$ as $n\bar{x}\mu^{-1}$)} \\ &= \frac{\partial}{\partial \mu}\mathopen{}\left(-n\operatorname{log}\mathopen{}\left\{\mu\right\}\mathclose{}\right)\mathclose{} - \frac{\partial}{\partial \mu}\mathopen{}\left(n\bar{x}\mu^{-1}\right)\mathclose{} && \text{(linearity of differentiation)} \\ &= -n\frac{\partial}{\partial \mu}\operatorname{log}\mathopen{}\left\{\mu\right\}\mathclose{} - n\bar{x}\frac{\partial}{\partial \mu}\mu^{-1} && \text{(constant multiple rule)} \\ &= -n\mu^{-1} - n\bar{x}\frac{\partial}{\partial \mu}\mu^{-1} && \text{(derivative of $\log$)} \\ &= -n\mu^{-1} - n\bar{x}\mathopen{}\left(-\mu^{-2}\right)\mathclose{} && \text{(power rule)} \\ &= -n\mu^{-1} + n\bar{x}\mu^{-2} && \text{(multiply)} \\ &= -\frac{n}{\mu} + \frac{n\bar{x}}{\mu^2} && \text{(write the negative powers as fractions)} \\ &= -\frac{n\mu}{\mu^2} + \frac{n\bar{x}}{\mu^2} && \text{(write both terms over the common denominator)} \\ &= \frac{-n\mu+ n\bar{x}}{\mu^2} && \text{(combine the fractions)} \\ &= \frac{n\bar{x} - n\mu}{\mu^2} && \text{(reorder the numerator)} \\ &= \frac{n}{\mu^2}\mathopen{}\left(\bar{x} - \mu\right)\mathclose{} && \text{(factor out $\tfrac{n}{\mu^2}$)} \end{aligned} \]

(c)

Setting \(\ell'(\mu; \tilde{x}) = 0\):

\[ \begin{aligned} 0 &= \frac{n}{\mu^2}\mathopen{}\left(\bar{x} - \mu\right)\mathclose{} && \text{(score from (b))} \\ 0 &= \bar{x} - \mu && \text{(multiply both sides by $\tfrac{\mu^2}{n}$)} \\ \hat\mu_{ML} &= \bar{x} && \text{(add $\mu$ to both sides)} \end{aligned} \]

The second derivative is:

\[ \begin{aligned} \ell''(\mu; \tilde{x}) &= \frac{\partial}{\partial \mu}\mathopen{}\left(-\frac{n}{\mu} + \frac{n\bar{x}}{\mu^2}\right)\mathclose{} && \text{(score from (b))} \\ &= \frac{\partial}{\partial \mu}\mathopen{}\left(-n\mu^{-1} + n\bar{x}\mu^{-2}\right)\mathclose{} && \text{(write the fractions as negative powers)} \\ &= \frac{\partial}{\partial \mu}\mathopen{}\left(-n\mu^{-1}\right)\mathclose{} + \frac{\partial}{\partial \mu}\mathopen{}\left(n\bar{x}\mu^{-2}\right)\mathclose{} && \text{(linearity of differentiation)} \\ &= -n\frac{\partial}{\partial \mu}\mu^{-1} + n\bar{x}\frac{\partial}{\partial \mu}\mu^{-2} && \text{(constant multiple rule)} \\ &= -n\mathopen{}\left(-\mu^{-2}\right)\mathclose{} + n\bar{x}\frac{\partial}{\partial \mu}\mu^{-2} && \text{(power rule for $\mu^{-1}$)} \\ &= -n\mathopen{}\left(-\mu^{-2}\right)\mathclose{} + n\bar{x}\mathopen{}\left(-2\mu^{-3}\right)\mathclose{} && \text{(power rule for $\mu^{-2}$)} \\ &= n\mu^{-2} - 2n\bar{x}\mu^{-3} && \text{(multiply)} \\ &= \frac{n}{\mu^2} - \frac{2n\bar{x}}{\mu^3} && \text{(write the negative powers as fractions)} \end{aligned} \]

Evaluated at \(\hat\mu_{ML} = \bar{x}\):

\[ \begin{aligned} \ell''(\bar{x}; \tilde{x}) &= \frac{n}{\bar{x}^2} - \frac{2n\bar{x}}{\bar{x}^3} && \text{(second derivative at $\mu= \bar{x}$)} \\ &= \frac{n}{\bar{x}^2} - \frac{2n}{\bar{x}^2} && \text{(cancel one factor of $\bar{x}$)} \\ &= -\frac{n}{\bar{x}^2} && \text{(combine like terms)} \end{aligned} \]

Since \(n > 0\) and \(\bar{x}^2 > 0\), the second derivative is negative, so \(\hat\mu_{ML} = \bar{x}\) is a maximum.

(d)

The observed information is:

\[ \begin{aligned} I(\mu; \tilde{x}) &= -\ell''(\mu; \tilde{x}) && \text{(observed information is the negative Hessian)} \\ &= -\mathopen{}\left(\frac{n}{\mu^2} - \frac{2n\bar{x}}{\mu^3}\right)\mathclose{} && \text{(second derivative from (c))} \\ &= -\frac{n}{\mu^2} + \frac{2n\bar{x}}{\mu^3} && \text{(distribute the minus sign)} \\ &= \frac{2n\bar{x}}{\mu^3} - \frac{n}{\mu^2} && \text{(reorder the terms)} \end{aligned} \]

Evaluated at \(\hat\mu_{ML} = \bar{x}\):

\[ \begin{aligned} I(\hat\mu_{ML}; \tilde{x}) &= \frac{2n\bar{x}}{\bar{x}^3} - \frac{n}{\bar{x}^2} && \text{(observed information at $\mu= \bar{x}$)} \\ &= \frac{2n}{\bar{x}^2} - \frac{n}{\bar{x}^2} && \text{(cancel one factor of $\bar{x}$)} \\ &= \frac{n}{\bar{x}^2} && \text{(combine like terms)} \end{aligned} \]

So \(\operatorname{SE}\mathopen{}\left(\hat\mu_{ML}\right)\mathclose{} \approx \sqrt{I(\hat\mu_{ML}; \tilde{x})^{-1}} = \frac{\bar{x}}{\sqrt{n}}\).

An approximate 95% CI for \(\mu\) is:

\[ \hat\mu_{ML} \pm 1.96 \times \frac{\bar{x}}{\sqrt{n}} = \bar{x} \pm \frac{1.96\bar{x}}{\sqrt{n}} \]

Note: the exponential distribution has \(\operatorname{Var}\mathopen{}\left(X\right)\mathclose{} = \mu^2\), so \(\operatorname{SE}\mathopen{}\left(\hat\mu_{ML}\right)\mathclose{} = \mu/\sqrt{n}\), which is estimated by \(\bar{x}/\sqrt{n}\). More generally, the standard error of a sample mean is \(\operatorname{SD}\mathopen{}\left(X\right)\mathclose{}/\sqrt{n}\); here that reduces to \(\mu/\sqrt{n}\) because \(\operatorname{SD}\mathopen{}\left(X\right)\mathclose{} = \mu\) for the exponential distribution.

References

Casella, George, and Roger Berger. 2002. Statistical Inference. 2nd ed. Cengage Learning. https://www.cengage.com/c/statistical-inference-2e-casella-berger/9780534243128/.
Dobson, Annette J, and Adrian G Barnett. 2018. An Introduction to Generalized Linear Models. 4th ed. CRC press. https://doi.org/10.1201/9781315182780.
Dunn, Peter K, and Gordon K Smyth. 2018. Generalized Linear Models with Examples in R. Vol. 53. Springer. https://doi.org/10.1007/978-1-4419-0118-7.
Efron, Bradley, and David V Hinkley. 1978. “Assessing the Accuracy of the Maximum Likelihood Estimator: Observed Versus Expected Fisher Information.” Biometrika 65 (3): 457–83. https://doi.org/10.1093/biomet/65.3.457.
Hoenig, John M., and Dennis M. Heisey. 2001. “The Abuse of Power: The Pervasive Fallacy of Power Calculations for Data Analysis.” The American Statistician 55 (1): 19–24. https://doi.org/10.1198/000313001300339897.
Hogg, Robert V., Elliot A. Tanis, and Dale L. Zimmerman. 2019. Probability and Statistical Inference. Tenth edition. Pearson.
Hulley, Stephen, Deborah Grady, Trudy Bush, et al. 1998. “Randomized Trial of Estrogen Plus Progestin for Secondary Prevention of Coronary Heart Disease in Postmenopausal Women.” JAMA : The Journal of the American Medical Association (Chicago, IL) 280 (7): 605–13. https://doi.org/10.1001/jama.280.7.605.
Kleinbaum, David G, Lawrence L Kupper, Azhar Nizam, K Muller, and ES Rosenberg. 2014. Applied Regression Analysis and Other Multivariable Methods. 5th ed. Cengage Learning. https://www.cengage.com/c/applied-regression-analysis-and-other-multivariable-methods-5e-kleinbaum/9781285051086/.
Lehmann, E. L. 1999. Elements of Large-Sample Theory. Springer Texts in Statistics. Springer. https://doi.org/10.1007/b98855.
McLachlan, Geoffrey J, and Thriyambakam Krishnan. 2007. The EM Algorithm and Extensions. 2nd ed. John Wiley & Sons. https://doi.org/10.1002/9780470191613.
Newey, Whitney K, and Daniel McFadden. 1994. “Large Sample Estimation and Hypothesis Testing.” In Handbook of Econometrics, edited by Robert Engle and Dan McFadden, vol. 4. Elsevier. https://doi.org/10.1016/S1573-4412(05)80005-4.
Vittinghoff, Eric, David V Glidden, Stephen C Shiboski, and Charles E McCulloch. 2012. Regression Methods in Biostatistics: Linear, Logistic, Survival, and Repeated Measures Models. 2nd ed. Springer. https://doi.org/10.1007/978-1-4614-1353-0.
Wilks, Samuel S. 1938. “The Large-Sample Distribution of the Likelihood Ratio for Testing Composite Hypotheses.” The Annals of Mathematical Statistics 9 (1): 60–62. https://doi.org/10.1214/aoms/1177732360.
Wood, Simon N. 2017. Generalized Additive Models: An Introduction with r. 2nd ed. Chapman; Hall/CRC. https://doi.org/10.1201/9781315370279.
Back to top
