Chapter 7 — Moving Beyond Linearity

Introduction to Statistical Learning, 2nd ed.

Published

Last modified: 2026-09-29

Overview

Why move beyond a straight line

Linear regression is interpretable but rigid. Whenever the true relationship between \(Y\) and \(X\) has curvature or thresholds, a straight line trades bias for nothing in return. This chapter keeps the linear- model machinery (OLS, GLM, standard errors) but enriches the model class.

The toolkit

Polynomial regression — add powers of one predictor.
Step functions — chop a predictor into bins.
Regression splines — piecewise polynomials joined at knots.
Smoothing splines — penalise wiggliness directly.
Local regression — fit weighted regressions in moving neighbourhoods.
Generalized additive models (GAMs) — combine the above across many predictors.

Running example: `Wage`

A US labour-force survey with wage against age, year, education. Used throughout to make every method concrete.

from ISLP import load_data
Wage = load_data('Wage')
Wage[['age', 'year', 'education', 'wage']].head()

	age	year	education	wage
0	18	2006	1. < HS Grad	75.043154
1	24	2004	4. College Grad	70.476020
2	45	2003	3. Some College	130.982177
3	43	2003	4. College Grad	154.685293
4	50	2005	2. HS Grad	75.043154

library(ISLR2)
head(Wage[, c("age", "year", "education", "wage")])

Polynomial Regression

The model

Fit a degree-\(d\) polynomial in one predictor by treating powers of \(X\) as additional columns of the design matrix:

\[Y = \beta_0 + \beta_1 X + \beta_2 X^2 + \cdots + \beta_d X^d + \varepsilon\]

Still linear in the parameters, so OLS theory applies unchanged. The fitted curve is a smooth polynomial of degree \(d\); standard errors at any \(x_0\) come from the usual variance–covariance matrix of \(\hat{\boldsymbol\beta}\).

Choosing the degree

Visual: plot the fit at several degrees and pick by eye.
Hypothesis tests (orthogonal polynomials → independent t-tests, or nested-model ANOVA F-tests via anova_lm).
Cross-validation on test MSE (Chapter 5).

Code

import statsmodels.api as sm
from ISLP.models import poly, ModelSpec as MS

poly_age = MS([poly('age', degree=4)]).fit(Wage)
fit_poly = sm.OLS(Wage['wage'], poly_age.transform(Wage)).fit()
fit_poly.summary().tables[1]

	coef	std err	t	P>\|t\|	[0.025	0.975]
intercept	111.7036	0.729	153.283	0.000	110.275	113.132
poly(age, degree=4)[0]	447.0679	39.915	11.201	0.000	368.805	525.331
poly(age, degree=4)[1]	-478.3158	39.915	-11.983	0.000	-556.579	-400.053
poly(age, degree=4)[2]	125.5217	39.915	3.145	0.002	47.259	203.785
poly(age, degree=4)[3]	-77.9112	39.915	-1.952	0.051	-156.174	0.352

fit_poly <- lm(wage ~ poly(age, 4), data = Wage)
summary(fit_poly)$coefficients

In both languages poly(..., 4) produces a 4-column design matrix using orthogonal polynomials, so individual t-statistics are independent — convenient for choosing the degree.

Try it yourself — Exercises 1–8

From the Ch07 handout:

Exercise 1. Load the Wage data with load_data('Wage'); store the response as y and the predictor as age.
Exercise 2. Use poly() inside MS() to build a 4th-degree polynomial in age, fit OLS, print the coefficient summary.
Exercise 3. Build a grid age_grid of 100 evenly spaced values spanning observed age; wrap in a one-column DataFrame age_df.
Exercise 4. Write a helper plot_wage_fit(age_df, basis, title) that fits OLS on basis, evaluates it on age_df, and plots data + curve + 95 % bands.
Exercise 5. Use the helper to plot the degree-4 polynomial fit.
Exercise 6. Fit polynomial models of degrees 1–5 in age; pick a degree with anova_lm.
Exercise 7. Repeat the ANOVA with a linear education term alongside the polynomial in age.
Exercise 8. Fit a logistic GLM of wage > 250 on the 4th-degree polynomial basis; plot \(P(Y=1)\) vs. age with a rug plot.

Step Functions

The model

Cut \(X\) into \(K+1\) intervals at chosen breakpoints \(c_1 < c_2 < \cdots < c_K\) and fit a separate constant in each interval:

\[Y = \beta_0 + \beta_1 \mathbf 1(c_1 \le X < c_2) + \cdots + \beta_K \mathbf 1(c_K \le X) + \varepsilon\]

The model is piecewise constant — no smoothness across cutpoints. Useful for predictors with a known threshold (e.g. tax brackets) or as a baseline against fancier smoothers.

Code

import pandas as pd
cut_age = pd.qcut(Wage['age'], 4)
sm.OLS(Wage['wage'], pd.get_dummies(cut_age, dtype=float)).fit().params

(17.999, 33.75]     94.158392
(33.75, 42.0]      116.660810
(42.0, 51.0]       119.188665
(51.0, 80.0]       116.571716
dtype: float64

quartile_breaks <- quantile(Wage$age, probs = seq(0, 1, by = 0.25))
fit_step <- lm(
  wage ~ cut(age, breaks = quartile_breaks, include.lowest = TRUE),
  data = Wage
)
coef(fit_step)

pd.qcut(x, 4) splits at the 25 / 50 / 75 % quantiles, giving four roughly equal-sized bins. R’s cut(x, 4) instead divides the range of x into four equal-width intervals (which usually leaves the extreme bins much sparser); so the R panel above passes quantile-based breaks explicitly to match Python’s behaviour. In the Python fit each coefficient is the average wage in its bin (no intercept; cell-means parameterisation). The R fit uses the default treatment coding instead — the intercept is the mean of the first bin and the other three coefficients are differences from it.

Try it yourself — Exercise 9

From the Ch07 handout:

Exercise 9. Fit a step-function regression: discretise age into 4 quantile-based bins with pd.qcut(), build dummy columns with pd.get_dummies(), and fit OLS.

Basis Functions: A Common Framework

The pattern

Polynomial regression and step functions both replace the original \(X\) with a fixed family of basis functions \(b_1(X), b_2(X), \ldots, b_K(X)\) and fit OLS in the new design matrix:

\[Y = \beta_0 + \beta_1 b_1(X) + \cdots + \beta_K b_K(X) + \varepsilon\]

Polynomial: \(b_k(X) = X^k\).
Step: \(b_k(X) = \mathbf 1(c_k \le X < c_{k+1})\).

Regression splines use a smarter family — piecewise polynomials joined smoothly at knots — which makes a flexible, local fit possible without exploding the parameter count.

Regression Splines

Piecewise polynomials, smoothly joined

A cubic regression spline is piecewise cubic between knots, with the function value, first derivative, and second derivative continuous at each knot. The total number of free parameters is

\[\underbrace{(K + 3)}_{\text{degrees of freedom}} = (\text{knots}) + (\text{degree}) + 1,\]

equivalently the dimension of the cubic B-spline basis with \(K\) interior knots (no intercept).

Natural cubic splines

A natural cubic spline adds boundary constraints (linear beyond the extreme knots), which trims four parameters off a cubic spline and prevents the wild tail behaviour cubic splines display at the edges of the data. Almost always preferred to plain cubic splines when knots extend to the boundary of \(X\).

Choosing knots and degrees of freedom

Place knots at quantiles of \(X\) (uniform-by-density).
Specify degrees of freedom (e.g. df = 4); the basis constructor picks knot positions for you.
Compare a few df values by cross-validation if it matters.

Code

from ISLP.models import bs, ns

bs_age = MS([bs('age', df=6, name='bs(age)')])
sm.OLS(Wage['wage'], bs_age.fit_transform(Wage)).fit().params

intercept     56.313841
bs(age)[0]    27.824002
bs(age)[1]    54.062546
bs(age)[2]    65.828391
bs(age)[3]    55.812734
bs(age)[4]    72.131473
bs(age)[5]    14.750876
dtype: float64

library(splines)
fit_bs <- lm(wage ~ bs(age, df = 6), data = Wage)
coef(fit_bs)

For a natural spline replace bs(...) with ns(...) in either language — the rest of the workflow is identical.

Try it yourself — Exercises 10–14

From the Ch07 handout:

Exercise 10. Use BSpline() with internal_knots=[25, 40, 60] and intercept=True; check the shape of the design matrix.
Exercise 11. Fit a cubic spline regression with bs() inside MS(); pass name='bs(age)' for cleaner column labels.
Exercise 12. Ask BSpline for df=6; inspect internal_knots_ to see where knots ended up.
Exercise 13. Fit a degree-0 spline with df=3; compare its coefficients to the earlier qcut step function.
Exercise 14. Fit a natural cubic spline with df=5 via ns(); plot the fit with plot_wage_fit().

Smoothing Splines

The motivation

Regression splines need you to pick knots and degrees of freedom. A smoothing spline puts a knot at every observation and controls flexibility through a penalty on roughness:

\[\hat g = \arg\min_{g}\;\sum_{i=1}^n \bigl(y_i - g(x_i)\bigr)^2 \;+\; \lambda \int g''(t)^2\,\mathrm dt\]

\(\lambda = 0\) — interpolating, infinitely wiggly.
\(\lambda \to \infty\) — a straight-line OLS fit.
Intermediate \(\lambda\) — a smooth natural cubic spline.

Effective degrees of freedom

The fit \(\hat{\mathbf y} = \mathbf S_\lambda \mathbf y\) is linear in \(\mathbf y\) via a smoother matrix \(\mathbf S_\lambda\). Its trace gives the effective degrees of freedom:

\[\text{df}_\lambda = \operatorname{tr}(\mathbf S_\lambda).\]

A smoothing spline is often easier to think about by specifying \(\text{df}\) (e.g., “give me an age fit with df \(\approx 4\)”) and letting the software solve for \(\lambda\).

Code

from pygam import LinearGAM, s as s_gam
import numpy as np
X_age = np.asarray(Wage['age']).reshape(-1, 1)
gam_age = LinearGAM(s_gam(0, lam=0.6)).fit(X_age, Wage['wage'])

fit_ss <- smooth.spline(Wage$age, Wage$wage, df = 4)
fit_ss$lambda

smooth.spline in R finds \(\lambda\) for the requested df directly. In pygam you set \(\lambda\) (lam) explicitly or use ISLP.pygam.approx_lam to translate a desired df into a \(\lambda\).

Try it yourself — Exercises 15–19

From the Ch07 handout:

Exercise 15. Fit LinearGAM(s_gam(0, lam=0.6)) on age → wage (reshape age to a 2-D feature matrix).
Exercise 16. Loop lam over np.logspace(-2, 6, 5) and plot each resulting fit.
Exercise 17. Reproduce the loop and add a grid-search-optimal fit via .gridsearch(X_age, y) on top.
Exercise 18. Use approx_lam() to find a lam giving ≈ 4 effective degrees of freedom; verify with degrees_of_freedom().
Exercise 19. Loop df ∈ {1, 3, 4, 8, 15} (passing df + 1 to approx_lam for the intercept), refit, plot.

Local Regression

The idea

For each query point \(x_0\):

Pick a span (fraction of points to include in the neighbourhood).
Weight points in \(\mathcal N(x_0)\) by distance from \(x_0\) (e.g., tricubic weights).
Fit a weighted polynomial (typically degree 0, 1, or 2).
Predict \(\hat f(x_0)\) from that local model.

Repeat across \(x_0\) to get a smooth curve.

Span vs. smoothness

Small span — fewer neighbours, lower bias, higher variance.
Large span — more neighbours, higher bias, lower variance.

Choose by visual inspection or cross-validation. The fitted span has a similar role to \(\lambda\) in smoothing splines.

Code

lowess = sm.nonparametric.lowess
age_grid = np.linspace(Wage['age'].min(), Wage['age'].max(), 100)
fitted = lowess(Wage['wage'], Wage['age'], frac=0.3, xvals=age_grid)
fitted[:5]

array([60.37604029, 62.63015234, 64.87517017, 67.10922623, 69.33172967])

fit_loess <- loess(wage ~ age, data = Wage, span = 0.3)
predict(fit_loess, data.frame(age = seq(20, 80, length.out = 5)))

statsmodels.lowess and R’s loess use slightly different defaults (degree, weighting, robustness) but produce qualitatively similar fits.

Try it yourself — Exercise 32

From the Ch07 handout:

Exercise 32. Use sm.nonparametric.lowess to fit local linear regression models with spans of 0.2 and 0.5; plot them together. Note pygam does not support local-regression terms inside a GAM.

Generalized Additive Models (GAMs)

The model

Replace the linear sum with a sum of smooth functions, one per predictor:

\[Y = \alpha + f_1(X_1) + f_2(X_2) + \cdots + f_p(X_p) + \varepsilon\]

Each \(f_j\) can be a polynomial, a regression spline, a smoothing spline, or a step function — different methods can be mixed in the same model.
Coefficient interpretation becomes “effect of \(X_j\) on \(Y\), holding the other \(X\)’s at their mean”, visualised via partial dependence curves.

Strengths and limits

Strengths

Captures non-linear effects without giving up the additive interpretability.
Each \(f_j\) can be tested or constrained separately.
Inference and ANOVA against nested models works as it does for OLS.

Limits

Pure additive — no interactions unless you add them explicitly via \(f_{jk}(X_j, X_k)\) terms.
Effective df grows with the number of smooth terms.

Fitting a GAM with three predictors

from pygam import s as s_gam, f as f_gam, LinearGAM
X = np.column_stack([
    Wage['age'],
    Wage['year'],
    Wage['education'].cat.codes,
])
gam = LinearGAM(s_gam(0) + s_gam(1, n_splines=7) + f_gam(2, lam=0))
gam.fit(X, Wage['wage'])

LinearGAM(callbacks=[Deviance(), Diffs()], fit_intercept=True,
   max_iter=100, scale=None, terms=s(0) + s(1) + f(2) + intercept,
   tol=0.0001, verbose=False)

library(gam)
gam_fit <- gam(
  wage ~ s(age, df = 4) + s(year, df = 5) + education,
  data = Wage
)

s(...) in both languages is a smoothing-spline term; f_gam in pygam (or a plain factor in R) handles categorical predictors. The mgcv::gam package fits a different smoothness selection algorithm than gam::gam — both are common choices in R.

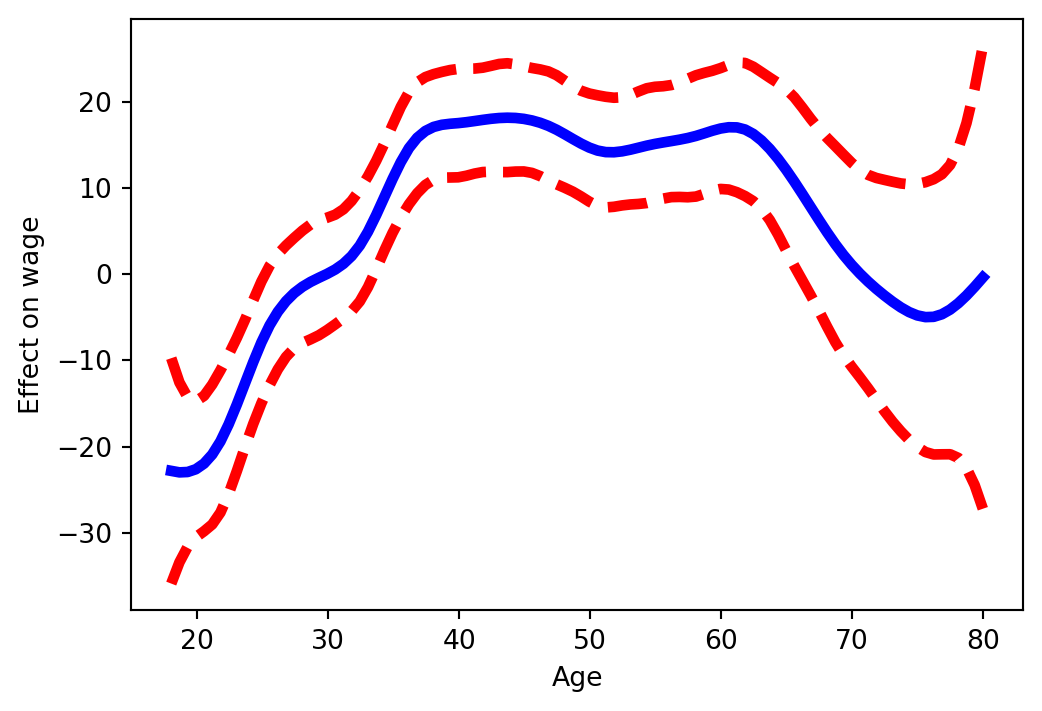

Partial dependence plots

Visualise the contribution of one predictor while the others are held at their mean (numeric) or summed out (categorical):

from ISLP.pygam import plot as plot_gam
import matplotlib.pyplot as plt
fig, ax = plt.subplots(figsize=(6, 4))
plot_gam(gam, 0, ax=ax)        # 0 = age
ax.set_xlabel("Age"); ax.set_ylabel("Effect on wage");

par(mfrow = c(1, 3))
plot(gam_fit, se = TRUE, col = "steelblue")

The shape of the partial dependence — flat / linear / hump-shaped / threshold — is what makes GAMs interpretable.

ANOVA-style model comparison

GAMs can be compared by nested ANOVA, just like OLS:

from pygam import l as l_gam
from ISLP.pygam import anova as anova_gam
# gam_no_year: drop year from the feature matrix entirely so the term
# index in the model spec lines up with the column index in X_no_yr.
X_no_yr = np.column_stack([Wage['age'], Wage['education'].cat.codes])
gam_no_year = LinearGAM(s_gam(0) + f_gam(1, lam=0)).fit(X_no_yr, Wage['wage'])
gam_lin_yr  = LinearGAM(s_gam(0) + l_gam(1, lam=0) + f_gam(2, lam=0)).fit(X, Wage['wage'])
anova_gam(gam_no_year, gam_lin_yr, gam)

	deviance	df	deviance_diff	df_diff	F	pvalue
0	105067.669012	2980.795583	NaN	NaN	NaN	NaN
1	104791.403410	2979.796561	276.265602	0.999023	7.863609	0.009898
2	104663.147348	2976.214249	128.256061	3.582312	1.018087	0.412203

gam_no_year <- gam(wage ~ s(age, df = 4) + education, data = Wage)
gam_lin_yr  <- gam(wage ~ s(age, df = 4) + year + education, data = Wage)
anova(gam_no_year, gam_lin_yr, gam_fit, test = "F")

GAMs for classification

For a binary outcome (\(Y \in \{0, 1\}\)) extend the additive model to a logistic link:

\[\log\frac{\Pr(Y = 1 \mid X)}{\Pr(Y = 0 \mid X)} = \alpha + \sum_{j=1}^p f_j(X_j)\]

from pygam import LogisticGAM, s as s_gam, f as f_gam
high_earn = (Wage['wage'] > 250).astype(int)
gam_logit = LogisticGAM(s_gam(0) + s_gam(1, n_splines=7) + f_gam(2, lam=0))
gam_logit.fit(X, high_earn)

LogisticGAM(callbacks=[Deviance(), Diffs(), Accuracy()],
   fit_intercept=True, max_iter=100,
   terms=s(0) + s(1) + f(2) + intercept, tol=0.0001, verbose=False)

gam_logit <- gam(
  I(wage > 250) ~ s(age, df = 4) + s(year, df = 5) + education,
  family = binomial,
  data = Wage
)

Try it yourself — Exercises 20–31

From the Ch07 handout:

Exercise 20. Build a GAM “by hand”: NaturalSpline(df=4) for age, df=5 for year, dummies for education; stack and fit OLS.
Exercise 21. Construct a partial-dependence plot for age from the by-hand GAM.
Exercise 22. Do the same for year.
Exercise 23. Fit the same model with smoothing splines via pygam: LinearGAM(s_gam(0) + s_gam(1, n_splines=7) + f_gam(2, lam=0)); plot the age partial dependence.
Exercise 24. Re-tune gam_full so age and year each have ≈ 4 df via approx_lam(..., df=4+1); re-plot.
Exercise 25. Plot the partial dependence for education (categorical term).
Exercise 26. ANOVA across three GAMs in year: excluded vs. linear vs. smooth. What do you conclude?
Exercise 27. Repeat the ANOVA for age.
Exercise 28. Print gam_full.summary() and call gam_full.predict() on the training set.
Exercise 29. Fit a logistic GAM for high_earn (i.e. wage > 250); plot the education partial dependence.
Exercise 30. Crosstab high_earn against education — what do you see?
Exercise 31. Refit the logistic GAM excluding the “< HS Grad” category; plot partial dependence for education, year, age.

Summary

Comparing the tools

Method	Smoothness	Knot choice	Parametric?	Interactions
Polynomial	High order ⇒ wiggly tails	None	Yes	Add product terms
Step	None at cutpoints	Manual	Yes	Cross-tabulate factors
Regression spline	\(C^2\) at knots	Manual or quantiles	Yes	Tensor product / `bs` interaction
Smoothing spline	Penalty-controlled	All points	Effectively no	Add tensor smooths
Local regression	Kernel-controlled	None	No	Multivariate kernel
GAM	Per-feature smooth	Per-feature	Hybrid	Add `f(X_j, X_k)` smooth

Take-aways

The methods sit on a spectrum from “rigid, interpretable” to “flexible, hard to read”. Choose by how much you care about each.
Splines (regression or smoothing) are the workhorse: smooth, local, and computable as standard OLS once a basis is fixed.
GAMs scale the same ideas to multiple predictors with additive, visualisable effects — the next step before tree-based or neural models.
Cross-validation (Chapter 5) is the impartial way to compare any of these against linear regression on a given problem.

What’s next

Chapter 8 — Tree-based methods: decision trees, bagging, random forests, boosting. Different flexibility–interpretability trade-off.
Chapter 10 — Deep learning: neural networks as another flexible function-fitter, with much higher capacity at the cost of opacity.

Other Formats

Overview

Why move beyond a straight line

The toolkit

Running example: Wage

Polynomial Regression

The model

Choosing the degree

Code

Try it yourself — Exercises 1–8

Step Functions

The model

Code

Try it yourself — Exercise 9

Basis Functions: A Common Framework

The pattern

Regression Splines

Piecewise polynomials, smoothly joined

Natural cubic splines

Choosing knots and degrees of freedom

Code

Try it yourself — Exercises 10–14

Smoothing Splines

The motivation

Effective degrees of freedom

Code

Try it yourself — Exercises 15–19

Local Regression

The idea

Span vs. smoothness

Code

Try it yourself — Exercise 32

Generalized Additive Models (GAMs)

The model

Strengths and limits

Fitting a GAM with three predictors

Partial dependence plots

ANOVA-style model comparison

GAMs for classification

Try it yourself — Exercises 20–31

Summary

Comparing the tools

Take-aways

What’s next

Running example: `Wage`
